Single-head welding machine

Urban AKS 1105

Year of construction: 2002, condition: good (used), Single-head welding machine URBAN AKS 1105, year 2002. Condition: very good Kdedpemqivwefx Aaysw

Condition: used, Forming area max. (length,width) / mm max. depth of product positive / mm max. depth of product negative / mm Technical specifications: Roll diameter approx. 420mm Projection in width approx. 415mm Kodewgi Siopfx Aayjdw Projection in height approx. 265mm Table size approx. 605 x 600 mm Belt speed 18 - 562 m/min. 8 levels Saw band length min./max. 3150 / 3260mm - Saw band speed over 4 gear stages and 2 engine speeds - Saw blade butt welder IDEAL BS 0-16 with scissors and whetstone - swiveling work table in 2 axes Dimensions: approx. L x W x H 950 mm x 750 mm x 1900 mm Weight 600kg with table feed Description has been adopted.

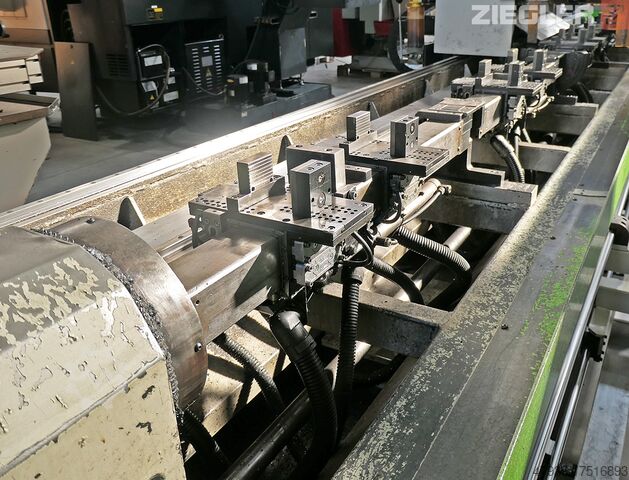

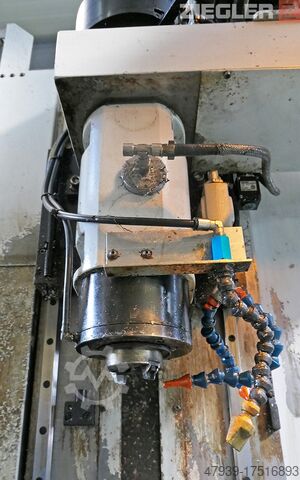

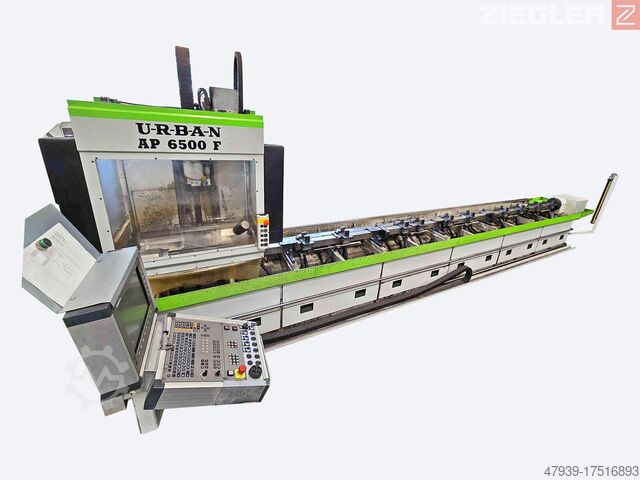

Condition: used, Year of construction: 2007, Urban AP 6500 F - travelling column milling machine - Heidenhain path control iTNC 530, control panel can be moved over the entire machining length - robust basic structure as a welded frame construction - ball rail guides on all axes - milling spindle unit: 80 - 6000 rpm, tool holder SK30 - X-axis with rack and pinion drive (30 m/min) - Y-/Z-axis with recirculating ball screw (20 m/min) - 6 chip drawers - swivel clamping device for 6200 mm workpiece length - 12 pneumatic workpiece clamps - manually operated central lubrication - moving plate tool changer for 8 tools - micro spray - cooling emulsion pump - machine light - safety fence - safety bumper - safety light grid - machine protection hood opens pneumatically vertically - control on: 33922 h - Program run: 9847 h Ksdpou Awm Sjfx Aayedw - Spindle on: 7221 h - Year of manufacture 2007 Technical data - Travel paths X/Y/Z: 6500 / 275 / 310 mm - Working area X/Y/Z with swivel device: 6200 / 155 / 110 mm - Rapid traverse X/Y/Z: 30 / 10 / 10 m/min - Continuous feed: 0 - 5000 mm/min - Tool change: Disc changer with 8 tool positions - Tool holder: SK30 - Tool clamping: pneumatic - Coolant system: Micro-spray for flow drilling, cooling emulsion - Spindle speed: 80 - 6000 rpm - Speed correction: 80 - 120 % - Drilling capacity in St60/Alu Ø: up to 18 / 20 mm - Thread cutting capacity: up to M14 / M16 - Position measuring system: rotary encoder - Positioning accuracy: 0.05 mm - Repeatability: 0.025 mm - Machining accuracy tolerance: ± 0.2 mm - Compressed air connection: R 3/8" / 6 bar - Device connection: R 1/4" - Operating pressure: approx. 6 bar - Air consumption per cycle: approx. 600 l/min at 6 bar - Noise emission: 79 dBA - Motor power: 15 kW - Electrical connection: 3x 400 V ± 5% / 50-60 Hz - Pre-fuse: max. 25 A - Power consumption: approx. 13 kVA - Control voltage: 24 V DC - Space requirement with safety fence: approx. 34 m² (11.4 x 3 m) - Machine weight with accessories: approx. 5000 kg

Condition: used, Year of construction: 1992, machine/vehicle number: 38032, Single head welding machine Kdjdpjrccagjfx Aayjw
