Cnc lathe

VDF WOHLENBERG SP 1120x18000

Year of construction: 1998, condition: good (used), Make: UNION Type: Ti 1800 Year: 1998 Nsdpskwcdbofx Ab Ijkt Specifications Metric US Standard Table Length 2000 mm Table Width 1800 mm Table load 16000 Movement V-axis 1250 mm Rotation B-Axis 360.000 ° Rotation speed B-Axis 1,35 Omw/min. Movement speed V-axis 4000 mm/min. Dimensions (Estimate) Length 3400 mm Width 2000 mm Height 920 mm Weight 6500 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 1987, pressure / t stroke / mm table-size / mm weight of the machine ca. 65000 kg Make: Shepherd Nkodpfx Aeuddcaob Ijt Type: SVRM 4-roller bending machine: Year of construction: 1986 Working width: 3000cm Smallest pipe diameter with 600 mm roller: Ø 720 mm Smallest tube diameter with 360 mm roller: Ø 460 mm Sheet thickness up to (depending on the material): 50 mm Material SA- 738 B Working width: 2500 mm Material SA- 738 B Material thickness: 35 mm conical bending: Except for the top roller, all rollers can be moved in an inclined position for conical bending. The roller positions can be read on display instruments. For semi-automatic or fully automatic operation of the machine, the bearing jewels of the rollers are equipped with scale bars and slide cams for limit switch actuation. This allows the rollers to return to the same set position over and over again, giving a very high level of uniformity in the shot wefts being bent.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2011, overall weight: 7,970 kg, total height: 1,290 mm, total length: 14,250 mm, total width: 3,924 mm, load capacity: 15,000 kg, main lifting speed: 3 mm/min, working height: 6 mm, Equipment: documentation/manual, Overhead Crane Konecranes – Type: double girder – Capacity: 15 tons – Lifting height: 6 m – Year of manufacture: 2011 – FEM / ISO hoist: M5 – Hoist type: wire rope hoist Dimensions – Span: 14,250 mm center-to-center – Wheelbase width (incl. buffers): 3,924 mm – Wheel distance: 3,150 mm – Installation height: 1,290 mm – Total weight: 7,970 kg – Suitable for crane rail: 50 x 30 mm Speeds – Hoisting: 2.5/0.42 m/min – Trolley travel: 20/5 m/min – Crane travel: 32/5 m/min Features – Operation: radio remote control + wired pendant control – Crane documentation included: yes Nkodpfx Abox Nw U Rj Ist – Electrical diagrams available: yes – Condition: hardly used, approx. 100 operating hours, in excellent condition – Last inspection: 2/2025 – Dismantled: yes, immediately available – Other features: Ex certification, ex-Gasunie property.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1995, overall weight: 11,950 kg, total length: 14,870 mm, total width: 4,500 mm, load capacity: 32,000 kg, main lifting speed: 3 mm/min, working height: 8 mm, Equipment: documentation/manual, Overhead Crane Konecranes – Type: double girder – Capacity: 32 tons – Lifting height: 7.8 m Nsdpfsx Nw Udox Ab Iskt – Year of manufacture: 1995 – FEM / ISO hoist classification: 3M/M6 – Hoist type: wire rope hoist – Hoist model: XL7012N506DC Dimensions – Span: 14,870 mm c/c – Wheel set width (incl. buffers): n/a – Wheelbase: 4,200 mm – Headroom: n/a – Suitable for crane rail: 80×60 / A65 / 60×40 mm – Weight: 11,950 kg Speeds – Hoisting: 3.2/0.5 m/min – Trolley travel: 6/3 m/min – Crane travel: 0-6 m/min Features – Control: radio remote control – Crane book included: yes – Electrical diagrams included: yes – Condition: in very good condition, little used – Dismantled: yes, available immediately – Additional notes: previously used in a plant manufacturing radioactive fuel elements. Only in use for a few years.

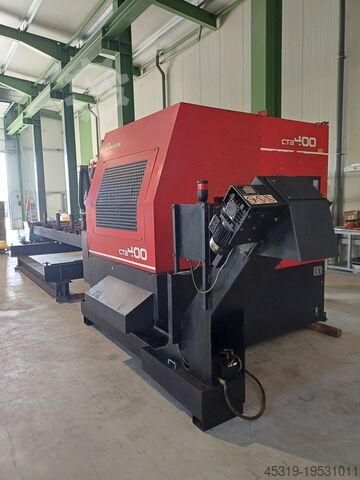

Condition: good (used), functionality: fully functional, We are selling a used Amada CTB 400 (carbide-capable bandsaw) with 3m powered roller conveyor and 6m outfeed roller conveyor. Technical specifications: - Cutting capacity round: 430 mm - Cutting capacity square: 430 x 430 mm - Cut-off length: 5 - 9999 mm - Bandsaw motor power: 7.5 kW - Total power: approx. 10 kW - Saw blade dimension: 4715 x 41 x 1.3 mm (suitable for carbide) Nkodpfjwybkdsx Ab Iot - Variable blade speed: 15 - 150 m/min - Feed length: 10 - 9999 mm - Minimum remnant length: 15 mm - Dimensions (W x D x H): 2630 x 2740 x 2422 mm - Weight: approx. 4500 kg CNC control: Speed / Power Material / Cross-section Parallelism display Automatic parameter correction
