Lathe

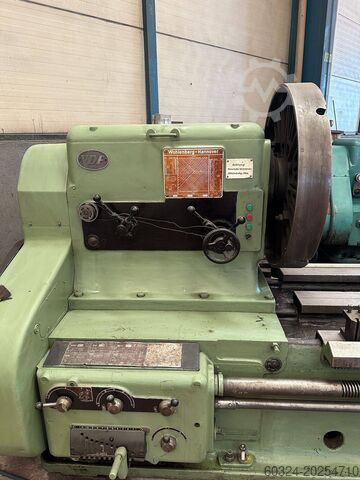

VDF WOHLENBERG VDF

Condition: used, Year of construction: 1971, hobbing length 1750 mm milling width 260 mm max. module 10 mm table size incl. water gutter 460 x 2100 mm table clamping surface: 250 x 1850 mm cutter width - max. 100 mm feed of the milling slide, stepless 0 - 500 mm/min. rapid traverse feeds 3000 mm/min milling head -swivable +/- 30 ° Rotation speed range of milling head, in 9 steps 29 - 178 rpm Milling head swivable 2 sides helical gearcutting 30 ° weight of the machine ca. 4 t dimensions of the machine ca. 4 x 1,85 x 1,85 m Equipment/accessories - 7 vices Nsdpfjvu E Spjx Ah Doli - change wheels - Clamping devices - Documentation

Condition: used, Year of construction: 2001, tip circle diameter 1000 mm root circle diameter 50 mm max. module 18 mm min. module 1 mm max. wheel diameter 1000 mm gear width 630 mm Profile height max. 41 mm helical angle (left/right) max. 45 ° table diameter 720 mm Nljdpowp S Thjfx Ah Doi max. table load 1500 kg grinding wheel diam. min/max. 180 / 400 mm grinding wheel width 60 (45/30) mm grinding spindle speed 0 - 3100 U/min total connected load 30 kVa

Condition: used, Year of construction: 2008, max. wheel diameter 900 mm gear width 450 mm max. module 10 min. module 1 min. number of teeth 8 milling cutter dia. x width 192 x 215 mm distance table / middle of spindle 910 / 630 mm distance bet. workpiece spdl. ctr-milling sp. 50 / 550 shifting 200 mm Nedpowzmp Uofx Ah Djli swivelling of milling head 240 Grad table diameter 700 mm table bore diameter 160 mm milling head speed 25 - 160 U/min total power requirement 21 kW change gears, arbors, shifting, 2-cut circle, chip conveyor, outer steady # with crowning device # in excellent working condition

Condition: used, Year of construction: 1998, x-travel 6000 mm y-travel 4000 mm z-travel 1250 mm w-axis 1500 mm Control Fidia max. workpiece weight 60000 kg Control unit for tool magazine/tool changer Siemens turning speeds 6,3 - 4000 U/min surface area 2500 x 4500 mm 48 St. tool taper SK50 daylight between the side columns 3700 mm rapid traverse 30000 m/min total power requirement 63 kW weight of the machine ca. 150 t Nljdpsu I E Emefx Ah Dsi required space 16,8 x 10,3 x 7,9 m

Condition: ready for operation (used), Year of construction: 1986, overall weight: 4,700 kg, Equipment: documentation/manual, type plate available, Kesel Rack Milling Machine Type L79/2100 with Milling Head Type F55 Year: 1986 Machine No.: 3031 Infinitely variable milling head speed: 0-210 rpm, drive power: 18.5 kW Max. module: 12, max. cutter diameter: 250 mm Clamping/milling length (X-axis): 2100 mm, helix angle: ±30°, cutter feed travel (Z-axis): 370 mm, infeed (Y-axis): 250 mm, milling head swivel: ±30°, max. workpiece width (machining width): 280 mm Milling feed: 10-350 mm/min, rapid return: 5,000 mm/min, table feed max. 3,000 mm/min Cam control, second increased feed rate via cam, hydraulic clamping device with 10 clamping jaws, max. clamping force: 7,500 daN, hydraulic clamping stroke: 7 mm, clamping width: 190 mm Coolant unit with permanent magnet chip conveyor Heidenhain 2-axis position measuring system Machine weight approx. 4,700 kg Milling machine – Milling length 2100 mm with F55 milling head Infinitely adjustable from 0 – 210 min⁻¹ Drive power 18.5 kW Feed rate max. 500 mm/min, specially controlled via cam for skip feed with 2 shafts – second feed speed Magnetic chip conveyor with chip container and coolant system Hydraulic clamping device with special clamping bars for clamping 2 shafts Milling head with 9-step gear for cutter speeds from 44-296 min⁻¹ Height-adjustable and swiveling milling head Nedpfx Ahsw Rnz No Deli Table guide with steel telescopic cover Automatic hydraulic table clamping Coolant system with chip collection trays Central lubrication system for supplying oil to guides, spindles, and bearing point. Automatic with adjustable timer Digital display for X and Y axes Hydraulic clamping for Y-gib Swiveling control panel Swiveling feed slide for helical gearing 30° left/right Heidenhain TNC151 path control Length measuring systems – milling head clamping is hydraulic Inspection under power is possible by appointment. All technical data subject to errors and omissions. Price on request Sale exclusively to EU countries.

Condition: excellent (used), Year of construction: 2013, turning height: 2,150 mm, turning diameter: 2,000 mm, Swing diameter 2,000 mm, turning height 2,150 mm, X-axis 1,150 mm, rotary table diameter 1,800 mm, chip conveyor, 25-position tool changer, fleece filter cleaning system, Nodpfx Ahjw Edvyo Dsli

Condition: excellent (used), functionality: fully functional, turning diameter: 1,000 mm, turning length: 8,000 mm, total length: 10,500 mm, A used lathe from the Italian manufacturer Leopolod Pontiggia, model NH 500, is for sale. Technical specifications: Turning diameter over bed: 1,000 mm Turning length: 8,000 mm Extensive equipment as in the photos: 1 x 3-jaw chuck 1 x 4-jaw chuck Nlodpfxev Epigs Ah Dji 1 x steady rest + various adapters

Condition: good (used), Faceplate: 3600 mm Turning diameter: 4000 mm Max. height under crossbeam: 2950 mm Vertical ram travel: 1750 mm Horizontal ram travel: 2255 mm Nsdpfjwf Iwujx Ah Djli Scale Chip conveyor

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, VERTICAL FULLY HYDROSTATIC HEAVY TURNING AND MILLING MACHINING CENTER Brand: Made in EU / YOM: 2012, Start-up: Mid 2013 The machine can be inspected by appointment under power. Condition: Ready for operation, fully functional. TECHNICAL SPECIFICATIONS: Travels: * Faceplate diameter: 6.000 mm * Turning diameter max.: 8.000 mm * Table load: 100 tons * Slide horizontal travel (Z-axis): 4.800 mm * RAM vertical travel (Z-axis): 2.500 mm The RAM is equipped with a head and an integrated milling spindle line, which enables turning, boring, grinding and milling. * Turning height max.: 5.000 mm Travel of the cross beam on the columns (W-axis): 4.000 mm * Main spindle torque motor: 150 kW * Second RAM for turning operations with vertical travel: 2.500 mm Nlsdpfexa E Dxex Ah Dsi EQUIPMENT extensive, including: * CNC Control: Siemens 840 SL (Solution Line) * Hydrostatic system * Tool magazine: 24 positions and 2 head positions * CE marking * Documentation complete Detailed technical data sheet and information on equipment available on request. There is no guarantee for correctness and completeness of the technical details and accessories. - Subject to prior sale -

Year of construction: 1983, condition: good (used), Machine number: 316204/22 Type / Model: FSS 315/E Travel x-y-z: 850 - 280 - 355 mm table: 1.200 x 370 mm clamping surface: 1.060 x 260 mm Speed range: 28 to 1,400 rpm Nledofli Afjpfx Ah Dji spindle mount: SK 50 quill stroke: 80 mm Feed rates x and y axis 16 to 800 mm/min feed z-axis: 5 to 250 mm/min Connection: 8 kW Accessories/equipment: Swivel head; condition: good Weight: 4 t Dimensions: 2.000 x 2.000 x 2.400 mm
