Single shaft shredder

Vecoplan VAZ 120/105-U

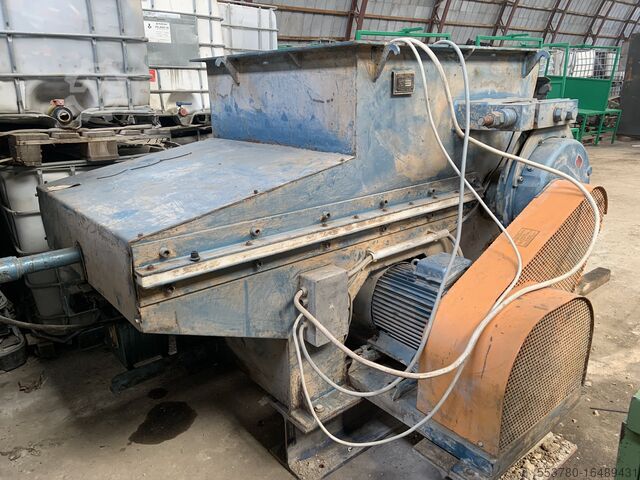

VECOPLAN VAZ 120/105-U Waste Crusher
For shredding particleboard and solid wood waste,
drive power 18.5 kW,
throughput 1000 kg/h
for chipboard waste, 350 kg/h
Cedpfx Ast Dh T Dobwshc
for solid wood waste,
screen diameter 25 mm,
rotor diameter 235 mm (circle), width 1070 mm, 120 rpm,
feed unit : Sectional steel construction , driven by hydraulic cylinders, in plastic guide rails, laterally with rollers, main drive E-motor with turbo coupling, V-belt drive, 2-stage helical gearbox,
motor rated power 18.5 kW,
rated current 36.5 A, 1455 rpm, 400 V, 50 Hz,
Degree of protection IP 54, Type B 3,
V-belt pulley Turbo clutch D 1 = 200 mm,
V-belt pulley Drive D 2 = 200 mm,
Number of V-belts Z = 3 pieces,
V-belt Effective length LW = 1900 mm,
centre distance ENOM = 635.84 mm,
Door length L = 635.84 mm,
impression depth EA = 23.35 mm,
test force per V-belt F = 75?,
Turbo coupling: hydrodynamic coupling, load-free starting of
the electric motor, overload protection, hydraulic ic unit: Compact
unit with 2 operating speeds,
drive power 1.0 / 1.4 kW,
drive pressure max. up to 180 bar,
extraction nozzle: minimum air velocity V = 28 m/s,
inlet length 1200 mm, inlet width 1050 mm,
waste shredder with universal rotor- dimensions in mm: approx. 6500 x 2700 x 3600,

weight in kg: approx. 2300,

Machine quality: fully operational after maintenance.

year of construction: 1991

The listing was translated automatically. Translation errors are possible.
