Water softening plant

Veolia

Condition: good (used), Year of construction: 2015, functionality: fully functional, Equipment: documentation/manual, Vacuum evaporator-concentrator for for the treatment of water-based liquids and effluents by low-temperature evaporation, forced circulation and external heat exchangers. Maximum nominal distillate production: 20,000 litres/24 h (834 l/h, ±10%). Boiler working volume: 1,540 litres. Approximate evaporation temperature: 30–60°C. Operating vacuum: 4–18 kPa absolute. Electrical supply: 400 V, three-phase, 50 Hz. Electrical power consumption: 13 kW. Rated current: 29 A. Specific electrical consumption: 16 Wh/l ±10%. Required thermal power: 593 kW. Hot-water inlet temperature: 80–90°C. Cooling-water inlet temperature: 10–30°C. Compressed-air pressure: up to 8 bar. Approximate empty weight: 2,550 kg; maximum operating weight: 4,500 kg. Approximate transport dimensions: 4,850 × 2,000 × 2,760 mm. Main construction in stainless steel. Equipped with an evaporation chamber, liquid-ring vacuum pump, circulation pump, heating heat exchanger, condenser, distillate tank and discharge pump, pneumatic valves, PLC, touchscreen and instrumentation for level, pressure, temperature and flow measurement. Maximum permissible concentrate density: 1.3 kg/dm³. Maximum viscosity: 10 cP. Maximum recommended particle size: 800 microns. Maximum inlet-liquid temperature: 70°C. Noise emission below 80 dB(A). Not suitable for flammable, explosive, radioactive or chemically incompatible liquids. Hsdpfx Abjzvdfto Tet

Condition: good (used), Year of construction: 2015, functionality: fully functional, Reverse Osmosis Plant for ethylene glycol recovery, with a 12 m³ raw-water storage and homogenisation tank, nominal feed flow rate of 4 m³/h at 4 bar and filter backwash flow rate of 11 m³/h at 1.5 bar. Includes an automatic downflow multimedia filter with anthracite and sand beds supported on gravel, designed to remove suspended particles and protect the membranes. Compact skid-mounted reverse osmosis unit with two-stage filtration using replaceable 20- and 5-micron cartridges, a variable-speed high-pressure pump and a two-stage (1+1) × 6 reverse osmosis membrane configuration. Equipped with 8-inch DOW spiral-wound aromatic polyamide membranes installed in GRP pressure vessels rated up to 1,000 psi. Nominal recovery rate: 90%, equivalent to a theoretical permeate production of approximately 3.6 m³/h under design conditions. Low- and high-pressure piping and interconnections manufactured from AISI 316L stainless steel. Includes recirculation, front and side permeate collection, a CIP chemical cleaning system, membrane flushing, a GRP solution-preparation tank, a 25-micron mesh microfilter and a delivery pump for cleaning solutions and permeate water. Automated control system based on a Siemens S7-200 PLC, providing measurement and control of flow rates, temperature, pressures, pressure drops, operating times, pumping, backwashing, flushing and process alarms. Operator panel with a 6-inch colour touchscreen for parameter display and configuration, start/stop control, filter washing, alarm monitoring and trend graphs. Includes a 2 m³ reverse osmosis reject-water tank for subsequent transfer to the evaporator. Serial No.: MPP51525. Hsdpezvddcefx Ab Tot

Condition: like new (used), Year of construction: 2021, functionality: fully functional, Veolia Waste Water Treatment Spare Parts Package (Unused 2021) 2 x Alfa Laval Aldec 45 centrifuge (decanter) Process Application description: IW - waste water Process description: MUE, Biological sludge dewatering Max. density of compact wet cake: 1.3kg/dm3 at max. 4200rpm Bowl Maximum main speed:4200rpm Bowl diameter: 360mm DNF unit - upper tank - PPM 200CE - A DNF unit - upper tank - PPM 200CE - B 4x filter for Mn removal 3x reverse osmosis (RO) skid Hodpfx Ajzb N Hheb Tjt 3x powder activated carbon (PAC) dosing unit - Rittal JB 2x DNF unit - poseipump unit 3x unit blower ES145/5P-RVP300-spec 6x front filter Mn removal 2x DNF unit - recirculation pipe Spare parts can be seen in the asset list upon request. Please note pictures are representative and not of actual items Note: Sales are conditional upon the satisfactory completion within 24 hours of conditional sale of a Business Partner Due Diligence Check (BPDDC) and an End User Statement for (EUS) by the buyer, and, if the buyer is not the end user, for each end user.

Condition: new, Year of construction: 2010, functionality: fully functional, new, unused water treatment system (new in the original packaging) VEOLIA MIDI-RO 10-750-EP year of manufacture 2010 500 liters/hour Hodpfx Aszdri Nsb Tst energy-efficient reverse osmosis system

Condition: used, Year of construction: 2016, Water treatment plant with semi-permeable membrane modules for desalinating pre-treated water. Reverse osmosis takes place via a two-stage process consisting of two pressure pipes, each with two membrane modules. The plant consists of: - Two pressure pipes, each with two membrane modules - Permeate blending and concentrate recirculation - Upstream fine filtration - Various sampling taps - Various measuring instruments for pressure, flow, temperature, conductivity and pH value - Flushing station with flushing tank and flushing pump - Chemical dosing stations for antiscalant and NaOH - High-pressure pump - Various automatic fittings - Control cabinet with touch display Additional title: Reverse osmosis for desalination of raw water Flow rate: 6000 l/h depending on the blending quantity Max. operating overpressure: 14 bar Recovery appr.: 82 % Hodpfxoyxnffs Ab Tst Water: 5-7 m3/h; 1-10 bar Operation / Control: Switch cabinet with touch display Features: 2 pressure pipes, each with 2 membrane modules; sampling taps; fine filters; flushing stations; chemical dosing stations; high-pressure pump; automatic fittings; measurements of pressure, flow, conductivity, temperature and pH value;

Condition: used, Year of construction: 2018, functionality: fully functional, input voltage: 230 V, type of input current: AC, pressure: 8.6 bar, temperature: 25 °C, operating pressure: 6 bar, We offer this used Veolia BerkeSOFT maxi 2-230 twin water treatment system, year of manufacture 2018. Pressure class PN: 8.6 bar Pressure vessel volume: 2×309 l Permissible operating temperature: 5–25 °C Protection class: IP 54 Operating range: 2.5–6 bar Nominal flow rate for single softening at Δp 1 bar: 10.2 m³/h Minimum–maximum flow rate total system: 2.1–19.0 m³/h Input voltage: 230 V AC Input frequency: 50 Hz Hodpfoyftp Usx Ab Tjt Input current: 0.35 A Output voltage: 15 V DC Output current: 1.2 A If you have any questions or require further information, please send us a message or call us.

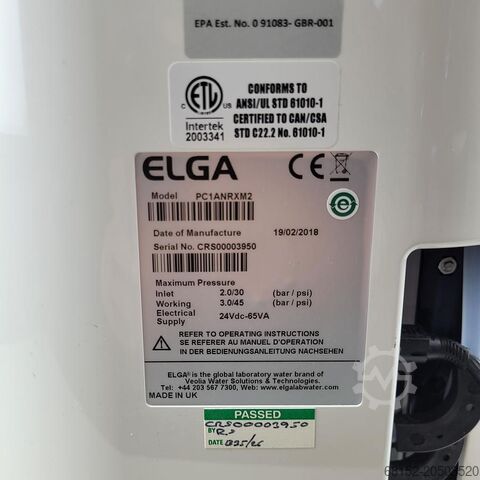

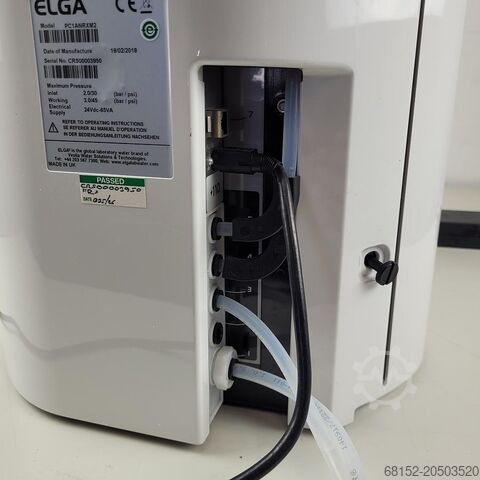

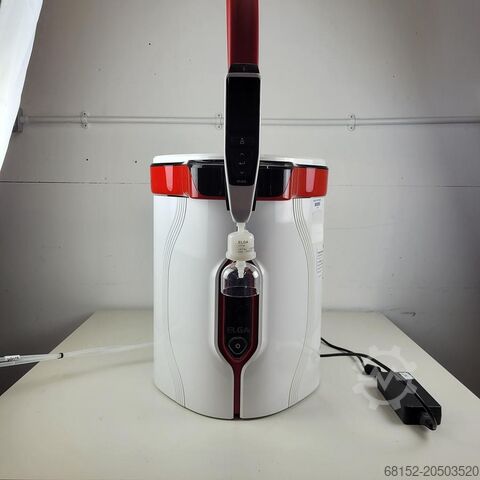

Condition: used, This listing is for the Veolia/Elga PC1ANRXM2 Purelab Chorus The unit is in full working condition and is ready for immediate release The Veolia ELGA PURELAB Chorus 1 Complete is a high-performance water purification system engineered for laboratories demanding the highest water purity. It is ideal for supporting analytical research, quality control (QC) testing, and pharmaceutical manufacturing processes, delivering reliable Type I ultrapure water. Key Specifications Water Quality: 18.2 MΩ·cm resistivity (Type I) Flow Rate: Up to 20 litres per hour Features: Advanced PureSure® deionization for consistent water quality Fully recirculating system to maintain microbial purity Real-time TOC monitoring to ensure organic purity Integrated filtration for endotoxins, proteins, particulates USB data capture for performance validation Optional ELGA Biofilter for biologically active impurities Hedpfx Aboxv A Uao Tot Cost-effective design supporting QC testing to validate drug purity in pharmaceutical manufacturing Consumables engineered to minimise cost and environmental waste Ideal Applications Analytical Research Life Sciences Pharmaceutical QC Testing Glassware Washing and Ultrapure Feed Systems
