Hot drilling rig

Vernet-Behringer MAG EVO 420 Plattenbearbeitungszentrum

Flame-cutting and drilling system
Plate processing center
Manufacturer: Vernet-Behringer
Type: MAG EVO 420
Year of manufacture: 2018
CNC control

Power source: Kjellberg HiFocus 360
Plasma cutting for material thickness: 5 to 50 mm
Spindle speed: 160 – 4,000 rpm
Automatic tool changer
Tool holder capacity: 14
Drive power: 16 kW

Drilling diameter: 5 - 40 mm
V-scoring for marking: 5 to 40 mm
Sheet metal dimensions min.: 1,500 x 300 mm
(750 x 400 mm with limitations)
Minimum dimensions of finished parts: 80 x 80 mm
Sheet metal weight max.: 2,600 kg and 650 kg/m

Infeed side:
Roller conveyor for flat steel or plates: 4,000 x 2,000 mm
Zero-point transverse conveyor
Number of carriages: 2 clamps
NC infeed carriage, positioned on the side
4 clamping jaws (2+2)
3 short-stroke transverse conveyors
Working height: 1,000 mm

Outfeed side:
Iaodpfx Asvzrczonweu
Outfeed roller conveyor with a lowerable discharge table with a chute leading into a material collection container for unloading small parts.

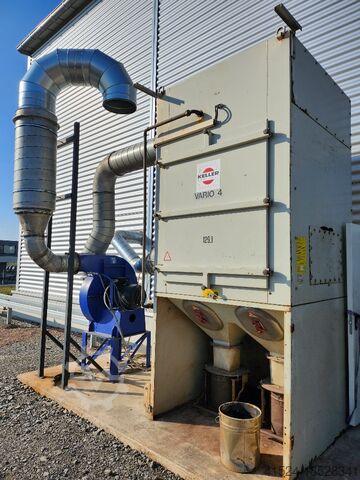

Filter unit including piping

High-performance for use with carbide tools.
For drilling, tapping, marking, milling, and plasma cutting of flat steel and sheets.

Software options for milling and scoring
LANTEK license
3626ä

Availability: Immediate!
