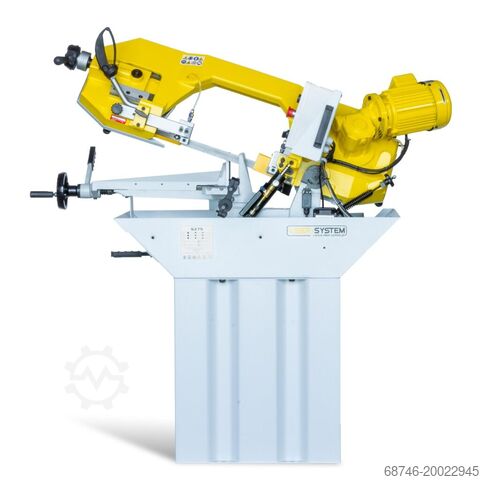

Band saw machineViber-System
S275
Machine data
- Machine type:
- Band saw machine
- Manufacturer:
- Viber-System
- Model:
- S275
- Year of construction:
- 2025
- Condition:
- new
Price & Location
- Location:
- ul. Walczaka 25, 66-400 Gorzów Wlkp., PL
Details about the offer
- Listing ID:
- A200-22945
- Update:
- 18.09.2025
Description
Motor
Type - 3-phase induction motor
Electrical connection - 400V 50/60Hz
Power supply: 400V (three-phase)
Protection - IP54
Power - 1.5 HP 1.1 kW
Rated current - 400V - 3.6 Amp
Speed (RPM) - 50Hz - 2840/1420
Gearbox
Transmission ratio - 50Hz - 1:30
Band saw
Saw blade dimensions - 2480x27x0.9x6-10mm
Blade guide wheel diameter - 293mm
Cjdpfxexdbzbe Abwshc
Saw blade speed - 50Hz - 45/90mm (m/min)
Cooling System Pump
Type – 230V 100W Pump
Rated Current – 0.3 (Amp)
Speed – 50Hz-2840 (rpm)
Tank Capacity – 10 liters
Mechanical Data
Dimensions with base – 1560x990x1665 (mm)
Dimensions without base – 1320x510x755 (mm)
Shipping Dimensions – 1380x570x890 (mm)
Weight – Net – 185 (kg) | Gross – 200 (kg)
Noise Level – 70 (dB)
Fuse – max. 16 (Amps)
Ambient Temperature – 5-35 (°C)
Ambient Humidity – 25-80%
General:
Cutting Angle Adjustment: Via Swivel Arm
Saw Blade Guides: Ball Bearing Guide Rollers
Saw Arm Lift: Manual
Feed: Continuously Adjustable
Saw Blade Tension: Manually via Handwheel
Band Guides with Bearings and Carbide Tiles
Height from Floor to Vice: 910 mm
