Multi boring machine

Vitap

Condition: used, machine/vehicle number: 007247, Maximum edge height: 3 mm Iajdpfet H Twysx Ahzew

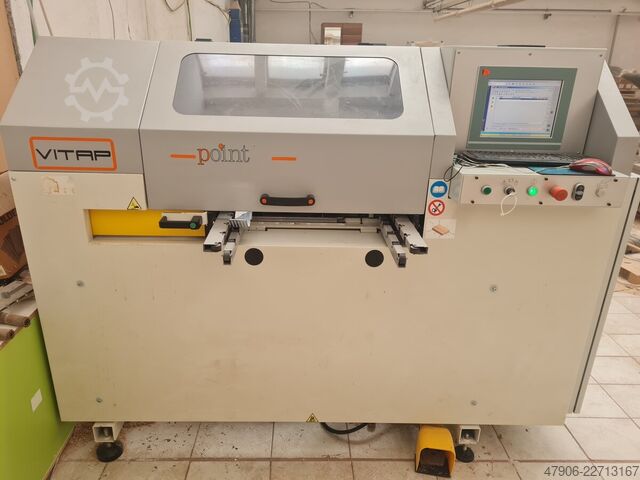

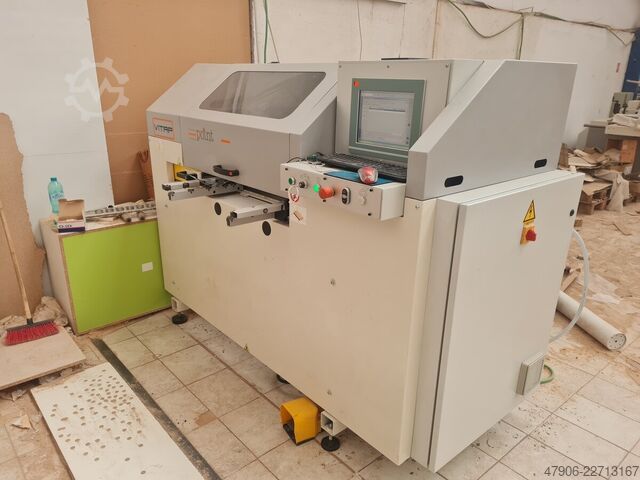

Condition: good (used), Year of construction: 2013, functionality: fully functional, input voltage: 400 V, type of input current: three-phase, workpiece width (max.): 920 mm, workpiece height (max.): 50 mm, number of axes: 3, actuation type: electric, overall weight: 820 kg, Equipment: CE marking, Drilling machine, compact CNC machining center Vitap Point 2, year 2013, machine is operational and ready for inspection. It has been with our company since new, operated on a single shift as an auxiliary machine, and has not been in use for the past 5 years. Comes with a new toothed drive belt installed, plus one spare. TECHNICAL SPECIFICATIONS Drilling and milling unit - Number of independent vertical spindles: 8 - Number of horizontal spindles on X axis: 4 - Number of horizontal spindles on Y axis: 2 - Saw unit – diameter: 100 mm - Milling head: 3.6 kW ISO 30 – 12,000/24,000 rpm - Spindle rotation speed: 3,600 rpm - Saw rotation speed: 7,000 rpm - Maximum horizontal drilling depth (X and Y axes): 30 mm - Maximum vertical drilling depth: 45 mm - Maximum horizontal tool diameter: 12 mm - Maximum vertical tool diameter: 35 mm - Number of controlled axes: 3 - Motor power: 1.5 kW Workpiece specifications - Maximum panel thickness: 50 mm - Maximum panel weight: 25 kg - Maximum panel size: X 1,100 mm, Y 50 mm - Minimum panel size: X 270 mm, Y 150 mm, Z 12 mm - Panel feed speed: 25 m/min Iaedpfxsy Nyqhe Ahzew MACHINE PARAMETERS Electrical data - Rated voltage: 400 V - Frequency: 50 Hz - Rated current: 21.1 A - Total power: 6.4 kW Air pressure: 7 bar Weight: approx. 715 kg

Condition: excellent (used), functionality: fully functional, number of spindles: 35 Iaodpfsw U Aiiox Ahzew pneumatic head inclination

Condition: used, Year of construction: 1998, 13 spindles at 32mm centres Approx 70mm max boring depth Spindle speed 2800mm 2.5hp motor Manual tilting of boring group from vertical to horizontal [can be locked at 45 degrees] Iaodpfx Ahezd Uu Ijzew

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 891149, 21 drilling spindles Spindle spacing 32mm Pneumatic clamps Possibility to drill vertically, horizontally and at an angle of 45 * Iajdpjzcg Ifjfx Ahzew Depth adjustment from 0 to 80 mm

Condition: ready for operation (used), Year of construction: 2018, number of axes: 3, spindle motor power: 5,000 W, spindle speed (max.): 24,000 rpm, This 3-axis VITAP Point K2 TOP 2.0 was manufactured in 2018. It features continuous machining with a maximum workpiece weight of 80 kg and dimensions of Y 1200 mm and Z 50 mm. The machine includes an automatic 4-station tool changer and a dual “0” reference laser for precise positioning. If you are looking to get high-quality CNC processing capabilities, consider the VITAP Point K2 TOP 2.0 machine we have for sale. Contact us for further details. • Condition: not rebuilt, without warranty • CE compliantMachining and axes • Continuous machining, machining from below, automatic return of workpiece to operator • 3 controlled axes: • X-axis: uninterrupted workpiece transport via DDT (Dual Dynamic Transport System) with brushless motor • Y-axis: drilling head travel • Z-axis: drilling • No workpiece length limitation • Rear workpiece exitReferencing and positioning • Dual “0” reference laser (transmitter/receiver) for start/end detection; compensates for dark-edged materials • Program readjustment for drilling from below for flushness on vertical/horizontal workpieces • Side stops with rollers (fixed and movable), mechanical digital readout, automatic alignment to 0-stop, removal up to 3 mm on the 0-line • Constant side clamping device for precise positioning on the 0-line • Adjustable zero point for 4-sided formattingTooling and heads • Automatic 4-station tool changer • 12 independent vertical spindles • Horizontal spindles: • X-axis: (2+2) • Y-axis: (2+2) • 1 saw (Ø 100 mm) • 5 kW electrospindle, ISO 30 taper, 12,000–24,000 rpm • Spindle speed (additional spec): 3500 rpm • Max vertical tool diameter: 35 mm • Max horizontal tool diameter: 12 mm • Max vertical drilling depth: 45 mm • Max horizontal drilling depth (X/Y): 30 mmCapacities • Max workpiece weight: 80 kg • Max workpiece size: X unlimited, Y 1200 mm, Z 50 mm • Min workpiece size: X 270 mm, Y 185 mm (70°), Z 4 mm • Feed rate: 25 m/minControl and software on machine • 19" 5/4 TFT LCD monitor • Industrial PC • WSC operator interface with Lister, parametric tooling, and parametric setup • CAD TPA EDI32 graphical programming, basic version • USB port • Saving of all files • Macro programming • Import of DXF filesUtilities and extraction interface • Dust extraction air volume: 2000 m³/h • Exhaust speed: 30 m/s • Exhaust ports: 2x Ø 100 mm + 1x Ø 50 mm • Motor: 1.7 kW • Compressed air: 7 bar • Max air consumption: 60 Nl/min • CE STANDARDS Additional equipment Iasdpoy Hrdzofx Ahzjw • Office software – License

Condition: good (used), Code: 0405 Brand: VITAP - ITALY Model: ALFA 21 Multiple boring machine for furniture, kitchens, custom furniture, bathroom furniture and various Iaedpfx Ajyrrhiohzow Technical data: N° 21 spindles - Centre distance mm 32 Max drilling depth mm 80 Table dimensions mm 860 x 500 Spindle rpm 2800 Motor power Hp 2,5 Tilting head 0-90° Operating pressure 6-8 atm Overall dimensions mm 950 x 800 x 1140 h Weight kg 300

Condition: good (used), Code: 0348 Brand: VITAP - ITALY Model: POINT K2 TOP - CE Standard CNC working centre for the precise and flexible drilling and milling of panels, furniture, custom-made furniture, kitchens, bathroom furniture and various – CE Standard – Year 2017 Iedjyzrxzopfx Ahzoaw Technical specifications: Compact machine Patented D.D.T. (double dynamic transport) system with continuous panel movement without any repositioning of the workpiece, using two clamps. Technical data: Panel dimensions: Min/max length 270/3000 mm Min/max width 180/1100 mm Max height 50 mm Horizontal panel feed on X-axis 25 mt/min Vertical feed on Z-axis 15 mt/min Horizontal feed on Y-axis 30 mt/min Drilling head: Motor 2 Hp 12 vertical spindles side 1 Z-axis 2 horizontal spindles side 4 Y-axis 2 horizontal spindles side 6 of the Y-axis 2 horizontal spindles side 3 X-axis 2 horizontal spindles side 5 X-axis Centre-to-centre distance between spindles 32 mm Max horizontal bit diameter 15 mm Max horizontal drilling depth 30 mm Max vertical drilling depth 55 mm Router unit: Motor power 5 Hp - 24.000 rpm Blade unit: Diameter mm 100 x 4 - 7.000 rpm TPA software Horizontal milling unit Infeed roller conveyor 800 x 600 mm Outfeed roller conveyor 800 x 600 mm Suction port diameter : 1 mm 50 - 2 mm 100 Compressed air 7 bar Overall dimensions mm 2530 x 1700 x 1900 h Weight kg 833

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 610203Z, overall weight: 295 kg, Vitap ALFA 21 Classic Multi-Spindle Boring Machine – 2016 Vitap ALFA 21 Classic semi-automatic multi-spindle boring machine manufactured in Italy. The machine is designed for precision line boring operations in furniture and cabinet production according to the 32 mm system. Suitable for vertical, horizontal, and angled drilling in chipboard, MDF, and solid wood components. The machine is in very good condition, fully functional, and ready for immediate operation. Features: Manufacturer: Vitap Model: ALFA 21 Classic Year: 2016 21 spindles 32 mm spindle spacing Pneumatic tilting boring head (0°–90°) Vertical and horizontal boring Foot pedal control Pneumatic material clamps Quick-change drill chucks Precision fences and stops Heavy-duty industrial construction Technical data: Number of spindles: 21 Distance between first and last spindle: 640 mm Spindle speed: 2800 rpm Max. drilling depth: 70–80 mm Max. tool diameter: Ø35 mm Table size: approx. 864 × 500 mm Motor power: 1.5 kW Power supply: 400V / 3 phase / 50 Hz Required air pressure: 6–8 bar Machine weight: approx. 295 kg Iedpjy Uwryefx Ahzjaw The machine can be inspected and tested while powered on.

Year of construction: 1999, condition: excellent (used), 21 drilling spindles Spindle spacing 32mm Pneumatic clamps Ijdpfoh Txmtjx Ahzeaw Possibility to drill vertically, horizontally and at an angle of 45 * Depth adjustment from 0 to 80 mm
