CNC Profile Drilling Machine

Voortman V600

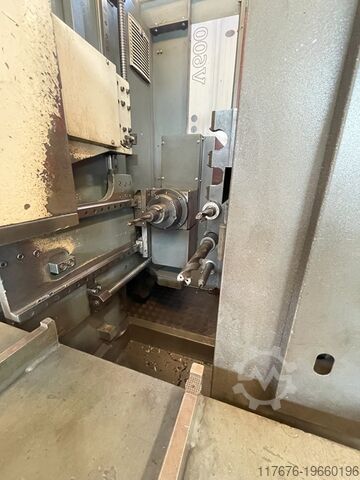

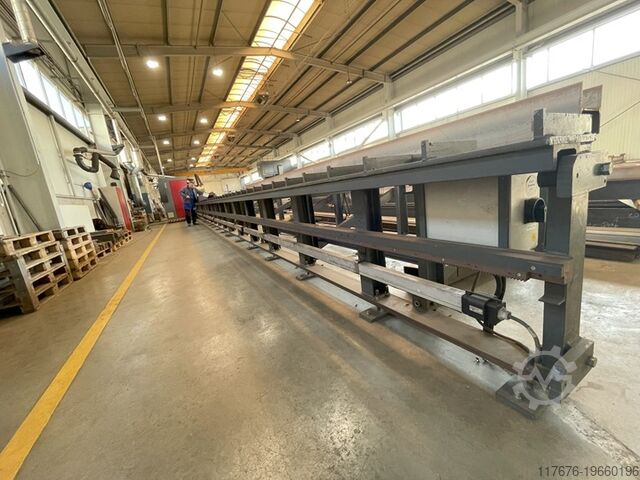

Condition: used, Year of construction: 2022, functionality: fully functional, spindle speed (max.): 2,500 rpm, table length: 10,000 mm, table width: 300 mm, table load: 4,000 kg, total length: 10,000 mm, rotational speed (max.): 2,500 rpm, drilling capacity: 40 mm, spindle motor power: 30,000 W, workpiece weight (max.): 4,000 kg, We are offering this used Voortman V600 precision drilling machine, year of manufacture 2022. VERY LOW USAGE – ONLY 1,838 OPERATING HOURS! Machine type: V600 Serial number: 20210153 Year of manufacture: 2022 Work table: 10 m (effective 8.2 m) Max. workpiece weight: 4,000 kg 6 support beams Working range: Profile height: 30 – 1,050 mm Max. working width: 1,800 mm Table width: 300 mm Drilling unit: Type: VD40 Power: 30 kW Spindle speed: 0 – 2,500 rpm Drilling diameter: 5 – 40 mm Thread cutting: M6 – M30 Equipment: 5-position automatic tool changer Automatic tool length measurement Isdpfoyyblhox Adkstg Laser material measuring system Hydraulic clamp for vibration elimination Tool cooling system (oil + air) 15” touchscreen control panel EtherCAT interface UPS (safe shutdown) Software: VACAM Machine Edition – machine control VACAM Office Edition – production preparation DSTV file import ERP / MRP / MIS integration Real-time production monitoring E-mail notifications Supported profiles: IPE, HE, IPN UNP Angle profiles Flat bars Square tubes T-beams American profiles (W) If you have any questions or require additional information, please send us a message or call us.

Condition: new, capacity 90 degrees: round 305 mm capacity 90 degrees: square 260 mm 350x200 saw band length 3375x27x0,9 mm band speed 18 - 100 m/min table height 880 mm total power requirement 1,5/1,8 kW weight of the machine ca. 0,84 t dimensions of the machine ca. 1,85 x 1,9 x 2,0 m Demonstration system for a SPECIAL PRICE!! Fully automatic miter band saw • miter left 45° automatic operation • miter left 60° semi-automatic operation (cuts without programming) • Material height sensor (automatic cut start recognition) • Frame and gear made from one piece, very quiet cut and very low vibration • Removable chip tray (disinfection) • Shockproof and ergonomic control panel with oil-resistant EPDM cover • Top access to the saw, material and feed unit • Hinged safety cover • Fine feed adjustment • Semi-auto. Cut! • Optimize work processes with CNC control Possibility to enter various parameters such as quantities and material lengths, automatic calculation of the cutting channel • CNC control for 10 different saw programs with 99 sub-programs for Iedpfx Adjupw R Ajkstg different lengths and quantities, e.g. 1 cutting program with various section lengths • Automatic feed unit (CNC) via ball roller spindle incremental feed with automatic length compensation. Adjustable for section lengths of 2 mm to 9,999 mm, remainder length 170 mm. Inclusive: - Micro-spray device - Leveling elements

Condition: excellent (used), Year of construction: 2009, Year 2009 VOORTMAN V600 CNC SINGLE SPINDLE DRILLING MACHINE with 5 station automatic tool changer. Iodpfxsw D Uqfe Adkotg 18 metres length, drilling capability 16.3 metres. Profile Capacity 35mm -1050mm. Drill capacity 8mm-40mm.

Year of construction: 2007, condition: good (used), ■ V600 Drilling machine (moveable drilling cabinet, executed with 1 horizontal drilling unit and automatic tool changer) ■ Drilling table with power rail length 15 metres, effective length 12 metres ■ Hardware and software (includes VACON 110 machine control) Itjdpeq Hgg Uefx Adkog ■ Safety devices (safety bumpers) ■ Year of construction 2007

Condition: used, Year of construction: 2003, CNC machining center, universal Manufacturer: AXA Type: VPC 40 U Year of manufacture: 2003 CNC control: Heidenhain TNC 430 Travel ranges: X/Y/Z = 2,300 x 1,200 x 600 mm NC rotary table dimensions: 1,100 x 1,100 mm Fixed table dimensions: 1,100 x 1,100 mm Tool interface: SK40 Tool magazine: 60 positions Spindle speed: 10,000 rpm Iodowwt Nmspfx Adkstg Weight: approx. 20 tons 19526ä

Condition: new, Year of construction: 2024, power: 20 kW (27.19 HP), We convert your machine from CO2 laser to fiber laser Itsdpfx Adonkaqljksg

Year of construction: 1994, condition: ready for operation (used), A CNC universal tool milling and drilling machine Hermle is available. Travel X/Y/Z: 700mm/550mm/500mm, quill stroke: 95mm, spindle power: 12kW, spindle speed: 4200rpm, spindle swivel: +/-75°, tool holder: SK40, clamping force: 12kN, feed rate: 10m/min, rapid traverse: 10m/min. Machine dimensions X/Y/Z: approx. 4400mm/4250mm/2300mm, weight: approx. 4500kg, control: Heidenhain TNC 425. Documentation available. An on-site inspection is possible. Itjdpfow D Evlex Adksg

Year of construction: 2009, condition: ready for operation (used), A high-precision CNC drilling/reference hole machine Mach3 Lab with X-ray vision system is available. Travel X/Y: 700mm/800mm, max. panel dimensions X/Y: 700mm/700mm, min. panel dimensions X/Y: 300mm/200mm, panel thickness range: 0.3mm-6mm, Z-axis stroke: 40mm, spindle speed: 30000rpm, positioning accuracy: +/-0.003mm, transducer resolution: +/-0.001mm, X-ray range X/Y: 700mm/580mm, weight: approx. 2000kg. Documentation available. An on-site inspection is possible. Itsdpoxd Avgefx Adksg
