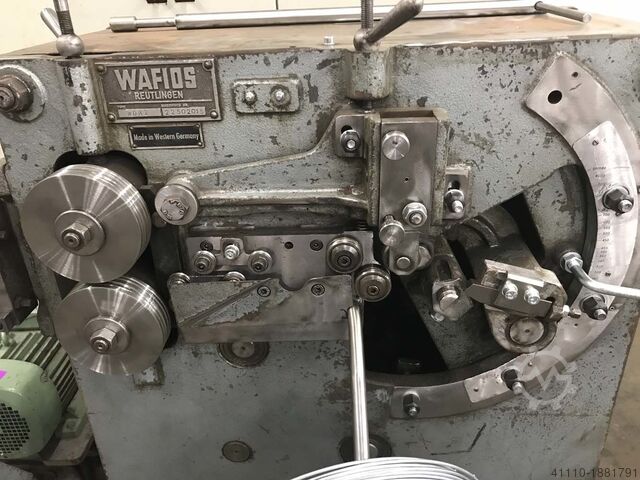

Ring winding machine

WAFIOS WDR 2

Condition: excellent (used), Year of construction: 1989, wire diameter range: 1,8 - 5,0 mm ring diameter range: 80 - 600 mm wire feeding length: 0 - 10.000 mm output: max. 30 rings/min Hodpfx Ajf Tymbehuefb welding capacity: 10 kVA

Condition: excellent (used), Year of construction: 1984, functionality: fully functional, equipped with: 1 slide feeding system right hand side 1 eccentricpress 250 kN 4 standard slide units 2 narrow slide units Hfedpfxstzlzae Ahujb 1 cam shaft working range: wire diameter range: 0,5 - 5,0 mm stripmetal width: max. 40 mm feeding length: up to 320 mm outout: up to 135/min

Condition: used, Technical details: wire diameter - max.: 9,0 mm wire diameter - min.: 2,0 mm voltage: 380 V / 50 Hz V control voltage: 220 V Hedpfx Aevc Akljhuefb Total power requirement: 18 kW Weight approx.: 5,0 t dimensions: Schmiermittelanlage: 830 x 650 x 1000 mm dimension machine xH: 3,3 x 1,5 x 1,45 m dimensions electric cabinet LxWxH: 0,7 x 1,5 x 1,75 m WIRING AND CUTTING MACHINE / MACHINE WAS UPGRADED WITH A NEW CONTROL SYSTEM IN 2000 A programmable, electronically-hydraulically controlled universal spring coiling machine for the production of right and left-hand tension and compression springs as well as torsion springs. The springs can be produced with any pitch and shape of spring body. Output max. 90 pieces/min. Outer spring Ø 10 - 120 mm Unlimited wire feed length, speed = 27 - 80 m/min. Coiling device: two-finger system wire thickness Ø 2.0 - 9.0 mm; spring outer Ø Ø 10 - 120 mm Single-finger system: wire thickness Ø 3.0 - 7.0 mm; spring outer Ø max. Ø 60 mm Equipment: 5x feed rollers, wire holder 3 mm two-finger Spring length measuring device LION PRECISION-PANTHER Wire roller holder POST, motor-driven, mandrel holder Ø 1,400 mm Lubrication system Control cabinet cooler RITA Hydraulic unit Optional many accessories and/or spare parts! i.D. *

Condition: ready for operation (used), Asahi - Seiki Manufacturing Co. Ltd. NSF-10 for producing extension / extended springs with english or german loops for wire diameters up to 1mm. Machine in very good condition, possible to buy with decoiler and setted for some springs. Hedpjr Izikjfx Ahujfb

Condition: used, Year of construction: 1972, Technical details: wire diameter - max.: 12 mm wire diameter - min.: 2,0 mm control for program: Process Controler Total power requirement: 18,5 kW Weight approx.: 10,5 t dimension machine xH: 2,6 x 1,8 x 2,7 m dimensions LxWxH: Schmiermittelanlage: 0,6 x 0,4 x 0,8 m dimensions electric cabinet LxWxH: 0,5 x 1,2 x 2,1 m dimensions of coil: 2,6 x 1,8 x 2,7 m WRAIGHTING AND CUTTING MACHINE from the manufacturer Wafios-Hack Hedpfxju Ic Hns Ahuofb Also called spring coiling machine, for the production of right and left hand tension / compression springs. Feed length 17400 mm Spring Ø 120 mm Output range: Yield 1 - 70 pieces/min. Spring Ø 25 - Ø 200 mm Wire thicknesses round steel Ø 5.0 - 140 mm and square steel 5.0 - 12.5 mm Feed speed - spring length max. 42,000 mm and wire feed F1= 40 m/min. + F2= 28 m/min. + F3=20 m/min. currently mounted on the machine: 6 feed rollers for wire intake Ø 4 mm to produce the end product: tension spring wire Ø 4 mm, outer Ø 34 mm and length at 135 mm Operation via control panel, Process Controler BRANKAMP Equipment: Lubricant system Wire reel reel Switch cabinet cooler reel Optional accessories and/or spare parts see photo i.D. *
