Mandrel tube bending machine

WAGNER WDB 51 M

Condition: new, Year of construction: 2025, THE PRECISION 3-ROLL BENDING MACHINE When developing the compact and mobile horizontal bending machine, the focus was clearly set on the production of dimensionally accurate coils such as handrails for spiral staircases. This is the supreme discipline, since two mutually influencing variables (radius and pitch) must be combined in a bend to form a dimensionally accurate geometry. The interaction of tube calculation on the PC, implementation on the bending machine, and control via the measuring equipment with final correction of the bending values ensure accurate bending. By simple and few inputs into the PC tube calculation program, the local printer provides a printout and supports the calculation of all necessary bending and correction data to operate the machine. A new powerful drive concept allows infinitely variable adjustment of the bending speed, requiring only a 230 V (AC) connection. Hardened steel tools as well as hard plastic tools that are gentle on the surface are available for selection. To ensure optimum feed even with tight bending radii, all three bending shafts are driven. The drive concept also proves its worth in tough daily use on the flat, when bending tubes and profiles. Customers of the 4800, 5000 and 6000 bending system have the option of purchasing the roller bending unit without the drive. The roller bending unit with the designation RB43, can be adapted to the bending systems 4800, 5000 and 6000 via the bending shaft. In this case, the machines act as a drive unit. POSSIBLE APPLICATIONS: - Handrails/bottom rails for spiral staircases - Large tubular profile bends - General metal construction TECHNICAL DATA: - Bending capacity Ø 10 to 60 mm - bending radius min: 300 mm at Ø 42,4 mm - Bending direction right and left - Digital bending adjustment for radius and pitch - Safety foot switch with emergency stop function - Maintenance-free robust three-phase motor - Construction site suitable 230 V connection - Weight 280 kg Dodpfx Ajng A R Sjdmsla OPTIONAL ACCESSORIES: - Support roller - for stabilization - Lifting roller - to produce controlled slope - MGR - measuring device to determine the correct radius - MGV - measuring device to determine the correct slope based on torsion - MPW - PC calculation program to determine the correct bending values - RB4303 - universal bending tool for profiles up to 60 mm height - Tools for special profiles OUR SERVICE FOR YOU ON SITE: - Welcome to the test production in our house in the demo room - Consultation-information meeting at your site - Consultation and handling as leasing/financing purchase via - Service contracts, maintenance at your site

Condition: new, functionality: fully functional, Year of construction: 2025, Manual Pipe Bender HRB-3D 850 for bending pipes and solid material up to a maximum of 12 mm Precise positioning and repeatable bending are ensured by three battery-operated digital displays that precisely show the bending angle, pipe feed, and pipe twist. - 80 mm three-jaw chuck - Feed stop system Djdpfx Adottagdomsla - Feed length approx. 850 mm The manual pipe bender should be permanently mounted on a table or frame (not included). We would be happy to provide you with a detailed quote if you send us your complete company address, email address, and contact details.

Condition: new, The ACE Laser Compact 1313 2.0 R, a state-of-the-art Laser Cutting Machine from KNUTH, is designed to set new standards in price and performance within the Laser Cutting Machines product group. This compact laser cutter is optimized for highly efficient processes, making it ideal for both large production centers and smaller workshops due to its minimal footprint. Built on a robust steel weldment frame, the machine features a lightweight gantry constructed from aluminum die-cast, ensuring both high rigidity and superb dynamics. The linear guides on all axes provide exceptional precision and require minimal maintenance, supported by preloaded ball drives that enhance positioning accuracy. You can easily monitor the cutting process through a safety glass window, while its intuitive PC-based control allows for straightforward operation with a technology database that simplifies programming. The ACE Laser Compact 1313 2.0 R ensures top performance in laser cutting with its powerful Raycus laser source, automatic focus positioning, and efficient nesting software that minimizes material waste. To find out more about this impressive Laser Cutting Machine or to request a quote, please visit our website. Djdpfx Adenh Ng Domela

Condition: used, Year of construction: 2017, pipe diameter (max.): 80 mm, mandrel length: 4,500 mm, Mandrel bending machine S8004 ----- For the production of dimensionally accurate pipe geometries with bending radii of up to 1.5XD → maximum bending performance pipe 76 x 4 mm (400 N/mm²) → maximum bending performance pipe 60 x 60 x 3 mm (400 N/mm²) → maximum bending performance pipe 76 x 2.9 mm (stainless steel) → total connected load 7 kW → pipe length 4.5 mtr Robust and durable steel construction in a force-locking connection - no construction susceptible to torsion due to, for example, the split construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive of the bending axis. The touch display of the control enables simple and intuitive programming and use of the system. After the pipe has been pushed on, it is fixed in the carriage by the chuck. This enables the pipe to be positioned precisely and thus the creation of dimensionally accurate geometries. The standard also includes checking the pipe geometry before the bending process: If the bending process is started in the wrong position, the machine does not give permission for this. This prevents incorrect operation. Optional additional features provide more convenience and increase the output and thus the efficiency of the system. Data is exchanged from the optional pipe calculation program TBS-3D (PC version) via USB stick or via FTP access from the computer to the machine control system. USB or LAN connectors (RJ45) are available as standard. Existing pipe geometries can be converted quickly and easily, for example, using the STEP format. Standard equipment: → Electromechanical drive of the bending axis 4 kW → Speed 2.9 rpm (=17°/sec.) → Bending direction left → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1mm → Electronic twist measurement ±0.1° → Manual stop system (overtravel stops in length) → Manual locking system (15° in twist) → Three-jaw chuck for locking the pipe in the carriage → External control panel PLC control: → Touchscreen 10.1" → ETH 10/100, X2X Link, USB → Foot switch operation → Data transfer via network (W)LAN or USB → Material database Unique graphic programming: Simple geometries can be calculated directly on the machine. The control calculates the feed values directly after entering the length and angle and the bending angles. Hydraulics: → Hydraulic power 3 kW → Hydraulic pipe clamping with adjustable clamping pressure → Programmable early mandrel retraction Options (can be ordered as additional equipment): → Variable bending speed using frequency converters or servo motors → Automatic tool retraction (manual or controlled) → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + twist) Dljdpjttah Refx Admoa → Mobile version (rollers) → Radius extension Pictures show new machine

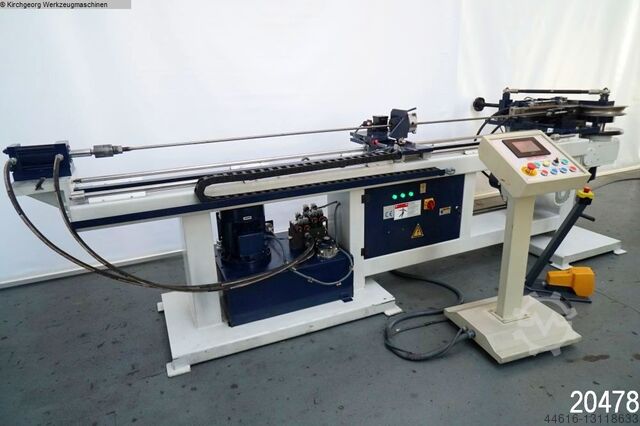

Condition: good (used), Year of construction: 1996, tube diameter 6 - 28 mm wall strength 2 mm bending radius min. 2 x D Control IPU 20 bending radius max. 5,0 x D mm bending angle max. 190 ° arbor length 3000 mm operating pressure 180 bar hydraulic motor 4 kW weight of the machine ca. 900 kg dimensions of the machine ca. 3,8 x 1,1 x 1,3 m Semi-automatic electro-hydr. mandrel tube bending machine with PLC control for 20 angles and display in the control panel for bending angle specification, angle detection and angle measurement via absolute value encoder, autom. tool plate reset, Turning device with digital display, hydr. quick chuck, aut. Mandrel lubrication, adjustable length stops. Operating modes: MANUAL and semi-automatic. Djdpfx Adsvtgn Nsmela Control buttons: hydraulics on / off, operating mode selection, clamp to / on, clamp forward / backward, mandrel forward / backward, bending forward / backward /, locking forward / backward, mandrel lubrication, turning device forward / backward, plate reset, length stop forward, emergency stop. The machine comes from a prototype construction and was only used a little until 2000. After that, the machines of this department were sold. However, the purchaser did not use the pipe bending machine and therefore it has only stood in the warehouse and has not worked since then ((original paint). Please notice that the price of a new machine today is over € 60.000,--. Machine dealer with own stock of 1600 m².

Condition: used, The RGM 2 is a state-of-the-art Tube End Finishing Machine designed by KNUTH, renowned for its robust and precise engineering. With a rigid design and a small footprint, this machine is perfectly suited for shops that require efficiency without sacrificing performance. The RGM 2 features an impact chuck at the front and a clamping chuck at the rear, ensuring secure handling of various tube sizes. Additionally, it includes a tube cutter and an inside tube deburrer, which provide a complete solution for finishing operations. For mobility, the machine is equipped with a mobile base. When looking for a reliable Tube End Finishing Machine, the RGM 2 stands out with its advanced features. Don't hesitate to request a quote today to enhance your tube processing capabilities with this exceptional product from the renowned KNUTH brand. Dsdpfx Aep Atgbsdmela

Year of construction: 2025, condition: new, The robust manual length stop MD 100 d enables you to efficiently increase the productivity and quality of your production. The operator can move the carriage to the desired position quickly and accurately. The specially developed clamping system gives the carriage a very high holding power. The length measurements are taken via an easy-to-read digital display on the carriage. Existing machines / roller conveyors can be retrofitted at any time. Product Details: • suitable for striking steel profiles and solid materials • Trolley with 3 ball bearings • smooth-running for quick and precise length positioning • Manual stop clamping via large adjustable hand knob • specially developed clamping system with very high holding power. • raise and lower manual arm • digital position display with a resolution of 0.1 mm • Standard measurement lengths: 1m to 6m, maximum up to 20m • Total length of the system = measuring length + 0.3 m Djdpfxsidmppe Admola • Left or right hand versions available • Mounting screws • Accesories: -Stop arm with spring damping -manual arm retraction via hand lever -Arm retraction with impact damping via pneumatic cylinder -various material roller conveyors

Condition: used, Year of construction: 1993, Technical details: tube diameter: 80 mm tube diameter min.: 6 mm control for program: Gelma MM-1 tube pipe draw up length: 1800 mm weight of the machine ca.: 0,232 t dimension machine xH: 1,9 x 0,7 x 1,3 m Semi-automatic PIPE BENDING MACHINE Operating modes are manual but also semi-automatic Application: for multiple bending of pipes The swivel unit with bending preselection for 3 different bending angles in single and automatic mode. The machine is currently equipped with a stop bar for tube size Ø 10mm for 6 angle settings. The bending machine is movable/adjustable. Dljdpfx Aju Ibyyedmja Equipment/accessories: 6 cam rods/stop rods 6 control disks Bending tool for Ø 12mm *

Condition: used, The RGM 3, a top-tier Tube End Finishing Machine from KNUTH, is designed for precision and efficiency in tube processing. Its rigid construction and small footprint make it an ideal choice for any workshop looking to optimize space without sacrificing performance. The machine features a jaw chuck at the front and a clamping chuck at the rear, allowing for versatile operations. Additionally, it comes equipped with a tube cutter and an inside deburrer, ensuring clean and accurate finishes on all types of tubing. With the inclusion of a mobile base, the RGM 3 offers easy maneuverability, enhancing its usability. Whether you need to perform intricate tube work or handle larger projects, this highly robust machine is built for the task. Don't miss out on the opportunity to enhance your tube and profile processing capabilities; order online today to bring the RGM 3 to your workshop. Dedeuxc Rhspfx Admjla

Year of construction: 2025, condition: new, ProfiStop Alpha is a simple to use auto measuring stop for high-accuracy medium-heavy timber cutting. Speed up your cutting through the roof, simply, and introduce advanced job-management functions to run your production efficiently. • High-speed automatic servo motor cut measurement • Simple operation and setup, compatible with most saws • Medium duty 20-40 kg recommended material weight • Ideal for steel, framing timber, aluminium • Automated and streamlined jobs management • Label printing and bar-code / QR code jobs input (optional) • Jobbing integration to your ERP system (optional) Available lengths: 1.5 m, 3 m, 4.5 m, 6 m, 7.5 m, 9 m. Highly suitable for: • Frame and truss manufacture • Pallets and boxes manufacture • Furniture manufacture • Planters manufacture • Retail timber sales Can be used with all your existing saws including: • Industrial drop saws • Guarded up-cut saws • Band saws • Radial arm saws • Drills and presses Model: ProfiStop Alpha Dljdof Dqhlspfx Admea Length: 6 m Stroke: 5580 mm Pushing capacity: 20 - 40 kg Software: Basic Supplied with a roller table or as a linear unit only for installation to your existing tables. Quoted price is excluding the table. QUALITY AUSTRALIAN-MADE MACHINES.
