Slideway grinding machine

WALDRICH COBURG

Condition: used, grinding length 12000 mm grinding width 2800 mm workpiece height 2510 mm control Siemens 840 D workpiece weight 24000 kg column daylight 2820 mm table surface area 11990 x 2500 mm table feed 1 - 40 m/min cross rail - adjustment 2510 mm total power requirement 110 kW dimensions of the machine ca. 32,5 x 9 x 6,73 m weight of the machine ca. 151 t Equipment/Accessories: - 1 universal grinding support, 22 kW swivel range of grinding spindle +/- 110° grinding wheel dimensions Ø 700 x 130 mm vertical adjustment 1000 mm Bcjdpfxjwa Dxws Afcow with puller - 1 peripheral grinding support, 30 kW grinding wheel dimension Ø 600 x 150 mm vertical adjustment 230 mm with puller - Coolant and filter unit - Various grinding wheels and flanges - Technical documentation

Condition: excellent (used), Year of construction: 2016, Inca Onset X2, 3/4 automized Color configuration: 8 channel printer with four colours (CMYK) 1/12th of the new price !!!!! Printhead status allowing to print at maximum speed with outstanding quality, up to 140 beds per hour/700m² per hour, needs replacement of 60 heads (circa 45.000€) The machine is in excellent shape, serviced by manufacturer since day number one. Annual maintenance done in May 2025. Bcsdpfoun Swbex Afcjw Available: January 2026 As the business expands, Onset X2 provides the capacity to extend the range of jobs companies can handle. The addition of a second set of CMYK delivers even higher productivity - up to 707m²/hr* (equivalent to 138 full-bed sheets/hr) - while an optional six channels can be populated with light cyan (Lc), light magenta (Lm), white (W) and orange (O) to add versatility and superb quality. A choice of uni-directional, bi-directional and super high-quality print modes can be selected depending on the specific job requirements. * Based on an approximate 6 second material handling time. Decomissioning, transport, installation, training and warranty are included (in Europe) For further technical details please refer to enclosed data sheet.

Condition: used, Year of construction: 1983, grinding length 8400 mm grinding width 1450 mm workpiece height 1250 mm surface area 8000 x 1250 mm table height over floor 920 mm distance between columns 1470 mm Bcedpfxsvr Hgvj Afcow workpiece weight max. 59700 kg weight of the machine ca. 59,7 t dimensions of the machine ca. 22 x 5 x 5 m Adjustment ranges: -Crossbeam, vertical 1250 mm -Grinding support, horizontal 3100 mm Adjustment speeds: -Machine table (X-axis) infinitely variable 1-45 m/min Table creep speed 5 m/min -Grinding support, horizontal (Y-axis) Rapid traverse 3000 mm/min Feed, step 0.001-0.099 mm Feed rate, continuous 100-3000 mm/min Creep speed 18+1 mm/min Tip infeed 0.001-0.019 mm -Crossbeam (W-axis) Rapid traverse 410 mm/min Table drive: -Oil transmission, Type Iv4 -Cylinder-Ø 185 mm -Piston rod Ø 130 mm -Drive motor 22 kW

Condition: used, grinding length 4000 mm grinding width 1450 mm workpiece height 1250 mm control Siemens 840 D workpiece weight 11000 kg column daylight 1460 mm table surface area 4000 x 1250 mm table feed 1 - 45 m/min cross rail - adjustment 1250 mm total power requirement 40 kW dimensions of the machine ca. 12,3 x 6 x 4,8 m Equipment/Accessories: - 1 universal grinding support, 7.5 kW Swivel range grinding spindle +/- 110° Bcodpfxjwa Dx De Afcow grinding disc dimensions Ø 500 x 60 mm Vertical adjustment 350 mm with puller - 1 peripheral grinding support, 22.5 kW Grinding wheel dimension Ø 600 x 100 mm Vertical adjustment 150 mm with puller - with 6 magnetic plates arranged on the table - seperate clamping table - various grinding wheels and flanges - Technical documentation

Condition: used, Year of construction: 2006, functionality: fully functional, workpiece weight (max.): 25,000 kg, wheel width: 3,000 mm, feed length X-axis: 1,000 mm, LIEBHERR L3002 CNC Internal and External Gear Hobber Built 1982, Modernized 2006 CNC SIEMENS 840 D. Bcodpfx Aowdmy Eefcsw Max Wheel diameter 3,000 mm. Max helical angle 45° Internal and external Head. 44/50 kW.

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, machine/vehicle number: 3.8203, travel distance X-axis: 7,570 mm, travel distance Y-axis: 4,900 mm, travel distance Z-axis: 1,000 mm, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, feed rate Z-axis: 10 m/min, total length: 18,700 mm, table length: 6,850 mm, table width: 2,250 mm, total width: 8,500 mm, spindle speed (min.): 5 rpm, spindle speed (max.): 2,000 rpm, total height: 7,050 mm, table height: 300 mm, rapid traverse X-axis: 15 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 10 m/min, distance between stands: 2,750 mm, type of input current: AC, table load: 60,000 kg, workpiece weight (max.): 60,000 kg, distance table to spindle center: 2,500 mm, overall weight: 145,000 kg, spindle motor power: 63,000 W, feed length W-axis: 2,000 mm, MODEL: Portal Type AGE: 1990 S/N #: 3.8203 CATEGORY: Mills, Planer Type, CNC CAPACITY: Bedpfxoyl S Ngs Afcscw X-Axis Travel: 7570 mm Y-Axis Head Travel: 4900 mm Z-Axis Ram Stroke: 1000 mm, W-axis traverse movement: 2000 mm Ram Cross Section: 500 mm x 500 mm Distance Between Columns: 2600-2750 mm Distance Table To Ram Face: 2500 mm Table Size: 2x3000+850 mm x 2250 mm, two tables for split or integral operation Spindle (Quill) Diameter: 225 mm Spindle Taper: ISO #50 Spindle Speeds: 0-2000 RPM Spindle Motor: 63 KW EQUIPPED WITH: SIEMENS System 840D CNC Control, new in 2008 CNC biaxial continous milling head Universal Milling Head with Auto Indexing Right Angle Head with Auto Indexing Straight Milling Head Wagons for Head Change and Tool Pick-up Change Hydrostatic Bearings Coolant System Full Length Chip Conveyors Way Covers 63 KW Spindle Motor Rapid movements: W-2000 mm/min, Z-10.000 mm/min, X and Y-15.000 mm/min Table loads: 30.000 kg+30.000 kg, max 60.000 kg Weight of the machine: 143.000 kg Outside dimensions: 18.700 x 8.500 x 7050 mm

Condition: excellent (used), Year of construction: 1995, x-travel 14000 mm y-travel 5000 mm z-travel 1500 mm w-axis 3000 mm column daylight 4000 mm column: max. dist. table - spindle nose 4500 mm workpiece weight 100 t table dimension - longitudinal 9000 mm table dimension - cross 3000 mm Bjdevwgm Hjpfx Afcecw spindle taper ISO SK 50 spindle turning speed range 2-2500 U/min spindle motor 113 kW spindle diameter 200 mm max. torque on the spindle 9500 Nm feed in x - axis 1-10000 mm/min feed in y - axis 1-10000 mm/min feed range Z-direction 1-10000 mm/min rapid traverse 20000 mm/min height over floor 8600 mm control SIEMENS 840C weight of the machine ca. 360 t ATTACHMENTS angular milling head yes autom. tool clamping yes ball spindles yes guideway covers yes coolant unit yes high pressure cooling syst. (through spindle) yes closed cabin yes chip conveyor yes TECHNICAL DESCRIPTION 2 portal milling centres, each with 3 table pallets 9000 x 3000 mm: - Tool changer with 420 tools - Head pick-up system - Video monitoring via camera - High pressure lubrication unit for inner cooling 70bar AVAILABLE HEAD UNITS: - Fixed angle head HS800C600 105 Kw 600 long - Fixed angle head HSD350C850 50 Kw 850 long - Fixed angle head HSD 40C880 12 Kw 880 long - Fixed angle head HSD 190C1000 30 Kw 1000 long - Vertical spindle unit VS800C 105 Kw 900 long - Universal spindle unit USIO40C 20 Kw B-axis rotatable at 1° at a time - Angle spindle unit SO800C905 - 22,5° fix - Angle spindle unit HSE1200CS -25° fix - Universal spindle unit (fork milling) USP475C 75 Kw 1/2° Hirth --> 1.350 1/min , B-Achse 0,5 Grad Hirth One additional drilling extension SE 350C plus 1 SE500C. DESCRIPTION OF CONDITION In 2011/2012 these 2 identical machines were retrofitted The milling length was extended to 14meters and an automatic changing system for table pallets was installed. Both machines can be seen under power by prior appointment.

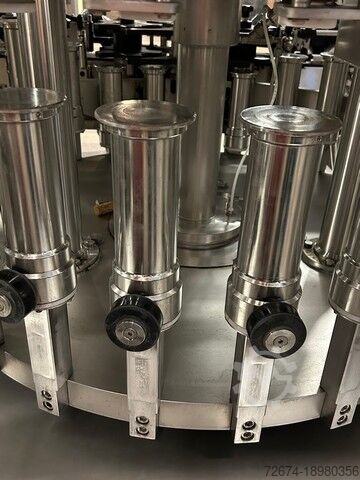

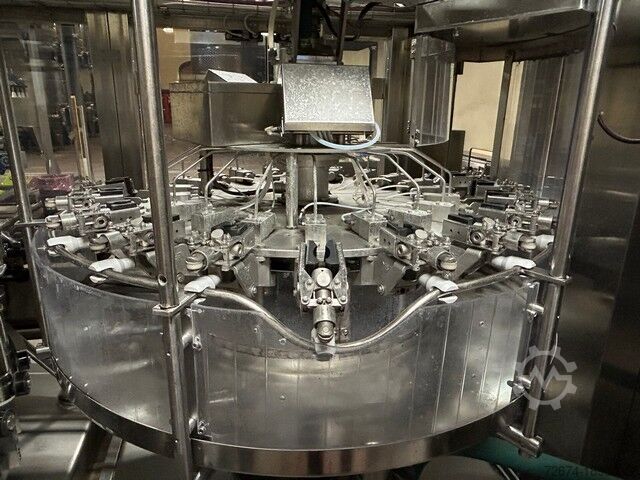

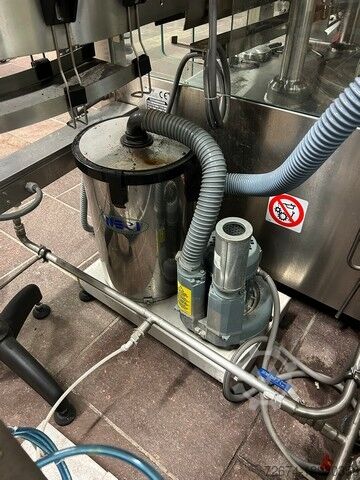

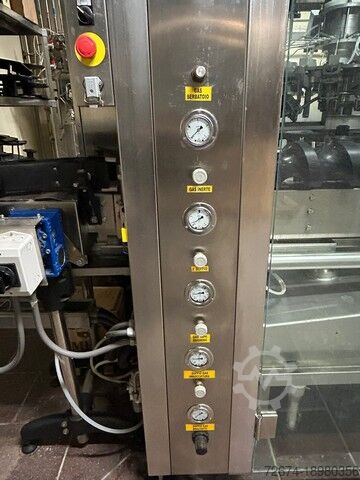

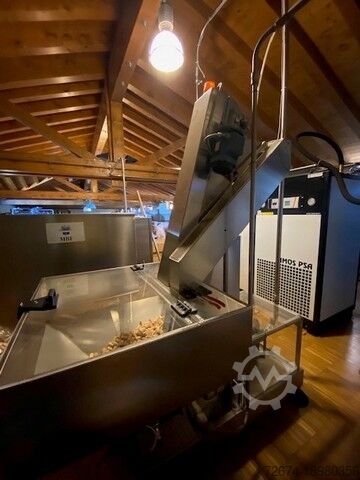

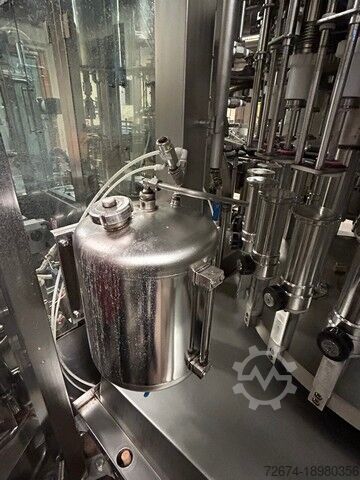

Condition: used, Year of construction: 2015, FILLING MONOBLOCK MBF 20.25.4.3 SYNCHROFILL 20-25-4-3 Model Year: 2006 Direction of travel: clockwise Speed: 5,500 BPH Rinser with 20 clamps Fixed nozzle Single treatment Electric height adjustment Water filtration system at rinser inlet Filler with 25 valves Light pressure Electro-pneumatic filling valves Electric tank height adjustment Bsdpowdiufjfx Afcocw Bottle level adjustment adjustable from operator panel Vacuum system before filling 4-head corker for straight cork Electric height adjustment Vacuum system, inert gas injection and vacuum before corking Cap elevator included 3-head aluminum screw corker for Stelvin cork (30x60) Electric height adjustment Pneumatic cap lift included Speed adjustment via inverter Touchscreen operator panel HAKKO ELECTRONICS PLC

Condition: excellent (used), Year of construction: 2002, x-axis 4000 mm y-axis 3500 mm z-axis 1500 mm Control SIEMENS 840 D w-axis 1500 mm column daylight 2500 mm surface area 3000 x 2000 mm workpiece weight 10000 kg spindle turning speed range 5-6000 U/min transmission ratio 2 power capacity - milling spindle 45 kW dist. cutter spindle - workpiece spindle 3500 mm max. torque on the spindle 1250 Nm tool change unit 200 -fach tool diameter 135 / 250 mm weight of tools max. 50 kg tool length - max. 400 mm tool taper ISO SK-50 the portal milling machine is in very good condition. ADDITIONAL EQUIPMENT DRILLING/MILLING Angle milling head yes automatic tool clamping yes Tool clamping yes Ball screws yes Bodsvwgmmspfx Afcecw Guideway cover yes Coolant system yes High-pressure cooling system (internal cooling) yes Full work area panelling yes Portal machining centre with tool changing system and second table top.

Condition: used, Technical details: grinding length: 12000 mm grinding width: 2800 mm workpiece height: 2510 mm max. workpiece weight: 24.000 kg table surface area: 11990 x 2500 mm distance between columns: 2820 mm cross rail adjustment: 2510 mm table feed: 1 - 40 m/min total power requirement: 110 kW weight of the machine ca.: 151 t dimensions of the machine ca.: 32,5 x 9 x 6,73 m Bcjdpfx Ajwc A Snefcow .....machine is in top condition for high precision work! with CNC SIEMENS 840 D 1 universal grinding head, 22 kW swivelling of the grinding spindle +/-110° grinding wheel dimension 700 x 130 mm vertical stroke 1000 mm with dressing unit 1 surface grinding head, 30 kW grinding wheel dimension 600 x 150 mm vertical stroke 230 mm with dressing unit coolant and filtering unit diverse grinding wheel flanges *

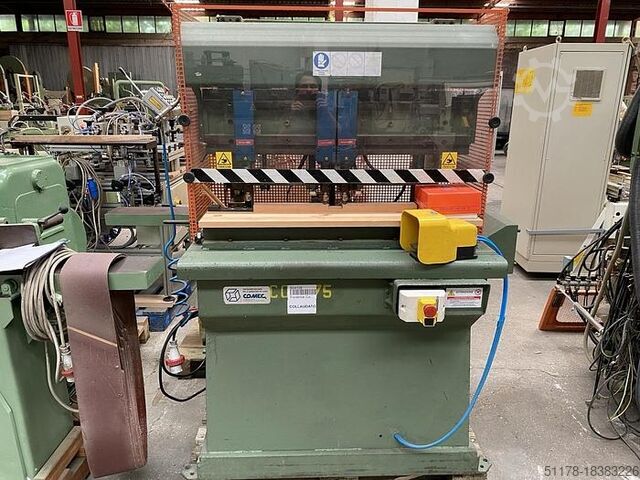

Condition: used, Comec 3 Spindle Vertical Drilling Machine Bsdpfjvvan Ijx Afcscw Max piece length 100 cm

Condition: excellent (used), travel distance X-axis: 11,000 mm, travel distance Y-axis: 4,500 mm, travel distance Z-axis: 1,250 mm, total length: 25,200 mm, table length: 10,000 mm, table width: 4,500 mm, total width: 11,200 mm, total height: 5,500 mm, table load: 30,000 kg, distance table center to spindle nose: 1,500 mm, WALDRICH COBURG MULTITECH 3500 FT GANTRY TYPE, MOVING CROSSRAIL MILLING MACHINE Equipped with Siemens Sinumerik 840 D CNC control. WORKTABLES (No. 2): - Mounting width: 3,000 mm - Mounting length, front table: 4,500 mm - Mounting length, rear table: 4,500 mm - Mounting length, tables coupled: 10,000 mm - T-slots, longitudinal: 28 mm / H8 - T-slot spacing: 250 mm - Max. load, front table: 20,000 kg - Max. load, rear table: 20,000 kg - Max. load, tables coupled: 30,000 kg - Distance between columns: 3,500 mm - Clearance between table and spindle nose (vertical spindle unit VS 125 C/150): 1,500 mm TRAVELS: - Table, longitudinal (X-axis): - Table 1: 5,000 mm - Table 2: 5,000 mm - Coupled: 11,000 mm - Milling/drilling unit, horizontal (Y-axis): 4,500 mm - Vertical spindle slide (Z-axis): 1,250 mm - Crossrail (W-axis): 1,000 mm MILLING/DRILLING UNIT TYPE M4: - Drive power: 45 kW - Spindle speeds: - I range: 5 - 1,300 rpm - II range: 40 - 6,000 rpm - Automatic indexing of horizontal spindle units from 1° to 1° over 0–360° AUTOMATIC TOOL AND ATTACHMENT CHANGER SYSTEM ROBOT: - Double gripper for tool change on vertical and horizontal spindle units - Double gripper for attachment change on milling/drilling unit - Tool holder flange diameter: 97.5 - 125 mm - Max. tool weight: 50 kg - Max. attachment weight: 750 kg SHELF STORAGE SYSTEM: - Number of shelves: 4 - Total tool stations: 192 - Total attachment stations: 4 - Tool holders according to DIN 69871 ISO 50 - Station-to-station distance: 140 mm - Max. tool diameter with full occupancy: 135 mm - Max. tool diameter: - Standard: 250 mm - Direct access with shuttle trolley: 315 mm - Max. tool length: Bcodpfx Aeydmkvofcjw - Standard: 375 mm - In top row of the magazine: 600 mm OVERALL DIMENSIONS: - Total machine length: 25,200 mm - Total machine width: 11,200 mm - Total machine height from floor: 5,500 mm COMPLETE WITH: - 1x vertical spindle ISO 50, length 300 mm - 1x vertical spindle ISO 50, length 450 mm - 2x 90° heads - Workpiece inspection with Renishaw probe USED MACHINE

Condition: used, x-travel 17700 mm y-travel 4755 mm z-travel 800 mm milling width 3450 mm distance table - vertical milling spindle 3682 mm Bcjdpovkit Ajfx Afcsw table height over floor 500 mm spindle diameter in front bearing 200 mm turning speed range 12 - 450 U/min tool taper ISO 60 axial adjustment of the spindle slide 800 mm creep feed 5 und 50 mm/min feed stepless 10 - 3000 mm/min cross adjustment of cross beam milling head 4745 rapid traverse 2 m/min creep feed 3 und 30 mm/min feed stepless 6 - 2000 mm/min rapid traverse 10 m/min creep feed 3 und 30 mm/min feed stepless 6 - 2000 mm/min vertical adjustment of cross beam 3682 mm rapid traverse 1,5 m/min creep feed 1,25 und 12,5 mm/min feed stepless 5 - 1500 mm/min table-size 17800x2800 mm column daylight 3600 mm Control SIEMENS 840 C table load 50.000/100.000 kg drive of main spindle 100 kW total power requirement 170 kW weight of the machine ca. 300 t dimensions of the machine ca. 40 x 8,4x 8,6 m + electrically renewed including cabinet, cabling and motors and equipped with a SIEMENS 840 C in 1999. + incl. 16 milling heads and ls the drive of x-axis consists of one hydrostatic screw with hydrostatic rack

Condition: like new (used), Year of construction: 1988, 4 axis CNC controled plano miller WALDRICH COBURG, distance between columns 3.100 mm, adjustable cross rail with 2.500 mm distance top of table to spindle nose, 3 pallets with clamping area 2.750 x 4.000 mm, autom. pallet changer, power 75 kW with base speed 76 rpm, max. torque at spindle 8.400 Nm, 5 - 2.000 revs, ram design 600 x 600 mm, 3 RAA 1 Extension automatic mounting, inner cooling System Bcedpfxsdu Hg Hj Afcew Option: new electric and new CNC Control new measuring system
