Planer-Type Milling M/C - Double Column

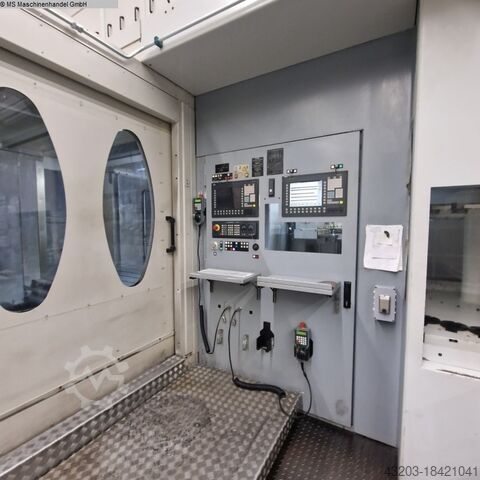

WALDRICH-COBURG Valutec

Condition: used, Year of construction: 2003, Technical details: x-axis: 4000 mm y-axis: 3000 mm z-axis: 1500 mm total power requirement: 30 kW dimensions of the machine ca.: 9,5 x 6,7 x 6,2 m Passage height: 1550 mm Passage width: 2500 mm table width: 2000 mm table length: 3000 mm max. table load: 12.000 kg Chodpfoxc Idajx Abwsc tool taper: HSK-A100 max. tool weight: 30 kg max. tool diameter: 250 mm tool length - max.: 500 mm bore spindle turning speed range: 5-6.000 U/min max. torque on milling spindle: 800

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,500 mm, table load: 12,000 kg, rotational speed (max.): 6,000 rpm, number of slots in tool magazine: 100, TECHNICAL DETAILS X-axis: 4,000 mm Y-axis: 3,000 mm Z-axis: 1,500 mm C-axis: -10 to 370° B-axis: -5 to 95° Table, longitudinal travel: 0 - 30 m/min Milling and drilling unit, horizontal: 0 - 60 m/min Spindle slide, vertical: 0 - 60 m/min Spindle unit horizontal/vertical: 0-15 / 0-10 rpm Clearance height: 1,550 mm Clearance width: 2,500 mm Table Passage height between table and spindle nose: 1,550 mm Clearance width: 2,500 mm Table width: 2,000 mm Table length: 3,000 mm T-slots, transverse direction: 22 H8 mm, spacing 250 mm T-slots, longitudinal direction: 15 H7 mm (250 mm from outside, 10 mm deep) Max. table load: 12,000 kg Chedpfx Abow T Rx Aswec Drilling spindle speed range 1st gear: 5 - 1,400 rpm 2nd gear: 25 - 6,000 rpm Max. torque: 800 Nm Drive power: 30 kW Cross-section of spindle slide: 400 x 400 mm Tool system Tool holder per DIN 69893: HSK-A 100 Number of tool stations: 100 Max. tool weight: 30 kg Max. tool diameter: 250 mm Max. tool length: 500 mm Distance from station to station: 140 mm Average chip-to-chip time: < 20 s Feed rates X-axis, table longitudinal: 0 - 30 m/min Y-axis, milling and drilling unit horizontal: 0 - 60 m/min Z-axis, spindle slide vertical: 0 - 20 m/min C-axis, spindle unit horizontal: 0 - 15 rpm B-axis, spindle unit vertical: 0 - 10 rpm MACHINE DETAILS Overall machine length: 9,500 mm Overall machine width: 6,700 mm Overall machine height above floor: 6,200 mm Coolant system Pump pressure: 12 bar (external coolant supply), 50 bar (internal coolant supply) Delivery rate external: 40 l/min at 1 bar Delivery rate internal: 20 l/min at 40 bar at the spindle Coolant principle: two-phase drum separator Coolant volume: 1,500 L Chip conveyor system Usable width, longitudinal conveyor: 450 mm (2 units) Usable width, transverse conveyor: 225 mm (1 unit) Bilateral at the machine bed, transverse conveyor with overflow discharge
