Tool grinder, CNC cutting tool sharpening

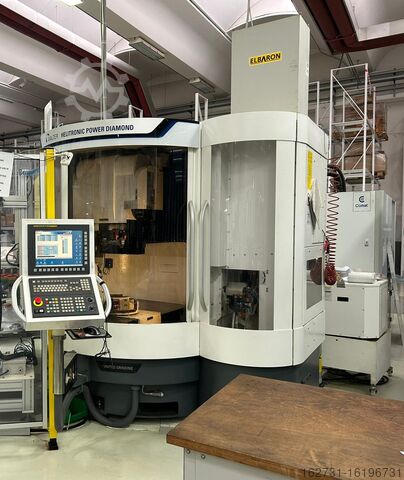

Walter Helitronic Power

Condition: good (used), Year of construction: 1996, functionality: fully functional, Control HMC400 incl. coolant system Bwedpoxn Stiofx Abmsw Drive power 11 kW

Condition: used, Year of construction: 2001, longitudinal feed X: 490 mm Vertical feed Y: 320 mm cross travel Z: 660 mm Swivel range C: +/- 200 ° Control HMC 500 WWM Walter lenght tool piece capture A: 175 mm ISO 50 Max. rpm A: 60 min/-1 centre height 145 (190) mm max. workpiecediameter 320 mm max. workpiece length 320 (350) mm resolution 0,0001 ° Resolution 0,0001 mm spindle diameter 80 mm Bodpfx Absw E Npxemjww grinding wheel diameter max. 200 mm Max. rpm 0 - 7.000 min/-1 driving power - grinding spindle 24 kW max. Torque 6 Nm total power requirement 35 kVA weight of the machine ca. 4,65 t dimensions of the machine ca. 3,6 x 2,5 x 2,95 m CNC - Tool-Grinding-Machine WALTER - Helitronic Power Production - Optional for an additional charge: WALTER Heli ToolCheck (stock number 1039-9375) ?m=1039-9375&s=WALTER%20Heli%20Toolcheck

Condition: used, Year of construction: 1996, total height: 2,150 mm, total length: 1,420 mm, total width: 2,010 mm, overall weight: 3,100 kg, grinding spindle speed: 6,000 rpm, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 580 mm, CNC Universal 5-Axis Tool-and Cutter Grinder CNC Control HMC 400 CNC X-axis movement 400 mm Y-axis movement 250 mm Z-axis movement 580 mm C-axis (table rotation) ± 200° Bsdpexd Awqjfx Abmsww Max diameter grinding wheel Ø 200 mm Spindle speed (grinding) 3000 / 6000 R/Min If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: reconditioned (used), Year of construction: 2003, functionality: fully functional, spindle speed (max.): 7,000 rpm, feed length Y-axis: 320 mm, type of input current: three-phase, overall weight: 4,650 kg, center height: 190 mm, travel distance X-axis: 490 mm, grinding spindle motor power: 24,000 W, workpiece diameter (max.): 320 mm, input voltage: 400 V, nominal power (apparent): 35 kVA, spindle nose: ISO 50, swivel angle A-axis (min.): 360 °, CNC tool grinding machine - WALTER Helitronic Power Production TECHNICAL CHARACTERISTICS: CNC control: HMC 500 Software installed: Tool Studio 2.1 R4 Number of axes: 5 Height of centers: 190 [mm] Stroke X: axis 490 [mm] Resolution X axis: 0.00001 [mm] Stroke Y axis: 320 [mm] Resolution Y axis : 0.00001 [mm] Stroke Z axis: 660 [mm] Resolution Z axis: 0.00001 [mm] Traversing feeds X, Y and Z axes: 15000 [mm/min] A axis: 360 [°] C axis: +/- 200 [°] Resolution C axis: 0.0001 [°] Max. workpiece lenght: end face grinding: 320 [mm] Max. grinding length: 350 [mm] Max. grinding diameter: 320 [mm] Grinding spindle attachment: NCT Grinding spindle diameter: 80 [mm] Grinding wheel max. speed: 7000 [rpm] Grinding spindle motor power: 24 [kW] Max. diameter grinding wheel: 200 [mm] Internal workpiece spindle nose: ISO 50 Workpiece spindle max. speed: 60 [rpm] Total power required: 35 [kVA] Weight: 4650 [Kg] EQUIPMENT INCLUDED: x1 TRANSOR 12290-800A filtration unit x1 MTA oil chiller model TAE 015 x1 DSL oil mist extractor model AES-GAMMA 30 x1 RENISHAW part probe x1 disc-type tool loader 40 positions x1 SCHUNK gripper x2 grinding wheel arbor adapters x1 fire protection system - to be inspected by the buyer through a certified organization x1 electrical schematic manual x1 Service Instructions manual LICENSED WALTER WINDOW MODE (WWM) PACKAGES: - Package 001 (cylindrical mills) - Package 002 (tapered mills) - Package 003 (drills) - Package 004 (step drills) - Package 006 (woodwork tools) - Package 013 (reamers) - Package 015 (insert seats) - Package 016 (warmup program) - Package 027 (flexible program) - Package 090 (loader package) - Package 091 (acm) - Package 098 (loader package) - Package 099 (loader package) - Package 100 (reference data m.) - HELICONE (flute calc. conical.) - HELIDRILL (flute calc. drills) - HELIFLUTE (flute calc. cyl. mill.) - MCS (machine control .) - SCHEIBE (wheels menu) - TS_ADVANCED (toolstudio (v1.0-v.) - TS_STANDARD (toolstudio (v1.0-v.) - TS_STEPTOOLS (toolstudio (v1.0-v.) LICENSED TOOLSTUDIO OPTIONS: - Tool Studio 2.0 server/machinecontrol - Tool Studio 2.0 standard license Bwodswvf I Sjpfx Abmjw - Tool Studio 2.0 advanced license - Tool Studio 1.9 upgrade options - Tool Studio 2.0 upgrade options - Option steptools - Option profile light (contour roughing ...) - Option calibration w/ touch probe - Option drills Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 663015, Walter Helitronic Mini Power Production 5 Axis CNC Tool & Cutter Grinder Universal tool and cutter grinder (CNC controlled) Made by Walter, model Helitronic Mini Power Production, s/n663015, year 2000 Bwodpfx Aeu Ez Hujbmow Description: Suitable to manufacture and regrind metal and woodworking tools of all kinds. Run with 1 micron filtration system, so the machine is very clean. Specifications: • Longitudinal traverse (X-axis) 350 mm, • Vertical traverse (Y-axis) 200 mm, • Cross traverse (Z-axis) 470 mm, • Rotary table swiveling range (C-axis) +/- 200°, • Work head ISO 50, center height (with / without worktable) 145 / 190 mm, • Max. diameter of workpiece 100 mm • Max. length of workpiece 270 mm • Max. dia. of grinding wheel 150 mm • Peak performance 11,5 kW, grinding spindle motor 9kW,speed 0 - 9500 rpm, • Connected load approx. 25 kW (460 volts 3ph / 60 Hz), • Dimensions w x d x h = 2600 x 2550 x 1970 mm, weight approx. 3950 kg, color grey RAL 7035 / grey RAL 7043. Accessories: • Control HMC 500 Windows XP Upgrade • Booster Box Upgrade option along with a spare Booster Box as well that could be used as a backup or for up to 3 other Walter machines. Value of each booster box is $10,000 a piece. • Stepless speed control, probe, pneumatic workpiece clamping • Fire extinguishing system • Mist Extractor • Oil collecting pan, 2 grinding wheel flanges • Complete set of Manuals Software: • Tool Studio Version 2.1 Standard & Steptools • WWM Software Condition: • New Y axis Motor & Ball screw Installed 2021 • New Spindle Installed 2021 • New Electrical cabinet air conditioner Installed 2021 • All new encoder & motor cables for A, C, X, Y & Z axis Installed 2021 • Currently in production producing very accurate & consistent tools. Can be viewed under power • We have all of the shipping bracket, so the machine will be safely secured for shipping. • We can load onto a flatdeck for shipping for $900. We can also provide shipping & crating quotes if you would like.
