Tool and Cutter Grinder

Walter Helitronic Power

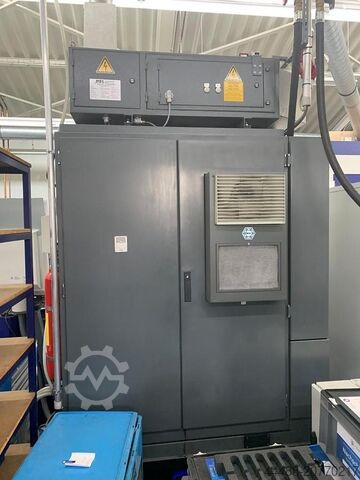

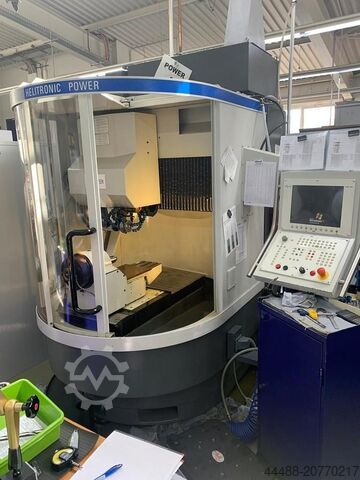

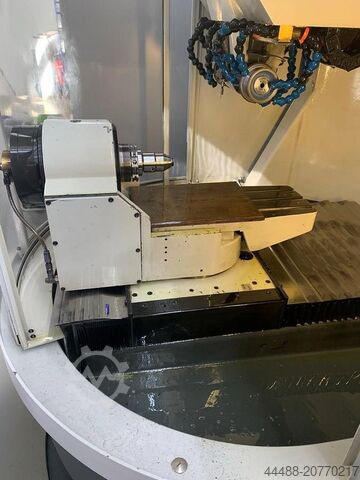

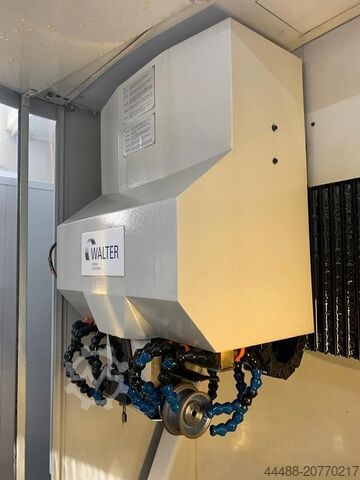

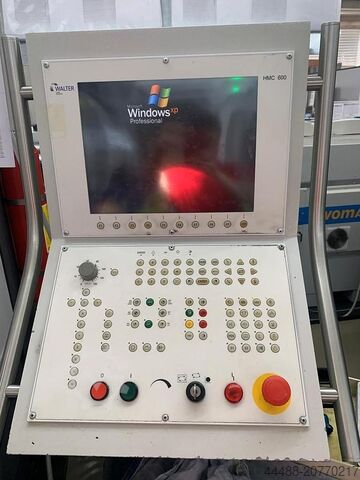

Condition: used, Year of construction: 1997, Description: Suitable for regrinding and manufacturing new wooden and metalworking tools of all kinds. Accessories: Software Package 1 (cylindrical tools sharp-edged, corner and full radius), Software Package 2 (conical-spiral tools sharp-edged, corner and full radius), Software Package 3 (drills and step drills), Software Package 4 (step tools) Software Package 6 (woodworking tools), Software Package 16 (warming-up program), Software Package 27 (free programming), Heli-Flute & Cone (flute calculation program for cylindrical and conical mills), stepless speed control, pneumatic workpiece clamping, Probe, automatic fire protection system, electrostatic extraction, oil collection tray, automatic central lubrication, 2 grinding wheel mounts. X axis longitudinal movement: 400 mm Y - axis vertical movement: 250 mm Z-axis cross movement: 580 mm C-axis rotary table: Swivel range +/- 200 ° Workpiece holder: ISO 50 max. workpiece length: 270 mm max. grinding wheel diameter: 200 mm, Hpsdox H Nqlspfx Af Dsa Max. Workpiece diameter: 260 mm Grinding spindle speed infinitely variable: 0 - 9500 rpm. weight: approx. 3200 kg Drive power grinding spindle: 10,0 kW Connected load: 15 kVA (400 V / 50 Hz) Dimensions W x D x H: 2000 x 2010 x 2150 mm colour: grey RAL 7035/7043

Condition: like new (used), Year of construction: 2010, Machine Type: CNC Cylindrical Grinding Machine Manufacturer: Fritz Studer AG Model: S22 Year of Manufacture: 2010 Control System: FANUC 31i-A CNC Machine Base: Granitan® S103 mineral casting Configuration: Fixed straight wheelhead for external (OD) grinding Automation: Automatic loading system with FANUC robot integration Distance Between Centers: 650 mm (25.6”) Center Height: 175 mm (6.9”) Max. Workpiece Weight: 150 kg (330 lbs) Max. Workpiece Length: 700 mm Max. Workpiece Diameter: 449 mm Grinding Wheel Diameter: 610 mm Grinding Wheel Width: 160 mm Grinding Wheel Speed: Up to 3,200 rpm Spindle Power: 15 kW (20.5 hp) Wheelhead Type: Fixed straight X-Axis Travel: 310 mm Z-Axis Travel: 850 mm X-Axis Max. Speed: 15,000 mm/min Z-Axis Max. Speed: 30,000 mm/min C-Axis: Full rotation capability for workhead Programming Interface: StuderWIN with FANUC 31i-A Additional Software: StuderGRIND Hedpfxowl Uvkj Af Djpa Automation Interfaces: Standard interfaces for loaders and peripherals Other Equipment: Rotary dresser, Heidenhain scales, various clamping fixtures

Condition: used, Year of construction: 1996, functionality: fully functional, spindle speed (min.): 10,000 rpm, power: 12 kW (16.32 HP), warranty duration: 3 months, Our machine is well maintained and fully functional. Installation and Training will be provided by our company. The machine has a 3-year warranty after installation. Please contact us for price and details. Hpsdpfjwiztqjx Af Dja

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, total height: 245 mm, total length: 211 mm, total width: 212 mm, spindle speed (max.): 5,000 rpm, feed length X-axis: 650 mm, feed length Y-axis: 350 mm, feed length Z-axis: 720 mm, grinding wheel diameter: 250 mm, overall weight: 5,000 kg, Machine has only run with oil cooling, machine is equipped with dressing roller, measuring probe, pneumatic workpiece clamping, -- New linear guides and control conversion in 2014 Hpsdjug H R Sjpfx Af Dea

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] - Travel : 330 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 410/400 [mm] - Y stroke : 200 [mm] - B Axis stroke : -25/+115 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK40 - Spindle speeds : 30000 [rpm] - Spindle power : 8 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 60 - Tool exchange time : 1.2 [sec] - Number of positions : 60 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3300 x 2900 [mm] - Machine height : 2100 [mm] - Machine weight : 5000 [kg] MACHINE HOURS - Number of working hours : 11659 [h] EQUIPMENT - CNC : Fanuc 31i model A5 - Linear scales - Coolant tank * with high-pressure pump : 70 [bars] Hjdpjuhampsfx Af Depa * Coolant through spindle - Oil mist extractor : ELBARON RON/A 100 DV - Spindle cooling unit - Workpiece probe : Renishaw OMP40-2 - Parts catcher - 1 NAKANISHI HTS1501S spindle : 150.000 [rpm] - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Bar puller

Condition: used, Year of construction: 2001, longitudinal feed X: 490 mm Vertical feed Y: 320 mm cross travel Z: 660 mm Swivel range C: +/- 200 ° Control HMC 500 WWM Walter lenght tool piece capture A: 175 mm ISO 50 Max. rpm A: 60 min/-1 centre height 145 (190) mm max. workpiecediameter 320 mm max. workpiece length 320 (350) mm resolution 0,0001 ° Resolution 0,0001 mm spindle diameter 80 mm grinding wheel diameter max. 200 mm Max. rpm 0 - 7.000 min/-1 driving power - grinding spindle 24 kW max. Torque 6 Nm total power requirement 35 kVA weight of the machine ca. 4,65 t dimensions of the machine ca. 3,6 x 2,5 x 2,95 m CNC - Tool-Grinding-Machine WALTER - Helitronic Power Production Hodpow E Npxefx Af Dopa - Optional for an additional charge: WALTER Heli ToolCheck (stock number 1039-9375) ?m=1039-9375&s=WALTER%20Heli%20Toolcheck

Condition: used, Year of construction: 1996, total height: 2,150 mm, total length: 1,420 mm, total width: 2,010 mm, overall weight: 3,100 kg, grinding spindle speed: 6,000 rpm, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 580 mm, CNC Universal 5-Axis Tool-and Cutter Grinder CNC Control HMC 400 CNC X-axis movement 400 mm Y-axis movement 250 mm Z-axis movement 580 mm C-axis (table rotation) ± 200° Max diameter grinding wheel Ø 200 mm Spindle speed (grinding) 3000 / 6000 R/Min If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Hpjdpfx Aoxd Awqsf Dsa Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, CNC cylindrical grinding machine Hsdpfx Afjwim U Hs Dspa STUDER S31 CNC LeanPro with "Pictogramming" Distance between centers: 1000mm Center heigh 175mm Grinding Wheel head rotation (B) 360° (1°) 2 ext Grinding Wheels 1 int Grinding Wheel Ext Grinding wheel 400 mm x 40 mm x 127 mm overhauled spindle > see photos Workhead CM 4 0-1000 RPM CNC Fanuc Programming: Pictogramming Heidenhain linear encoders This machine can be inspected under power in our warehouse in Gussago BS Italy

Condition: reconditioned (used), Year of construction: 2003, functionality: fully functional, spindle speed (max.): 7,000 rpm, feed length Y-axis: 320 mm, type of input current: three-phase, overall weight: 4,650 kg, center height: 190 mm, travel distance X-axis: 490 mm, grinding spindle motor power: 24,000 W, workpiece diameter (max.): 320 mm, input voltage: 400 V, nominal power (apparent): 35 kVA, spindle nose: ISO 50, swivel angle A-axis (min.): 360 °, CNC tool grinding machine - WALTER Helitronic Power Production TECHNICAL CHARACTERISTICS: CNC control: HMC 500 Software installed: Tool Studio 2.1 R4 Number of axes: 5 Height of centers: 190 [mm] Stroke X: axis 490 [mm] Resolution X axis: 0.00001 [mm] Stroke Y axis: 320 [mm] Resolution Y axis : 0.00001 [mm] Stroke Z axis: 660 [mm] Resolution Z axis: 0.00001 [mm] Traversing feeds X, Y and Z axes: 15000 [mm/min] A axis: 360 [°] C axis: +/- 200 [°] Resolution C axis: 0.0001 [°] Max. workpiece lenght: end face grinding: 320 [mm] Max. grinding length: 350 [mm] Max. grinding diameter: 320 [mm] Grinding spindle attachment: NCT Grinding spindle diameter: 80 [mm] Grinding wheel max. speed: 7000 [rpm] Hjdowvf I Sspfx Af Dspa Grinding spindle motor power: 24 [kW] Max. diameter grinding wheel: 200 [mm] Internal workpiece spindle nose: ISO 50 Workpiece spindle max. speed: 60 [rpm] Total power required: 35 [kVA] Weight: 4650 [Kg] EQUIPMENT INCLUDED: x1 TRANSOR 12290-800A filtration unit x1 MTA oil chiller model TAE 015 x1 DSL oil mist extractor model AES-GAMMA 30 x1 RENISHAW part probe x1 disc-type tool loader 40 positions x1 SCHUNK gripper x2 grinding wheel arbor adapters x1 fire protection system - to be inspected by the buyer through a certified organization x1 electrical schematic manual x1 Service Instructions manual LICENSED WALTER WINDOW MODE (WWM) PACKAGES: - Package 001 (cylindrical mills) - Package 002 (tapered mills) - Package 003 (drills) - Package 004 (step drills) - Package 006 (woodwork tools) - Package 013 (reamers) - Package 015 (insert seats) - Package 016 (warmup program) - Package 027 (flexible program) - Package 090 (loader package) - Package 091 (acm) - Package 098 (loader package) - Package 099 (loader package) - Package 100 (reference data m.) - HELICONE (flute calc. conical.) - HELIDRILL (flute calc. drills) - HELIFLUTE (flute calc. cyl. mill.) - MCS (machine control .) - SCHEIBE (wheels menu) - TS_ADVANCED (toolstudio (v1.0-v.) - TS_STANDARD (toolstudio (v1.0-v.) - TS_STEPTOOLS (toolstudio (v1.0-v.) LICENSED TOOLSTUDIO OPTIONS: - Tool Studio 2.0 server/machinecontrol - Tool Studio 2.0 standard license - Tool Studio 2.0 advanced license - Tool Studio 1.9 upgrade options - Tool Studio 2.0 upgrade options - Option steptools - Option profile light (contour roughing ...) - Option calibration w/ touch probe - Option drills Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 663015, Walter Helitronic Mini Power Production 5 Axis CNC Tool & Cutter Grinder Universal tool and cutter grinder (CNC controlled) Made by Walter, model Helitronic Mini Power Production, s/n663015, year 2000 Description: Suitable to manufacture and regrind metal and woodworking tools of all kinds. Run with 1 micron filtration system, so the machine is very clean. Specifications: • Longitudinal traverse (X-axis) 350 mm, • Vertical traverse (Y-axis) 200 mm, • Cross traverse (Z-axis) 470 mm, • Rotary table swiveling range (C-axis) +/- 200°, • Work head ISO 50, center height (with / without worktable) 145 / 190 mm, • Max. diameter of workpiece 100 mm • Max. length of workpiece 270 mm • Max. dia. of grinding wheel 150 mm • Peak performance 11,5 kW, grinding spindle motor 9kW,speed 0 - 9500 rpm, • Connected load approx. 25 kW (460 volts 3ph / 60 Hz), • Dimensions w x d x h = 2600 x 2550 x 1970 mm, weight approx. 3950 kg, color grey RAL 7035 / grey RAL 7043. Accessories: Hpjdsu Ez Huepfx Af Dja • Control HMC 500 Windows XP Upgrade • Booster Box Upgrade option along with a spare Booster Box as well that could be used as a backup or for up to 3 other Walter machines. Value of each booster box is $10,000 a piece. • Stepless speed control, probe, pneumatic workpiece clamping • Fire extinguishing system • Mist Extractor • Oil collecting pan, 2 grinding wheel flanges • Complete set of Manuals Software: • Tool Studio Version 2.1 Standard & Steptools • WWM Software Condition: • New Y axis Motor & Ball screw Installed 2021 • New Spindle Installed 2021 • New Electrical cabinet air conditioner Installed 2021 • All new encoder & motor cables for A, C, X, Y & Z axis Installed 2021 • Currently in production producing very accurate & consistent tools. Can be viewed under power • We have all of the shipping bracket, so the machine will be safely secured for shipping. • We can load onto a flatdeck for shipping for $900. We can also provide shipping & crating quotes if you would like.

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MILLING SPINDLE - Tool holder type : BT50 - Spindle power : 40 [kW] - Spindle speeds : 12000 [rpm] - Gearbox - Speed ranges : 2 LINEAR AXES - Travels on X/Y/Z axes : 2400/1650/1750 [mm] - Rapid traverses rates (X/Y/Z) : 42 [m/min] - Cutting feed rates (X/Y/Z) : 20 [m/min] B ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0.001 [°] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 116 - Tool exchange time : 3.8 [sec] PALLET CHANGER - Pallet changing device type : Rotopalette - Pallet size : 1600 x 1250 [mm] - Pallets number : 2 - Maximum weight upon pallet : 5000 [kg] - Distance table center / spindle nose (min./max.) : 100 - 1750 [mm] - Maximum workpiece diameter : 2500 [mm] Hsdsw Ephbjpfx Af Dspa - Maximum workpiece height : 1850 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 86 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 9.485 x 6.155 [mm] - Machine height : 4.370 [mm] - Machine weight : 50000 [kg] MACHINE HOURS - Number of working hours : 15446 [h] EQUIPMENT - CNC : Fanuc 31i-model B5 Interface : Ethernet / RS232 / USB / PCMCIA - SOFT SCALE II - Electronic handwheel - Rigid tapping - 3 colors status lamp - Coolant tank * with high-pressure pump : 70 [bars] * Coolant through spindle * with paper filtering unit * with cooling unit for coolant * With washing gun * With cabin washing - Chips conveyor - Spindle cooling unit - Tool probe - Workpiece probe : Renishaw RMP60 - Tool breakage detection : SOFT AC - Pallets number : 2 - Milling vice - Tool-holders
