Tool grinder

Walter Helitronic Vision

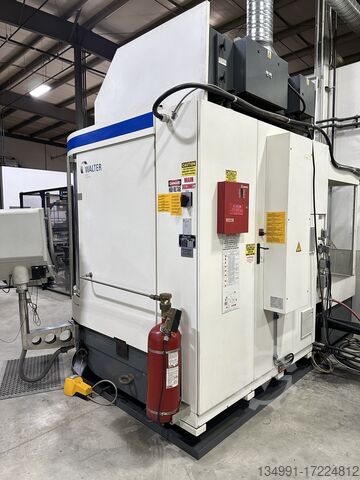

Walter Helitronic Vision CNC Tool & Cutter Grinder with Pallet Loader
Universal tool and cutter grinder (CNC controlled)

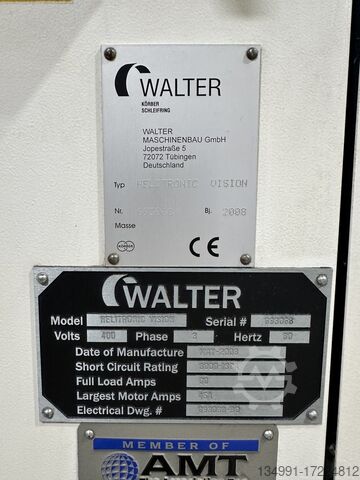

Made by Walter, model Helitronic Vision, s/n 693068, year 2008
Description:

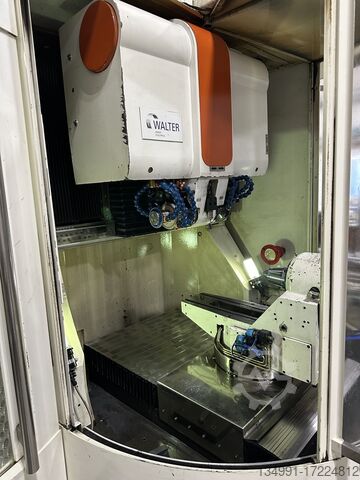

Suitable to manufacture and regrind metal and woodworking tools of all kinds. Can be viewed under power.
Specifications:
• Longitudinal movement (X-axis) 480 mm
• Y axis vertical movement 320 mm
• Z-axis transverse movement 700 mm
• Rotary table swivel range C-axis +/- 200 °
• Workpiece Holder ISO 50
• Max. Workpiece diameter 320 mm
• Workpiece length circumferential grinding 370 mm
• Workpiece length for face machining 320 mm
• Accuracy linear resolution 0.0001 mm
• Radial resolution 0.0001 °
• Diameter of the spindle 100 mm
• Grinding wheel mount: HSK50
• Diameter of the grinding wheel 200 mm
• Grinding spindle speed 0 – 12,000 rpm.,
• Top performance 30 kW
• Connected load 35 kW (460 V / 60 Hz)
• Weight approx. 7,100 kg
• Dimensions L x W x H 3649 x 2490 x 2301 mm

Accessories:
• Does not include wheel opening stick fixture seen in the pictures

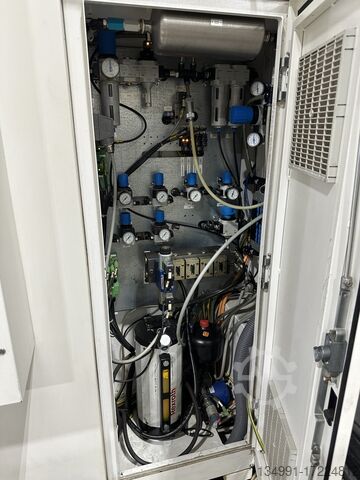

• Stepless speed control, probe, pneumatic workpiece clamping
• Electrostatic mist extractor
• Fire extinguishing system
• Oil collecting pan, 2 grinding wheel flanges, Complete set of Manuals
• Turmoil Drive Chiller
• Loader Pallets: 8pcs – 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 1-1/4”
• 10pcs - HSK Wheel Arbors
Hsdpfx Afsuqzdpspjfn

Software:

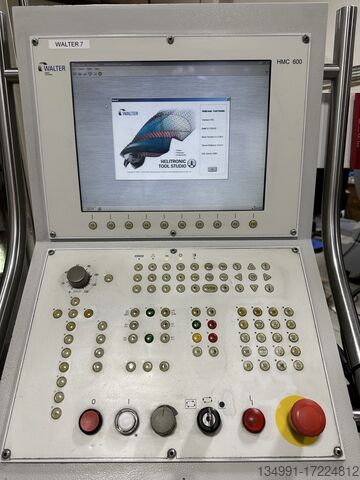

• Windows XP Pro Svc Pack 3
• Tool Studio V3.3
• The computer was upgraded & is very fast rendering tools in Tool Studio

Condition:
• Excellent condition, very accurate & consistent. October 2023 Y axis Complete rebuilt, Linear motor, rails, Compensation Cylinder, Festo Booster Pump done by United Grinding.
• 1 Micron Filtration system was used on the machine (not included), so it’s been kept extremely clean
• We can load onto a flatdeck for shipping for $1200. We can also provide shipping quotes if you would like & crating for Sea Freight shipping.
