Milling machine

Wanderer GF-342 CNC

Condition: used, Year of construction: 2006, Technical details: x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm turning speeds: 12.000 1/min tool taper: SK 50 control: SIEMENS 840D shopmill tool change unit: 240 fach size of pallet: 630 x 630mm mm spindle: 52 kW / 430Nm total power requirement: 87 kVA weight of the machine ca.: 15 t horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, Fedpfx Ajpumdcjdwegk incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours *

Year of construction: 1969, condition: ready for operation (used), Max. grinding depth: 80mm, distance spindle table: 145mm, spindle bore: 28mm, connected load: 7kW, length: 2100mm, width: 1400mm, height: 950mm, weight: 1.6t, with documentation, an inspection is possible. Fgjdpfjqzkdmex Adwok

Year of construction: 1980, condition: good (used), A used very well preserved cycle controlled lathe from Weisser Heilbronn with SIEMENS control. centre distance 2000 mm centre height 295 mm Swing over bed 600 mm Swing over cross slide 260 mm Swing diameter in the bend 800 mm Total length of the crank 375 mm Bed width 450 mm Plan travel X-axis 350 mm Longitudinal travel Z-axis 1850 mm Spindle nose DIN 55022 size 8 Spindle speed Number 18 14 - 1400 rpm Fsdpfegyy I Ajx Adwjgk spindle bore 71,5 mm Diameter of front bearing 110 mm feed range 0,01 - 40,95 mm/rev rapid traverse 8 m/min Direct current drive 15 kW 400V 50Hz Max. permissible torque at the spindle 2500 Nm Tailstock quill 80 mm quill stroke 250 mm inner taper quill MK 5 Length x width x height Weight of the machine 5500 kg Accessories Tailstock Pneumatic three-jaw chuck with interchangeable jaws 315mm Quick change holder "MULTIFIX "in front of the center size "C Quadruple turret behind the center Tool holder Coolant device Pneumatic steady rest Technical data and dimensions: Errors excepted. Videoconference via whatsapp possible by appointment

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, CNC Fanuc 18i - MB TRAVELS: X axis: mm 850 Y axis: mm 700 Z axis: mm 750 Distance from spindle center to pallet top: mm 50 - 750 Distance from spindle nose to table center: mm 150 - 900 TABLE: Pallet size: mm 500 x 500 Pallet loading capacity: kg 500 Pallet surface: 24 – M16 x P 2.0 Pallet index degree: deg 1 SPINDLE: Max spindle speed: Rpm 14.000 Spindle taper: ISO 40 Max spindle torque (25% ED): Nm 220,5 FEEDRATE: Rapid traverse rate (X, Y, Z): m/min 60 Cutting feedrate: mm/min 30.000 AUTOMATIC TOOL CHANGER: Fjdovw Uyuopfx Adwegk Type of tool shank: MAS403 BT40 Tool storage capacity: 120 Max tool length: mm 400 Max tool weight: kg 10 Method of tool selection: Fixed address Tool change time (tool-to-tool): sec 1 Tool change time (chip-to-chip): sec 3,5 AUTOMATIC PALLET CHANGER: Number of pallet: 7 Type: Rotary shuttle Pallet change time: sec 7,5 Pallet rotation in loading station: deg 90 MOTOR: Spindle motor (30 min): kW 18,5 / 22 Feed motor (X, Y, Z, B): kW 7,0/7,0/7,0/2,7 MACHINE SIZE: Machine height: mm 3.000 Machine dimension: mm 5.600 x 2.700 Machine weight: kg 15.000 Machine equipped with: • High pressure through the spindle 35 bar • Chip conveyor • Instruction manuals and CE declaration

Condition: refurbished (used), Year of construction: 2007, Table size: 500 × 500 mm 2 pallets Max table load: 500 kg X-axis: 730 mm Y-axis: 650 mm Z-axis: 730 mm CNC control: Makino Professional 5 Rapid feed X/Y/Z: 60 m/min Spindle nose to pallet center distance: 70–800 mm Tool magazine: 60 positions Taper: HSK 63 Max workpiece size on pallet: Ø800 × 1000 mm Max tool weight: 12 kg Max tool length: 360 mm Fgsdpfxsxcmi Ij Adwsk Max tool diameter: 70 mm Options: High-pressure pump 15 Bar

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 30013012, 27.10 25: Machine currently in serial production. Shutdown planned for mid-2026. Please state your offer price. Fgjdpfxsth Sc Ho Adwjk Sale only within Europe, including Turkey. ----- For technical data, see handout. Without packaging; any warranty rights are excluded. Should you wish to dismantle the system yourself, please indicate this in your bid. We do not assume any liability for the accuracy of the technical data, the completeness of accessories and tool equipment, nor for compliance with all safety and environmental protection requirements as specified in accident prevention regulations.

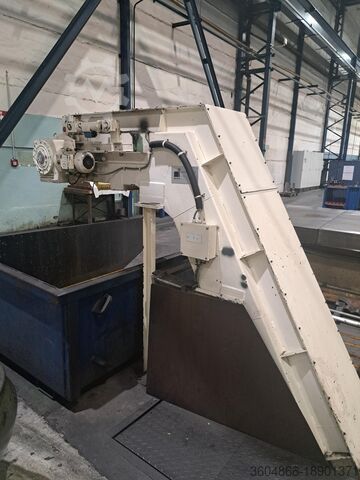

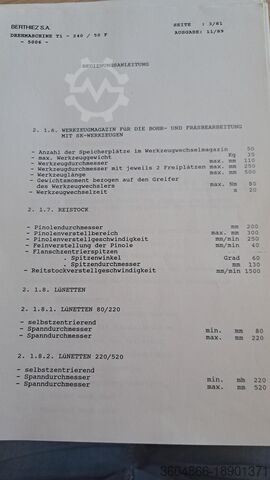

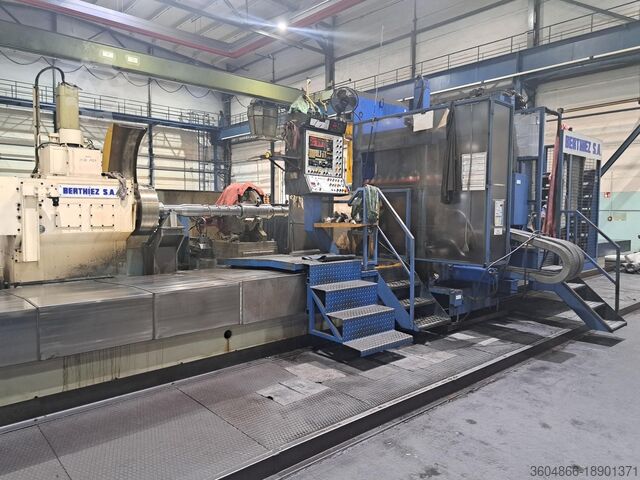

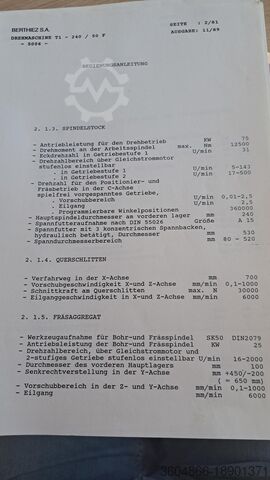

Condition: good (used), Year of construction: 1989, functionality: fully functional, machine/vehicle number: 5005 + 5006, turning length: 6,500 mm, turning diameter: 500 mm, spindle motor power: 7,500 W, spindle speed (min.): 5 rpm, spindle speed (max.): 500 rpm, travel distance X-axis: 700 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 6,500 mm, rapid traverse X-axis: 6 m/min, rapid traverse Z-axis: 6 m/min, type of input current: three-phase, torque: 12,500 Nm, workpiece weight (max.): 10,000 kg, total height: 3,800 mm, total length: 16,000 mm, total width: 6,000 mm, quill diameter: 200 mm, quill travel distance: 300 mm, swing diameter over bed slide: 950 mm, center height over cross slide: 900 mm, Equipment: documentation/manual, rotational speed infinitely variable, NC turning and milling center, manufacturer Berthiez Two machines available Serial numbers: 5005 and 5006 Unit price: €20,000 Three-jaw chuck Fjdpfswa In Nsx Adwsgk 50-position tool changer for milling tools Tool changer for turning tools Chip conveyor Tool holder SK50 2 steadies Tailstock Control unit: Siemens Sprint 8ME Included in the offer: milling angle head, drilling angle head, grinding attachment EB22 Dismantling and transport are the responsibility of the purchaser.

Condition: good (used), Year of construction: 2009, Traverses XYZ 850 x 700 x 750 mm, Pallet size 500 x 500mm, pallet load 500 kgs, 60 ATC, BT40 spindle taper, Fanuc 31i- control. Fsdpfx Ajwq Iwxodwegk Spindle power 22Kw, B axis 0.001 Degrees, 14000 rpm spindle, swarf conveyor, Through Spindle Coolant.

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MILLING SPINDLE - Tool holder type : HSK63 - Spindle power : 22 / 26 [kW] - Spindle speeds : 100 - 10.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 800 x 600 x 800 [mm] - Rapid traverses rates (X/Y/Z) : 40 [m/min] B ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0,001 [°] - Rapid traverse rate : 13,88 [rpm] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 60 - Tool exchange time : 2,2 [sec] PALLET CHANGER - Pallet changing device type : Rotopalette - Pallet size : 630 x 500 [mm] - Pallets number : 2 - Maximum weight upon pallet : 900 [kg] - Distance table / spindle axis (min./max.) : 43 - 643 [mm] - Distance table center / spindle nose (min./max.) : 145 - 945 [mm] - Maximum workpiece diameter : 740 [mm] - Maximum workpiece height : 550 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 56 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 5.244 x 3.305 [mm] - Machine height : 3.345 [mm] - Machine weight : 10.000 [kg] MACHINE HOURS - Number of working hours : 9.095 [h] EQUIPMENT - CNC : Fanuc 0i-MD - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming : Manual guide - Electronic handwheel - Linear scales - Rigid tapping - 3 colors status lamp - Coolant tank : 700 [l] * with oil separator * with high-pressure pump : 40 [bars] * Coolant through spindle * with paper filtering unit * With washing gun * With cabin washing - Parts hydraulic clamping : prepared - Hydraulic counter balance : upon Y axis Fsdpfxjuhb D No Adwegk - Chips conveyor - Spindle cooling unit - Tool-holders : 35

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 30013011, 27.10 25: The machine is running in series production. Shutdown planned for mid-2026. Used grinding machine, model year 2008, for plunge grinding, including base tray and part loading via gantry loader (Theilinger Automation). There are two used machines available for sale. Fgjdpfx Adsth Rzajwok ----- Please provide your offer price and desired quantity. Sale only within Europe (EU), including Turkey, the United Kingdom, and Switzerland. ----- Technical specifications can be found in the handout. Without packaging; all warranty rights are excluded. If you wish to dismantle the equipment yourself, please indicate this in your bid. We do not guarantee the accuracy of the technical data, the completeness of accessories and tooling, or compliance with all safety and environmental protection requirements stipulated in the accident prevention regulations.
