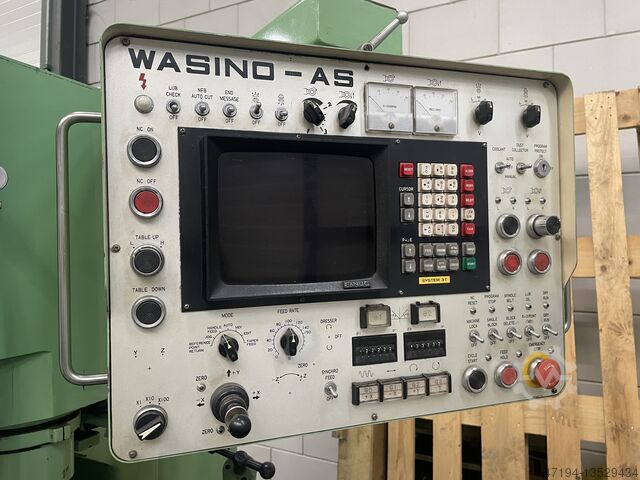

CNC Optical Profile Grinding Machine

Wasino GLS-130AS

Condition: ready for operation (used), Year of construction: 1984, operating hours: 40,000 h, functionality: fully functional, machine/vehicle number: No.315, No.316, No.317, No.327, grinding width: 100 mm, grinding length: 250 mm, table length: 400 mm, grinding height: 130 mm, table width: 225 mm, grinding spindle speed: 3,300 rpm, Equipment: rotational speed infinitely variable, For sale are 4 (four) sets of optical profile grinding machines Wasino type GLS-130AS, with Fanuc control, made in Japan in 1984. 3 machines are in full working condition, there are videos of spindle runout and positioning X,Y accuracy measurements. Fourth machine serial No.327 is the same working condition, just factory worker could not start it up for us, was worked more then 1 year ago. There are accessories, tools and technical documentation for each machine. For 1 machine Wasino complete with accesories and tools, price is 18500 euro EXW stock. Preferable to sell as package 4 machines together. Kjdpfx Aowh Udtjd Ijdw

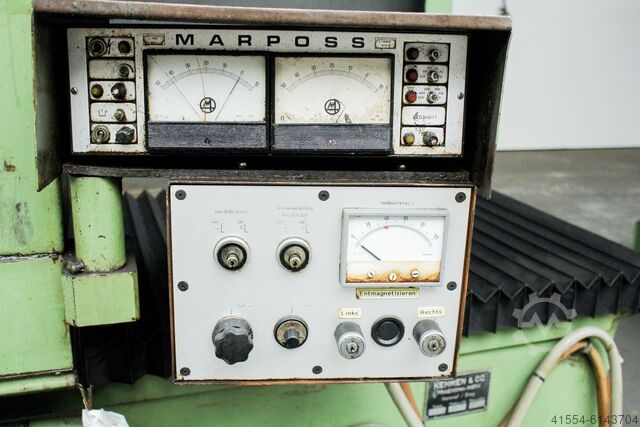

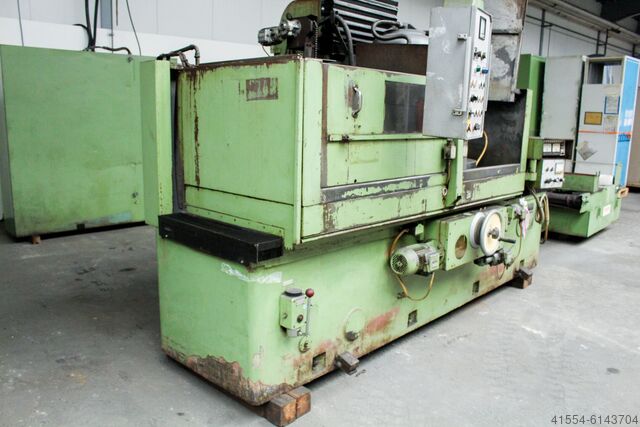

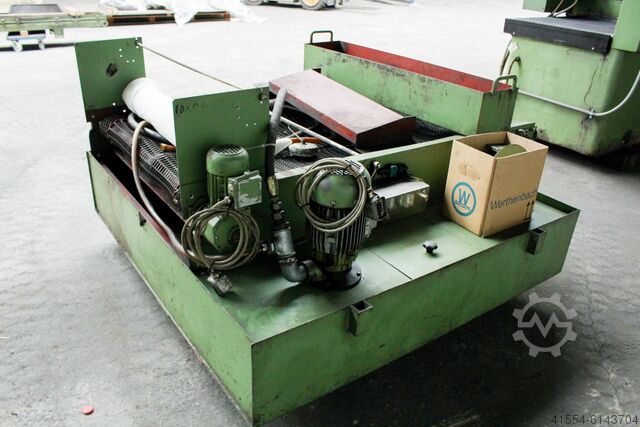

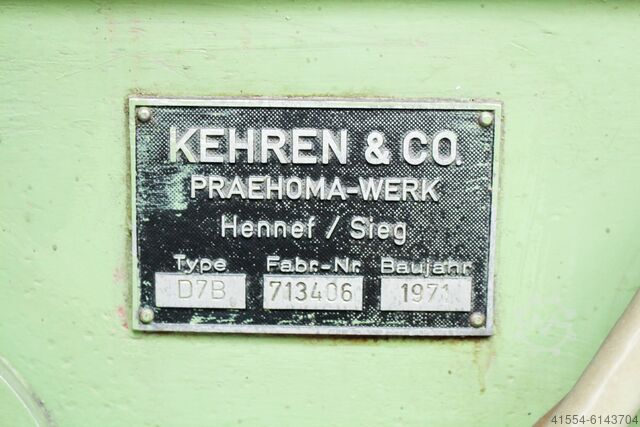

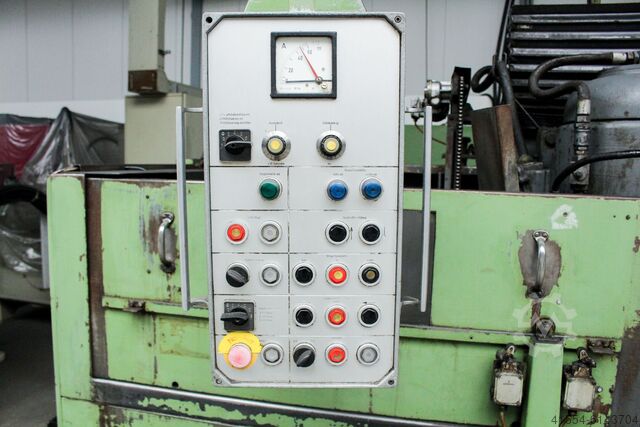

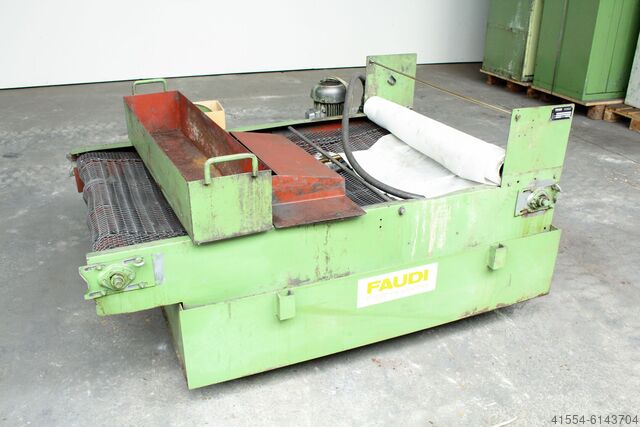

Year of construction: 1971, condition: ready for operation (used), machine/vehicle number: 713406, -KOM 105- Offered here is a grinding machine from the company Kehren & Co with a filter system from the company FAUDI. This is a segment grinding machine with vertical grinding spindle. The machine has 2 grinding tables/magnetic plates for pendulum machining. Technical data: Grinding machine: Manufacturer: Kehren & Co Type: D7B Year of manufacture: 1971 Make No: 713406 2 grinding tables/ magnetic plates with 700mm diameter. Grinding method: segment grinding Kjdpfx Adsg Nt A Ej Iedw Control: Marposs weight: 6.600kg Filter system: Manufacturer: Faudi - Filtersystems Type: AFB 1,3 / 1001 Year of manufacture: 1992

Condition: not inspected (used), Year of construction: 1998, machine/vehicle number: 2183, travel distance X-axis: 500 mm, travel distance Y-axis: 300 mm, spindle speed (max.): 60,000 rpm, spindle speed (min.): 9,000 rpm, workpiece weight (max.): 300 kg, total height: 3,250 mm, feed rate X-axis: 2,000 m/min, feed rate Y-axis: 2,000 m/min, table width: 380 mm, table length: 600 mm, table load: 300 kg, overall weight: 4,500 kg, travel distance W-axis: 450 mm, Equipment: documentation/manual, THIS MACHINE IS SOLD EXCLUSIVELY WITHIN THE EU – THANK YOU FOR YOUR UNDERSTANDING! Item type: CNC Coordinate Grinding Machine Manufacturer: HAUSER Model: S35-400 Year of manufacture: 1998 Machine number: 2183 Condition: According to the previous owner and a Hauser specialist, the machine is in good condition. Terms of delivery: Free loaded onto truck Availability: Immediately (subject to prior agreement) Location: Magdeburg Technical data: Kdsdpswakqysfx Ad Ijw • Control: GE Fanuc Series 16-M • Tool holder: Collets EX 19 or grinding arbors E19 • Travel X / Y / W axes: 500 / 300 / 450 mm • Feed rate X & Y axes: 0 – 2000 mm/min • Feed rate W axis approx.: 900 mm/min • Table dimensions: 600 x 380 mm • Max. table load: 300 kg • Grinding spindle speed stepless: 9,000 – 60,000 rpm • Z-axis stroke speed stepless: 0.5 – 14,000 mm/min • Fire extinguishing system • Further technical data – see pictures Scope of delivery: • Grinding motor 60S (9,000 – 60,000 rpm) – see separate pictures • Extraction system • Coolant system • Dressing turbine • Available manuals • The clamping equipment visible in the pictures as well as the currently mounted grinding motor are NOT included in the scope of delivery! Dimensions & weights: • Installation dimensions (L x W x H) approx.: 4,250 x 4,000 x 3,250 mm • Weight approx.: 4,500 kg If you have any questions or would like to arrange a viewing, please feel free to contact us. Additional notes: The tool changer is not operational – according to the previous owner, it was never needed anyway! • On request, we can arrange transport to the destination. • The offer price is net plus VAT. • The goods are sold under exclusion of any warranty! • The sale is exclusively to business customers! • Technical data subject to change and without guarantee. • Subject to prior sale.

Condition: excellent (used), Polish production Rafamet lathe for sale, efficient machine in good condition after employing electrics and management by Rafamet. The machine worked until the very end, currently disassembled loading machine. Technical data Track width (for normal version) - 1435 mm Track width (for special execution) - 1524 or 1676 mm Wheel diameter - 800-1500 mm The minimum distance between the axes of the sets - 1500 mm Maximum axle clamping on the rails - 25 tons Rotation of drive rollers (stepless) - 15-82 rpm Circumferential speed of drive rollers - 7.5-43 mm/min Feeds of copying supports (stepless) - 0.95-34 mm / min Kjdpfxjmidwcs Ad Ijdw Travel of external jacks - 540 mm/min Travel of hydraulic jacks - 410 mm/min Slide travel - 2300 mm/min Sliding rail travel - 9000 mm/min Weight including standard equipment 25 200 kg Installed power 83kW (after modernization 58kW)

Condition: good (used), Year of construction: 1997, machine/vehicle number: 24625, COLD HEADER CARLO SALVI 246/TR 2 Die 4 Blow Kdedehn R E Iopfx Ad Iow Max. Cutoff Diameter: 8 mm Max. Cutoff Lenght: 75mm Max. K.O. Lenght First Die: 85 mm Max. K.O. Lenght Second Die: 60 mm Max. K.O. Lenght (Punch Side): 10 mm

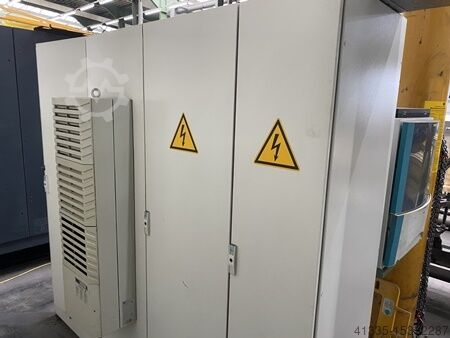

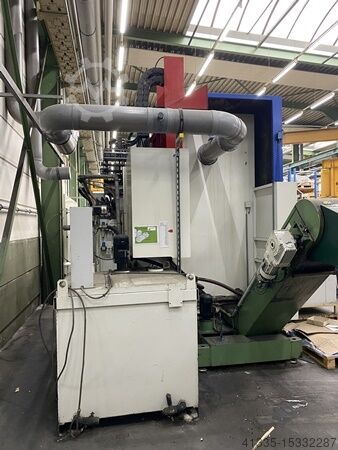

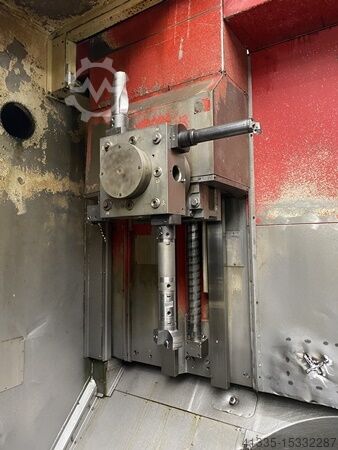

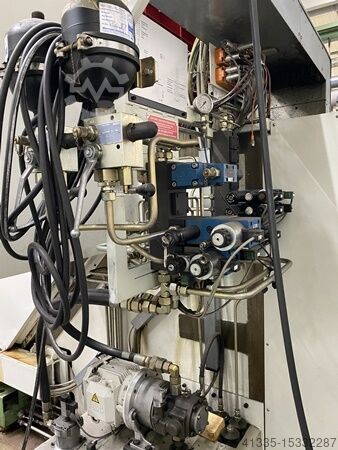

Condition: good (used), Year of construction: 2002, functionality: fully functional, 2-axis machine. Kedpfx Ajrx R S Usd Isdw Largest turning diameter: 1000 mm Largest swing diameter: 1250 mm Vertical slide stroke: 1000 mm Stroke horizontal slide: 1250 mm Spindle head according to DIN 55026: Size A 15 Spindle Ø in front bearing: 240 mm Drive 100% / 40% ED: 4.4 / 5.5 kW Speed range 1: 6.3 90 224 rpm Speed range 2: 25 360 900 rpm Feed rates: max. 14000 mm/min Rapid traverse: max. 20000 mm/min Turret head: 4 stations Round shank: Ø 60 mm according to DIN 69880 Connected load: 110 KW Weight: 25 tons The machine is still under power. Inspection possible at any time by arrangement. Price ex location. We will be happy to enquire about the costs for free truck.

Year of construction: 1971, condition: used, General / technical data: Kjdjlwvm Ajpfx Ad Ijdw Manufacturer: Varinelli Model: BVE-S-25-2000 Year of manufacture: 1971 Weight: 12to tractive force: 25to maximum stroke: 2000mm clamping surface: 500 x 500 table opening: 550mm power supply: 380 Volt / 50 Hz Accessories/ special equipment: - tilting table Remark: The machine is under power in our warehouse and can be inspected.

Year of construction: 1964, condition: used, -WKG 429- Ksdpsg Nt Dbsfx Ad Ijdw Offered here is a grinding machine from the company Naxos Union. This is a vertical rotary table surface grinding machine with 2 vertical grinding spindle units. Technical data: Manufacturer: Naxos Union Type: FRDA 600/1000 Year of manufacture: 1964 Rotary table: Ø 1100mm grinding wheels Ø: shrink head 475/254 Grinding wheels Ø: finishing head 457/357 Weight: 8t Grinding method: segmental grinding Segment grinding heads: 2 pieces Accessories: Dressing device Water box with paper belt filter Marposs control

Condition: excellent (used), Year of construction: 1991, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 120 mm, travel distance W-axis: 450 mm, For sale: Hauser coordinate grinding machine, model S35-400 The machine is in excellent condition and underwent a partial overhaul in 2024 for €15,000. The machine is equipped with 6 high-quality grinding motors, a face motor, and turbines. TECHNICAL DATA Distance between column and spindle: 365 mm Clearance between table and spindle: 485 mm Main spindle diameter: 100 mm X-axis: 500 mm Y-axis: 350 mm Z-axis: 120 mm W-axis: 450 mm U-axis: 5.5 mm Maximum taper grinding: 16° Table size: 600 x 380 mm T-slots: 6 units, 10 mm width, 50 mm spacing Table load capacity: 300 kg Speeds and Tool Holders Speed 22S: 4,500 - 22,500 rpm 45S/45ST: E19 Speed 45S/45ST: 9,000 - 45,000 rpm 80S: F6 Speed 80S: 40,000 - 80,000 rpm T10/T16: Ø 3 mm Speed T10/T16: 100,000 / 160,000 rpm Slot grinding attachment: 2,900 - 34,500 rpm Planetary movement: 5 - 250 rpm C-axis: 0 - 5 rpm X/Y feed: 0 - 1,200 mm/min W-axis feed: 900 mm/min Z-axis feed: 0.5 - 12,000 mm/min MACHINE DETAILS Digital measuring accuracy: 0.001 mm Base deviation: 0.003 mm Power: 7.5 kW Compressed air requirement: 20 m³ System pressure: 5 bar Footprint: 3.5 x 4.4 m Machine height: 3.5 m Connection value: 8.3 kVA Weight: 3.1 t EQUIPMENT - Slot grinding attachment - Rotary table, 300 mm diameter - Swivel table, 200 mm diameter - Coolant system - Extraction unit - Very high-quality accessories included Transportation and loading can be arranged across Europe at extra cost upon request. Prices plus VAT. Viewing by appointment is possible. Contact us—our team is happy to assist you. Trade-in or exchange possible! MACHINE PROCUREMENT / SALES Kedpfx Ajwtqthed Iodw PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit our website.

Condition: used, SCHULER TYPE 315-400 Kdodpergp N Hofx Ad Iew PRESSURE: 315t LENGTH OF STROKE: 30-160mm STROKES PER MIN: 36
