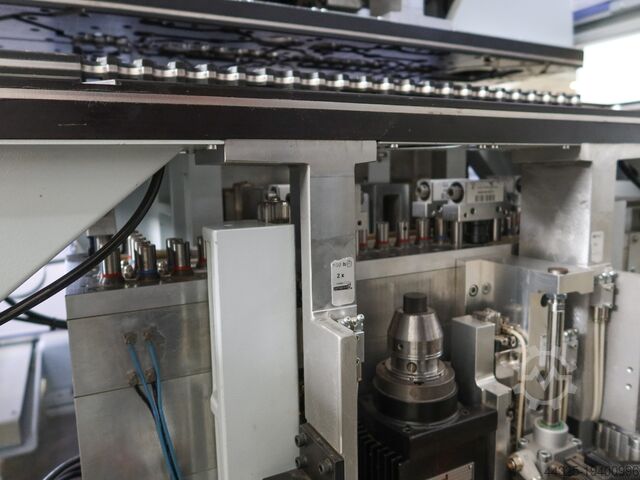

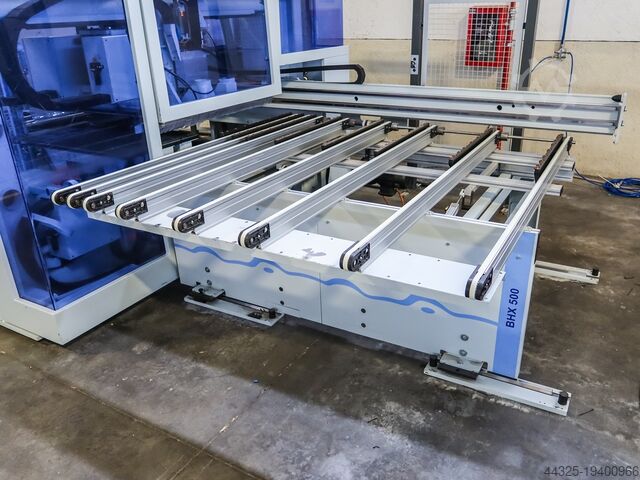

CNC for Flexible Drilling

WEEKE BHX 500

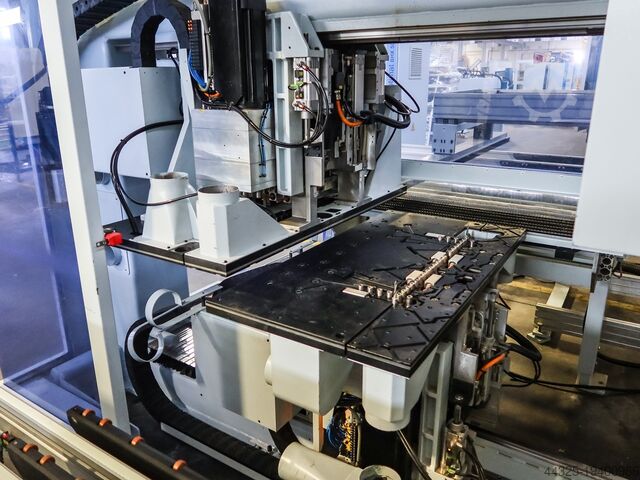

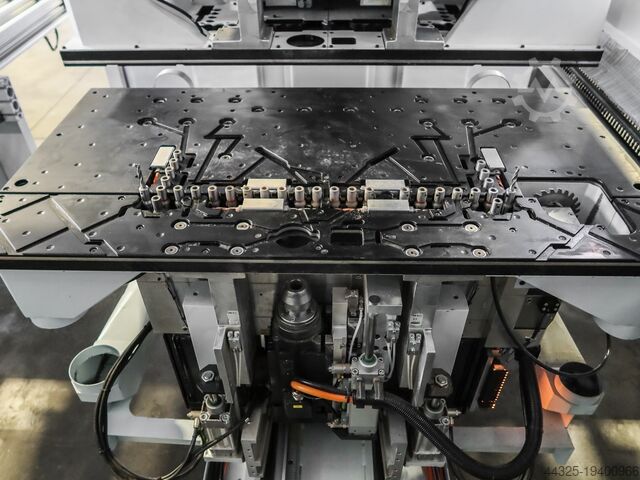

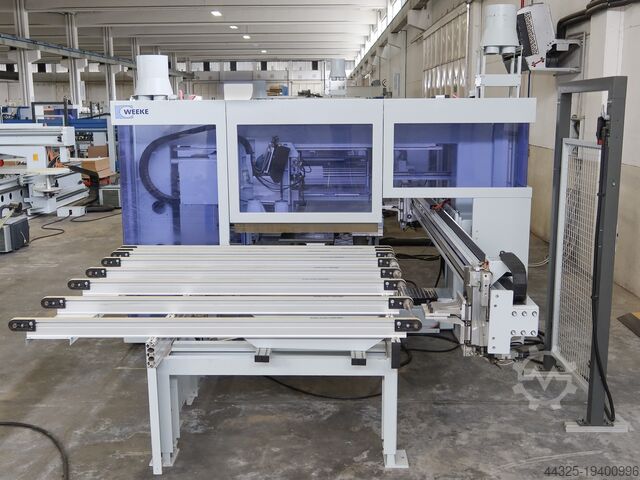

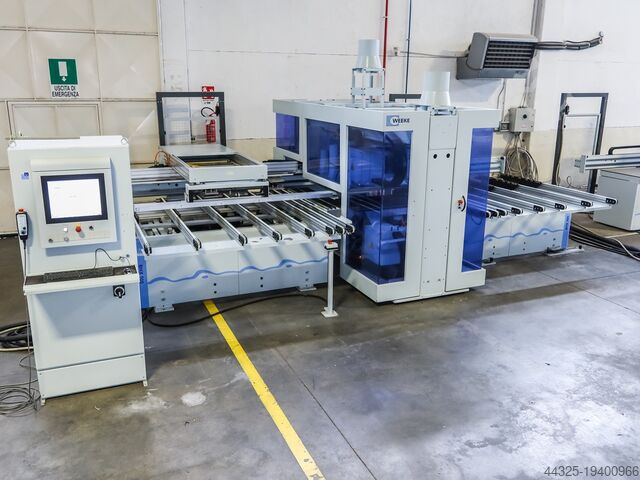

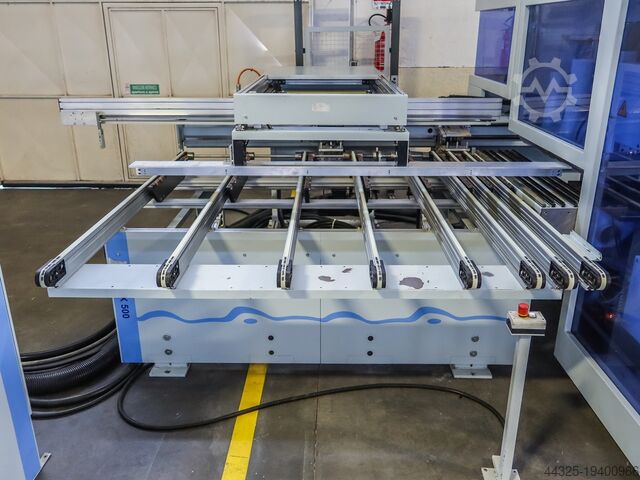

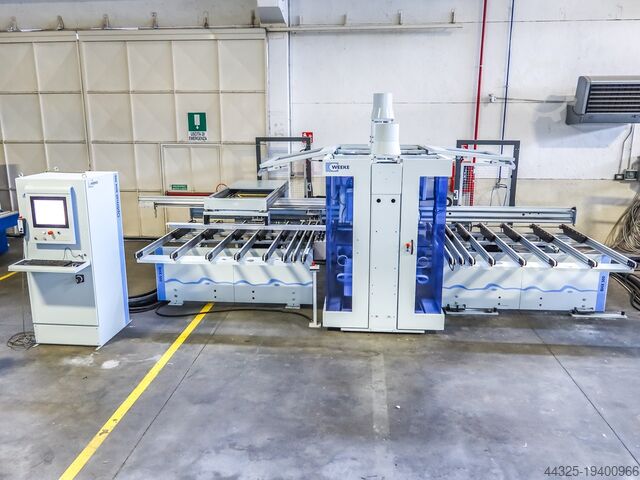

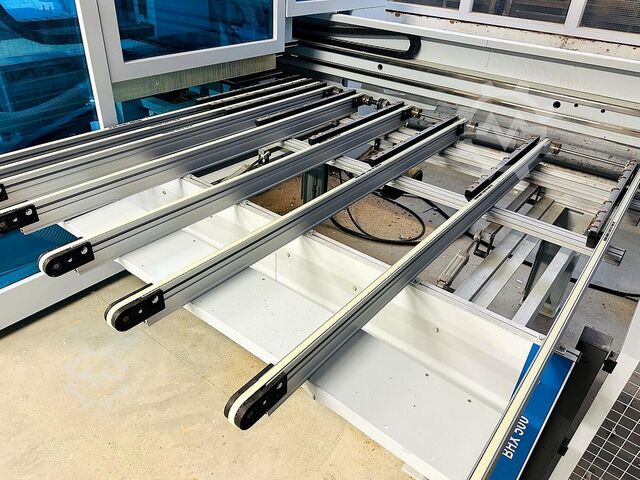

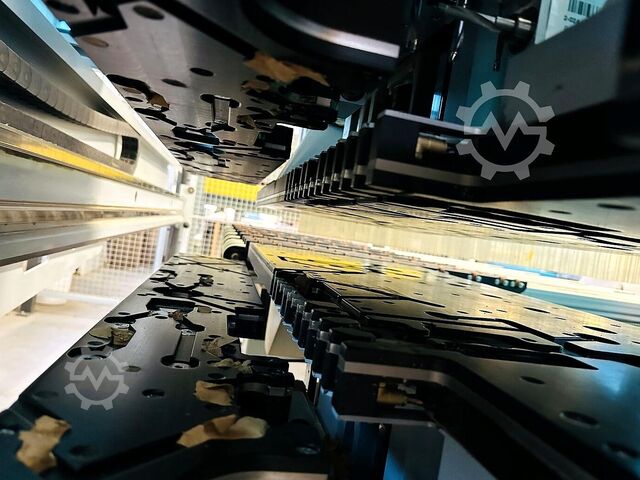

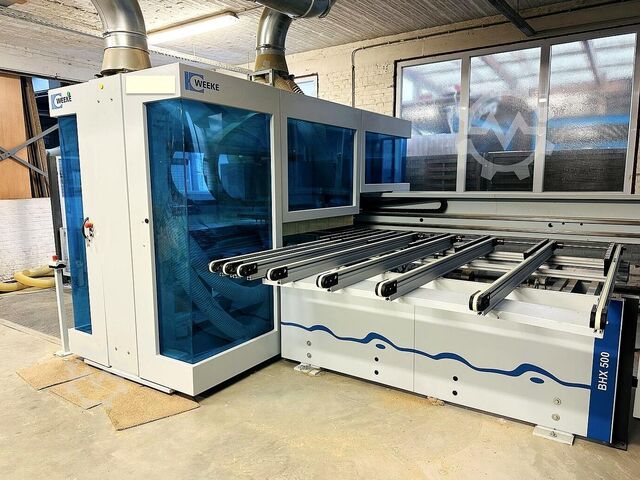

Condition: excellent (used), Year of construction: 2009, Weeke BHX 500 – Operator Side Right Weeke Machining Center, each with one machining support above and below Infeed table with automatic workpiece feeding and positioning WORKPIECE DIMENSIONS Min. workpiece length: 200 mm Max. workpiece length: 2,500 mm Min. workpiece width: 70 mm Max. workpiece width: 1,000 mm Min. workpiece thickness: 8 mm (2*4 mm) Max. workpiece thickness: 80 mm Max. workpiece stacking: 2 pieces Machine configuration: 2V21 HIGH SPEED 7500 Vertical drilling unit arranged in both upper and lower machining supports, each with 21 drilling spindles (individually controllable with variable speed range). 2H4X/1Y Horizontal drilling unit arranged in both upper and lower machining supports, each with 10 spindles individually selectable via program. Each with 8 drilling spindles: in X-direction Each with 2 drilling spindles: in Y-direction N2 X-Y 90° Grooving saw unit arranged in both upper and lower machining supports for machining operations in the X-Y direction, swiveling 90°. Cutting depth: 30 mm ADDITIONAL NOTE ON GROOVING SAW BLADE The saw blade width can be 8.4 mm. The cutting cross-section must not exceed 70 mm². F2-ETP-6 KW Milling unit arranged in both upper and lower machining supports, suitable for receiving shank tools. Manual tool change. Tool clamping: manual, Hydro quick-clamping system ETP 25 Rotation direction: right/left Speed: 6,000 – 18,000 rpm, stepless programmable Machining up to 3,000 mm Hnedpfxox S Hzlj Ahujg Infeed table with automatic workpiece feeding and positioning Workpiece discharge area with cross belt conveyor and lifting arms – Workpiece length measurement in the machine – Movable operator terminal – Barcode software incl. scanner

Condition: used, machine/vehicle number: 008176, X axis working area: 3050 mm Y axis working area: 1250 mm Hnedpfx Ahox A Hh Djujg Main Electrospindle power: 10 KW Number of controlled axes: 3 axes Total number of drilling spindles: 25 Total number of tool changer positions: 4

Condition: good (used), CNC machining center WEEKE OPTIMAT BHX 500 Including material feed "IgeL-ROBOT" Lower machining support Upper machining support Workpiece length: min. 250 - max. 2500 mm Workpiece width: min. 70 - max. 1000 mm Workpiece thickness: min. 4 mm – max. 80 mm Workpiece stacking: max. 2 pieces Vector speed: X-axis (collet) = 138 m/min; Y-axis = 80 m/min; Z-axis = 50 m/min Equipment: Hnodpotd Uufsfx Ahujg VERTICAL DRILLING UNIT 2 V 21 HIGH SPEED 7500 HORIZONTAL DRILLING UNIT 2H4X/2Y GROOVE SAW UNIT N2 X-Y 90 MILLING UNIT F2-ETP-6 KW Barcode reader manufacturer: Datalogic Material feed "IGEL-ROBOT" .

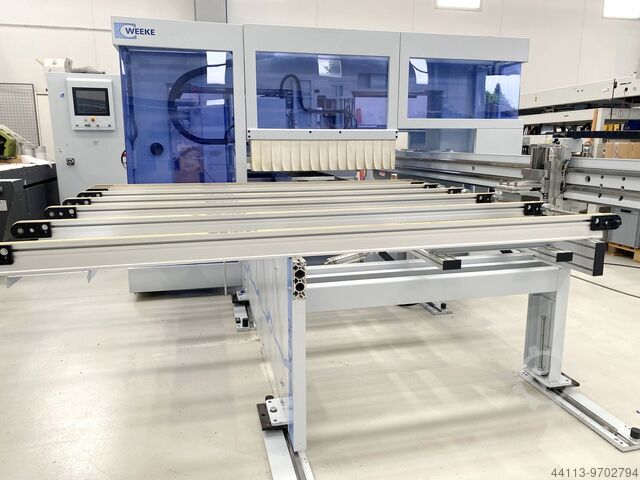

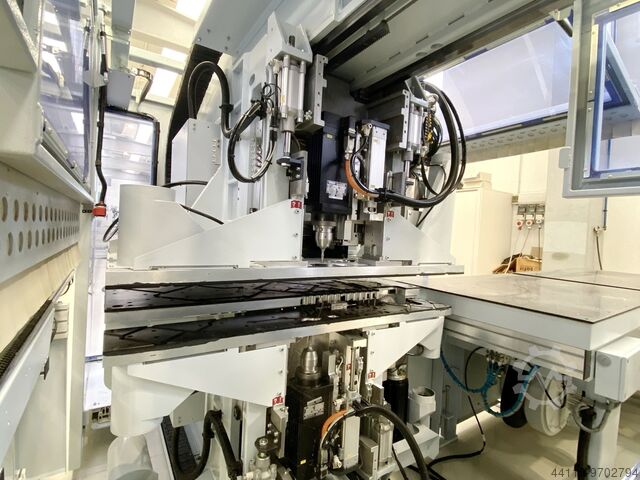

Condition: excellent (used), FLEXIBLE C.N.C. WORKING CENTER 3 axes (X-Y-Z) Movable panel (workpiece), static working head - Horizontal position of the panel (workpiece) Hodpfxslkdpms Ahueng Numerical Control PowerControl (Software woodWOP) Safety cabin (enclosure) of the working head Separate electric and command cabinet No. 2 Workpieces fixing clamps (for the panels introduction in the working area) WEEKE Prepositioning Unit - to position workpieces in machines with clamp grippers faster. In-feeding working table (panel support) and Out-feeding table (with motorized belts) With pushing system to automatically infeed the workpiece Minimum workpieces dimensions (X - Y - Z) mm 200 x 70 x 8 (2 x 4 mm) Maximum workpiece dimensions (X -Y- Z) mm 2500 x 1000 (option mm 1300) x 80 (2 x 40 mm) Two panels simultaneously processables (in Z axe) WORKING GROUPS (TOP): 2V32, 2H8X/Y2, N2 X-Y90,F2-ETP-6 KW No. 1 Vertical electro-spindle ETP-6 (power Kw 6) No. 1 Circular Grooving Saw (90° on X-Y axe) dia. mm 125 No. 23 Vertical drilling spindles (power Kw 2.3) No. 5 Horizontal drilling spindles (4 in X + 1 in y) WORKING GROUPS (BOTTOM) No. 1 Vertical electro-spindle ETP-6 (power Kw 6) No. 1 Circular Grooving Saw (90° on X-Y axe) dia. mm 125 No. 23 Vertical drilling spindles (power Kw 2.3) No. 5 Horizontal drilling spindles (4 in X + 1 in y)

Year of construction: 2011, condition: ready for operation (used), Main Drive Number of axis 3 Hsdpfox D Nvgox Ahueng This 3-axis HOMAG WEEKE OPTIMAT BHX 500 was manufactured in 2011. It features a robust CNC processing center with a working area of 2500 mm by 1300 mm, main electrospindle power of 6 KW, and a maximum panel thickness of 80 mm. It includes 84 drilling spindles and dual milling spindles, each offering 6 KW at 18000 rpm. If you are looking to get high-quality CNC capabilities, consider the HOMAG WEEKE OPTIMAT BHX 500 machine we have for sale. Contact us for more information. Application Types CNC Wood Machining

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 0-250-12-2554, workpiece length (max.): 3,000 mm, workpiece width (max.): 1,000 mm, workpiece height (max.): 80 mm, TECHNICAL DETAILS Minimum part dimensions (X, Y, Z): 250 mm x 100 mm x 8 mm Maximum workpiece dimensions (X, Y, Z): 3,000 mm x 1,000 mm x 80 mm Upper vertical working head Number of vertical electrospindles: 1 Vertical electrospindle power: 6 kW Grooving saw (90° to the X-Y axis), diameter: 125 mm Hnjdsxx R Slepfx Ahusg Number of vertical drill spindles: 32 Vertical drill spindle power: 2.7 kW Number of horizontal drill spindles: 10 (8 in X + 2 in Y) Lower vertical working head Number of vertical electrospindles: 1 Vertical electrospindle power: 6 kW Grooving saw (90° to the X-Y axis), diameter: 125 mm Number of vertical drill spindles: 32 Vertical drill spindle power: 2.7 kW Number of horizontal drill spindles: 10 (8 in X + 2 in Y) MACHINE DETAILS CNC control: PC 85 Software: woodWOP 6 Electrical data Voltage: 380 V Frequency: 60 Hz Phases: 3 Power: 62 kW Current: 125 A Control voltage: 24 V EQUIPMENT Simultaneous processing of two panels Safety enclosure for the working head No. 2 clamps for fixing and moving the workpiece Loading station with air cushion Discharge of panel(s) via motorized roller conveyor Safety system with perimeter fencing and front safety mats

Condition: excellent (used), Year of construction: 2008, Machining center Manufacturer: Weeke Type: BHX 500 Year of manufacture: 2008 machining dimension X: 2.500 mm machining dimension Y: 1.300 mm Machining dimension Z: 4 - 80 mm Number of milling units. 2 Number of drilling units: 2 Drilling spindles vertical: 72 drilling spindles horizontal X: 16 drilling spindles horizontal Y: 4 grooving saw: 90° tiltable speed X-axis: 130 m/min speed Y-axis: 80 m/min speed Z1-axis: 50 m/min Hnsdpfx Ahoh E Sghsueg speed Z2 axis: 27 m/min Speed: 18.000 rpm Disassembled - directly available

Condition: good (used), Year of construction: 2008, functionality: fully functional, Homag Weeke Optimat BHX 500 20KW Center Hsdpjw A R Iqsfx Ahujng Machine in excellent condition Viewable in department 14 Dismantling, loading, and transport at buyer's expense

Condition: excellent (used), Year of construction: 2007, operating hours: 23,983 h, functionality: fully functional, workpiece length (max.): 2,500 mm, workpiece width (max.): 1,000 mm, workpiece height (max.): 80 mm, spindle speed (max.): 7,500 rpm, TECHNICAL DETAILS Workpiece length: 200 – 2,500 mm Workpiece width: 70 – 1,000 mm Workpiece thickness: 4 – 80 mm Hsdpfewi Inzex Ahueng Power and Operation Operating power: 21 kW Software: WoodWop 4.5 Speeds Rapid traverse X-axis: 130 m/min Rapid traverse Y-axis: 80 m/min Rapid traverse Z-axis: 50 m/min Spindle Spindle speed: 1,500 – 7,500 rpm Compressed air and extraction Compressed air requirement: 7 bar Dust extraction: approx. 4,450 m³/h MACHINE DETAILS Dimensions (L x W x H): approx. 7,300 x 3,700 x 2,100 mm Weight: 5.5 t Operating hours: 23,983 h Workpiece counter: 102,199 pieces

Condition: used, Year of construction: 2012, Automatic CNC machining center for efficient and precise drilling and milling of panel furniture components wooden PC 85 numerical control - woodWOP 6 software Safety cabin for the working head N. 2 clamps for blocking and moving the piece during machining Loading bench by air curtain table Minimum dimensions of the piece (X - Y - Z) mm 250 x 100 x 8 (2 x 4 mm) Maximum dimensions of the piece (X - Y - Z) mm 3000 x 1000 (optional mm 1300) x 80 (2 x 40 mm) Possibility of processing two panels simultaneously N. 2 working heads (one lower and one upper) composed as follows: * Upper vertical work head N. 1 ETP-6 vertical electrospindle (power Kw 6) N. 1 Grooving saw (90° on the X-Y axis) dia. 125mm N. 32 vertical drilling spindles (power Kw 2,7) N. 10 Horizontal drilling spindles (8 in X + 2 in Y) * Bottom vertical working head N. 1 ETP-6 vertical electrospindle (power Kw 6) N. 1 Grooving saw (90° on the X-Y axis) dia. 125mm N. 32 vertical drilling spindles (power Kw 2,7) N. 10 Horizontal drilling spindles (8 in X + 2 in Y) Evacuation of the panel (panels) by motorized belt roller conveyor Security system with perimeter grilles and frontal safety mats Hodpfsvz A E Tex Ahujng
