Center lathe

WEILER Commodor

Condition: ready for operation (used), Year of construction: 1987, LZ lathe WEILER COMMODOR B, year of manufacture 1987, with Heidenhain digital display. Tool holder: Multifix, with 2 tool pockets. Turning diameter: 190 mm Distance between centers: 750 mm Spindle bore: 56 Spindle speeds: 25 - 2000 rpm Further data, see data sheet. Psdpfx Aoz Eq R Eoirsgt Machine ready for operation. Documentation available.

Condition: reconditioned (used), Steel grinding machine Manufacturer: REMA Model: DS 07/ST Version with reversible motor 0.22/0.37 kW 1450/2900 rpm Year of manufacture: unknown Serial no.: 022857 Equipment: - Reversing switch for right/left rotation - Benchtop version with chip tray - Wet grinding system - 2 pcs. support table ATS (left) adjustable from -5° to +15° and with spring suspension - 2 pcs. angle stops - Adjustable support table ATK (right) for grinding chip guide steps - Steel holder for support table ATK 360° rotatable, pivotable, Pgsdohvu Tmjpfx Airst with height adjustment and knurled screw for adjusting the chip depth - Enlarged protective cover (left) with silicon carbide cup wheel Ø 175 mm with mounting flange - Protective cover (right) for grinding wheels Ø 125 mm with mounting flange - Operating manual Used, as is, no guarantee

Condition: good (used), Year of construction: 1987, functionality: fully functional, overall weight: 1,650 kg, spindle mount: MK 6, L&Z Lathe Weiler Commodor B The machine has been cleaned and inspected by us. It runs smoothly; measured runout is < 0.01 mm. Upon request, a coolant system and tool guard with a microswitch can be retrofitted. For sale only to businesses as defined in § 14 BGB. Technical data: Year of manufacture: 1987 Turning length: 1000 mm Turning diameter over bed: 380 mm Turning diameter over cross slide: 190 mm Spindle speed: 25 - 2000 rpm Pjdpfxjz A Ah Re Airogt Spindle bore: Ø 56.0 mm / MK6 Tailstock quill: MK 4 Quill stroke: 150 mm Bed width: 310 mm Spindle mounting: DIN 55027 Size 6 Feeds - longitudinal: 0.022 - 0.8 mm/rev Feeds - transverse: 0.011 - 0.4 mm/rev Threads: M 0.3 - 10.0 mm Operating voltage: 380 V Total power consumption: 4 kW Weight approx. 1650 kg Accessories: • 3-axis digital display • Multifix quick-change tool holder B • 3-jaw chuck Forkardt 200 • 4-jaw chuck Röhm • Operating manual • Chip tray with integrated coolant pump for connecting a coolant system • Various accessories (set of soft jaws, turning tools, etc.)

Condition: good (used), Year of construction: 1979, functionality: fully functional, Lead and Feed Spindle Lathe Manufacturer: WEILER, Type: COMMODOR Year of manufacture: 1979 Pgedez Ahuxopfx Airet Technical data Manufacturer: Weiler Type: Commodor Swing over bed: 400 mm Distance between centers: 1000 mm Spindle bore: 50 mm Spindle speed range: 63-2000 rpm Drive power: 4 kW Dimensions: approx. L 2.2 x W 1.0 x H 1.7 m Weight: approx. 1.5 t Equipment • 3-axis digital display • Drill chuck • 3-jaw chuck, manufacturer: Röhm, D200mm • Multifix holder • Additional 3-jaw chuck that is on the machine is not included in the scope of delivery! All information is subject to change without notice. A live demonstration is possible at any time in our showroom.

Condition: used, Elmag metal lathe, good condition, approx. 1500 mm center distance, approx. 3000 kg Psdpfx Aovrvmfoirogt Prices subject to change, errors, printing and typesetting errors reserved

Condition: ready for operation (used), functionality: fully functional, WEILER COMMODOR lathe, from an educational institution -Maximum turning height 180mm -Maximum turning length 1000 mm -Spindle bore 56 mm -Speed range 56 - 2000 RPM -Automatic longitudinal/facing feeds -Threading capabilities / Metric / Inch etc. Pedjzww D Ejpfx Airsgt -Tailstock MK 4 -Three-jaw chuck 200mm -Multifix base with inserts -Electric chuck guard -L & Z spindle cover -Work light -Coolant system -2 x Emergency stop -Machine documentation Dimensions: L x W x H 2.5 x 1.1 x 1.7 meters / Weight 1500 kg Errors and omissions excepted.

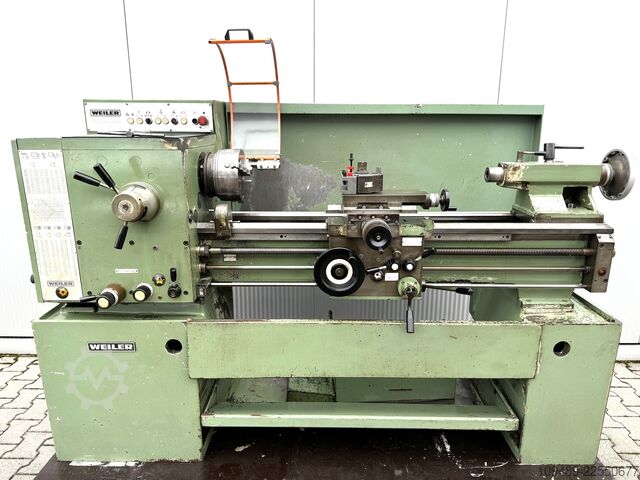

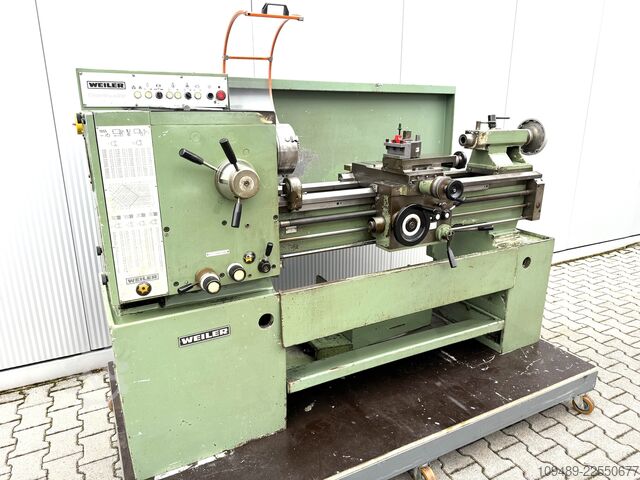

Condition: ready for operation (used), functionality: fully functional, WEILER COMMODOR from Bundeswehr stock -Good condition -Good operational condition -Maximum turning height 180mm -Maximum turning length 1000mm Pedpfx Aezuhfzsiregt -Bar capacity 56 mm -Speed range 56 - 2000 RPM -Automatic longitudinal / facing feeds -Threading / Metric / Inch etc. -Tailstock MK 4 -Three-jaw chuck 250mm -Electric chuck guard -Multifix base and inserts -Coolant system -Chip guard -Machine documentation Dimensions: L x W x H 2.5 x 1.3 x 1.7 meters / Weight 1500KG Errors and omissions excepted

Condition: good (used), Year of construction: 2009, pressure: 330 bar, operating pressure: 330 bar, Hammelmann HDP 77 stationary high-pressure pump unit on base frame. Similar but no Kamat, Uraca, Woma. Pump type: HDP 77 Operating pressure: 330 bar Delivery rate: 59 l/min. Drive speed: 1500 rpm. Drive power: 37 kW Pedperzuwmjfx Airegt with Siemens 1LA6223-4AA60 electric motor 45 kW with pressure control valve, with safety valve, with oil cooling system. Dimensions LxWxH: approx. 1,450x750x1,150 mm Weight: approx. 600 kg Year of construction: 2009 Condition: In good used condition.

Condition: used, Year of construction: 1996, functionality: fully functional, Weiler Commodor B AC lathe, manufactured in 1996, with a 3-axis Weiler digital display, three-jaw chuck, Multifix system, rear splash guard, and electric chuck guard. The machine is in good, operational condition and can be demonstrated under power by arrangement. Podozr El Tspfx Airogt

Condition: reconditioned (used), Year of construction: 1974, Universal lead and spindle lathe Make: WEILER Model: Commodor Pjdpfx Aiomgaddorsgt Year of manufacture: 1974 - overhauled newly painted RAL 7035 light gray Mach. no.: 0068 Center height: 180 mm Center width: 1000 mm Spindle bore: 56 mm with guarantee geometric acceptance with test report Accessories: - 3-axis digital display FAGOR Innova 30i-T new - Chuck protection hood with electrical protection - Quick-change tool holder size B - simple bed stop - Coolant device - Operating instructions - used, as seen -

Year of construction: 2019, condition: used, Center height: 200mm, distance between centers: 1000mm, swing over bed/cross slide: 400mm/225mm, spindle bore: 62mm, spindle nose: DIN 55027/6, tailstock taper: MK4, max. spindle speed: 4000rpm, main drive power: 10.5kW, operating hours PLC/motor: 1218h/145h, Control: Heidenhain. Machine dimensions X/Y/Z: approx. 2100mm/1080mm/1800mm, weight: approx. 1800kg. An on-site inspection is possible. Pgedpfx Aiszwftbsrot

Condition: reconditioned (used), functionality: fully functional, spindle bore: 56 mm, center height: 180 mm, center width: 1,000 mm, Dear Sir or Madam, Pgjdpfx Aowhzivjiret For sale is a Weiler Commodor B lathe with a new 3-axis digital readout from K+C (including a 12-month manufacturer's warranty). The machine is undergoing a comprehensive partial overhaul in our workshop, meaning it is in excellent technical, geometric, and visual condition. You are welcome to visit us for a closer look. Availability: upon request Center height: 180 mm Center distance: 1000 mm Spindle bore: Ø 56 mm Max. spindle speed: 2000 rpm Tailstock taper mount: MK4 Feed range: 0.026 - 0.888 mm/rev Possible thread types: Metric, inch, module, diametrical pitch Metric thread pitches: 0.35 - 12 mm Spindle brake: switchable Power consumption: 4 kW Dimensions: approx. 2.2 x 1.5 x 1 m (L x H x W) Weight: approx. 1.8 t Further equipment and accessories: 3-axis digital readout K+C NEW, coolant system, chuck guard, removable chip tray, operating instructions, and much more upon request... Our service promise to you: - We are a certified master craftsman in the field Mechanical Engineering - All machines undergo at least a workshop inspection. - All lubricants and any worn parts are replaced in advance. - Upon request, we can fully or partially overhaul the selected machine. - Upon request, we can repaint the selected machine in your desired color. - Upon request, you can order additional accessories such as tools, etc. directly. - Upon request, we can install additional accessories such as safety devices, etc. - We are happy to take care of shipping and/or delivery.

Condition: ready for operation (used), spindle bore: 56 mm, turning diameter: 360 mm, center height: 180 mm, WEILER Commodor B incl. 3-axis digital display Heidenhain -GS identification -3-axis digital readout / Heidenhain -Year of manufacture: 1991 -Center height: 180 mm -Swing diameter over bed: 330 mm -Distance between centers: 1000 mm -Spindle bore: 56 mm -Spindle speeds: 25-2000 rpm -Automatic longitudinal / cross feeds -Thread cutting / Metric / Inch / Module etc. -Multifix tool post with inserts Pgodoy Ak S Aspfx Airst -Chuck guard -2x Emergency stop -3-jaw chuck -Chip guard/rear wall -Very well maintained condition -Machine feet -Documentation Dimensions: LxWxH 2.3x1.2x1.6 meters / Weight 1600 kg Errors / omissions excepted.

Condition: good (used), Year of construction: 2010, Conventional lathe, center high 254 mm, between centers 1000 mm, bore Ø 80 mm, 12 speed 30 - 2200 rpm, motor 5,5 kw, camlock 6'', dimensions 230x115x165 cm, weight ca. 1750 kgs; equipement: DRO on 2 axis, coolant device, 3-jaws chuck Ø 250 mm, rotating pin, tool post MULTIFIX C with toolholders, steady and following rest Pgjdetv Iy Eepfx Airet

Condition: reconditioned (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 3595, Ladies and Gentlemen, We are selling a Weiler Commodor B lathe built in 2001 with Heidenhain 3-axis digital readout. The machine has been extensively overhauled in our workshop. Among other things, the main spindle bearing and the lead/traction spindle bearing were completely renewed! Technically, geometrically and visually, the machine is in excellent condition, which you are welcome to see for yourself on site. Availability: on request Machine no. 3595 Year of construction: 2001 Center height: 180mm Center width: 1000mm spindle passage: Ø 56mm max. spindle speed: 2000 rpm Tailstock taper mount: MK4 Feed range: 0.026 - 0.888 mm/rev Possible thread types: Metric, inch, module, diametral pitch Metric thread pitches: 0.35 - 12 mm Spindle brake: switchable Connected load: 4kW Dimensions: approx. 2.2x1.5x1m (LxHxW) Weight: approx. 1.8t Further equipment and accessories: 3-axis digital display, coolant device, chuck guard, pull-out chip tray, 3-jaw chuck Röhm, 4-jaw chuck Röhm, various clamping jaws... Our service promise to you: - We are a certified master company in the field of mechanical engineering - All machines are thoroughly checked Pgsdpfx Aothd Shjirot - All lubricants and any worn parts are replaced in advance - On request, we can completely or partially overhaul your chosen machine - On request, we can repaint the selected machine in the color of your choice E00f3g2rl - On request, you can also order additional accessories such as tools etc. directly - On request, we can install additional accessories such as safety devices etc. - We are happy to take care of shipping and/or installation
