Lathe - cycle-controlled

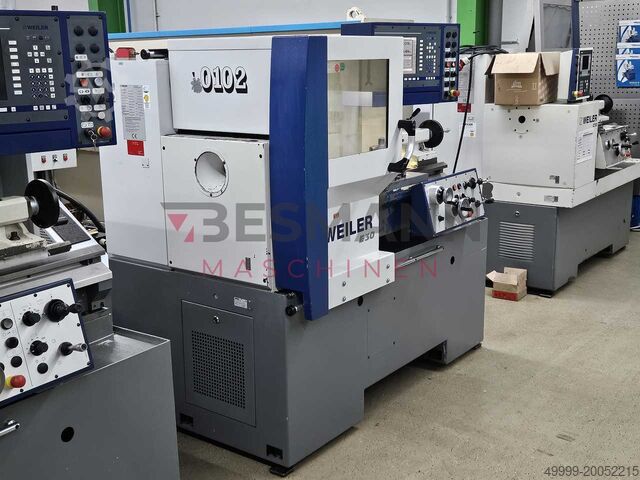

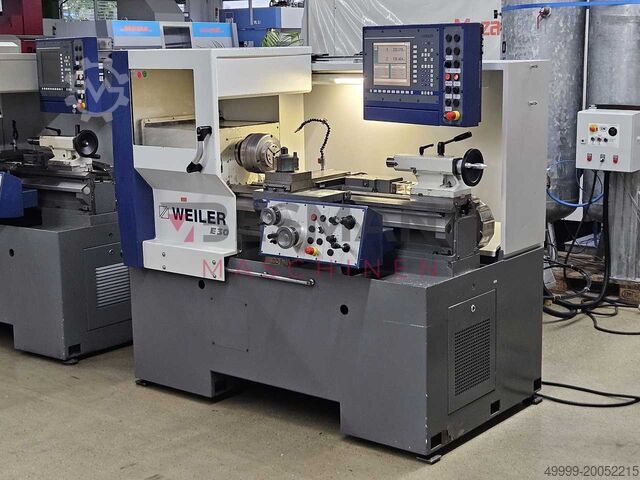

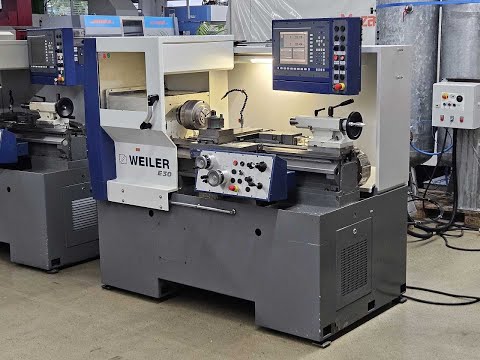

Weiler E30

Condition: used, Year of construction: 2005, Very good condition! max. turning length: 750 mm Codpfx Abjxca Ukowehc Swing diameter over bed: 300 mm Spindle speed: 1- 4,500 rpm spindle hole: 40,5 mm Spindle diameter front bearing: 70 mm Sauter tool turret: 8x tailstock quill: 50 mm diameter Quill: MK3 machine weight: 1.600 kg

Condition: good (used), Year of construction: 1991, Machine type Lathe - cycle-controlled Manufacturer WEILER Type E30 year of construction 1991 Control Weiler Country of origin Germany Additional information Cycle-controlled lathe WEILER - E30 Technical details Turning diameter max. 330 mm Turning length 750 mm Weiler control Center height 165 mm Swing diameter over bed 330 mm Max. turning diameter over facing slide 160 mm Face slide travel 180 mm Longitudinal bed slide travel 395 mm Main spindle: Speed range - main spindle 1 - 4,500 min/-1 Drive power - main spindle 9 / 11 kW Max. Torque 165 Nm Spindle head DIN 55027 / 5 Spindle diameter in front bearing 70 mm Spindle bore 40 mm Usable bar diameter ( - ) mm Tool holder: Type MultiFix Turning tool shank cross-section 20 x 20 mm Tailstock: Quill stroke 110 mm Quill diameter 50 mm Tailstock holder MK 3 Feed rates: Rapid traverse max. 10 m/min Feed force 6 / 3 kN Feed range 0 - 20 mm/-1 Thread cutting: Cjdper Dvqzjfx Abwehc metric 0.1 - 400 mm Inch 1/4 - 56 G/1" Module 0.125 - 28 mm.II DP 1 - 224 G/".II Number of threads max. 50 Total power requirement 10 kVA Machine weight approx. 1.5 t Space requirement approx. 2.8 x 2.0 x 2.0 m

Year of construction: 1990, condition: ready for operation (used), General Data Measurements width 1200 mm Measurements depth 1800 mm Measurements height 1700 mm Machine weight 1300 kg Main Drive Spindle bore 42 mm Workpiece Workpiece drm over bed 330 mm Additional Equipment Multifix holder B mounted Fixed steady rest (option) clamping range: 15-100 mm Moving steady rest (option) clamping range: 10-85 mm Collets ranging from 3-28 mm (increments of 0.5 mm) Tailstock with an MK3 chuck This Weiler E30 was manufactured in 1990. A robust horizontal turning machine featuring a spindle bore of 42mm and a swing diameter over bed of 330mm. It supports a wide range of thread cutting, from metric to DP thread, and includes a Multifix holder B. Ideal for detailed and versatile turning operations. Contact us for more information about this machine. Cjdpfew I H A Hjx Abwshc Application Types Turning

Condition: excellent (used), Year of construction: 2001, turning diameter 330 mm turning length 750 mm control WEILER D 1 centre height 165 mm centre distance 750 mm swing diameter over face slide 160 mm spindle bore 42 mm spindle turning speed range 1 - 4500 U/min spindle head DIN 55027 Gr. 5 face slide travel 180 mm feeds X-axis mm/U feeds Z-axis mm/U rapid traverse X-axis 5 m/min rapid traverse Z-axis 10 m/min feed power X/Z axis 3000 / 6000 N tailstock taper MT 3 tailstock quill diameter 50 mm tailstock quill stroke 110 mm total power requirement 10 kW weight of the machine ca. 1,3 t dimensions of machine L x W x H 1,8 x 1,2 x 1,7 m Accessories: 3-jaw chuck SCHUNK 0 mmø, changing tool post, Cjdowi Ugqspfx Abwjhc coolant

Year of construction: 2010, condition: like new (used), We have the following accessories for Weiler E30 lathe. Chjdpjgabvnjfx Abwoc 1.piece .faceplate Schunk 250mm price:600,-€ Spindle head DIN 55027 size 5 2.pieces.faceplate Röhm 260mm price each 1.piece:650,-€ spindle head DIN 55027 size 5 1.piece.travelling steady rest Price: 450,-€ 2.pieces.driving flange Price per. 1 piece: 210,-€ Spindle head DIN 55027 size 5 All parts are in very good condition.
