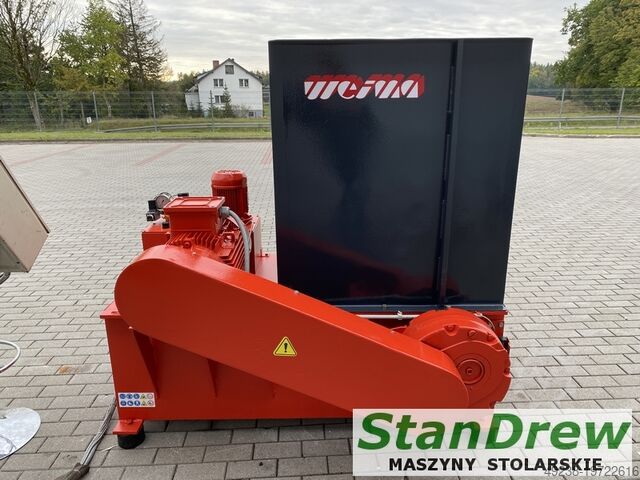

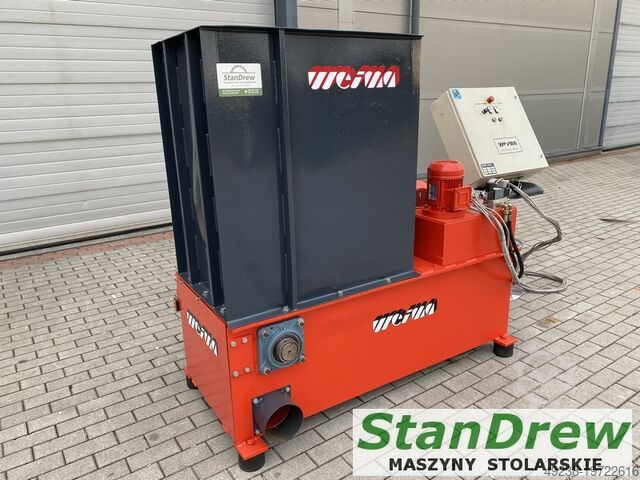

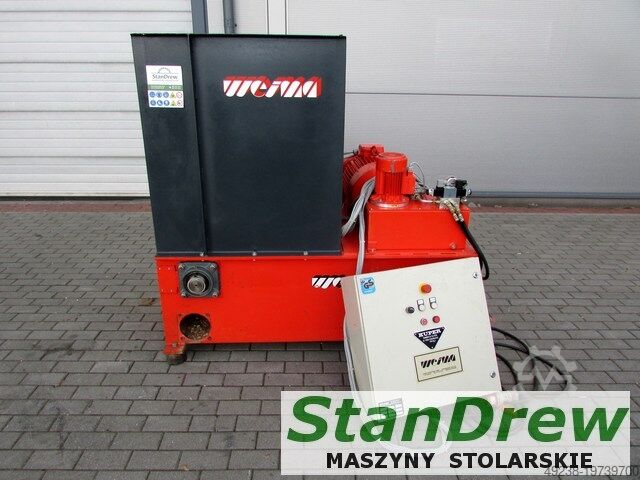

Weima WL 4

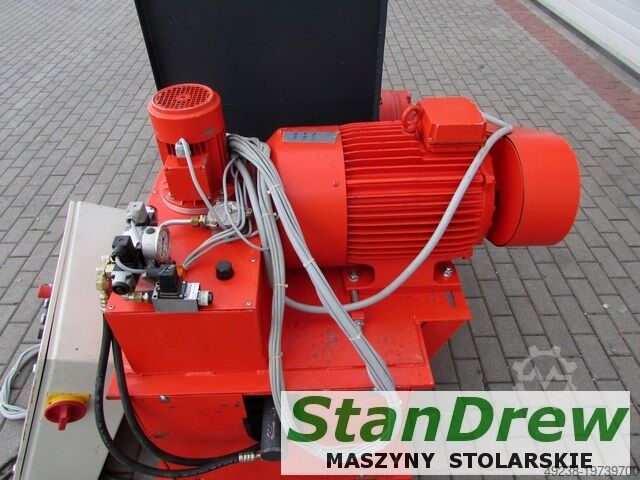

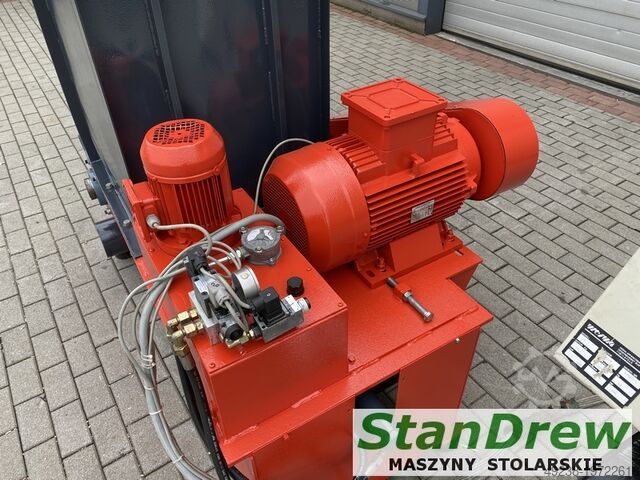

Condition: excellent (used), Year of construction: 2017, very well-maintained chipper with only 931 operating hours Predox N S I Eepfx Ac Hjf 600 mm rotor width 18.5 kW motor

Condition: used, overall weight: 1,500 kg, rotor diameter: 252 mm, total length: 1,800 mm, total height: 2,000 mm, total width: 1,200 mm, rotor width: 600 mm, power: 18.5 kW (25.15 HP), rotational speed (max.): 90 rpm, filling opening width: 600 mm, filling opening length: 800 mm, No. 3255 Single-shaft shredder WEIMA WL 4 Used Quiet-running and slow-running V-rotor system Motor power main drive 18.5 kW Rotor diameter 252 mm Rotor width approx. 600 mm Rotor speed approx. 90 rpm Hopper volume 0.6 m3 Inlet cross-section 800 x 600 mm LW Reversible blades, concave ground Automatic operation / manual operation Sieve perforation 15 mm Suction nozzle 160 mm Transport dimensions approx. 1800 x 1200 x 2000 mm LWH Weight approx. 1500 kg Sale on behalf of customer, ex location near 73430 Aalen, without dismantling, without transport and assembly Dismantling, loading and transport by us optionally possible Subject to errors in the description and price Prjdpfjx Hhk Rsx Ac Hsf To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Pictures and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices plus VAT, payment before collection or shipment Terms of delivery: ex location

Condition: good (used), Year of construction: 2001, WEIMA WL4 S Opening : 600 x 900 mm Rotor with 14 knives ( Trapez, 4 sides ) Psdox I I Ixspfx Ac Hjrf Rotor rpm : 90 Seiwe holes : Ø 15 mm Engine size : 22 Kw Dust extraction nozzle : Ø 160 mm Electric cabinet with emergency stop push button. Set of extra knives included Machine dimentions : L 1900 x W 1200 x H 1800 mm Weight : 1300 Kg

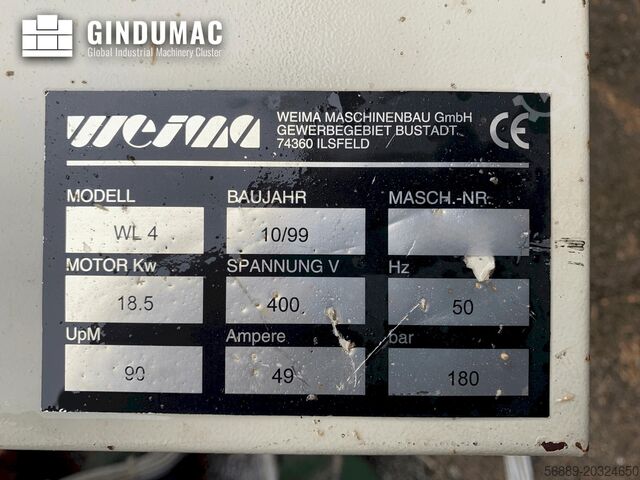

Year of construction: 1999, condition: ready for operation (used), This WEIMA WL 4 was manufactured in 1999. It features a robust 18.5 kW motor and operates at 400 V, 49 A, with a speed of 90 rpm. The feed opening measures 800 x 600 mm, accommodating various wood sizes for efficient chipping. Consider the opportunity to buy this WEIMA WL 4 wood chipper. Contact us for more information. Prjdpfx Acex D N Rde Hsf Application Types Other Woodworking Machinery

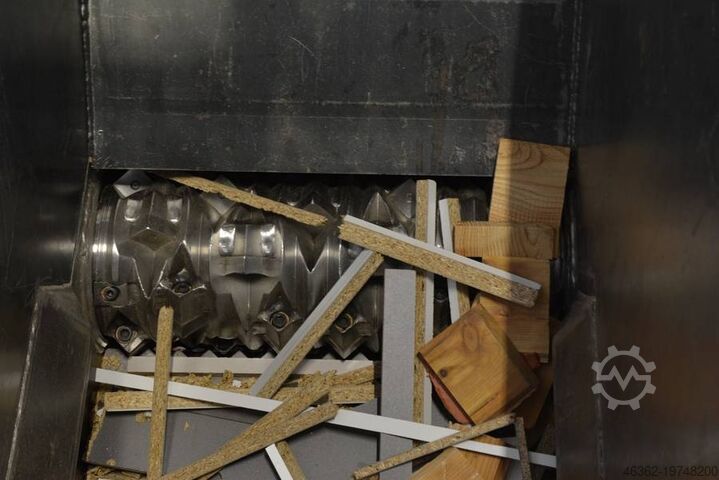

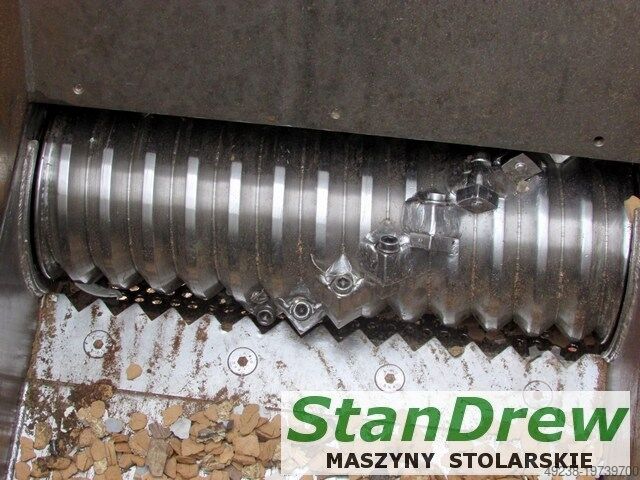

Condition: used, Year of construction: 2023, Demonstration machine! List price: €33,390. Machine concept: The Weima high-performance shredders offer versatile applications and are capable of processing all types of wood materials (hardwood, softwood, chipboard, MDF materials, plywood, veneer scraps, etc.) into fuel chips, providing significant volume reduction even for bulky materials. Prsdpfx Asvfy Rzjc Hjf Operation: The machine features a large feed hopper and can be loaded either manually or via conveyor belt. This hopper can be customized to meet individual requirements and ensures continuous and cost-effective material feeding without the need for manual assistance. A hydraulically operated ram conveys the wood waste to be shredded into the rotor’s cutting area, with operation automatically and load-dependently controlled. The internal ram guides are made of highly wear-resistant plastic (polyamide) and are adjustable. The hydraulic cylinders are mounted on universal joints to prevent lateral forces on the piston seals. The patented and profiled V-rotor is made of solid steel with a diameter of 252 mm, operating at a rotor speed of 80–120 rpm. The concavely ground, aggressive, and four-way reversible cutting knives/inserts are located in milled knife pockets on special knife holders. This patented system, which minimizes the cutting gap between counter knife and rotor, ensures high throughput, low energy consumption, and optimal discharge of shredded material. Power transmission from the electric motors is achieved via V-belts to a heavy-duty gearbox mounted on one end of the shaft. Standard features: - V-rotor with one row of knives 40 x 40 mm - Vibration-damping machine feet - Hold-down device on the ram - Horizontal ram - Control cabinet with 5m cable, incl. PLC control and LOGO! text display - Bolt-on screen - WEIMA WAP gearbox - Extraction port Ø160 mm - Straight hopper Optional equipment: - Additional rotor knife row (28 knives) - Free-cutting hopper (LOGSPACER) - Four-sided sectional floor - Fast reverse hydraulic with shock valve Location:

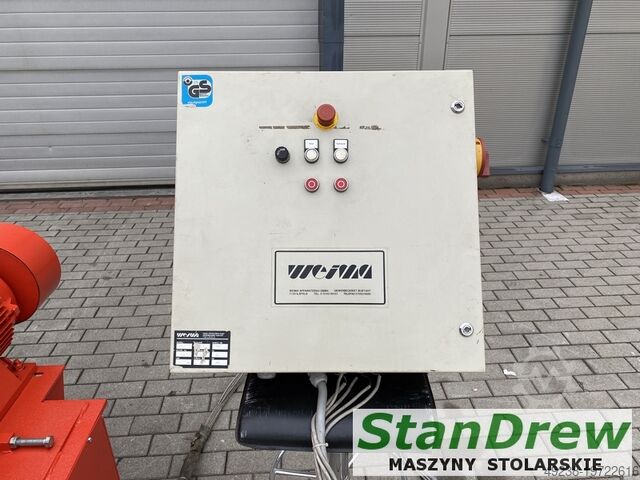

Condition: used, Year of construction: 2025, Special price - exhibition machine Technical specification WL 4 Hopper opening with log spacer 600 x 1,050 mm Hopper content 0.6 m³ Working width of the rotor 600 mm Diameter of the rotor 252 mm Drive power 18.5 kW Rotor speed 80 -120 rpm Number of knives 28 Type and size of knives concave / 40 x 40 mm, cutting reversible crowns Screen perforation 15-20 mm Painting WEIMA Standard RAL 2002 / 7016 Connected load 400 V +/- 5% / 50 Hz Weight approx. 1,300 kg Including: • Control cabinet* (Rittal) including electrical control (Moeller / Siemens) and star-delta start-up • Rubber vibration elements • V - rotor (patented) with knife pockets milled into the profile • Gear limit switch • Slider cycle • Slider half back • Log spacer hopper • 2. Knife series Storage location: Supplier Pedpfox Alpgex Ac Horf

Condition: used, Year of construction: 2004, functionality: fully functional, overall weight: 1,300 kg, power: 18.5 kW (25.15 HP), WEIMA WL4 WOOD WASTE SHREDDER Prsdpfxjx Ebqfe Ac Hsf

Condition: used, 0 800x600 mm Motor output 18,5 kW 0 0,6 m³ Diameter of the motor 252 mm Number of working hours 1741 h Dimensions (L/W/H) 1650x1200x1595 mm loading dimensions L x W x H 1650x1200x1800 mm Weight 1300 kg WEIMA shredder WL 4, machine completely checked ----- Note: The machine has been completely checked by us, it is running perfectly, see video. The blade and slide plate have already been replaced by the previous owner. We replaced the V-belt during the inspection. Description: The Weima high-performance shredders with their flexible application options can process all types of wood materials (hardwood, softwood, chipboard, MDF materials, plywood, veneer residues, etc.) into fuel chips and achieve an enormous reduction in the volume of the material in the case of bulky materials. Function: The machine is equipped with a large filling hopper and can be fed using a conveyor belt or by hand. This hopper can be adapted to individual needs and guarantees a continuous and cost-effective material feed without the need for manual assistance. The hydraulically controlled slider feeds the wood waste to be shredded to the cutting area of ??the rotor and is controlled automatically and depending on the load. The internal slider guides are made of highly abrasion-resistant plastic (polyamide) and can be adjusted. The hydraulic cylinders are cardanically suspended to avoid transverse forces on the piston sleeves. The patented and profiled V-rotor made of solid steel has a diameter of 252 mm and works at a rotor speed of 80 - 120 rpm. The concavely ground, aggressive and 4- way rotating knives / cutting crowns are located in milled knife pockets on Prjdpfx Aevvx Dzsc Hof special knife carriers. This patented system guarantees high throughput, low energy consumption and optimal discharge of the shredded material by reducing the cutting gap between the counter knife and the rotor for the first time. The screen mounted under the rotor determines the chip size (10 - 100 mm). A hydraulically opened screen basket is also available on request. The power is transmitted from the electric motors via V-belts to a strongly dimensioned gear, which is mounted on one side of the rotor on the shaft stub. Technical data WL 4 / 18.5 kW ----- Feed opening: 600 x 800 mm Standard hopper capacity: 0.6 m³ Rotor working width: 600 mm Rotor diameter: 252 mm Power: 18.5 kW Rotor speed: approx. 90 rpm Sieve diameter: 15 mm Paint finish: Weima standard RAL 2002 / 7016 Connection value: 400 V +/- 5% / 50 Hz Weight: approx. 1,300 kg Includes: Electrical control (Moeller / Siemens / Allen-Bradley) Control cabinet (Rittal / Sarell) Concavely ground cutting crowns (40 x 40 mm ) Sterntriangular start Vibration-damping foundation V-rotor (patented) with knife pockets milled into the profile (technical information according to the manufacturer - no guarantee!)

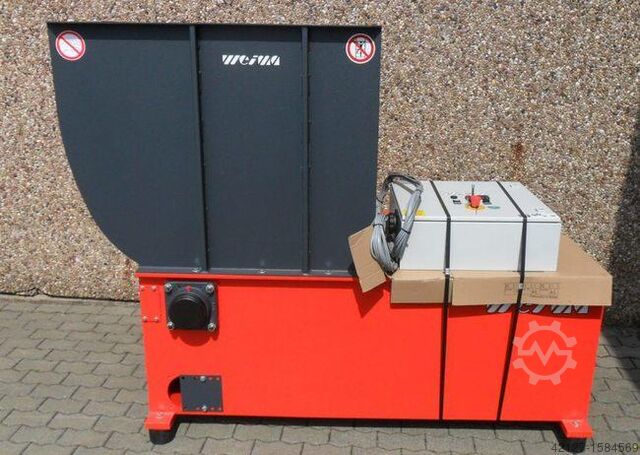

Condition: as good as new (ex-display), Year of construction: 2025, Quiet and slow runner WL 4/18,5 kW Technical data: Hopper opening: 600 x 800 mm Hopper opening with logspacer:600 x 1050 mm hopper capacity: approx. 0,6 m³ Working width of the rotor: 600 mm Diameter of the rotor: 252 mm Number of knives: 28 pieces Knives: 40 x 40 mm concave Sieve perforation: 15/20 mm Included: Pjdpfxjbtnftj Ac Hjrf Control cabinet Electrical control Star-delta start-up Rubber vibrating elements 2nd row of knives Logspacer (free cutting hopper) Top equipment Location: Ex stock Bitburg - immediately available - at a special price

Condition: as good as new (ex-display), Year of construction: 2025, Quiet and slow runner WL 4/18,5 kW Technical data: Hopper opening: 600 x 800 mm Hopper opening with logspacer: 600 x 1050 mm hopper capacity: approx. 0,6 m³ Working width of the rotor: 600 mm Diameter of the rotor: 252 mm Number of knives: 28 pieces Knives: 40 x 40 mm concave Sieve perforation: 15/20 mm Included: Control cabinet Electrical control Star-delta start-up Rubber vibrating elements 2nd row of knives Logspacer (free cutting hopper) Location: 54634 Bitburg Immediately available Pjdpfxsbunq Hs Ac Hsrf
