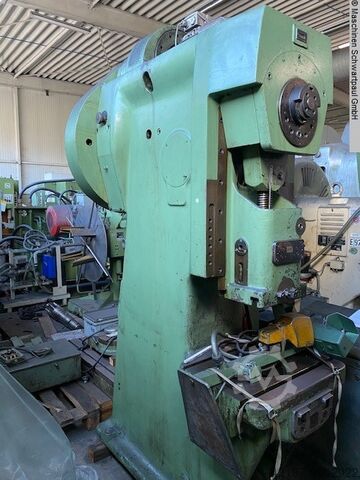

Eccentric Press - Single Column

WEINGARTEN AR 63

Condition: used, Year of construction: 1996, pressure 80 t throat 320 mm stroke 6 - 118 mm no. of strokes 30 - 80 Hub/min ram adjustment 70 mm table surface area 830 x 610 mm ram surface 650 x 400 mm column daylight (nach hinten) 630 mm total power requirement kW weight of the machine ca. 8,1 t dimensions of the machine ca. B 1,2 x T 1,9 x H 3,3 m Furnishing: - with gear transmission - fixed table - automatic stroke adjustment - automatic ram adjustment - hydr. Overload - Ejector - Grease central lubrication Nwsdpfxstycdks Agrsl - Cover plate for drainage hole - Continuous speed control using a frequency converter - Machine is technically checked in our company and receives a new control cabinet with safety controls and touchscreen - current UVV test with braking time measurement

Condition: ready for operation (used), Pressing force: 1600kN, throat depth: 450mm, installation height: 560mm, ram stroke: 8-160mm, controls: SCHMERSAL SEPG 05.3.2.0.22/ 95, weight: 16.2t, including documentation. Nwodpfxjhz Ua Se Agrjl

Condition: used, Single-column – Eccentric press WEINGARTEN Type EV 63 Machine No. 738 / 61 Year of manufacture 1962 Pressing force 63 tons Stroke 260 mm Table area 630 x 530 mm Table opening Ø 210 mm Slide area 315 x 260 mm Adjustable slide stroke 8-100 mm Slide adjustment 63 mm Tool holder bore Ø 40 mm, with clamping piece Installation height max 450 mm Stroke rate 115 strokes / min Compressed air requirement min. 4.5 bar Motor power 4 kW Power connection 380 Volt, 50 Hz Table height above floor approx. 750 to 900 mm - Electrical stroke release via foot switch or two-hand control - Overload protection by shear plate - Clutch-brake combination by WEINGARTEN friction-thread clutch with top dead center through-drive protection - Front crankshaft support bearing - Press table adjustable in height via 2 threaded spindles - Manual centralized lubrication - Control cabinet positioned beside the press - UVV (German trade association for accident prevention) for manual feeding operations Space requirement L x W x H 1750 x 1600 x 2430 mm Njdpfx Ask S Htxjgrewl Weight 4.5 tons Good condition

Condition: used, Year of construction: 1991, Pressing force 1,500 kN Adjustable stroke 20 - 132 mm Nwedpfx Aerm Nqmjgrel Ram adjustment max. 90 mm Stroke rate 50 / 75 strokes/min. Further data and images available upon request Used, the press was completely disassembled Not operational and requires mechanical and electrical overhaul Press is currently mechanically reassembled

Condition: excellent (used), pressure 50 t throat 245 mm stroke 14 / 90 mm ram adjustment 75 mm table height adjustment 150 mm strokes per minute 42/85 table surface area 700 x 490 mm ram surface 400 x 230 mm tool hole in ram 40 mm hole in the table 240 x 140 mm daylight, max. stroke above - ram adjustment above 360 mm Nsdpfstrhf Aex Agrjwl total power requirement 4 kW weight of the machine ca. 3,41 t dimensions of the machine ca. 0,8 x 1,75 x 2,1 m Machine was partially overhauled in our house as follows: - disassembly, cleaning and inspection - table milled over - new paintwork of the machine - shaft crack test carried out - disassemble Ortlinghaus clutch and additional brake, clean, check, replaceseals - additional air storage tanks - new control cabinet with safety control and touchscreen display - new wiring of the machine - new Vogel central lubrication system with piping - new Herion press safety valve + maintenance unit - new Balluff cam swith - new 2-hand control panel - new footswitch - Current UVV test with braking time measurement - Machine safe for hand inlay work

Condition: used, Year of construction: 1976, pressure 100 t throat 315 mm stroke 8 - 112 mm table surface area 725 x 570 mm ram surface 410 x 315 mm ram adjustment 80 mm Nsdpjugnpiefx Agrowl no. of strokes 55 / 82 Hub/min tool shank hole (depth x diameter) 85 x 50 mm dayligth 355 mm total power requirement 7,5 kW weight of the machine ca. 6 t dimensions of machine L x W x H 2,00 x 1,00 x 2,87 m

Year of construction: 1978, condition: used, pressure 80 t throat 280 mm stroke 8-112 mm no. of strokes 55 / 82 Hub/min ram - range of adjustment 80 mm table surface area 800x570 mm ram surface 560x355 mm hole in the table Ø 280 mm Nsdpfx Agelp U Dderjwl table height 800 mm tool hole in ram Ø 50 mm total power requirement 7,5 kW weight of the machine ca. 6 t dimensions of the machine ca. BxTxH 1600x2200x3000 mm

Year of construction: 1966, condition: used, pressure 100 t throat 410 mm stroke 8-112 mm no. of strokes doubel-strokes per min. 55 / 82 ram - range of adjustment 80 mm table surface area 950 x 700 mm ram surface 700x450 mm hole in the table Ø 280 mm table height 850 mm tool hole in ram Ø 50 mm weight of the machine ca. 7,0 t dimensions of the machine ca. 1400x2200x2800 mm Nedpfslp U D Ejx Agrewl

Condition: new, Year of construction: 2026, functionality: fully functional, Eccentric press 160t / 1600kN Siemens 1200 PLC Adjustable stroke 16–160mm Ram adjustment 100mm Nodpewir U Eofx Agrswl Ram plate 740 x 420mm Ram plate thickness 100mm Table plate 1250 x 700mm Table plate thickness 180mm Motor 15kW Weight 16,000 kg For new machines, delivery time approx. 4–5 months.

Year of construction: 1977, condition: used, pressure 100 t throat 410 mm stroke 8-112 mm no. of strokes 55/82 Hub/min ram - range of adjustment 80 mm table surface area 950x700 mm ram surface 700x450 mm hole in the table Ø 280 mm table height 800 mm Nwodpolp U Daefx Agrel total power requirement 11 kW weight of the machine ca. 7,5 t dimensions of the machine ca. BxTxH 1600x2200x3000 m
