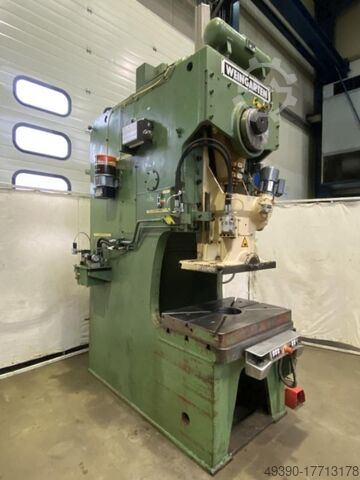

Single-Column Eccentric Press

Weingarten ARP 100

Condition: used, Year of construction: 1983, pressure 100 t throat 375 mm stroke 20-125 mm no. of strokes 60 Hub/min ram - range of adjustment 80 mm table surface area 920x660 mm ram surface 700x450 mm hole in the table Ø90 mm tool hole in ram Ø50 mm weight of the machine ca. 8 t Rcsdpfxexh Swhe Aazsh dimensions of the machine ca. 2100x1500x3300 m

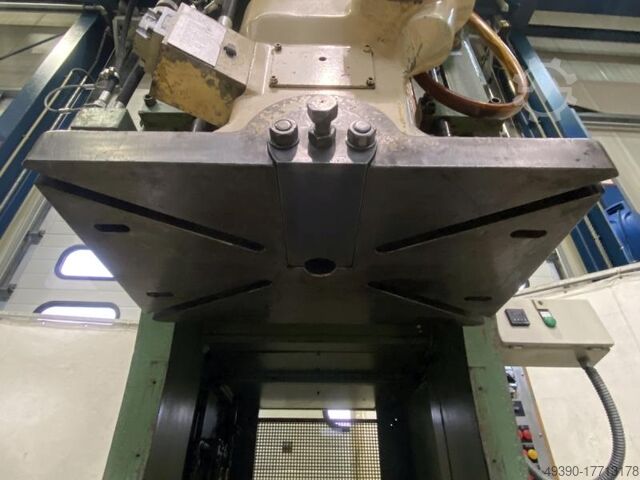

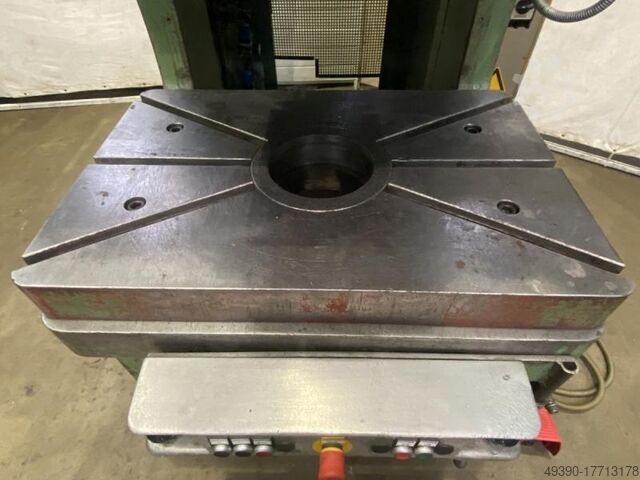

Condition: used, Single-column eccentric press WEINGARTEN type ARP 100 Machine no. No. 122481 Year of construction 1984 Pressure capacity 100 ton. throat 400 mm Table size 920 x 660 mm ram surface 700 x 450 mm Rear upright width 735 mm Stroke adjustment 20 - 160 mm Plunger adjustment 80 mm Installation height with 160 mm stroke max. 355 mm (without intermediate table top) Installation height with 20 mm stroke max. 425 mm (without intermediate table plate) Stroke rate 60 strokes/min. Table surface intermediate table top 920 x 610 mm Rcjdpfxou Rwa Ij Aazeh Thickness of intermediate table top 90 mm Hole in intermediate table top Ø 210 / 180 mm Through-hole in machine table Ø 210 / 180 mm Table height above floor 800 mm (without intermediate table top) T-slot width in table and ram 22 mm Clamping pin bore 50 mm Motor power 11 kW Mains connection 400 Volt, 50 Hz - Hydraulic overload protection in ram - ORTLINGHAUS pneumatic clutch/brake combination - Electromotive ram adjustment with counter - Clamping pin bore with clamping piece - Front crankshaft support bearing - Gear reduction gears in closed oil bath gearbox - Two pneumatic tappet compensation cylinders - WOERNER automatic central grease lubrication - Lift release via electric foot switch or two-hand control panel - Electrical control cabinet permanently attached to the machine - Operating instructions and circuit diagram - UVV for manual insertion work Space requirement L x W x H 2200 x 1600 x 3250 mm Weight 8.3 tons Good condition
