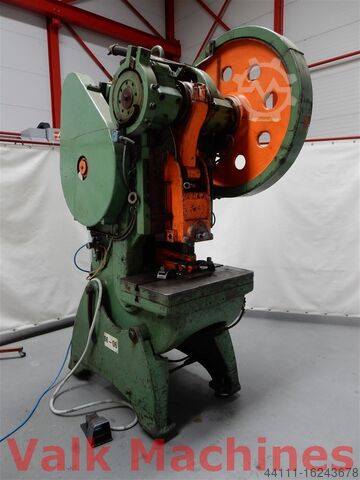

Eccentric Press Schüller 50 Ton

Schüller PEnr 50/224

Condition: used, Year of construction: 1970, pressure:63 t Duodpfxocxxx He Ah Sjl throat:250 mm stroke:8-100 mm table depth:710 mm table width:500 mm ram head dimension:450x280 mm ram adjustment:63 mm no. of strokes:140 Hub/min total power requirement:7 kW weight of the machine ca.:3,5 t

Year of construction: 2002, condition: used, pressure 63 t throat 315 mm stroke 8-100 mm no. of strokes 140 Hub/min ram - range of adjustment 63 mm table surface area 1200x630 mm ram surface 800x315 mm hole in the table Ø 110 mm table height 820 mm tool hole in ram Ø 50 mm dayligth 335 mm total power requirement 7,5 kW Dsdpolp U D Tjfx Ah Seul weight of the machine ca. 5 t

Condition: used, Single-column eccentric press WEINGARTEN type EV 63 Machine. No. 738 / 61 Year of construction 1962 Pressure capacity 63 ton. throat 260 mm Duodpjk S Htxefx Ah Ssl Table surface 630 x 530 mm Table opening Ø 210 mm ram surface 315 x 260 mm Plunger stroke adjustable 8-100 mm Plunger adjustment 63 mm Installation height max 450 mm Stroke rate 115 strokes / min. Compressed air requirement min. 4.5 bar Motor power 4 kW Mains connection 380 Volt, 50 Hz Table height above floor approx. 750 to 900 mm - Electric lift release via foot switch or two-hand operation - Overload protection by breaker plate - Clutch/brake combination with WEINGARTEN friction threaded clutch with TDC overrun protection - Front crankshaft support bearing - Press table height-adjustable via 2 threaded spindles - Manual central grease lubrication - Control cabinet adjacent - UVV for manual insertion work Space requirement L x W x H 1750 x 1600 x 2430 mm Weight 4.5 tons good condition

Condition: used, Year of construction: 1959, pressure 063 t throat 280 mm Djdpfxjvuk Rwj Ah Soul stroke 8 - 100 mm no. of strokes 65 /min distance table/ram, max. stroke up, adjustment up 550 mm table surface area 630 x 500 mm hole in the table 230 mm table height over floor 740 mm table adjustable 200 mm ram surface 320 x 260 mm ram adjustment 63 mm power capacity 5,5 kW weight 4,6 t Dimensions (WxDxH) 1,4 x 1,8 x 2,4 m permitted for manual loading according to the German Safety Regulations (UVV) with motor, friction clutch, mechanical overload protection in ram, manual stroke adjustment, manual ram adjustment, adjustable table, manual centralized lubrication, two-hand operation Press is currently under revision

Condition: used, Year of construction: 1985, Pressure 080 t throat 345 mm stroke 20 - 160 mm no. of strokes 65 /min distance table/ram, max. stroke up, adjustment up 495 mm Duodpfxovuug Nj Ah Sel table surface area 920 x 610 mm table height over floor 800 mm Hole in the table 280 mm passage to the back 670 mm ram surface 650 x 400 mm ram adjustment 50 mm power capacity 10,0 kW weight 7,7 t Dimensions (WxDxH) 1,5 x 2,2 x 3,15 m permitted for manual put-in according to the German Safety Regulations (UVV) with motor, pneumatic clutch, hydraulic overload protection in ram, manual stroke adjustment, motoric ram adjustment, motoric centralized lubrication, two-hand operation Press is at the moment being overhauled electrically and mechanically - video is from before starting the overhaul WITH mechanical partly overhaul, WITH new electrical control Pilz

Condition: excellent (used), pressure 50 t throat 245 mm stroke 14 / 90 mm ram adjustment 75 mm table height adjustment 150 mm strokes per minute 42/85 table surface area 700 x 490 mm ram surface 400 x 230 mm tool hole in ram 40 mm total power requirement 4 kW weight of the machine ca. 3,41 t dimensions of the machine ca. 0,8 x 1,75 x 2,1 m Machine was partially overhauled in our house as follows: Dodpfx Aetrhf Ash Seul - disassembly, cleaning and inspection - table milled over - new paintwork of the machine - shaft crack test carried out - disassemble Ortlinghaus clutch and additional brake, clean, check, replaceseals - additional air storage tanks - new control cabinet with safety control and touchscreen display - new wiring of the machine - new Vogel central lubrication system with piping - new Herion press safety valve + maintenance unit - new Balluff cam swith - new 2-hand control panel - new footswitch - Current UVV test with braking time measurement - Machine safe for hand inlay work

Condition: used, Year of construction: 2007, pressure 63 t stroke 8 - 120 mm no. of strokes 40 - 120 /min throat 280 mm passage to the back 325 mm dayligth 440 mm table surface area 820 x 580 mm hole in the table 200 mm Dsdpfswc U Inex Ah Soul table height over floor 830 mm ram surface 470 x 340 mm ram adjustment 100 mm power requirement 4,0 kW Weight 5,2 t dimensions (WxDxH) 1,3 x 1,8 x 2,8 m permitted for manual loading according to the CE-norm with infinitely variable drive, pneumatic clutch/brake combination, light guard (make Sick), hydraulic overload protection in ram, pneumatic counterbalance on ram, manual stroke adjustment, manual ram adjustment, central lubrication, two-hand and foot operation

Condition: used, Year of construction: 2003, pressure 63 t stroke 10 - 120 mm no. of strokes 40 - 120 /min throat 280 mm passage to the back 325 mm Dedjvzxttopfx Ah Soul dayligth 430 mm table surface area 820 x 580 mm hole in the table 200 mm table height over floor 830 mm ram surface 470 x 340 mm ram adjustment 100 mm power requirement 4,0 kW Weight 5,20 t dimensions of the machine ca. 1,3 x 1,7 x 3,1 m x m x m THE PRESS IS READY FOR USE IMMEDIATELY ! permitted for manual loading according to the CE-norm with infinitely variable drive, pneumatic clutch/brake combination (NEW IN 2025), light guard (make Sick), hydraulic overload protection in ram, pneumatic counterbalance on ram, manual stroke adjustment, manual ram adjustment, two-hand and foot operation

Year of construction: 1970, condition: used, pressure 63 t throat 440 mm stroke 8-100 mm no. of strokes 65 Hub/min ram - range of adjustment 63 mm table surface area 720x750 mm Dsdpfelp U Eqjx Ah Soul ram surface 440x280 mm hole in the table Ø 240 mm table height 830 mm tool hole in ram Ø 40 mm weight of the machine ca. ca. 5,0 t

Condition: used, Year of construction: 1989, Pressure 080 t Djdpfx Ajvuuaveh Sjul throat 300 mm stroke 8 - 140 mm no. of strokes 60 / 90 /min distance table/ram, max. stroke up, adjustment up 420 mm table surface area 800 x 600 mm hole in the table 330 x 230 mm table adjustable 230 mm table height over floor 750 - 980 mm ram surface 600 x 240 mm ram adjustment 100 mm power capacity 4,5 / 6,9 kW Weight 5,5 t Dimensions (WxDxH) 1,4 x 2,5 x 2,6 m permitted for manual put-in according to the German Safety Regulations (UVV) with motor with 2 speeds, hydraulic clutch/brake combination, hydraulic overload protection in ram, manual stroke adjustment, manual ram adjustment, adjustable table, manual central lubrication, two-hand and foot operation press can be inspected in running condition in our warehouse
