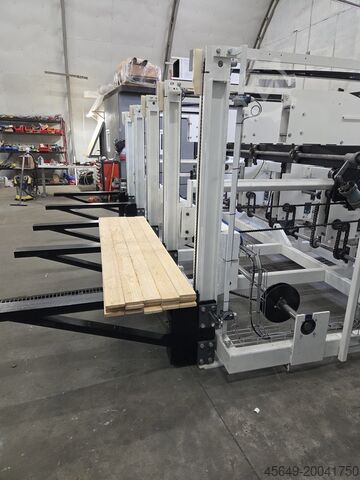

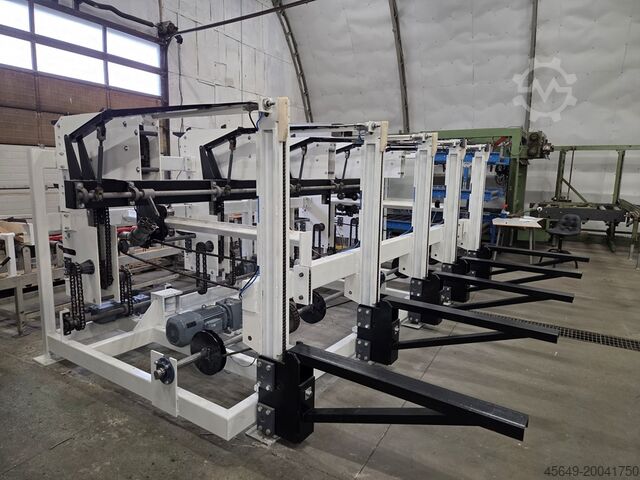

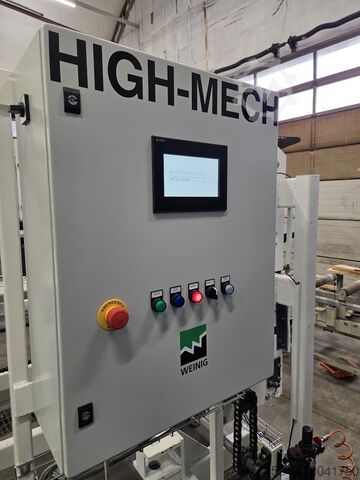

PATERNOSTER STACKER

WEINIG HIGH-MECH

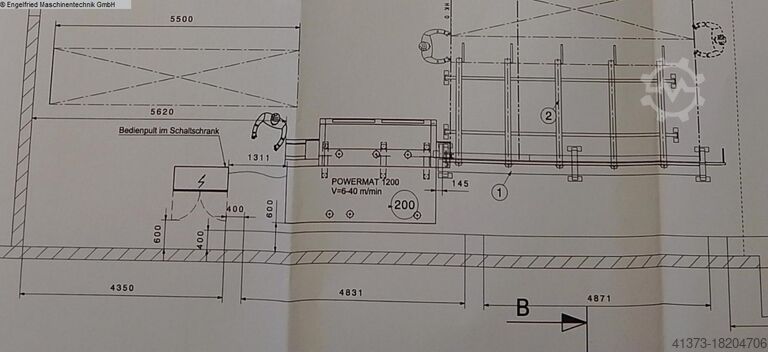

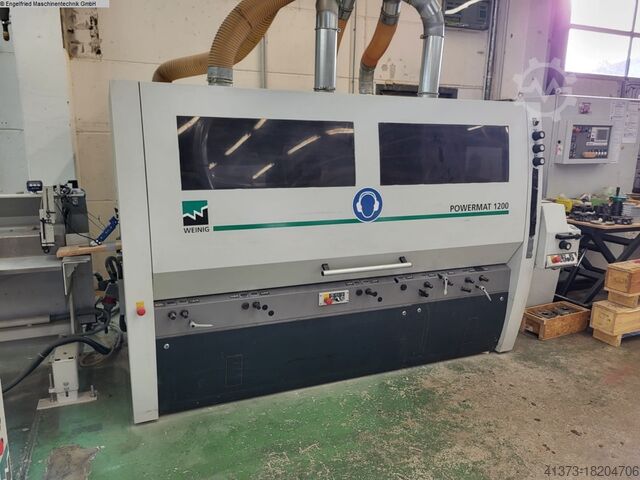

Condition: used, Number of spindles 6 St. Working width 230 mm Working height 160 mm Length of the planing table 1050 mm Feed motor 7 kW Feed speed 6-40 m/min. Weinig Powermat 1200 ----- with infeed automation Weinig wheel magazine EM 100 and linked with outfeed automation Weinig High-Mech A 1 The machine will be completely overhauled at our warehouse before delivery ! Detailed description: ----- 1. Weinig planer and moulder Powermat 1200 ----- Technical data: ----- Working width 20 - 230 mm (with tool flight circle 93 - 163 mm) Working height 10 - 160 mm (with tool flight circle 93 - 163 mm) 1. Spindle ----- First lower horizontal spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 125 - 180 mm In conjunction with PowerLock 93 - 180 mm Tool flight circle rebate cutter 130-160 mm Axially adjustable range 17 mm Folding device MarathonCoating in front of 1st lower tool holder 2nd spindle ----- First right vertical spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 93 - 200 mm Maximum throat depth 35 mm Axial adjustment range 80 mm Radial adjustment range Min. tool diameter on stop plane 93 mm Max. tool diameter behind stop plane 200 mm 3rd spindle ----- First left vertical spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 93 - 200 mm Tool flight circle for straight cutter heads max. 163 mm Dwedpfxsvnwbcj Aa Njd Maximum throat depth 35 mm Axially adjustable travel 80 mm Pressure shoe in front of left tool holder, including 2 side pressure rollers, spring-loaded 4th spindle ----- First upper horizontal spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 93 - 200 mm Tool flight circle for straight cutter heads max. 163 mm Maximum throat depth 35 mm Axially adjustable travel 40 mm Split pressure shoe in front of upper tool holder on tool flight circle adjustable and swinging away from the tool, spring-loaded. Upper spindle prepared for later installation of the cassette system 5th spindle ----- Second upper horizontal spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 93 - 200 mm Tool flight circle for straight cutter heads max. 163 mm Maximum throat depth 35 mm Axially adjustable travel 40 mm Split pressure shoe in front of upper tool holder on tool flight circle adjustable and swinging away from the tool, spring-loaded. Upper spindle prepared for later installation of the cassette system 6th spindle ----- Second lower horizontal spindle Motor with brake 7.5 KW Spindle diameter 50 mm Speed ??8,000 rpm Tool flight circle 93 - 225 mm Maximum throat depth 15 mm Axially adjustable travel 40 mm Radial adjustable travel Min. tool diameter to table level 93 mm Max. tool diameter 6 mm below table level 225 mm All spindles with high concentricity. Lubrication points for the axial tool holder movement. Feed system ----- Electronic feed, infinitely variable with bra...

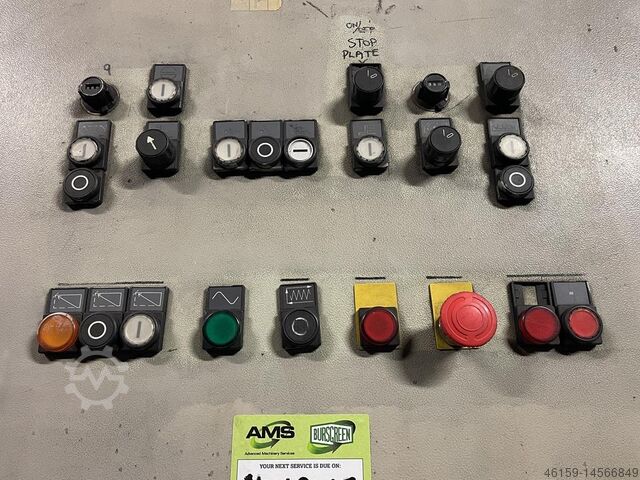

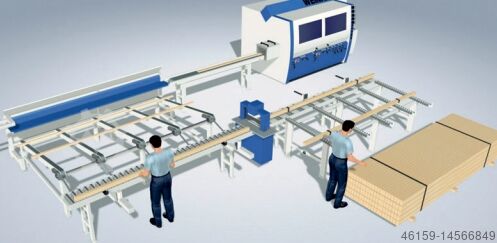

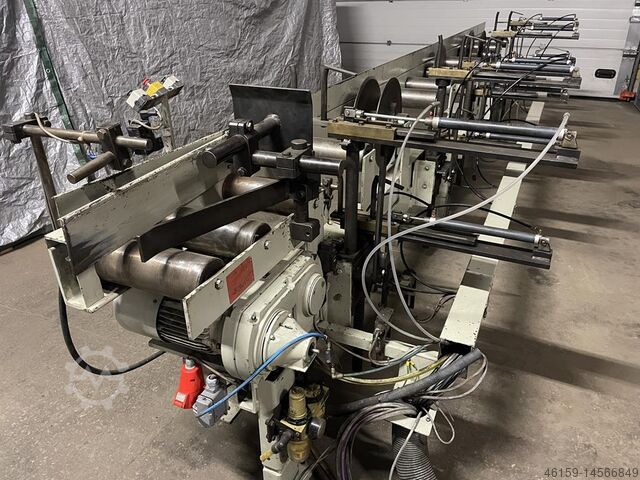

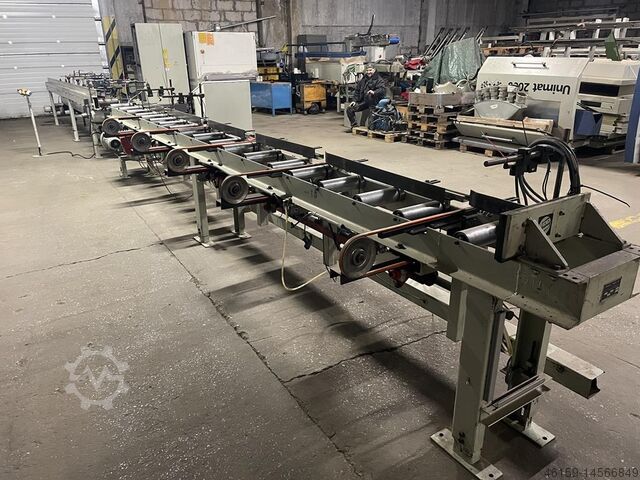

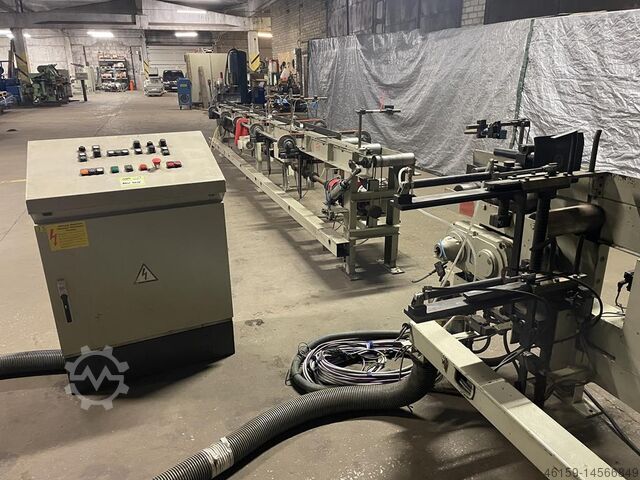

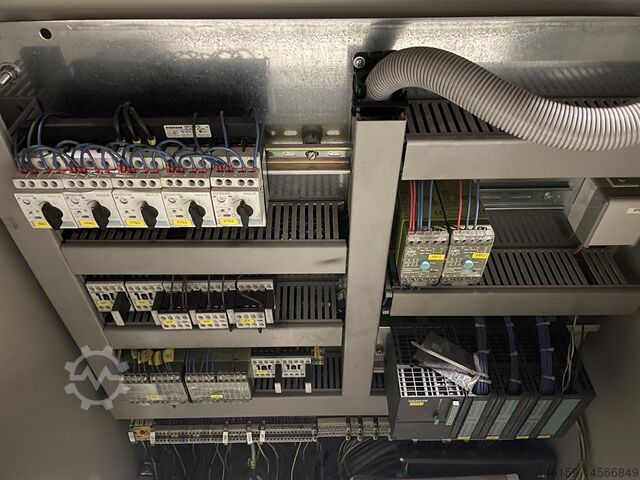

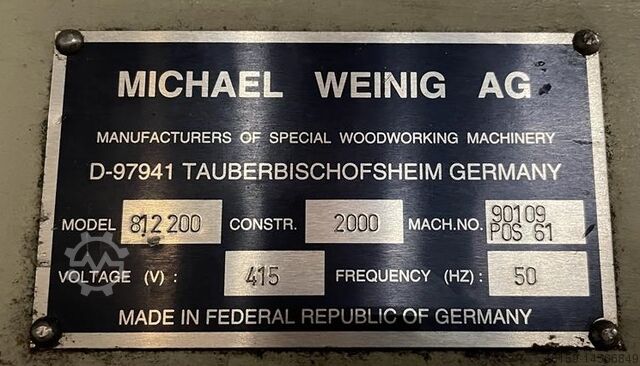

Year of construction: 2000, condition: excellent (used), Weinig High-Mech A4 bundling system Bundle forming packaging unit possible to combine with other Weinig outfeed handling systems available from stock such as buffers and stackers. Djdpfxoq Rvrbe Aa Njwd Consisting of 1. Weinig 815-300 high speed bundling unit 2. Weinig 812-200 outfeed roller conveyor with crossfeed 3. Control panel with Siemens S7-300 CPU
