Complete planing line

WEINIG

Complete Weinig Planing Line in Emergency Sale, consisting of:

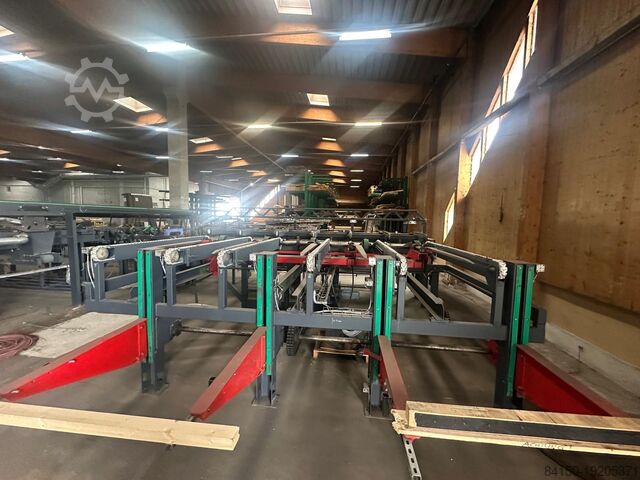

1. Cross infeed/loading conveyor

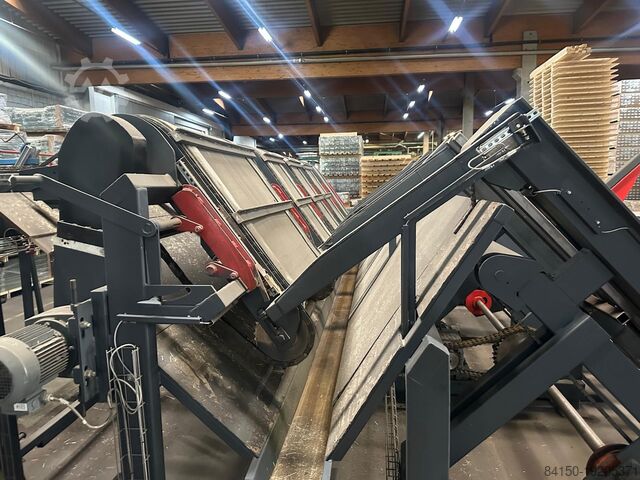

2. Tilt destacking with batten transport
3. Singling unit
4. Sorting of rejected material

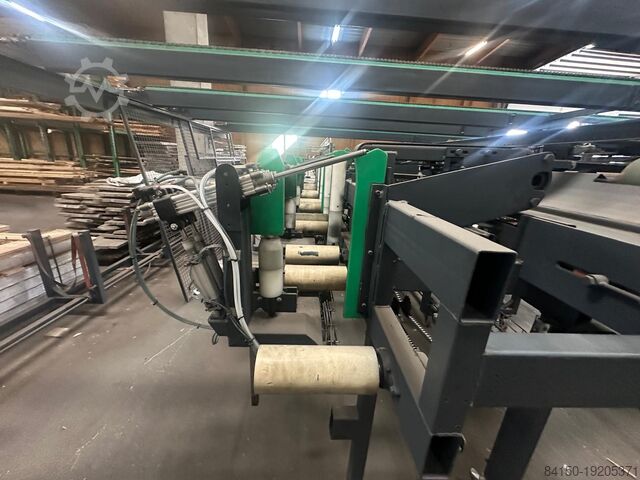

5. Alignment and infeed conveyor
6. Weinig Hydromat 22 – 7-spindle with 3 jointers
7. Outfeed conveyor belt

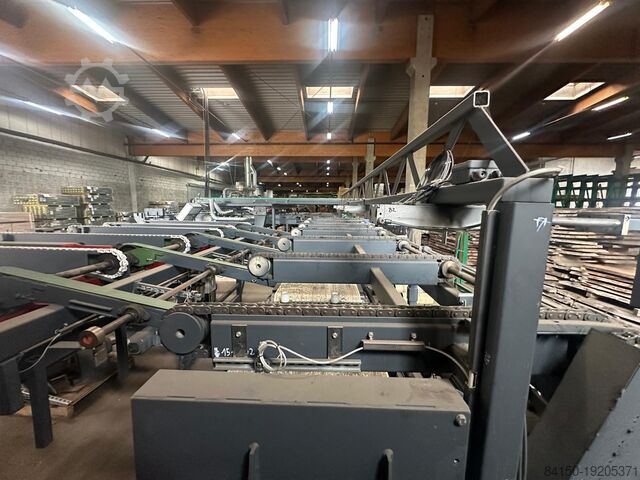

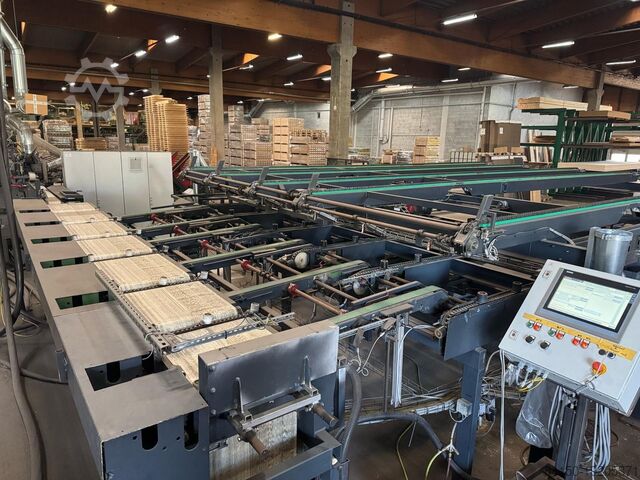

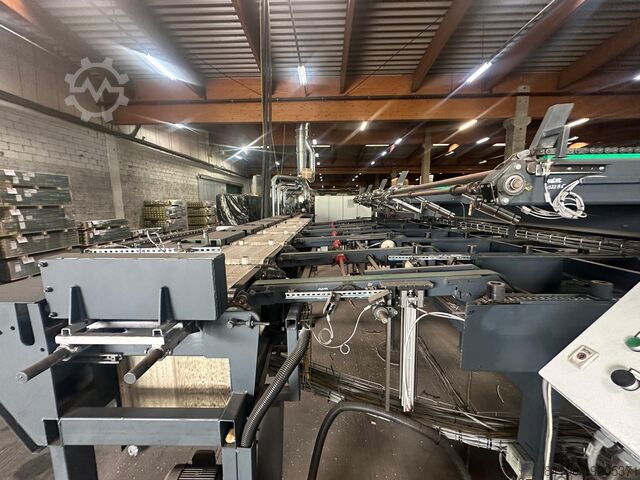

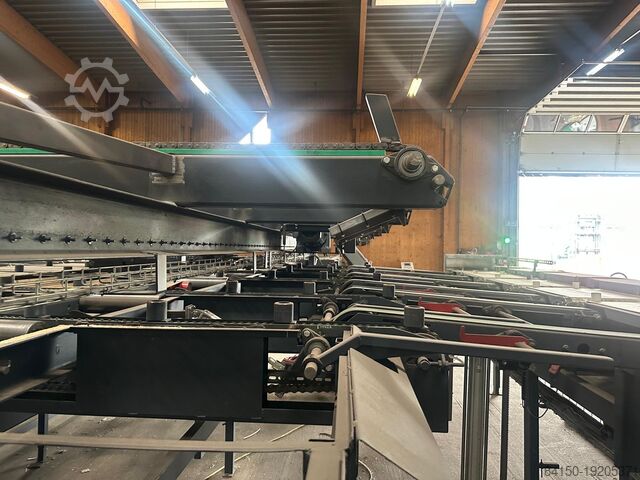

8. Cross conveyor
9. Quality sorting (overhead buffer conveyor)

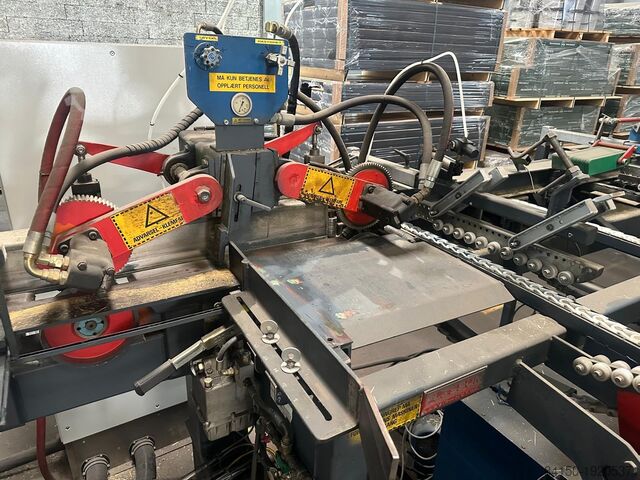

10. Double-sided cross-cutting station
11. Stacking unit
alternatively:

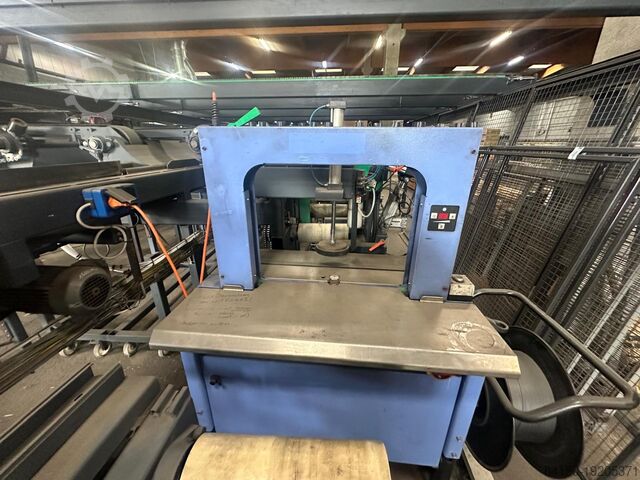

12. Bundling with subsequent stacking

Technical Data:

• Required space: 35 x 15 meters
• Board length: min. 1.5 m – max. 6.0 m
• Board width: min. 80 mm – max. 220 mm
• Board thickness: min. 10 mm – max. 120 mm
• Feed speed: up to 80 m/min (hydraulic)
• Spindle diameter: 50 mm
Dodpfxswmdi Ns Acwjcn
• Output: approx. 100 m³ per shift (8 hours)
• Total connected load: 145 kW, 330A

Note:
The system is designed for profiled boards as well as for cutting battens.

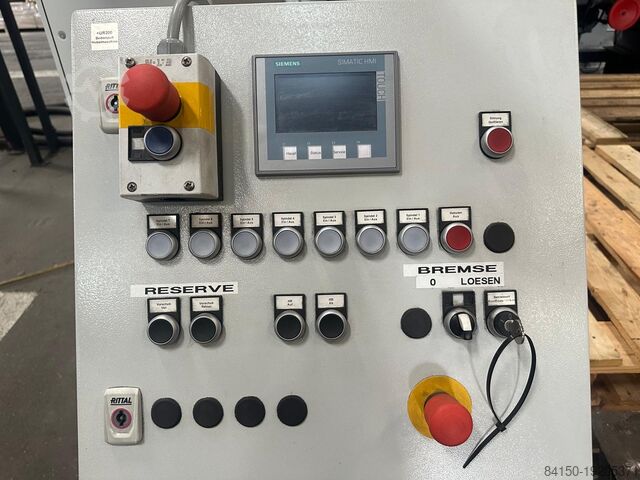

It has been completely overhauled and equipped with a new Siemens control system.
