Board stacker

Weinig

Condition: used, Year of construction: 2002, functionality: fully functional, machine/vehicle number: 96409, type of input current: three-phase, input voltage: 380 V, power: 73 kW (99.25 HP), input frequency: 50 Hz, input current: 159 A, We offer this used Weinig Unimat 23 moulder, year of construction 2002. Machine number: 96409 Machine type: Unimat 23 Year of construction: 2002 Circuit drawing number: B.96409 Operating voltage: 3 x 380 V 50 Hz Control voltage: 230 V 50 Hz Nominal current most powerful motor: 29 A Nominal current: 159 A Main fuse: 160 A Power: 73 kW Csdpfx Adjx Ttydo Nsgt If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: good (used), functionality: fully functional, working width: 260 mm, planing height: 170 mm, spindle diameter: 40 mm, planing width: 260 mm, working height: 170 mm, power of feed motor: 4,000 W, spindle speed (max.): 6,000 rpm, spindle speed (min.): 6,000 rpm, height adjustment type: electric, type of input current: three-phase, shaft diameter: 40 mm, number of spindles: 5, input frequency: 50 Hz, Equipment: cabin, motor brake, Weinig Profimat 23 E Working width: 260 mm, Working height: 170 mm, 5 spindles, Cgedpfx Adoyc Nube Net Spindle diameter: 40 mm, Spindle configuration: 1- Bottom - 5.5 kW 2- Right + 3- Left - 11 kW 4- Top - 5.5 kW 5- Bottom - 11 kW Feed speed: 6 – 24 m/min - 4 kW Air cushion in the table One powered roller in the table at the outfeed. Comes with tooling.

Condition: repair required (used), Year of construction: 2010, functionality: not functional, feed rate X-axis: 120 m/min, input frequency: 50 Hz, For sale is a Weinig mechanization system consisting of: Weinig 811, Cedpfov Skayjx Ad Njgt Weinig 820, Weinig 814, Weinig 811, Weinig 806

Condition: used, Year of construction: 1979, functionality: fully functional, working width: 250 mm, planing height: 160 mm, spindle diameter: 50 mm, planing width: 250 mm, working height: 160 mm, overall weight: 10,000 kg, power of feed motor: 30,000 W, spindle speed (max.): 6,000 rpm, height adjustment type: mechanical, planer shaft diameter: 50 mm, type of input current: three-phase, table length: 1,000 mm, number of spindles: 9, input frequency: 50 Hz, Weinig Hydromat 25 9 spindles, Working width: 250 mm, Cgedpsqvml Refx Ad Not working height: 140 mm, spindle diameter: 50 mm, feed: 30 kW / 6 - 65 m/min, Spindle arrangement: 1-bottom (11 kW) - with hydraulic clamping 2- Right (7.5 kW) 3-left (11 kW) Jytnaq 4-Left (7.5 kW) 5-Right (7.5 kW) 6-Top (7.5 kW) - with hydraulic clamping 7-Top (15 kW) - with hydraulic clamping and straight jointer 8-Bottom (11 kW) - with hydraulic clamping and straight jointer 9-bottom (11 kW) - with hydraulic clamping and straight jointer 8 driven rollers in the table

Condition: good (used), Year of construction: 2015, Used, in good condition Year of construction: August 2015 (installed end of 2016) Technical description Working width (with tool cutting circle 125 mm): 20 - 230 mm Working height (with mould cutting circle 125 mm): 8 - 120 mm Six standard feed pendulums from above Two driven rollers in the machine table 1st spindle First lower horizontal spindle Motor with brake 5.5 kW (7.5 HP) Diameter 40 mm Speed 6000 rpm Tool cutting circle 125 - 145 mm Folding device, incl. folding cutter 2nd spindle First right vertical spindle 5.5 KW (7.5 HP) Individual motor with brake Diameter: 40 mm Speed: 6000 rpm Tool cutting circle 40 mm below table level: 100 - 200 mm Tool cutting circle 55 mm below table level: 100 - 180 mm Max. Tool diameter behind stop plane 180 mm Maximum moulding depth 35 mm Axial adjustment movement 55 mm 3rd spindle First left vertical spindle Individual motor with brake 7.5 KW (10 HP) Diameter 40 mm Speed 6000 rpm Tool cutting circle 40 mm below table level 100 - 200 mm Tool cutting circle 55 mm below table level 100 - 180 mm Maximum moulding depth 35 mm Axial adjustment movement 55 mm 4th spindle First upper horizontal spindle Motor with brake 7.5 KW (10 HP) Diameter 40 mm Speed 6000 rpm Tool cutting circle 112 - 200 mm Max. tool cutting circle for straight cutterheads: 180 mm Maximum moulding depth 35 mm Axial adjustment movement 40 mm Divided pressure shoe in front of upper spindle, adjustable to tool cutting circle and swivelling away from the tool, spring-loaded. 5th spindle Second upper horizontal spindle Motor with brake 7.5 KW (10 HP) Diameter 40 mm Speed 6000 rpm Tool cutting circle 112 - 200 mm Cgodpfxequ Sc Hs Ad Nst Max. tool cutting circle for straight cutterheads: 180 mm Maximum moulding depth 35 mm Axial adjustment movement 40 mm Divided pressure shoe in front of upper spindle, adjustable to tool cutting circle and swivelling away from the tool, spring-loaded. 6th spindle Second lower horizontal spindle Motor with brake 7.5 KW (10 HP) Diameter 40 mm Speed 6000 rpm Tool cutting circle 112 - 200 mm Maximum moulding depth 15 mm Axial adjustment movement 35 mm Spindles in general All moulder spindles dynamically balanced for high concentricity. Feed system Frequency-controlled feed 5 - 30 m/min. infinitely variable with brake 4 KW (5.5 HP) Machine stand, tables and stops Manual lubricant pump for table resin removal Machine operation Memory function For memorising the setting values of profiles. Spindle axes with electronic double displays. Function: - Saves the setting values of the finished profile under a profile number at the touch of a button - When the profile number is selected again, the electronic double displays show the setting values - The displays are synchronised by manually adjusting the spindle - 99 memory locations Electric height adjustment of the feed Centralised position of lubrication points at the front of the machine

Condition: excellent (used), 15 kW engine Cutting height 7 cm Track width 17 cm Feed rate adjustment Cgedpfoy I U T Isx Ad Njt

Condition: excellent (used), WEINIG 811 UNISTACKER PATERNOSTER STACKER WEINIG 811 UNISTACK PATERNOSTER STACKER. 2X STICK MAGAZINES 1200MM. Cgodpfx Ajy I Rvrjd Njt MINIMUM LENGTH APPROXIMATELY 600MM. MAXIMUM LENGTH 3600MM. PACK WIDTH 1200MM PACK HEIGHT 1200MM MAX. CAPACITY 5 LAYERS PER MINUTE

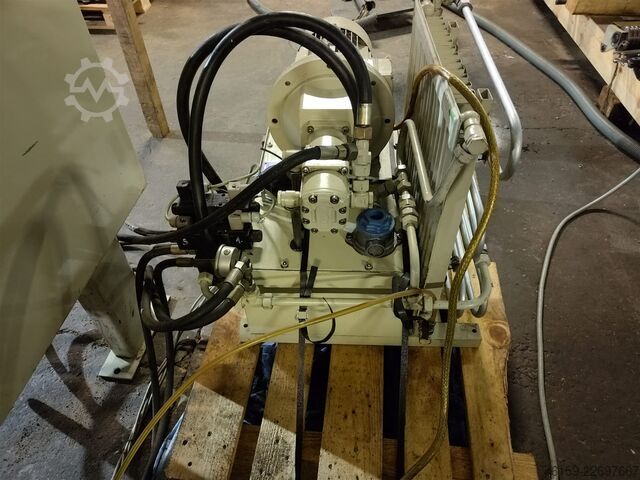

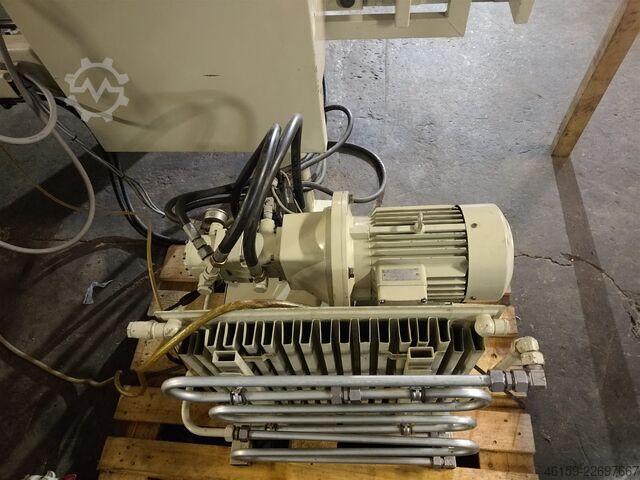

Condition: excellent (used), functionality: fully functional, power of feed motor: 11,000 W, Hydraulic feed from Weinig Feed speed 60 m/min Cgedpfx Adov Skbke Njt Motor power 11 kW

Condition: like new (used), functionality: fully functional, Hydraulic feed to the Weinig Hydromat. Feed speed 8-60m/min Cgsdpfjv Er Ufox Ad Nst

Condition: excellent (used), - Track width: 340 mm - Max. cutting width: 430 mm - Max. cutting height: 120 mm Csdpfsy I Eaxox Ad Njgt - Main motor power: 30 kW - Saw blade diameters: 250/360 mm - Electric height adjustment - Feed motor power: 1.5 kW - Two movable saw blades - Fixed bushing included - Max. workpiece width: 1000 mm - Min. workpiece length: 600 mm - Spindle diameter: 65 mm - Bushing diameter: 80 mm
