Four Side Planer

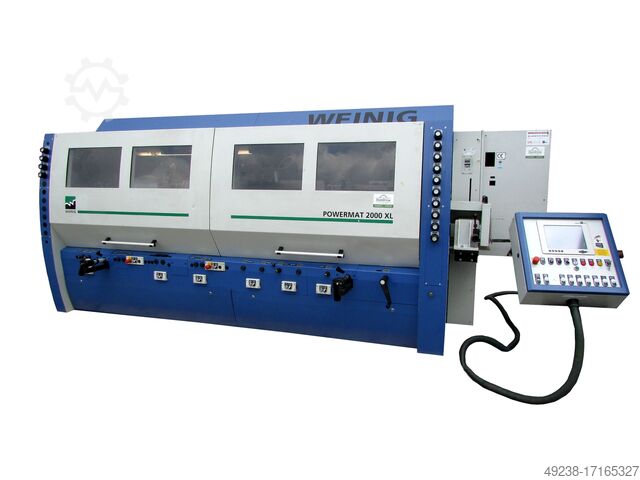

WEINIG Powermat 2000 XL

Condition: used, Year of construction: 2006, functionality: limited functionality, machine/vehicle number: 106196, planing height: 200 mm, spindle diameter: 90 mm, planing width: 300 mm, spindle speed (max.): 8,000 rpm, height adjustment type: electric, compressed air connection: 8 bar, number of spindles: 5, For sale is a planing line by Weinig, complete with associated mechanisation from Kallfass (before and after the planer). The planing line is currently no longer in daily production. The operator side (left) first spindle and its mounting are defective. Weinig Moulder: Weinig Powermat 2000XL (year 2006) with 5 spindles (Weinig Powerlock system) plus chamfering unit. "Set-up time savings!" Spindle arrangement: bottom, right, left, top, bottom. The bottom and top spindles are both equipped with a jointing device. Spindle motor ratings: bottom 23.5 kW / right 15 kW / left 15 kW / top 28.5 kW / bottom 28.5 kW. Spindle speed: 8,000 rpm. The feed has a 15 kW drive motor, providing feeding speeds from 6 to 60 m/min. Compressed air requirement: nominal pressure 8 bar, operating pressure 6 bar. Workpiece dimensions for processing in the planing line: Shortest part: 2.00 m Longest part: 11.00 m (depending on mechanisation) Dedpfx Aoyzibmehuskk Minimum thickness: 19 mm Maximum thickness: 200 mm Minimum width: 40 mm Maximum width: 300 mm Maximum profiling depth: 35 mm Feed rate: 6–60 m/min. Splitting is possible on the fifth lower spindle up to 60 mm height. Mechanisation: Kallfass "HmoK10000" year 2006 (operational/used) Before and after the planing line there is mechanisation by Kallfass. There is the option to buffer 2–3 packs before the unit, which must then be manually destacked before the infeed. Layer formation after the planer is performed by a paternoster unit with 3 adjustable walls. The maximum component length for this setup is 11.00 m. Price is quoted net ex works, without warranty. Complete disassembly is to be carried out by the buyer. A large inventory of cutterheads, spare parts, and various extraction components is available and can be purchased separately.

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 10006565, Weinig Powermat 1500 Working width 30 - 310mm (with tool flight circle 93-125mm) Working height 100 - 200mm (with tool flight circle 93-125m) Number of spindles 6 Spindles bottom 2 Spindles right 1 Spindles left 1 Spindles top 2 Dkodpfx Aherq Ebfsujk Spindle arrangement u-r-l-o-o-u Spindle speed max 8,000 rpm Spindle diameter 40 mm Powerlock tool holder incl. chamfering unit Separate motor for each spindle Electronic feed incl. brake, infinitely variable 5-40 m/min. Durofer pointed tooth rollers Short infeed table 1.2 m long with 2 driven rollers above the table Hard-coated machine table surface Manual lubricant pump WEINIG Comfort Set Control system WEINIG MEMORY PLUS-SYSTEM CE mark Declaration of Conformity
