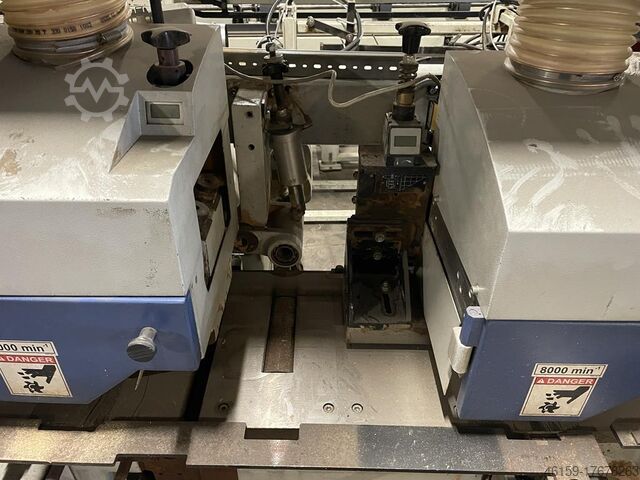

WEINIG Powermat 500

Condition: used, Weinig Powermat 500 automatic planing and chamfering machine for four-sided planing and profiling of large timber (construction timber), featuring a memory function, electronic positioning and including a set of planing heads. AI-generated sample image; actual product may vary. Technical data: - Working width: 300 mm - Working height: 200 mm - Spindles: 5+1 - Spindle 1: Bottom / 11 kW / 40 mm / 8,000 rpm - Spindle 2: Right / 11 kW / PowerLock / 8,000 rpm - Spindle 3: Left / 11 kW / PowerLock / 8,000 rpm / CNC - Spindle 4: Top / 15 kW / PowerLock / 8,000 rpm / CNC Ndjdpfxs Afpfhs Aitjc - Spindle 5: Bottom / 11 kW / PowerLock / 8,000 rpm - Spindle 6: Chamfering unit / 1 kW / 10,600 rpm - Feed: 5–30 m/min // 4 kW

Condition: excellent (used), functionality: fully functional, Four-side planer / Four-sided moulder Compact 23 Max. working width 230 mm Max. working height 125 mm Max. diameter of profile tools 180 mm Ndsdpfot Dk Rxox Aitsc Surfacing spindle 4 kW Vertical spindle 5.5 kW Upper horizontal spindle 4 kW Lower horizontal spindle 4 kW Machine dimensions 3200 x 1400 x 1600 mm, Weight 1850 kg Transport available for an additional charge!

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Technical specifications: * Manufacturer: Weinig, Germany * Model: Powermat 500 * Year of manufacture: presumably 2005 (final inspection 25.11.2005) * Machine type: Four-sided planer / profiling machine * Spindles: At least 6 tool positions identifiable * Spindle speed: 8,000 rpm (according to the label) * Control: Electronic Weinig control with color display * Workpiece feed: Automatic * Spindle adjustment: Partially motorized with digital position indicators Ndjdpe Aaw S Sjfx Aitsc * Extraction: Several extraction connections available Equipment: * Electronic control with color display * Program management for various planing and profiling operations * Digital position indicators * Several planing and profiling spindles * Automatic workpiece feed * Pneumatic pressure elements * Adjustable workpiece guides * Enclosed safety guard with viewing window * Infeed and outfeed area * Several extraction connections * Emergency stop switch Application areas: * Four-sided planing of solid wood * Production of window and door profiles * Manufacturing of frame timbers * Production of glass beads * Production of baseboards and decorative profiles * Series production of profiled timbers Inspection possible by appointment * Sale in its current condition * Dismantling and loading upon agreement * Transport by the buyer

Condition: good (used), Year of construction: 2010, Weinig Powermat 500 Number of spindles: 6 Year of manufacture: 2010 Planing width: 230 mm Planing height: 120 mm Feed rate: 5 - 30 m/min Feed motor: 4 kW Infeed table length: 1,000 mm 1 driven toothed roller in the table 2 driven smooth rollers in the table Spindle 1: round, 40 mm Spindles 2-3-4-5-6 with HSK mount Powercom Control Spindle arrangement: Bottom: 11 kW Njdjz Hm R Depfx Aitedc Right: 7.5 kW Left: 7.5 kW Top: 15 kW Top: 11 kW Bottom: 11 kW

Condition: as good as new (ex-display), Year of construction: 2001, I sell the automatic CNC working centre for BLOCK-HOUSE production AUER BL100. Year 2001. Input table / Max. Element length 9,00m Tenoning head up to dia.200mm / 4kW Horizontal milling up to dia.200mm / 4kW Nsdperccakjfx Aitedc Vertical milling up to dia.200mm / 4kW Automatic feeding system AUER Austria BL100MS Programming Zebra Label-print TOS Svitavy PWM 45.11 End-cutting saw in the back Suitable for wooden house constructions! Available immediately.

Condition: reconditioned (used), Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 3 kW Feed speed 5-30 m/min. control Powercom Weinig Powermat 500 (Window Version for window producers) 5 x PowerLock ----- The machine will be a partial renovated at our warehouse prior to delivery. The interior view photos of a similar machine from our archive serve to illustrate how the machine will be renovated. Technical Summary: ----- - 6 spindles, 5 of which are PowerLock - 8,000 rpm - Large PowerCom control system - Spindles 2, 3, and 4: CNC-controlled axial adjustment - Spindles 2, 3, 4, and 5: CNC-controlled radial adjustment - Window package for glazing bead separation: pneumatic cycling for right and top spindles for bead separation Detailed Description: ----- Tool arrangement no. 018 for window production Technical Data: ----- Working width: 20 – 230 mm (with tool cutting circle 93 – 125 mm) Working height: 8 – 120 mm (with tool cutting circle 93 – 125 mm) 1. Tool Spindle ----- First bottom spindle Diameter: 40 mm Motor with brake: 7.5 kW Speed: 8,000 rpm Tool cutting circle: 125 – 180 mm Tool cutting circle (rebate cutter): 130 – 160 mm Axial adjustment range: 17 mm Rebating device MarathonCoating for table insert before 1st bottom spindle 2. Tool Spindle POWERLOCK/HSK ----- First right spindle Motor with brake: 7.5 kW Speed: 8,000 rpm Includes high-performance ball bearings Ndodpfozp Rxyjx Aitjc Tool cutting circle: 93 – 200 mm Maximum profiling depth: 35 mm Axial adjustment range (PowerLock): 55 mm Radial adjustment range: Min. tool diameter at fence level: 93 mm Max. tool cutting circle behind fence line 200 mm Right tool spindle: axial positioning (55 mm) pneumatically controlled via selector switch, max. saw blade diameter 180 mm CNC-controlled axial adjustment CNC-controlled radial adjustment 3rd tool spindle POWERLOCK/HSK ----- First left tool spindle Motor with brake 7.5 kW Speed ??8,000 rpm Includes high-performance ball bearings Tool cutting circle 93 – 200 mm Maximum profiling depth 35 mm Axial adjustment range for PowerLock 55 mm CNC-controlled axial adjustment CNC-controlled radial adjustment Pressure shoe in front of left tool spindle, incl. 2 spring-loaded lateral pressure rollers 4th tool spindle POWERLOCK/HSK ----- First top tool spindle Motor with brake 7.5 kW Speed ??8,000 rpm Includes high-performance ball bearings Tool cutting circle 93 – 200 mm Tool cutting circle for straight-knife cutterheads max. 163 mm Maximum profiling depth 35 mm Axial adjustment range 40 mm CNC-controlled axial adjustment CNC-controlled radial adjustment Top tool spindle: axial positioning (40 mm) pneumatically controlled via selector switch, max. saw blade diameter 180 mm 5th tool spindle POWERLOCK/HSK ----- Second top tool spindle Motor with brake 7.5 kW Speed ??8,000 rpm Includes high-performance ball bearings Tool cutting circle 93 – 2...

Condition: excellent (used), Number of spindles 5 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 4 kW Feed speed 5-30 m/min. control Memory-Funktion Weinig Powermat 500 with grooved table ----- The machine arrives at the warehouse and is cleaned and fully inspected. Brief Summary: ----- - 5 Spindles - 8,000 rpm - Grooved table for short or difficult-to-guide workpieces, coated with Marathon PowerCoating - One driven roller in the outfeed table, hardened: 210 mm wide - Left and top spindles controlled for width and height - Quick-release spindle nut Detailed Description: ----- Technical Data: Working width: 20-230 mm Working height: 8-120 mm Number of spindles: 5 1st Spindle - bottom ----- Motor with brake: 7.5 kW Spindle diameter: 40 mm Speed: 8,000 rpm Tool circle: 125-180 mm Tool circle for rebate cutter: 130-160 mm Travel Axial: 17 mm Folding attachment MarathonCoatin for table insert in front of 1st lower tool holder 2nd Spindle - right ----- Motor with brake: 5.5 kW Spindle diameter: 40 mm Speed: 8,000 rpm Tool swing diameter: 93 - 200 mm Max. groove depth: 35 mm Axially travel: 80 mm Radial travel: Min. tool diameter at stop level: 93 mm Max. tool diameter behind stop level: 200 mm 3rd Spindle - left ----- Motor with brake: 7.5 kW Spindle diameter: 40 mm Speed: 8,000 rpm Tool swing diameter: 93 - 200 mm Tool swing diameter for straight cutter heads: max. 163 mm Max. Groove depth: 35 mm Axially travel: 55 mm Pressure shoe in front of left spindle, including 2 lateral pressure rollers, spring-loaded Spindle radially CNC-controlled 4th Spindle - top ----- Motor with brake: 11.0 kW Spindle diameter: 40 mm Speed: 8,000 rpm Tool swing diameter: 93 - 200 mm Maximum tool swing diameter for straight cutter heads: 180 mm Maximum groove depth: 35 mm Axially travel: 40 mm Spindle radially CNC-controlled Split pressure shoe in front of upper tool holder, adjustable to the tool swing diameter and pivoting away from the tool, spring-loaded. 5. Spindle - Lower ----- Motor with brake: 5.5 kW Spindle diameter: 40 mm Speed: 8,000 rpm Tool swing diameter: 93 - 225 mm Max. throat depth: 15 mm Axially travel: 35 mm Ndjdpfx Aijzughzjtoc Radial travel: Min. tool diameter to table level: 93 mm Max. tool diameter 6 mm below table level: 225 mm Feed system ----- Frequency-controlled feed, infinitely variable with brake: 4 kW, 5 - 30 m/min Infeed roller in front of the first lower tool, pneumatically controlled up/down. Durofer pointed tooth rollers with depth limiter and self-cleaning. Feed roller adjustment travel relative to the left tool holder, axial 35 mm Reduced roller spacing relative to the right tool Machine electrical system ----- Operating voltage 400 V (voltage range 380 - 420 V), 50 Hz. Machine stand, tables, and stops ----- Infeed table: 2500 mm long (including jointing guide) Slotted guide for short or difficult-to-guide workpieces, coated...

Condition: used, Year of construction: 2011, Working width: 20–230 mm Working height: 8–120 mm Feed system • Variable-frequency controlled feed drive: 5–30 m/min, continuously adjustable, with 7 kW (9.5 HP) brake motor. • Pneumatically controlled up/down infeed roller before the 1st bottom spindle. • Axial adjustment range of the feed rollers relative to the left spindle: 35 mm. • Extended pendulum axis opposite the left spindles to 150 mm. • Reduced roller spacing in the area of the right-hand spindles. Machine frame, tables and fences • 2 m long jointing table (including jointing fence). Ndjdpfezkklpjx Aitjc • Grooved guide for short or difficult-to-feed workpieces, coated with Marathon PowerCoating. Table tops are non-removable. o Minimum working width: 25 mm o Maximum stock removal at the 1st bottom spindle: 7 mm • Manual lubrication pump. • One driven, hardened outfeed table roller, 210 mm wide. • One driven, hardened machine table roller, 210 mm wide. Pressure elements and guides • Spring-loaded top pressure rollers. • Anti-kickback device before the top spindle for short workpieces. Machine operation • Memory function for storing profile setup data. • EasyCom for quick and easy setup of the moulder and planer. • Storage for up to 1,000 profile programs, including tool data. • Reduced setup times. • Convenient and safe operation. • Basic equipment prepared for CNC-controlled adjustment and positioning. • 2 CNC-controlled radial adjustment and positioning axes for tool spindles No. 4 and No. 5, in conjunction with the Memory function or EasyCom. • CNC-controlled feed height adjustment (up/down) in conjunction with the Memory function. • Mobil- tool spindle (1 axis): automatic adjustment of the left spindle to different workpiece widths. • Centralized lubrication points located at the front of the machine. • Electromagnetic locking of the safety hood. • One internal light inside the safety hood. Specifications are provided for information only. This machine is offered for sale on behalf of a customer. Viewing is available by prior arrangement. Please contact us through the platform's messaging system for further information and the relevant technical contact details.

Condition: excellent (used), Year of construction: 2005, working width 230mm working height 120mm 6 spindles spindles set: bottom/right/left/top/top/bottom second top spindle with Powerlock Ndsdpfxezxx Dis Aitec toothened roll in the infeed table spindles diameter 40mm spindles speed 8000 RPM Power Com controller variable regulated feeder 5-30m/min

Condition: used, Year of construction: 2007, machine/vehicle number: MR007003, For sale: A very complete Weinig Powermat 500 (year of construction 2007). Thanks to the increased planing capacity (300x160mm) and extensive mechanization, this is the ideal production line for professional woodworkers, carpentry workshops, or timber frame construction companies. Installation can be arranged upon consultation. Key specifications: - Large capacity: Maximum processing size of no less than 300 x 160 mm (ideal for heavy timber, joists, and wide parts). - Spindle arrangement (5 axes): Bottom (11 kW) – Right (7.5 kW) – Left (7.5 kW) – Top (11 kW) – Bottom (7.5 kW). - Including oscillating axis: Equipped with a moving spindle with an input measuring system. Enables efficient processing of boards with varying/tapering widths with minimal wood loss. - Combined spindle mounting: Equipped with a PowerLock quick-change system on both bottom spindles and the top spindle. Conventional mounting ø 40 mm side spindles. - PowerCom Control: Graphic touchscreen for quick profile changes and digital management of tool settings. - 1-Man Operation: Including automatic return system. - Including accessories: Supplied with straight planing heads (bottom jointing cutters) and an extra horizontal PowerLock axis. Machine manuals are available. Technical specifications: - Number of planing axes: 5 - Order of planing axes: B-R-L-B-B - Maximum planing width: 300 mm - Maximum planing height: 160 mm - Feed rate: 5-30 /min - Serial number: 109200 Ndjdszwv Euopfx Aitsc

Year of construction: 2008, condition: like new (used), Four-side planer Weinig Powermat 500 - year of production 2008 - German production - PowerCom control - saving profiles with tools and positions - PowerLock tool holder TECHNICAL PARAMETERS: planing width 300 mm planing height 200 mm PowerLock tool attachment PowerCom control with positioning of the upper and left spindles 1 spindle 11kW 2 spindle 11 kW 3 spindle 11 kW 4 spindle 15 kW 5 spindle 15 kW milling spindle 1.5 kW 12000 rpm Nodpfxsltla Sj Aitedc spindle speed 8000 rpm feed continuously adjustable 6-36 m/min feed motor power 4kW five upper steel pulling rollers one rubber upper pulling roller one roller in the top pulling air cushion in the table automatic central table lubrication automatic lubrication of spindle guides length of the feeding table 1970 mm spigot diameter 2x140 mm 3x160 mm 1x80 mm total power 70 kW 140 A Machine dimensions 500x225x242 cm weight 3000 kg

Condition: good (used), Year of construction: 2007, - Planing width (mm): 230 - Planing height (mm): 140 - Spindles: 6 1st spindle: bottom 2nd spindle: right 3rd spindle: left 4th spindle: top 5th spindle: top 6th spindle: bottom - Spindle speed (rpm): 8000 - Total connected load (kW): 65 - Rated current (A): 142 - With planing heads Powerlock system - Program memory - Soundproof hood - CE compliant Ndedpfx Aijy Ayg Astjc
