Planer

Weinig Profimat 22N

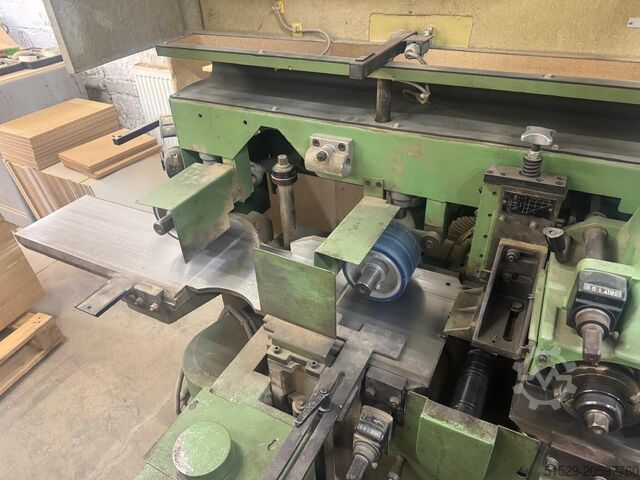

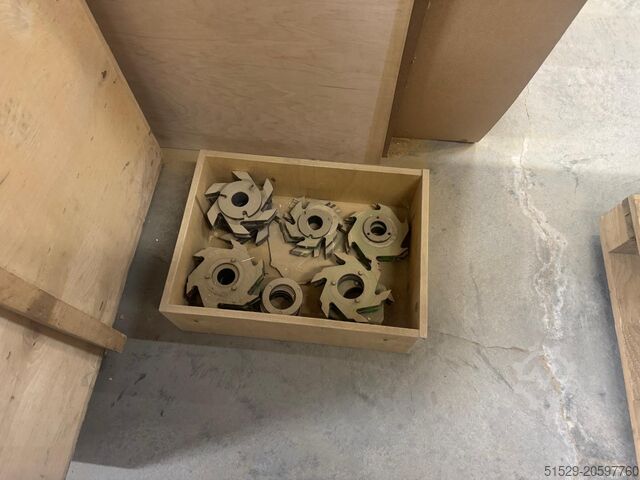

Condition: excellent (used), Four-sided planer Weinig Profimat 22 N, 6 heads – the last one is universal. Tools included. Work video of the machine available. Very good condition. Ready for operation. Nodpfx Ahjxyxaas Dodd

Condition: excellent (used), functionality: fully functional, Working width 220 mm Working height 120 mm Njdpfxjxxtuvj Ah Dsdd 5 spindles Spindle arrangement: bottom/right/left/top/bottom Spindle diameter 40 mm Motors: 4 kW, 5.5 kW, 5.5 kW, 4 kW Table length 198 cm Table lubrication Stepless feed speed adjustment Pneumatic pressure on feed rollers Head adjustment in two axes Electric adjustment of top head – 0.25 kW Feed motor power 2.2 kW

Condition: excellent (used), Year of construction: 1987, Four-side planer Manufacturer: Weinig Model: Profimat 22 N Year of manufacture: 1987 Planing height: 220 mm Planing width: 120 mm Number of spindles: 4 Feed speed: 5 – 22 m/min, infinitely variable Total power: approx. 17 kW Spindle speed: 6,000 rpm Nodpfx Aeww A T Ujh Dedd - First spindle: bottom, 4 kW, tool diameter: 125 mm - Second spindle: right, 5.5 kW, tool diameter: 180 mm - Third spindle: left, 5.5 kW, tool diameter: 190 mm - Fourth spindle: top, 4 kW, tool diameter: 200 mm

Condition: excellent (used), Year of construction: 1993, Catalog number 7706 TECHNICAL DATA - Maximum workpiece width: 220 mm - Maximum workpiece height: 120 mm – 5 spindles: 1) Bottom horizontal: 220 mm, 4 kW 2) Right vertical: 120 mm 3) Left vertical: 120 mm; both 2 and 3 are 7.5 kW 4) Top horizontal: 220 mm, 5.5 kW 5) Bottom horizontal: 220 mm, 4 kW - All spindles adjustable up/down, right/left - Spindle diameter: 40 mm - Pneumatic feed rollers - 4 powered, toothed feed rollers from above including 1 double roller - Top driven outfeed roller, smooth rubber - Bottom driven outfeed roller, rubber - Feed on drive shafts (Cardan shafts) - Stepless feed speed adjustment: 6–36 m/min - Feed motor: 2.2 kW - Lifting motor: 0.25 kW - With brake - Electric thickness adjustment - Central table lubrication - Infeed table length: 1970 mm - Extraction port diameter: 4x120 mm, 140 mm - Dimensions (L x W x H): 3450 x 1600 x 1450 mm - Weight: 1112 kg Nedow Edhispfx Ah Dsdd Net price: 44,900 PLN Net price: 10,690 EUR (based on the exchange rate of 4.2 EUR) (Prices may vary depending on market fluctuations)

Condition: used, Year of construction: 1986, Dimensions (LxW): 175 x 603 cm Four-sided planer Weinig Profimat 22N Serial number: 226 - 742 400v, 40Amp. Max working width 220mm Max working height 120mm Input table length 1950mm Throughput speed 4-20 m/min Spindle diameter 40mm Speed spindles 6000 U/min 1st spindle, bottom: kW 2nd & 3rd spindle, left & right: kW 4th spindle, top: kW Nedpjwnhh Sefx Ah Dsdd Dimensions; 3400x1500x1400mm, Own weight 1600 kg - Year: 1986 - Documentation available: No - Serial number: 226 - 742 - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Number of spindles 5 St. Working width 220 mm Working height 120 mm Length of the planing table 2500 mm Nodpfov Irizox Ah Dodd Feed motor 6 kW Feed speed 6-22 m/min. total power requirement 25 kw Dimensions (L/W/H) 3500 x 1500 x 1600 mm weight of the machine ca. 2000 kg 1 WEINIG four-side planer Type PROFIMAT 22 N with 5 spindles ----- Working width 220 mm, working height 120 mm Still in use, can be viewed Spindle arrangement: 1st spindle bottom 4.0 kW, 2nd spindle right and 3rd spindle left 7.5 kW, 4th spindle top 5.5 kW, 5th spindle bottom 4.0 kW Spindle diameter 40 mm, Feed 3 kW, continuously adjustable from 6 - 22 m/min Special equipment: Cardan drive Profiling package Includes 5 used planer heads. (Technical specifications according to the manufacturer, without guarantee!)

Condition: used, Weinig Profimat 22 with 4 shafts. Movable left shaft with measurement sensor, for automatic movement based on the width of the pieces inserted into the process. Nodpfx Ahjryb D So Djdd Dimensions and weight: Cm. 330*145*H160. Weight 1400 kg. (on pallet)

Condition: excellent (used), Working width: 220 mm Working height: 120 mm Number of spindles: 5 Spindle arrangement: bottom / right / left / top / bottom Motors: 7.5 KW, 11 KW, 11 KW, 11 KW, 7.5 KW Table lubrication Feed drive: 2.2 KW Electrically adjustable pressure beam Electrically adjustable left spindle Feed speed: 6/22 m/min Year of production: 1993 Machine dimensions: - Length: 4400 mm - Width: 1700 mm Ndjdpfov E H Dnsx Ah Djd - Height: 1250 mm

Condition: used, Year of construction: 1993, Catalogue number: 7705 TECHNICAL DATA - Max working width: 220mm - Max working height: 160mm – 4 spindles: 1) Bottom horizontal: 220mm, 5.5kW 2) Right vertical: 160mm 3) Left vertical: 160mm (2nd & 3rd spindle) 11kW 4) Top horizontal: 220mm with electric adjustment up/down, 7.5kW - All spindles adjustable up/down, right/left - Spindle diameter: 40mm - 4 top metallic, toothed feed rollers - 1 top double rubber outfeed roller - 1 bottom rubber outfeed roller - Feed via Kardana shafts - Stepless feed speed adjustment - Feed motor: 2.2kW - Lifting motor: 0.55kW - Electric planing thickness adjustment - Infeed table length: 1970mm - Central lubrication Ndodjw Edgfspfx Ah Dsd - Extraction nozzle diameter: 3x120mm, 140mm - Enclosed cabin - Dimensions (L/W/H): 3500x1600x1500mm - Weight: 1620kg Net price: 33,900 PLN Net price: 8,070 EUR (based on 4.2 EUR exchange rate) (Prices may change with exchange rate fluctuations)

Condition: used, Year of construction: 1990, Empty weight: 1.850 kg Dimensions (LxBxH): 350 x 140 x 180 cm - Year: 1990 - Documentation available: No - Serial number: 226-4268 - Number of spindles [pcs.]: 2 - └ Spindle 1: Nsdpowniquefx Ah Dsdd - - Motor power [kW]: 4 - - Max. planing block diameter [mm]: 120 - └ Spindle 2: - - Motor power [kW]: 5.5 - - Max. planing block diameter [mm]: 120 - └ Spindle 4: - - Motor power [kW]: 5.5 - Feed table length [mm]: 1770 - Feed roller diameter [mm]: 140 - Feed motor [kW]: 2.2 - Diameter extraction nozzle [mm]: 140 - Transport dimensions: 3500mm x 1400mm x 1800mm (l x w x h) - Transport weight [kg]: 1850kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels
