Four-sided planer

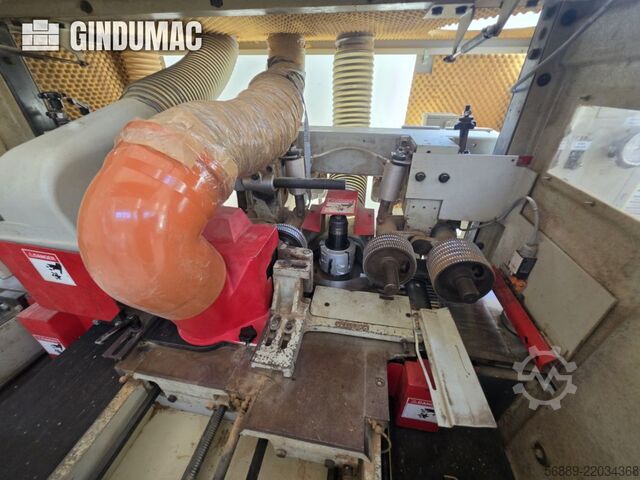

Weinig Profimat 23E

Condition: ready for operation (used), Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 3 kW Feed speed 5-24 m/min. Dimensions (L/W/H) 3900 x 2200 x 2000 mm weight of the machine ca. 2500 kg Weinig Profimat 23 Four-Sided Planer – Window Version (With glazing bead separation feature, or usable as a grooving spindle) ATS Control and Program Control ----- Technical Specifications Summary (Please inquire regarding any additional accessories that may be included) ----- General ----- > Working width: 230 mm > Working height: 120 mm > Number of spindles: 6 > Infeed table length: 2500 mm > Feed motor: 3 kW > Feed speed: 5–24 m/min > Total power requirement: 27 kW > Dimensions: 3900 x 2200 x 2000 mm > Machine weight (approx.): 2500 kg Spindle Arrangement ----- > Spindle 1: Bottom > Spindle 2: Right (pneumatically actuated: up/down) > Spindle 3: Left > Spindle 4: Top Dedpfx Aey Spvrjbkjcl > Spindle 5: Bottom > Spindle 6: Glazing bead saw (pneumatically actuated: up/down) Spindle Specifications ----- > Spindle 1: 4 kW, 6000 rpm, 40 mm diameter > Spindle 2: 7.5 kW, 6000 rpm, 40 mm diameter > Spindle 3: 6000 rpm, 40 mm diameter > Spindle 4: 5.5 kW, 6000 rpm, 40 mm diameter > Spindle 5: 4 kW, 6000 rpm, 40 mm diameter > Spindle 6: Glazing bead saw (2.2 kW, 6000 rpm, 40 mm diameter) Additional Features ----- > Glazing bead separation feature (or usable as a grooving unit) > ATS Control (automatic) 2-axis positioning for width and height (left and top spindles) with program memory (99 programs) > Machine operation: Window package Joint control of the right spindle and the glazing bead outfeed via manual selector switch on the control panel > Spindles with mechanical digital displays ----- Price of the above-mentioned machine upon request! ----- Option: Used planer heads and for divide out glass bead ----- (Technical specifications according to manufacturer – subject to change/without guarantee!)

Condition: used, Year of construction: 1999, functionality: fully functional, spindle diameter: 40 mm, total width: 1,800 mm, total height: 1,890 mm, total length: 4,200 mm, overall weight: 3,200 kg, spindle speed (max.): 6,000 rpm, type of input current: three-phase, input voltage: 400 V, number of spindles: 6, Weinig Profimat 23E four-sided planer Working width: 230mm Dedpfx Abozvgbwskecl Working height: 120mm Number of spindles: 6 Bottom: 7.5kW Right: 7.5kW Left Top: 7.5kW Bottom: 11kW Universal: 5.5kW Spindle diameter: 40mm Working speed: 24m/min Pneumatic pressure pads for feed rollers Electric adjustment of the pressure bar Length of the infeed table: 1970mm Table lubrication system Year of manufacture: 1999 Machine dimensions: 420x180x189cmH Machine weight: 3200kg

Condition: excellent (used), functionality: fully functional, 5-spindles automatic planer with grooved table WEINIG PROFIMAT P 23 E with grooved plane ( removable ) second hand machine n.5 spindles working condition : Excellent CE mark : Yes volt. 380/50 grooved plane ( removable ) with tools : Yes , as in photos Dodpozcx A Isfx Abkocl Composed by 5 spindles , 4 motors : 1° spindle : planer . motor power Hp 5,5 ( Kw 4 ) 2° and 3° spindles : right and left vertical . motor power Hp 10 ( Kw 7,5 ) 4° spindle : thickness planer . motor power Hp 7,5 ( Kw 5,5 ) 5° spindle : planer . motor power Hp 5,5 ( Kw 4 ) grooved plane ( removable ) Technical details : forward motor power Hp 4 ( Kw 3 ) spindle rotation speed rpm 6000 feed speed : from 5 to 24 mt./min max. useful working width mm. 230 max. useful working height mm. 120 shaft diameter mm.40 inlet length mm. 2000 lubrication system electric height adjustment set of service keys / documentation

Condition: used, Weinig Profimat 23 automatic planing and moulding machine for four-sided planing and profiling of timber, with a long dressing table. Technical data: - Spindle 1: Bottom / 4 kW / 40 mm - Spindle 2: Right / 5.5 kW / 40 mm - Spindle 3: Left / shared motor with #2 / 40 mm - Spindle 4: Top / 5.5 kW / 40 mm - Spindle 5: Bottom / 5.5 kW / 40 mm - Spindles: 5 - Working width: 230 mm - Working height: 120 mm Djdpozrx Dpofx Abkocl - Feed: 2.2 kW - Planing table length: 2,500 mm

Condition: used, Weinig Profimat 23 universal planing and moulding machine for four-sided planing and profiling of timber. Includes a sawing package for cutting timber using the 4th and 5th spindles. Technical data: - Spindles: 5 - Spindle 1: Bottom / 5.5 kW / 40 mm - Spindle 2: Right / 5.5 kW / 40 mm - Spindle 3: Left / shared motor with #2 / 40 mm - Spindle 4: Top / 7.5 kW / 40 mm - Spindle 5: Bottom / 4 kW / 40 mm - Working width: 230 mm - Working height: 120 mm Djdjzrx Arjpfx Abkecl

Condition: excellent (used), Catalog number: 8061 TECHNICAL DATA - max width of workpiece: 230mm - max height of workpiece: 130mm - 5 spindles 1) horizontal lower: 230mm, 4kW 2) vertical right: 130mm 3) vertical left: 130mm (spindles 2 and 3), 11kW 4) horizontal upper: 230mm, 5.5kW 5) horizontal lower: 230mm, 7.5kW - all spindles adjustable up/down, right/left - spindle diameter: 40mm - 4 infeed rollers from above, geared - outfeed roller from above, pulling, rubber, smooth - feed on cardan shafts - pressure rollers pneumatically actuated - stepless feed speed adjustment via frequency inverter - feed motor: 4kW - operating pressure: 6-10 bar - electric adjustment of planing thickness - central lubrication of the table - length of infeed table: 1970mm - diameter of dust extraction nozzles: 5x140mm - dimensions (L/W/H): 3400x1660x1600mm - weight: approx. 2500kg Dcodpfozrgarjx Abksl ADVANTAGES – German production, WEINIG brand – 5 heads – DTR documentation – used planer, very good condition Net price: 45900 PLN Net price: 10929 EUR, depending on the exchange rate of 4.20 EUR (Prices may change due to significant exchange rate fluctuations)

Condition: excellent (used), Year of construction: 1995, Weinig Profimat 23E four side planer - German production - year of production 1995 - right and left spindles with a face milling cutter ensuring parallelism and a right angle of 900 - element width measurement - electronic width adjustment TECHNICAL PARAMETERS: planing width 230 mm planing height 120 mm electronic planing width control 1 lower spindle 4 kW 2 right spindle 4 kW 3 left spindle 4.2 kW (face milling) 4 spindle right 4.2 kW (face milling) 5 upper spindle 7.5 kW element width measurement electric height adjustment of the feed rollers electric height adjustment of the upper spindle spindle diameter 40 mm six top steel rollers yen top roller, rubber one roll in the table top pulling pneumatic pressure feed on cardan shafts Dcedpfxeibq Nio Abkjl pre-table length 2470 mm diameter of nozzles 140 mm Machine dimensions 456x240x220 weight 4000 kg

Condition: used, Weinig Profimat 23 automatic planing and moulding machine for four-sided planing and profiling of timber, with a mobile spindle. Technical data: - Spindles: 5 - Spindle 1: Bottom / 5.5 kW / 40 mm - Spindle 2: Right / 5.5 kW / 40 mm - Spindle 3: Left / shared motor with #2 / 40 mm - Spindle 4: Top / 7.5 kW / 40 mm - Spindle 5: Bottom / 4 kW / 40 mm Djdpfsx Ecguex Abkjcl - Working width: 230 mm - Working height: 120 mm

Condition: reconditioned (used), Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 3 kW Feed speed 5-24 m/min. total power requirement 27 kw Dimensions (L/W/H) 3900 x 2200 x 2000 mm weight of the machine ca. 2500 kg Weinig Profimat 23 four-side planer, window version with glazing bead removal or can be used as a grooving spindle ATS control and program control ----- Machine was factory overhauled by Weinig in 2024. Technical Specifications Summary (Please inquire about any additional accessories included) ----- General ----- > Working width: 230 mm Dedpfjxpn T Usx Abkscl > Working height: 120 mm > Number of spindles: 6 > Planer table length: 2500 mm > Feed motor: 3 kW > Feed speed: 5-24 m/min > Total power requirement: 27 kW > Dimensions: 3900 x 2200 x 2000 mm > Machine weight, approx.: 2500 kg Spindle arrangement ----- > Spindle 1: bottom > Spindle 2: right, pneumatically timed up-down > Spindle 3: left > Spindle 4: top > Spindle 5: bottom > Spindle 6: pneumatically timed up-down glazing bead saw Spindle Description ----- > Spindle 1: 4 kW, 6000 rpm, 40 mm diameter > Spindle 2: 7.5 kW, 6000 rpm, 40 mm diameter > Spindle 3: 6000 rpm, 40 mm diameter > Spindle 4: 5.5 kW, 6000 rpm, 40 mm diameter > Spindle 5: 4 kW, 6000 rpm, 40 mm diameter > Spindle 6: glazing bead saw 2.2 kW, 6000 rpm, 40 mm diameter Additional Features ----- > Can be used for glazing bead cutting or as a grooving machine > ATS control, automatic 2-axis positioning for width and height (left and upper spindle) with 99-program memory > Machine operation: Window package Joint control of the right spindle and the glazing bead feed via manual selector switch on the control panel > Spindles with mechanical digital display (Technical data according to the manufacturer - no guarantee!)

Condition: reconditioned (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 226-60758, Number of spindles: 5 units Working width: 230 mm Dedpfx Asw Svb Tsbkscl Planing height: 120 mm Feed motor: 2.2 kW Feed speed: 5–24 m/min Total power requirement: 25 kW Dimensions (Length/Width/Height): 3400 x 1800 x 1610 mm Machine weight: approx. 2500 kg Four-Side Planer WEINIG PROFIMAT 23 E - Year of manufacture: 1997 - Serial number: 226-60758 - Maximum working width: 230 mm - Maximum working height: 120 mm - Cardan shaft feed, stepless adjustment 5–24 m/min - Feed motor: 2.2 kW - 1st spindle (bottom): 4.0 kW - 2nd spindle (right) – motor for 2nd right and 3rd left spindle: 7.5 kW - 3rd spindle (left) - 4th spindle (top), motor: 5.5 kW - 5th spindle (bottom), motor: 4.0 kW - Electrically adjustable height and depth: 0.25 kW - All spindles equipped with brake motors - Spindle speed: 6,000 rpm - Spindle diameter: ø 40 mm - Planing table: 2,000 mm with serrated table inserts and straightening guide - Feed rollers with pneumatic pressure - Feed roller diameter: 140 mm - Transport rollers opposite left spindle - Infeed roller before jointer with pneumatic actuation - SICO counters - Manual wax pump - Centralized lubrication points - 1 set of planing heads - Total connected load: 25 kW - Machine dimensions: L=3400 mm, W=1800 mm, H=1610 mm - Weight: 2500 kg
