Formier

Weinig Unimat 23

Condition: used, Year of construction: 2000, Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 + 500 mm Feed motor 3 kW Feed speed 6-36 m/min. 1 WEINIG Unimat 23 E 4-side Planer and Moulder ----- 6 spindles (2 on the right), powerful motors, EM 11 feed magazine available Working width 20 - 230 mm Working height 8 - 120 mm 1st spindle, bottom 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool travel radius 125 - 180 mm Folding device including tool Hardened table insert in front of 1st lower spindle 2nd spindle, right 11.0 kW ----- Shared motor with left vertical spindle Diameter 40 mm Speed ??6000 rpm Tool travel radius 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axis adjustment range 80 mm 3rd spindle, left ----- Shared motor with 2nd spindle Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-200 mm Max. groove depth 35 mm Axis adjustment range 80 mm Pressure shoe in front of left spindle, including lateral roller pressure, spring-loaded 4th spindle, right 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-250 mm Max. tool diameter behind stop plane 203 mm Max. groove depth 35 mm Axis adjustment range 80 mm Gedpfewqr Rvox Aaleui 5th spindle, top 11.0 kW ----- Diameter 40 mm Speed ??6000 rpm Tool cutting radius 112-200 mm Max. throat depth 35 mm Axis adjustment range 45 mm Split pressure shoe in front of the upper spindle, adjustable to the tool travel circle and pivoting away from the tool, spring-loaded. 6. Lower spindle 7.5 kW ----- Diameter 40 mm Speed ??6000 rpm Tool travel circle 112-250 mm Max. throat depth 15 mm Axis adjustment range 45 mm Spindles in general ----- All throat spindles with high concentricity. Lubrication points for the axial spindle movement. Spindle length of vertical spindles 170 mm Feed system ----- Motor with mechanical brake, 3 kW Mechanical feed continuously adjustable 6 - 36 m/min. Feed roller in front of the first lower tool pneumatically controlled up-down, Durofer pointed tooth rollers (Weinig patent) with depth gauge and self-cleaning Adjustment range of the feed rollers relative to the left spindle, axial: 35 mm Extension of the oscillating axis relative to the left spindles to 150 mm Machine electrical system ----- Operating voltage: 380-400-415 volts, 50 Hz. Machine stands, tables, and stops ----- Surface table 2.5 m long (including jointing ruler) Aluminum extension 0.5 m for surface table, including extension of the jointing ruler Manual Waxilit pump for resin removal from the table One driven rubber roller (spring-mounted in the outfeed table) Pressure elements and Guides ----- Pneumatic pressure rollers from above Pneumatic pressure rollers pivot away from above, opposite the right-hand spindles for easy tool changes Machine Operation ----- Pressure shoe in front of the upper spindle with mechanical digital display. Discharge after the upper spindle with mechanical digital display. ATS/E system, automatic 2-axis positioning for spindles 3 and 4 Min. working height 12 mm Electric height adjustment of the upper spindles and the feed Central p...

Condition: new, functionality: fully functional, Year of construction: 2024, load capacity: 18,000 kg, lifting height: 4,000 mm, free lift: 2,000 mm, fuel type: diesel, mast type: duplex, construction height: 3,695 mm, power: 168 kW (228.42 HP), fork carriage width: 2,500 mm, fork length: 2,400 mm, drive type: Diesel, Heavy-duty forklift truck – Diesel Load center: 600 mm Fork width: 200 mm Fork thickness: 100 mm Mast type: Duplex Transmission: ZF 3WG171 Condition: New machine Technical condition: New Front tires type: Pneumatic Front tires size: 12.00 x 20 Rear tires type: Pneumatic Godpfxeuahtbj Aaljui Rear tires size: 12.00 x 20 Description: Side shifter, fork positioner, KALMAR SV/GV – fork carriage with central leveling, width B = 2,500 mm, Terminal-West quick-change system for SV/GV fork carriage. Additional hydraulic function including hoses. Kalmar EGO comfort cabin, air conditioning system ECC with fresh air filter, tinted windows and air-suspended, leather-reinforced Grammer Actimo XL driver’s seat. Radio with DAB+/CD/RDS/MP3/USB/AUX/Bluetooth/hands-free/streaming. 12/24V power inverter including 2 x 12V and 2 x 24V sockets. Load weight display on screen. Direction change switch on lift hydraulic lever. Engine heater 220 V. Accumulator for lifting hydraulics. Hydraulic oil cooler with fan. Mast tilt 14° forward and 10° backwards. Adjustable height LED beacon. Kalmar knife-type fork tines, fork length l = 2,400 x 200 x 100 mm. Raised air intake for air filter incl. pre-separator. Mudguards on drive axle, mudguards on steering axle. Anti-slip coating on front wheel covers and tank. 2 extra LED headlights on mast beneath standard headlights. 2 extra LED headlights on front cabin corners facing direction of travel. 6 extra LED headlights on rear cabin corners with protection bars. Blue Spot front and rear. Automatic central lubrication system on steering axle and fork carriage. Sensor-controlled Forrex fire extinguishing system – automatic and manual activation. 6 Kg (powder) fire extinguisher EN3. Rear-view camera mounted on cabin roof with color monitor in cabin. Mast camera – connected to a monitor in the cabin (combined with rear-view camera). Tire pressure monitoring system.

Condition: excellent (used), WEINIG Unimat 23 E four-side planer Maximum planing width: 230mm, Maximum planing height: 130mm, 5 spindles, Manual adjustment of planing dimensions, Spindle arrangement: bottom 7.5kW; left and right 11kW; top 11kW; bottom 7.5kW, Motors with brakes, Gedpfxjxvc Uas Aalsui Spindle diameter: 40mm, Fully adjustable spindles, Machine equipped with 4 feed rollers on the table, suitable for wet timber, Feed via cardan shafts with stepless regulation, Machine supplied with the heads shown on the spindles, Cardan shafts not worn, tables unworn, runs smoothly without vibrations or oscillations, Robust planer in original condition, weight approx. 5t. Very good condition, everything works.

Condition: used, Year of construction: 1998, Dimensions (LxBxH): 450 x 222 x 190 cm Price: On request - Year: 1998 - Documentation available: No - CE marking present: Yes - Serial number: 83929 - Number of spindles [pcs.]: 5 - └ Spindle 1: - - Motor power [kW]: 7.5 - └ Spindle 3: - - Motor power [kW]: 11 - └ Spindle 4: - - Motor power [kW]: 11 - └ Spindle 5: - - Motor power [kW]: 7.5 Gsdjxr U Nujpfx Aalsui - Transport dimensions: 4500mm x 2220mm x 1900mm (l x w x h) - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

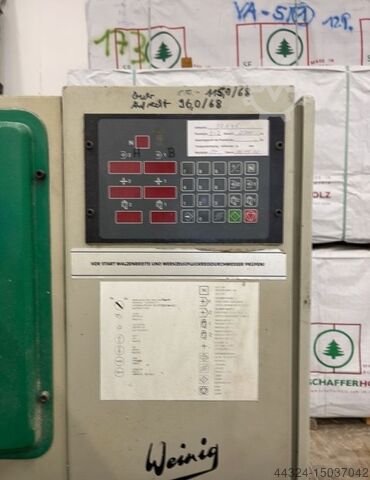

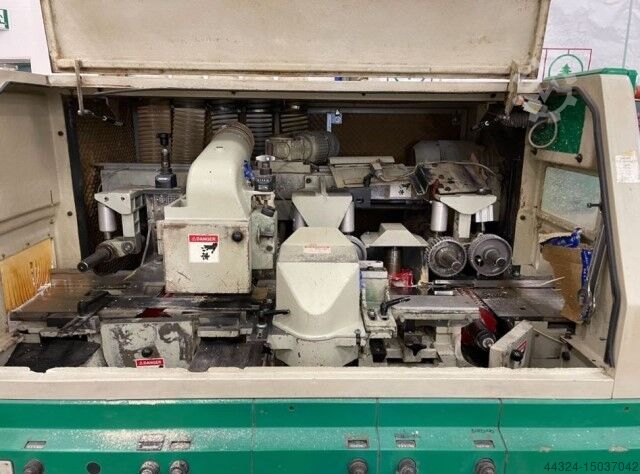

Condition: used, Year of construction: 1994, SECOND-HAND 5 SPINDLES MOULDER WEINIG MOD. PROFIMAT 23 - Working width 230 mm - Working height 120 mm. Composition : - horizontal bottom - vertical right - vertical left - horizontal top - horizontal bottom Year 1994 Gjdpfx Aerm Rxwealoui V 380/50

Condition: good (used), Year of construction: 2004, Weinig Unimat 23 EL Year of manufacture: 2004 Working width: 230 mm, Working height: 120 mm 1. Bottom spindle with 7.5 kW motor and spindle brake 2. Right spindle with separate motor, 7.5 kW and spindle brake Speed: 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, axial stops milled to 35 mm height 3. Left spindle with separate motor, 7.5 kW, speed 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, radial pneumatic pressure guide left for varying workpiece widths up to 200 mm 4. Top spindle with 7.5 kW motor and spindle brake, speed 8,000 rpm with high-performance ball bearings, NC-axis radial Pneumatic axial control, adjustment range 40 mm, glazing bead ejection, pneumatically cycled. - Infeed system with 4 kW motor and infeed brake - Short piece package - UC-Matic package consisting of: PLC control, central motor start, parts monitoring, operator terminal, free-standing control cabinet, free-standing operating panel, magnetic interlock for safety cover - Enhanced sound insulation - Automatic planing and feeding system for different workpiece lengths and widths Workpiece dimensions Length: 400 – 3,500 mm (4,000 mm) Width: 40 – 200 mm Thickness: 20 – 100 mm Godpfx Aswyulusaloui Powered conveyor belt Belt width 250 mm, conveying length 4,500 mm, additional photoelectric sensor for signal transmitter Weinig Hydro Finish Planing Machine Uniplan 23 Year of manufacture: 2004 Working width: 230 mm, Working height: 120 mm 1. Bottom spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm 2. Top spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm, NC-axis radial - First feed roller cycled with photocells - NC-axis for separate feed height adjustment - Improved sound insulation - UC-Matic package - 2 hydro straight cutter blocks 501 with HSS strip planer knives 30 mm x 3 mm, max. 9,000 rpm, dimensions 163 mm x 230 mm x 50 mm, Z=4

Condition: ready for operation (used), Year of construction: 1998, Planing machine ready for operation. A total of 6 spindles. This machine operated flawlessly until the business closed. Planer heads with Cento Lock reversible planer knives. Guodjw E Echepfx Aalji

Condition: good (used), Double side grinder for carbide saws VOLLMER model Finimat DUO TS 1000 Gedpfsvgfifox Aaljui

Year of construction: 1997, condition: excellent (used), I sell the complete window profile production line: 1pc. 5-spindle fourside moulder with saw aggregate Weinig Unimat 23EL. - without HESS sanding machine - another machine for change available on agreement 2pcs. tenoning profiling centre Weinig Unitec 10 2pcs. profiling automat centre Weinig Univar 10 1pc. CNC drilling machine KOCH WinDoor - set of complete Weinig automation feeders and conveyors Year 1997. Profile heads OERTLI. Available immediately. Uninstalled and loaded on original Pallets. Condition very good ! Gjdpfefzzidjx Aalsui

Year of construction: 1997, condition: excellent (used), max width of the workpiece 23cm max height of the workpiece 18cm 1 lower horizontal spindle 2 right vertical spindle 3 left vertical spindle 4 top horizontal spindle heads adjustable up / down, right / left spindle diameter 40mm Hydraulic side feed on the feeding table Gujdpfxsk Dxras Aalji

Condition: used, Year of construction: 2013, Suitable for automatic tooth flank grinding on both sides of carbide-tipped circular saw blades. Accesories: full fairing coolant system Automatic central lubrication. Measuring system for measuring saw blades. Control panel with LCD color display. DNC service. Alphanumeric keyboard. Grinding speed and grinding path depending on the tooth surface, can be adjusted as required. 2 grinding wheel mounts Coolant level monitoring Automatic grinding wheel compensation Prepared for robot operation with automatic loading door oil pan 2 x saw blade magnet holder >Ø 320mm, >Ø 180 mm 1 centering ring. Circular saw blade diameter: 200 - 840mm Circular Saw Bore Diameter: from 16 mm Tooth pitch: 6 - 180mm grinding path: up to 25 mm Gsdov Sbmqepfx Aalsui tangential relief angle: 0 to 10 degrees max. grinding wheel diameter: 125 mm Grinding wheel bore diameter: 32 mm Grinding spindle variable: 1600 - 5500 rpm, Connected load approx.: 8kVA (400V / 50Hz) Dimensions W x D x H =: 2770x1900x2045mm mass: approx. 4700 kg colour: Gray

Condition: used, Year of construction: 2005, *available from around mid 2025* Unimat 23 E: Working width (with a cutting circle of 140 mm): 20 - 230 mm Working height (with a cutting circle of 163 mm): 8 - 120 mm 1st spindle, lower horizontal spindle: 7.5 kW 2nd spindle, right vertical spindle: 11 kW (together with the left vertical spindle) 3rd spindle, left vertical spindle 4th spindle, upper horizontal spindle: 7.5 kW Spindle diameter each: 50 mm Speed each: 8,000 rpm Feed system: 4 kW Mechanical feed, continuously variable: 5-24 m/min. Work table 2.5 m long (including jointing ruler) Uniplan 23: Max. working width: 230 mm Min. working height: 15 mm / max.: 120 mm Feed: 3 kW Horizontal spindles 5.5 kW each Feed speed, continuously variable: 6 – 36 m/min Spindle speed: 6000 rpm Spindle diameter: 50 mm Tool clamping length: 240 mm Max. tool cutting radius: 163 mm Fixed bottom chip removal: 0.5 mm Short parts package for min. wood length: 280 mm Mechanical spindle brakes up to 7.5 kW Braking system for feeds up to 5.5 kW 1st infeed roller with photocell - Spindle speed 7200 rpm, including motor power 7.5 kW - Improved sound insulation of the full safety enclosure. Storage location: Customer Gsdpfxovvkcio Aaljui

Condition: used, Weinig Unimat 23 Technical data Godpfjncc Igjx Aaleui Working width 30 - 230 mm working height 19 - 200 mm elevated on pedestal u- re-li-o-u.o without feeder only machine machine is dismantled, immediately available Transport can be organized

Condition: good (used), machine/vehicle number: 3288, Year of construction: 2015, load capacity: 9,000 kg, lifting height: 5,050 mm, mast type: duplex, fork carriage width: 150 mm, fork length: 2,400 mm, total length: 4,640 mm, total width: 2,460 mm, operation weight: 16,060 kg, additional equipment features: Dual tread, Manual sliding cabin, Front mud guards, Rear mud guards, Warning triangle, Fire extinguisher, Equipment: lighting, Kalmar DCG90-6 from Uniktruck Gedpjul D Nksfx Aaloui

Year of construction: 1999, condition: ready for operation (used), General Data Machine weight 3200kg This WEINIG Unimat 23 E was manufactured in 1999, designed for efficient wood planing. Ideal for woodworking professionals looking to enhance their production capabilities. Contact us for more information. Application Types Godjxn U Amepfx Aaljui Planing
