Formier

Weinig Uniplan

Year of construction: 1996, condition: used, Offered is a combined Weinig/Alfred Harbs planing and profiling line for woodworking. 1) Weinig Unimat 23 E planer/moulder, year of manufacture: 1996, operating voltage: 3x380V/50Hz, control voltage: 230V/50Hz and 24V DC, rated current: 78A, main fuse: 80A, power: 34kW. 2) Weinig Uniplan fine finish/hydro planer, year of manufacture: 1996, operating voltage: 3x380V/50Hz, control voltage: 230V/50Hz and 24V DC, rated current: 42A, main fuse: 50A, power: 17kW. 3) Weinig UC 10, year of manufacture: 1996. 4) Alfred Harbs K6V, year of manufacture: 1992. Including additional associated components and transport equipment. An on-site inspection is possible. Kdodpfx Aez Da R Sskwet

Condition: reconditioned (used), Number of spindles 8 St. Working width 230 mm Working height 120 mm Weinig Planing and moulding line ----- Consisting of the following individual machines: Item 1: Weinig Profimat 23 E, four-side planer, stock number: 2803 Kedpfx Ajxpn Tuekwodt 5 spindles + glazing bead saw Item 2: Weinig Uniplan 23, stock number: 2804 Fine and hydroplaner with 2 horizontal spindles Item 3: Weinig RF 15, stock number: 2805 Longitudinal-cross-longitudinal conveyor with workpiece return to the operator Detailed descriptions of the machines can be found under the mentioned stock numbers. (Technical specifications according to the manufacturer, without guarantee!)

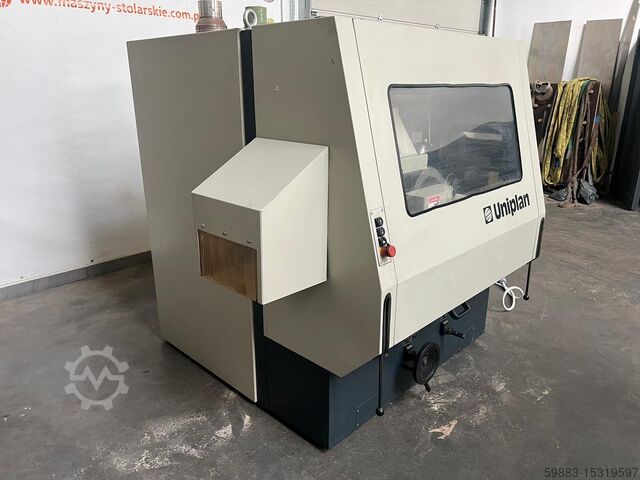

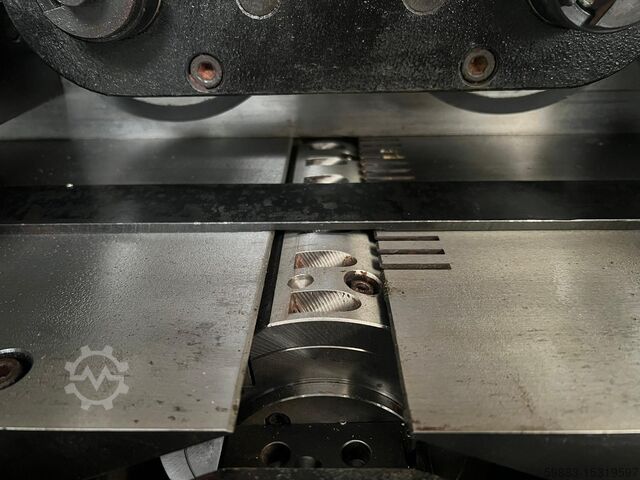

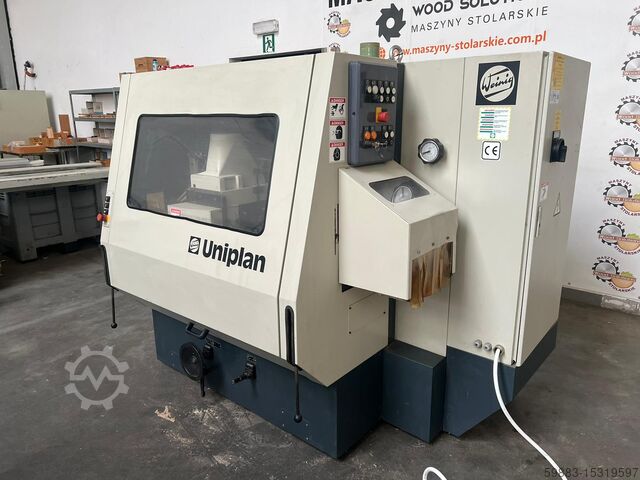

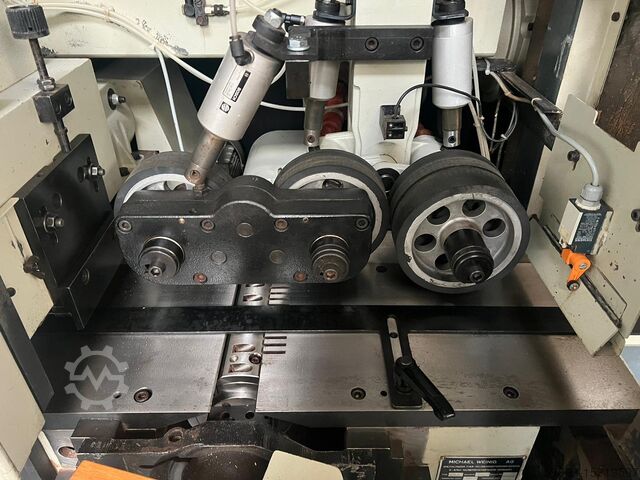

Condition: reconditioned (used), Working width 230 mm Working height 15-120 mm Number of spindles 2 St. Weinig Hydro Planer Type Uniplan 23 ----- Machine was factory overhauled by Weinig in 2024. Description: For two-sided horizontal woodworking with two working spindles. Spindle arrangement: horizontal, bottom and top. The two horizontal spindles are equipped with hydraulically tensioned counterbearings without axial adjustment. Built-in straight jointers on both spindles with automatic stone feed, remotely controlled with the hood closed. Machine with continuous, chainless feed, equipped with rubber rollers. Electric up/down adjustment of the spindles according to a mechanical digital display (SIKO). On/off switch for limiting the up/down adjustment. Feed roller pressure pneumatic. Stops and table tops are not adjustable. Machine with steel table tops. Machine with full enclosure and integrated sound and dust protection including interior lighting. Electrical design according to DIN VDE 0113, electrical equipment of industrial machines EN 60204, IEC - 204 - 1. Other electrical regulations are not taken into account. Kdjdpfx Aexpn Tzokwet Machine includes operating tools, but does not include machining tools. The Weinig Uniplan spindles operate at a speed of 7200 revolutions per minute. Before using existing tools, please check that they are suitable for the speed. Please also consider this when ordering new tools. Technical specifications Max. working width: 230 mm Min. working height: 15 mm, max.: 120 mm Feed: 3 kW (4 HP) Horizontal spindles each: 7.5 kW (7.5 HP) Infinitely variable feed speed: 6 - 36 m/min. Spindle speed: 7,200 rpm Spindle diameter: 50 mm Tool clamping length: 240 mm Maximum tool radius: 163 mm Fixed clamping clearance at bottom: 0.5 mm (Technical data according to the manufacturer - no guarantee!)

Condition: used, Weinig Unimat 23 E + Uniplan 23 planing line, including a return conveyor. Kodpfx Akozrxzuewjdt An NC-controlled line for planing and profiling window scantlings, including glazing bead cutting or other planing tasks, with automatic return of the workpieces to the operator. Technical data: - Spindles: 4 + 2 - Working width: 230 mm - Working height: 120 mm - Spindle 1: 7.5 kW / 50 mm / 8,000 rpm - Spindle 2: 11 kW / 50 mm / 8,000 rpm - Spindle 3: Shared motor with spindle 2 / 50 mm / 8,000 rpm - Spindle 4: 7.5 kW / 50 mm / 8,000 rpm - Spindle 1 Uniplan: 5.5 kW / 50 mm / 7,200 rpm - Spindle 2 Uniplan: 5.5 kW / 50 mm / 7,200 rpm - Feed rate: 5–24 m/min - Control: Nexus PC control system - NC axes: Unimat 2 & 3, Uniplan 1

Condition: used, Weinig Uniplan 23 hydro-planer for double-sided surface finishing, as an alternative to sanding (e.g. in window manufacturing), featuring high-performance spindles. Jointer Idler bearing Ksdezrxydspfx Akwedt Short parts pack In very good original condition Technical data: - Spindles: 2 - Spindle configuration: Bottom (7.5 kW) – Top (7.5 kW) - Working width: 230 mm - Working height: 120 mm - Spindle diameter: 50 mm - Feed: 3 kW // max. 36 m/min - Spindle speed: 7,200 rpm

Condition: used, Second-hand Weinig Uniplan control cabinet, suitable as a source of spare parts or for building a new control cabinet with an operating panel. Kdsdpfx Aozrxtdskwjt Available: No. 1 and No. 2

Year of construction: 1995, condition: good (used), planing width 220 mm planing height 140 mm Kdodpfx Ajg E Uqcjkwet tool diameter max 160 mm 2 x 5.5 kW main engines 3 kW feed motor feed speed 6 - 36 m / min - on the inverter feed on cardan shafts heads supported on both sides electric height adjustment

Condition: excellent (used), Year of construction: 2004, Weinig Hydro fine planing machine, Uniplan 23 Year of manufacture: 2004 Working width: 230 mm Working height: 120 mm Kjdpfxezg Euqj Akwsdt 1st spindle, bottom: 7.5 kW 2nd spindle, top: 7.5 kW
