WEINIG UNIPLAN double-sided planer

WEINIG uniplan

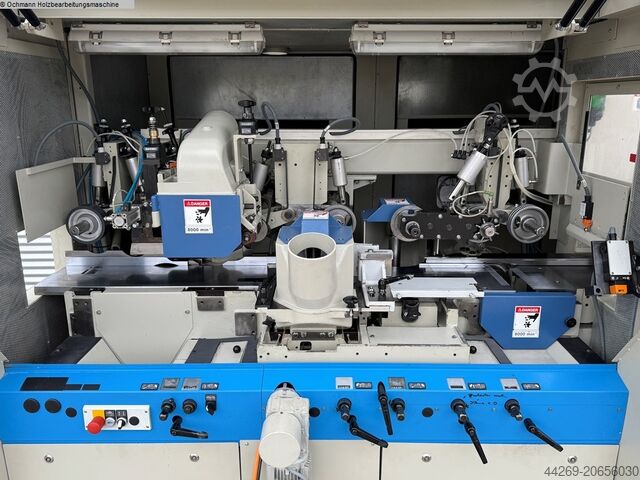

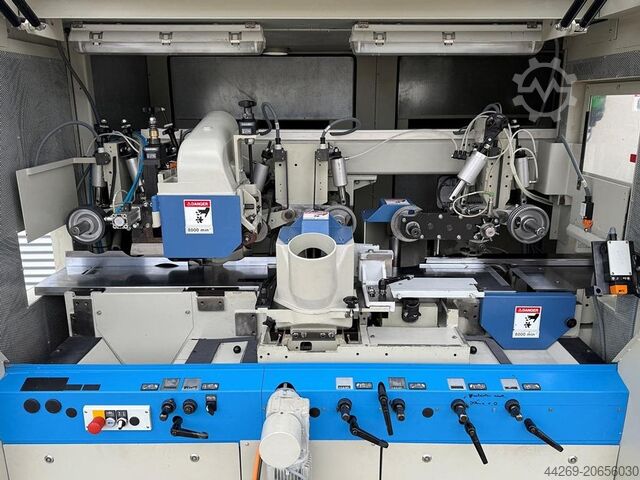

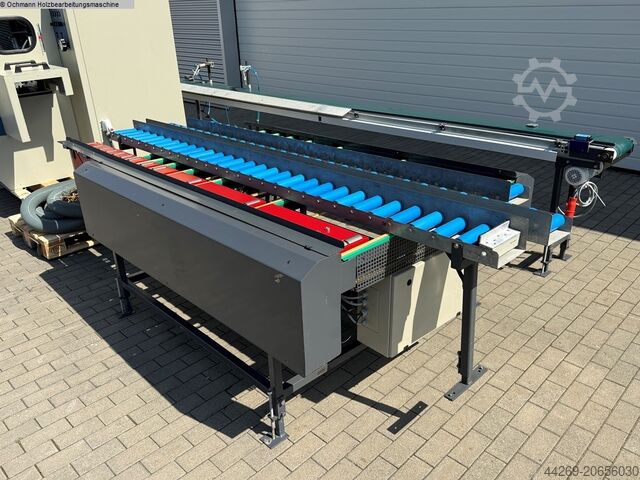

Condition: used, Weinig Unimat 23 E + Uniplan 23 planing line, including a return conveyor. An NC-controlled line for planing and profiling window scantlings, including glazing bead removal or other planing tasks, with automatic workpiece return to the operator. spindles: 4 + 2 working width: 230 mm working height: 120 mm spindle 1: 7.5 kW / 50 mm / 8,000 rpm spindle 2: 11 kW / 50 mm / 8,000 rpm Ibjdoxnlhyopfx Afpec spindle 3: Common motor with spindle 2 / 50 mm / 8,000 rpm spindle 4: 7.5 kW / 50 mm / 8,000 rpm Spindle 1 Uniplan: 5.5 kW / 50 mm / 7,200 rpm Spindle 2 Uniplan: 5.5 kW / 50 mm / 7,200 rpm feed: 5-24 m/min service: PC Control Nexus NC axes: Unimat 2 & 3, Uniplan 1

Condition: used, Year of construction: 2005, *available from around mid 2025* Unimat 23 E: Working width (with a cutting circle of 140 mm): 20 - 230 mm Working height (with a cutting circle of 163 mm): 8 - 120 mm 1st spindle, lower horizontal spindle: 7.5 kW 2nd spindle, right vertical spindle: 11 kW (together with the left vertical spindle) 3rd spindle, left vertical spindle 4th spindle, upper horizontal spindle: 7.5 kW Spindle diameter each: 50 mm Speed each: 8,000 rpm Feed system: 4 kW Mechanical feed, continuously variable: 5-24 m/min. Work table 2.5 m long (including jointing ruler) Uniplan 23: Max. working width: 230 mm Min. working height: 15 mm / max.: 120 mm Feed: 3 kW Horizontal spindles 5.5 kW each Feed speed, continuously variable: 6 – 36 m/min Spindle speed: 6000 rpm Spindle diameter: 50 mm Tool clamping length: 240 mm Max. tool cutting radius: 163 mm Fixed bottom chip removal: 0.5 mm Short parts package for min. wood length: 280 mm Mechanical spindle brakes up to 7.5 kW Braking system for feeds up to 5.5 kW 1st infeed roller with photocell - Spindle speed 7200 rpm, including motor power 7.5 kW - Improved sound insulation of the full safety enclosure. Storage location: Customer Isdpfx Ajvvkcijfpebc

Condition: good (used), Year of construction: 2004, Weinig Unimat 23 EL Year of manufacture: 2004 Working width: 230 mm, Working height: 120 mm 1. Bottom spindle with 7.5 kW motor and spindle brake 2. Right spindle with separate motor, 7.5 kW and spindle brake Speed: 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, axial stops milled to 35 mm height 3. Left spindle with separate motor, 7.5 kW, speed 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, radial pneumatic pressure guide left for varying workpiece widths up to 200 mm 4. Top spindle with 7.5 kW motor and spindle brake, speed 8,000 rpm with high-performance ball bearings, NC-axis radial Pneumatic axial control, adjustment range 40 mm, glazing bead ejection, pneumatically cycled. - Infeed system with 4 kW motor and infeed brake - Short piece package - UC-Matic package consisting of: PLC control, central motor start, parts monitoring, operator terminal, free-standing control cabinet, free-standing operating panel, magnetic interlock for safety cover Iedpfx Afjwyuluspsbc - Enhanced sound insulation - Automatic planing and feeding system for different workpiece lengths and widths Workpiece dimensions Length: 400 – 3,500 mm (4,000 mm) Width: 40 – 200 mm Thickness: 20 – 100 mm Powered conveyor belt Belt width 250 mm, conveying length 4,500 mm, additional photoelectric sensor for signal transmitter Weinig Hydro Finish Planing Machine Uniplan 23 Year of manufacture: 2004 Working width: 230 mm, Working height: 120 mm 1. Bottom spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm 2. Top spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm, NC-axis radial - First feed roller cycled with photocells - NC-axis for separate feed height adjustment - Improved sound insulation - UC-Matic package - 2 hydro straight cutter blocks 501 with HSS strip planer knives 30 mm x 3 mm, max. 9,000 rpm, dimensions 163 mm x 230 mm x 50 mm, Z=4

Condition: excellent (used), Double-sided milling machine WEINIG uniplan Ibodpfx Afet Uh Dqjpjc

Condition: excellent (used), Weinig Uniplan double-sided planer Planing width 220mm Planing height 15-120mm Power of horizontal spindles 2x 5.5kw Isdpfx Aerxuvqofpjbc Spindles speed 6000r.p.m Diameter of spindles 50mm Spindles supported on both sides Feed speed 6-32m/min Feed motor 3kw

Condition: used, Hydro-fine planing machine Weinig Uniplan 23 for two-sided surface finishing, as an alternative to sanding (e.g. in window construction) with high-performance spindles. * Very good original condition spindles: 2 Spindle arrangement: Bottom (7.5 kW) – Top (7.5 kW) spindle arrangement: Bottom (7.5 kW) – Top (7.5 kW) working width: 230 mm working height: 120 mm Spindle ø: 50 mm feed: 3 kW // max. 36 m/min Spindle speed: 7,200 rpm Jointers: Yes jointer: Yes Ibsdpjt Rmbmsfx Afpoc Counter bearing: Yes Short parts package: Yes

Condition: used, Available: No. 1 and No. 2 Ibedpfot Snzwox Afpec Used control cabinet of a Weinig type Uniplan as a spare parts carrier or for the new construction of a control cabinet with control panel.
