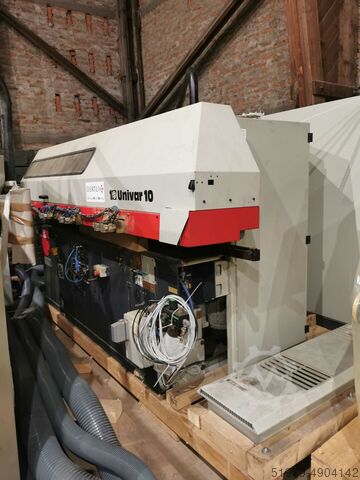

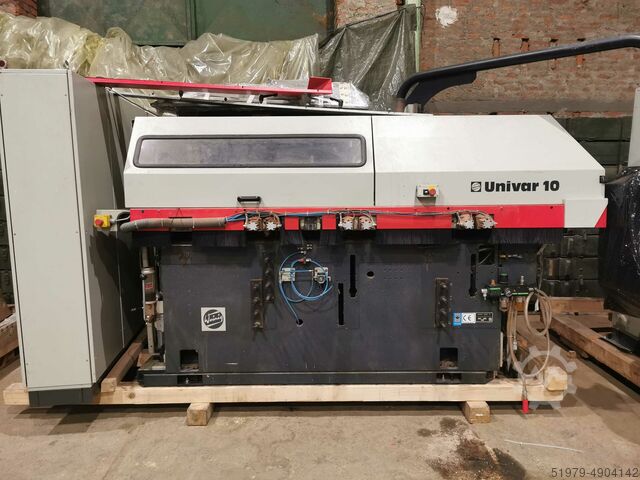

CNC Window profiling automat centre

Weinig Univar 10

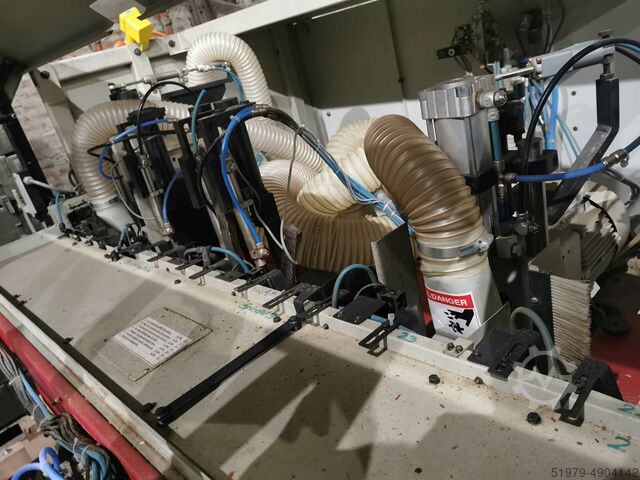

Condition: used, Number of spindles 4 St. Number of tools 11 St. Spindle diameter 50,40 mm Spindle length 285,125 mm length 4000 mm width 2000 mm height 2200 mm Weinig Univar 10/3 folding machine ----- For milling around windows, doors and the like with uneven circumferential profiles. Machine suitable for wood thickness 68 to 92 mm Time required per frame milling, medium size 1.20 x 1.20 m - approx. 2 minutes. The available tool positions are selected using a selector switch on the control panel retrieved. Machine with 3 hydraulically controlled right precision Lifting spindles for holding 3 tool sets, 2 x 95 mm spindle stroke per spindle The spindle stroke takes place in a U-movement, so that the opening is possible for short parts The milling stop remains as small as possible. Spindle stroke horizontally fine Adjustable for both tool positions from the operator side. Central lubrication for the spindle units. The 1. Spindle can be selected in right-left rotation. This spindle dips the last 100 mm of each frame end appropriate synchronization tool into the passing wood. Through this This prevents the tool of the subsequent milling spindle from running in the opposite direction working, causing tearouts. Excavation of the first 7 transport rollers using Footswitch. This shortens the lead time. An additional The support rail also allows large-format frames to be milled around. Continuous, chainless rubber roller feed with extreme short roller spacing. Height adjustment of the feed bar electrically readable. Electrical version according to VDE. Machine including operating tools, but without processing tools tools. Technical data: Working width min. 40 mm Working height min. 30 mm, max. 100 mm 1. Profiling spindle (synchronous and counter-rotation) ----- -- Motor strength lifting spindle 11.0 kW Spindle speed 6000 rpm Spindle diameter 50 mm Clamping length 285 mm Tool zero flight circle 112 - 140 mm Max. tool - D : 232 mm Spindle stroke vertical 2 x 95 mm for 3 tools Basic position under table 10 mm (adjustable up to 20 mm) Spindle stroke horizontal 80 mm with synchronous automatic immersion 2. Profiling spindle ----- Motor strength lifting spindle 11.0 kW Spindle speed 6000 rpm Spindle diameter 50 mm Clamping length 285 mm Tool zero flight circle 112 - 140 mm Max. tool - D : 232 mm Spindle stroke vertical 2 x 95 mm for 3 tools Gujdpfxevnv Uus Afpoh Basic position under table 10 mm (adjustable up to 20 mm) Spindle stroke horizontal 80 mm 3. Profiling spindle ----- Motor strength lifting spindle 11.0 kW Spindle speed 6000 rpm Spindle diameter 50 mm Clamping length 285 mm Tool zero flight circle 112 - 140 mm Max. tool - D : 232 mm Spindle stroke vertical 2 x 95 mm for 3 tools Basic position under table 10 mm (adjustable up to 20 mm) Spindle stroke horizontal 80 mm 4. Profile spindle - fitting unit on the right ----- For milling the fitting groove in the milling cycle or for grooving in the longitudinal profile. Pneumatic horizontal movement with Selector switch in the control panel. Motor 2.2 KW Speed 6,000 rpm Spindle diameter 40 mm Clamping height 125 mm, 2 tools Tool flight circle min. 140 mm, max. 180 mm Motor power feed 1.1 kW Feed speed 6 - 12 m/min. ...

Year of construction: 1987, condition: excellent (used), Automatic rebating machine WEINIG UNIVAR 10 Godsf Upzhepfx Afpsuh

Year of construction: 1997, condition: excellent (used), I sell the complete window profile production line: 1pc. 5-spindle fourside moulder with saw aggregate Weinig Unimat 23EL. - without HESS sanding machine - another machine for change available on agreement Gusdpfefzzidjx Afpeh 2pcs. tenoning profiling centre Weinig Unitec 10 2pcs. profiling automat centre Weinig Univar 10 1pc. CNC drilling machine KOCH WinDoor - set of complete Weinig automation feeders and conveyors Year 1997. Profile heads OERTLI. Available immediately. Uninstalled and loaded on original Pallets. Condition very good !

Condition: used, For profiling and milling windows, doors, individual parts and similar with all-round profiles. Aggregates: 1. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80, hydraulic, Synchronization device 2. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80 hydraulic, 3. Profile milling unit, vertical right, radially clocked in 2 positions, axially clocked in 3 positions, motor: 3 kW, 4. Profile milling unit, horizontal below, radially clocked in 2 positions, axially clocked in 2 positions, motor: 3 kW, Milling carriage for narrow and short sashes, Nexus PC control. Gsdpfx Aovnab Sofpjuh

Year of construction: 1998, condition: excellent (used), I sell the window production set: 1pc. tenoning profiling centre Weinig Unitec 10 1pc. profiling automat centre Weinig Univar 10 Year 1998. Moulding heads OERTLI. Available immediately. Guodpfefzzhysx Afpsh Total price 17.000 euro. Condition very good !

Condition: used, Circulation machine WEINIG UNIVAR 10 as a spare parts carrier from a UC-Matic window system. * Year of construction: 1997 * Sutron BT20 control * Machine incomplete * Details on request Gujdpfx Afjlf H Sqjpoh * Illustration similar.

Condition: used, for profiling and milling around windows, doors, individual parts and the like with surrounding profiles incl. return transport, Aggregates: 1st profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80, hydraulic, 2. Profile milling unit, horizontally above, radially clocked at 2 positions, axially clocked at 2 positions, motor: 3 kW, Gsdjlf H Suepfx Afpsuh 3. Profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80, hydraulic, 4. Profile milling unit, vertical on the right, radial clocked on 2 positions, axial clocked on 3 positions, motor: 3 kW, 5. Profile milling unit, horizontally above, radially clocked at 8 positions, axially clocked at 2 positions, motor: 3 kW.

Condition: used, for profiling and milling around windows, doors, individual parts and the like with surrounding profiles incl. mechanization for one-person operation, Aggregates: 1st profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80, hydraulic, synchronization device 2nd profiling spindle, motor: 11 kW, spindle diameter: 50 mm, clamping length: 320 mm, stroke: 4x80 hydraulic, 3. Profile milling unit, vertical right, radial clocked to 2 positions, axial clocked to 3 positions, motor: 3 Guedpjlf H S Ajfx Afpoh kW, 4. Profile milling unit, horizontal below, radial clocked on 2 positions, axial clocked on 2 positions, motor: 3 kW, Milling carriage for narrow and short wings, Nexus PC control.
