Climate test chamber with humidity

Weiss SB2/500/80 -75°C bis +180°C

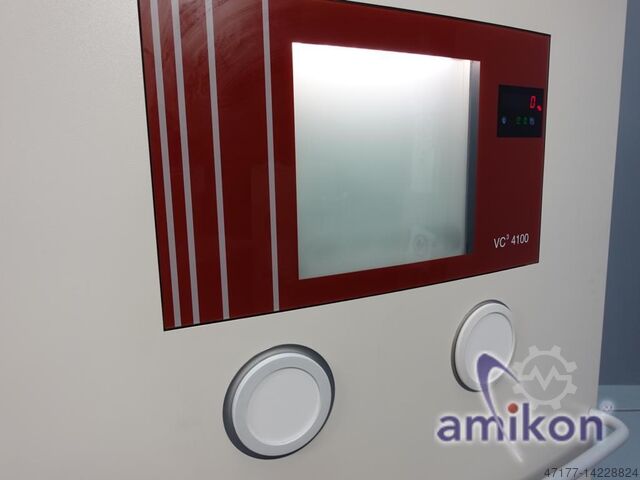

Condition: excellent (used), Here we offer a Vötsch climatic test chamber. Designation VC³ 4100 Air-cooled With temperature change rate of 3 K/min Test chamber dimensions: Height 950 mm x width 1100 mm x depth 950 mm Unit dimensions: Height 2000 mm x width 1300 mm x depth 1916 mm Volume: 990 liters Feed-through: Ø 125 mm Ø 50 mm Data for temperature tests: Temperature range -42°C to +180°C Temperature deviation temporal ± 0.1 to ± 0.5 K Temperature homogeneity in space ± 0.5 to ± 1.5 K Temperature change rate: Hjdsqwim Eopfx Adrsnw Heating 4.0 K/min Cooling 3.0 K/min Max. heat compensation at +20°C 4500 watts Data for climate tests Temperature range +10°C to +95°C Dew point range -3°C to +94°C Humidity range 10 to 98% r. h. Temperature deviation temporal ± 0.1 to ± 0.3 K Temperature homogeneity in space ± 0.5 to ± 1.0 K Humidity deviation temporal ± 1 to ± 3% r. h. Heat compensation max. 500 W Voltage: 3/N/PE AC 400V ± 10% 50Hz Rated power: 11.5 kW Nominal current: 22.0 A Refrigerant: R-404 A Weight approx. 840 kg Type: VC³ 4100 The following information is for your safety as a buyer! The following points are carried out on our offered chambers in advance: 1. functional check and replacement of necessary components 2. if necessary, refilling with legally compliant refrigerant 3. leak test with certificate 4. after successful inspection, the chambers are subjected to a documented test run. Condition: used Scope of delivery: (see picture) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have on the phone.

Condition: excellent (used), White Type: WT3-1000/40 Weiss Temperature test chamber With S!MCON / 32 control unit Water-cooled Touch panel" control unit All control and operating commands can be triggered by simply touching the function icons on the all control and operating commands by simply touching the function icons. Levelling feet To compensate for uneven floors and to ensure adequate ventilation of the machine part, the test chamber is equipped with adjustable feet. Feed-throughs The test chamber is equipped with feed-throughs on the right and left side. Measuring cables and test equipment can be routed through these into the test chamber. Feed-through built into basic equipment R1: NW 125 mm L1: NW 50 mm Test chamber capacity: approx. 990 liters Test chamber dimensions: Height 950 mm, width 1100 mm, depth 950 mm External dimensions: Height 2000 mm, width 1415 mm, depth 2105 mm Data for temperature tests: Hnedpfxsthhw As Adrjw Temperature range: -40 to +180 °C Temperature deviation in time in the center of the usable space: ± 0.1 to ± 0.5 K Spatial temperature deviation: ± 0.5 to ± 1.5 K Temperature change rate Heating: 4.0 K/min Cooling: 3.0 K/min Heat compensation max. 4500 W Data for operation: Test room lighting Halogen bulb 2x 24V, 50W Nominal voltage: 3/N / PE AC 400 V ± 10% 50 Hz Rated current: 22.0 A Rated power 11.5 kW On-site fuse 32 A slow-blow Sound pressure level approx. measured at a distance of 1 m from the front. 1m height 56 dB(A) Refrigerant: R-404A Weight: 840 kg The following information is for your safety as a buyer! The following points are carried out on our offered chambers in advance: 1. functional check and replacement of necessary components 2. if necessary, new filling with legally compliant refrigerant 3. leak test with certificate 4. after successful inspection, the chambers are subjected to a documented test run. Condition: used Scope of delivery: (see picture) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have on the phone.

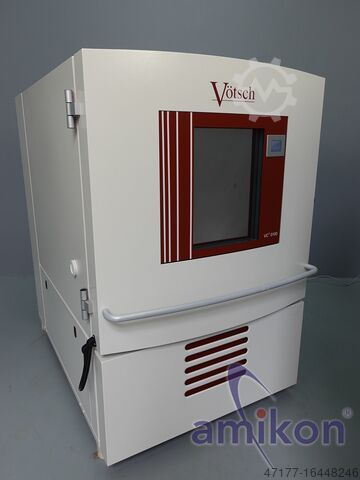

Condition: excellent (used), Vötsch Type: VC³ 0100 Vötsch climatic test chamber, air-cooled Test chamber dimensions: Height 950 mm x width 1100 mm x depth 950 mm Device dimensions: Height 2000 mm x width 1300 mm x depth 1916 mm Test chamber 990 liters Hodpfx Ajtz T D Asdrjnw Temperature tests: Minimum temperature -0°C Maximum temperature +90°C Temperature change rate cooling 0.2 K/min Temperature change rate heating 0.5 K/min Temperature deviation in time ± 0.1 to ± 0.5 K Temperature homogeneity in space ± 0.5 to ± 1.0 K Heat compensation at +20 °C 350W Climatic tests: Minimum temperature +10°C Maximum temperature +90°C Dew point temperature range +4°C to +89.5°C Humidity range 10 to 98% r. h. Humidity deviation over time ± 1 to ± 3% r. h. Temperature deviation temporal ± 0.1 to ± 0.3K Temperature homogeneity in space ± 0.5 to ± 1.0K Voltage: 1/N/PE AC 230V±10% 50Hz Rated power: 2.3 kW Rated current: 10 A Refrigerant: R-404A Weight approx. 1400 kg The following information is for your safety as a buyer! The following points are carried out on our offered chambers in advance: 1. functional check and replacement of necessary components 2. if necessary, new filling with legally compliant refrigerant 3. leak test with certificate 4. after successful inspection, the chambers are subjected to a documented test run. Condition: used Scope of delivery: (see picture) (Changes and errors in the technical data, specifications are reserved!) We will be happy to answer any further questions you may have on the phone.
