Internal and Face Grinding Machine

WEMA GLAUCHAU SBZ 6-F

grinding diameter - internal max. 600 mm
grinding diameter - cylindrical max. 800 mm

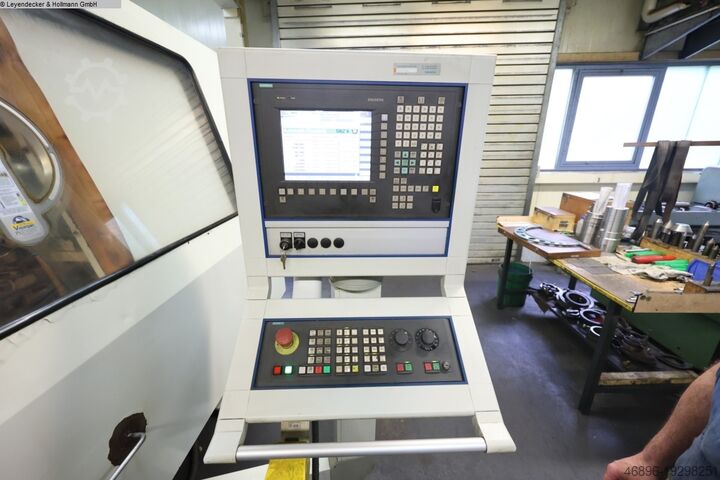

control Siemens Sinumerik 840 D
internal grinding depth max. 800 mm
External grinding length max. 600 mm
turning speed range - stepless 1-795 U/min
workpiece length max. 800 mm
Workpiece spindle unit (U/B1/L adjustment):
- Travel (U axis): 300 mm
- Swivel angle (B1 axis): -0.5°/+12°
- Drive power of the workpiece spindle: 8.5 kW
Hedpewp S Tnsfx Ad Hjff
- Speed range (infinitely variable): 1-795 rpm
- Setup speed (tapping): 10 rpm
- Spindle head size A 8 according to DIN 55026
- Through bore 58.5 mm
- Workpiece diameter max. 830 mm
- Workpiece length (clamped in flight) max. 800 mm
- Workpiece length (clamped between centers) max. 800 mm
- Load capacity at spindle head max. 6100 N
Internal grinding device (Z1/X1/B2):
- Travel (Z1 axis): 1100 mm
- Travel (X1 axis): 150 mm
- Swivel angle (B2 axis): 270°
- Manual longitudinal adjustment of internal grinding axis on table: 780 mm
- Drive power of internal grinding spindles (infinitely variable)
Belt-driven grinding spindles: 7.5 kW
- Mounting bore grinding block (diameter): 100 mm / 125 mm
- Mounting length grinding block: 220 mm
- Grinding diameter: max. 600 mm
- Grinding depth: max. 800 mm

External and surface grinding device (Z2/X2):
- Travel (Z2 axis): 800 mm
- Travel (X2 axis): 470 mm
- Swivel angle (B2 axis): 270°
- Drive power of external grinding spindles: 7.5 kW
- Mounting bore of grinding block: Ø 140 mm
- Grinding diameter: max. 800 mm
- Grinding length max. 600 mm
- Grinding wheel dimensions: max. Ø 450 x 50 x Ø 127 mm

Equipment/accessories:
- Various grinding spindles
- Various flanges/grinding wheel holders
- Various clamping jaws

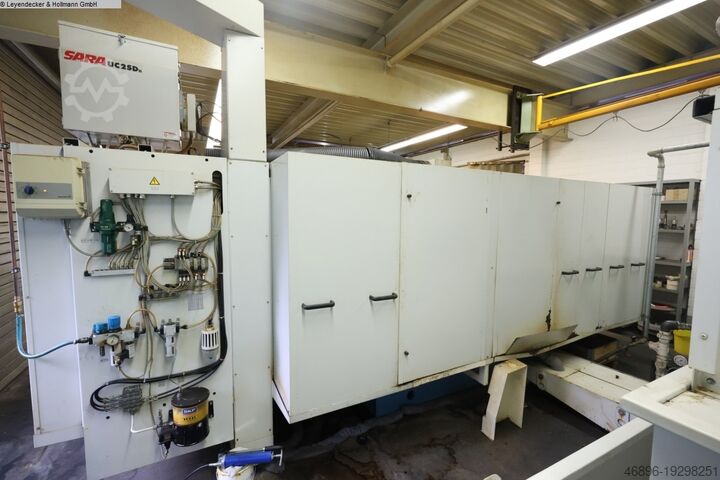

- Coolant system
- Oil mist filter
- Cooler
- Technical documentation
