Coordinate Measuring Machine

WENZEL RSplus

Condition: used, Year of construction: 2016, Year of manufacture: 2016 – very good condition • Single-arm CMM, arm profile 80 x 80 mm • Cast iron base plate incl. 210 M10 threaded holes (hole grid 200x200 mm) Manual control panel HT 400 RC incl. charging station Side roller bearings on base plate Hsdpfx Asxnym Refpsnu Usable area of the base plate Length 4,700 mm Width 1,850 mm Thickness 380 mm Working height 680 mm Required space Length 4,860 mm Width 4,700 mm Height 4,250 mm Software: MetroSoftQUARTIS • Measuring ranges: X-axis 4,000 mm Y-axis 1,800 mm Z-axis 2,500 mm • Measurement uncertainty according to DIN EN ISO 10360-2 with probe system PH10M-Plus/TP20Ni MPE E (μm) = 55 + L/35 ;

Condition: used, Year of construction: 2016, Measuring machine Wenzel RS plus, year 2016 • Single-arm CMM, arm profile 80 x 80 mm • Cast iron base plate including 210 drilled M10 threaded holes (hole grid 200x200 mm) • HT 400 RC manual control panel including charging station • Side mounted roller bearings on the base plate Hodpfx Afjw D R Nkepsnu • Usable area of the base plate: length 4,700 mm, width 1,850 mm, thickness 380 mm • Working height: 680 mm • Space requirement: length 4,860 mm, width 4,700 mm, height 4,250 mm Software: MetroSoft QUARTIS • Measuring ranges: X-axis: 4,000 mm Y-axis: 1,800 mm Z-axis: 2,500 mm • Measurement uncertainty according to DIN EN ISO 10360-2 with probe system PH10M-Plus/TP20Ni MPE E (μm) = 55 + L/35 ;

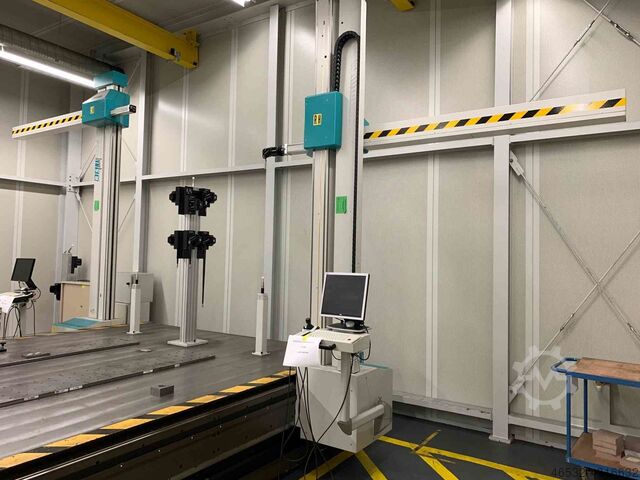

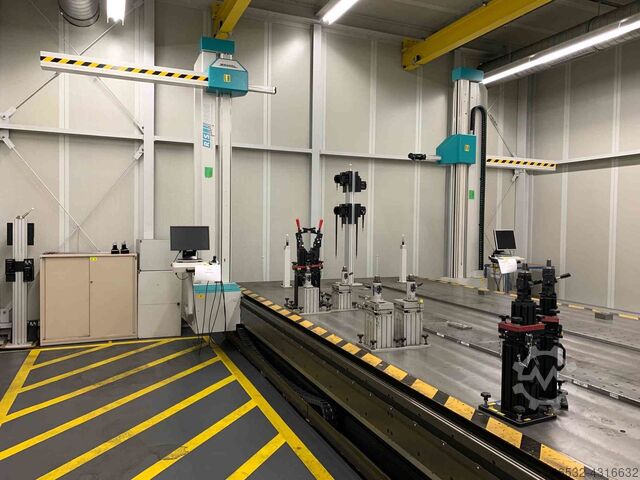

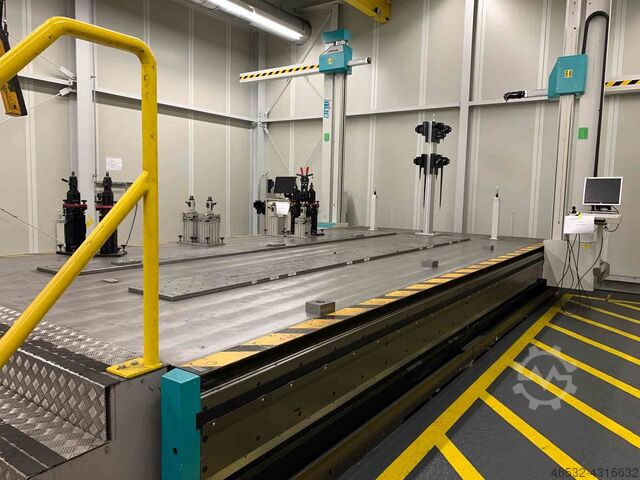

Year of construction: 2004, condition: excellent (used), Technical data Manufacturer: Wenzel Type: RSplus 1625 Year of construction: 2004 Measuring plate X: 6800 mm Y: 3200mm cast steel, with guide rails for measuring arms Measuring arm 2 pieces RSplus height: approx. 3.30 m ; horizontal axis: approx. 2.90 m Measuring arm Hsdpfefd Dr Eex Afpjnu RENISHAW PHS1 measuring head (only 1x available, missing at the left measuring arm, kinematic mounting plate KM1 for connection/reception but available) ACR2 kit 8 pieces (4 l / 4 r), probe TP20 and styli - complete except 1 probe/probe) Additional as spare part: fixture kit ACR2, without measuring head/probe/probes Software Metrosoft with two Metrokey software licenses with installation data for software without processor/computer for evaluation The machine can be upgraded with new accessories according to customer requirements. Price: on request! Assembly and commissioning possible! We would be happy to provide you with a detailed offer! Please note: Our offer is directed exclusively to professional customers! (Changes and errors in the technical data, information and prices as well as prior sale reserved)

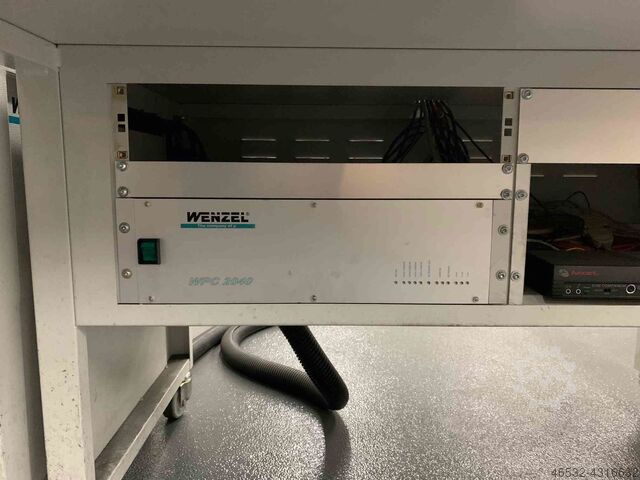

Condition: ready for operation (used), Year of construction: 2016, Travel X/Y/Z: 4000mm/1800mm/2500mm, max. length measurement error: 55 + L/35, max. single-point error: 35, control: WPC 2040. Includes test head PH10M Plus, PHC10-3, sensor TP20, 20-piece probe set, calibration sphere, industrial PC, measuring software Inca 3D Premium with STEP and factory calibration. The machine can be equipped with additional options. Documentation available. An on-site inspection is possible. Hnedpfx Aow Igvgjfpju
