Coordinate measuring machine

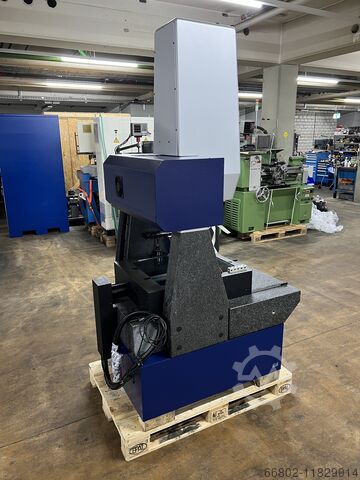

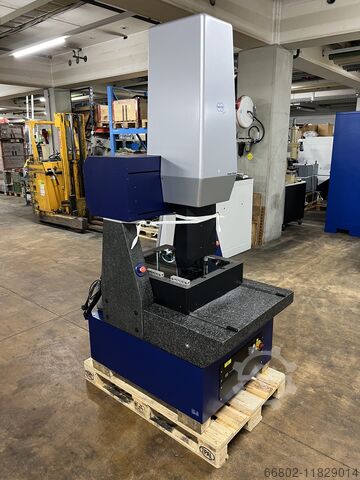

Werth Scope Check 400

Condition: ready for operation (used), Year of construction: 2013, travel distance X-axis: 400 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 300 mm, number of axes: 3, This 3-axis Werth Scope-Check 400 was manufactured in 2013. It features a measuring range of 400 mm in the X and Y axes, and 300 mm in the Z axis. The machine is equipped with a tactile probe system and operates on Windows 7 Professional. If you are looking to get high-quality measurement capabilities, consider the Werth Scope-Check 400 CMM machine we have for sale. Contact us for further details. • Optical measuring accuracy: • MPE E1: (1.5 + L/250) µm • MPE E2: (1.9 + L/250) µm • MPE E3: (2.9 + L/100) µm • MPE PS/2D (OS): 1.1 µm • MPE PS/2D (OT): 1.9 µm • Tactile measurement: • Probe system: TP200 / SP25 Kit 1 • MPE E3: (1.9 + L/250) µm • MPE P: 1.9 µm • MPE THN: 2.5 µm • MPE THP: 2.5 µm • Operating conditions: • Temperature range: 20°C ± 1 K • Temperature gradient: 0.5 K/h • Electrical: • Voltage: 115–230 V AC • Frequency: 50–60 Hz • Maximum current: 10 A • Software: WinWerth • Operating system: Windows 7 Professional 64-bit • Notes/condition: • SM25-2 module for tactile measurement is missing Bdjdpjym Ai Tjfx Ad Ajb • Small chip in the glass plate (does not affect functionality)

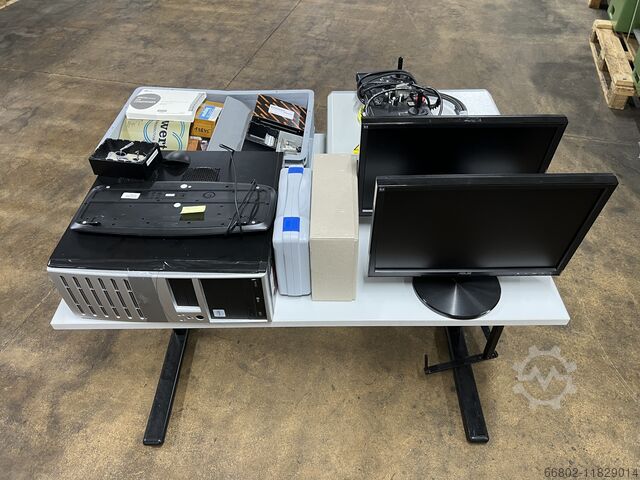

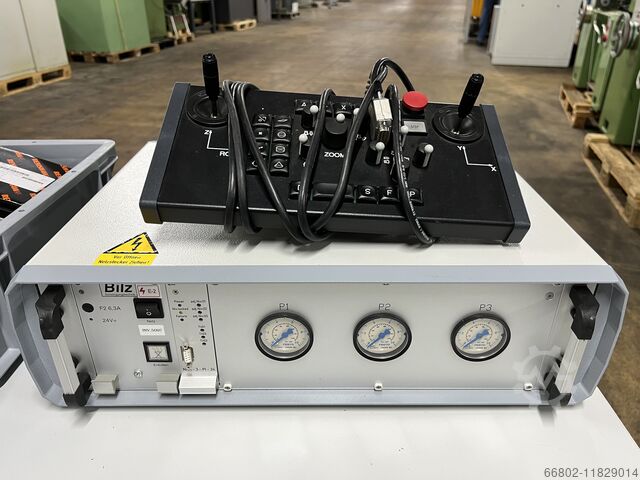

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 06-00376, measuring range X-axis: 400 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 150 mm, control type: CNC control, TECHNICAL DETAILS Bsdpfeyft Tmsx Ad Aedb Measuring range X-axis: 400 mm Measuring range Y-axis: 400 mm Measuring range Z-axis: 150 mm Measurement accuracy: Length measurement deviation up to approx. 1.5 µm MACHINE DETAILS Control: CNC Software: WinWerth, version 8.40 or higher Tool holder / probe: Renishaw, MK 2 Probe system: Renishaw Probe Interface PI 200 Voltage: 230 V AC Frequency: 50 Hz Current consumption: max. 10 A EQUIPMENT Granite machine with measuring glass and cover CNC control with scope controller Renishaw probe (various probe inserts included) PC workstation User manuals (WinWerth) Calibration and test reports Folder with machine and measurement room documentation Software and calibration data carriers (CD/DVD) Control cabinet integrated, main switch available

Condition: good (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 06-00376, measuring range X-axis: 400 mm, measuring range Y-axis: 400 mm, measuring range Z-axis: 150 mm, Manufacturer: Werth Messtechnik GmbH Type / Model: Scope-Check 400 × 400 × 150 3D CNC Machine Type: Multi-sensor Coordinate Measuring Machine (optical / tactile) • Year of Manufacture: 2006 • Serial Number: 06-00376 Condition Bsdpfx Adjx Sw R Dj Aodb • Used, well-maintained overall condition • Machine was fully operational in measurement use until recently • Regular calibrations documented • No visible damage to granite, guides, or measurement system Accessories / Delivery Scope • Granite-based machine with measurement glass and protective cover • CNC control with Scope controller • Renishaw probe (multiple stylus inserts included) • PC workstation comprising: • Computer • Monitor(s) • Keyboard, mouse • Control panel / joystick • Documentation: • User manuals (WinWerth) • Calibration and inspection reports • Folder with machine and measurement room documentation • Software and calibration data carriers (CD/DVD) • Integrated control cabinet with main switch Application Area • Form and position tolerance inspection • Dimensional inspection of: • Sheet metal forming parts • Turned and milled components • Tools • Prismatic and rotationally symmetric parts The unit is currently still installed and powered. An inspection while operational is possible by appointment. Dismantling, loading, and transport are to be carried out and borne by the buyer. • Measuring range (X/Y/Z): 400 × 400 × 150 mm • Control: CNC • Software: WinWerth, version 8.40 or higher (data carrier included) • Tool holder / probe: Renishaw, MK 2 • Probe system: Renishaw Probe Interface PI 200 • Measurement accuracy: • Length measurement deviation approximately 1.5 µm (according to Werth documentation / calibration records) • Voltage: 230 V AC • Frequency: 50 Hz • Power consumption: max. 10 A
