Roll forming line

WIEPOFAMA

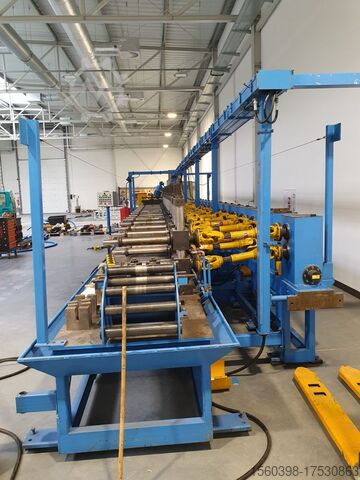

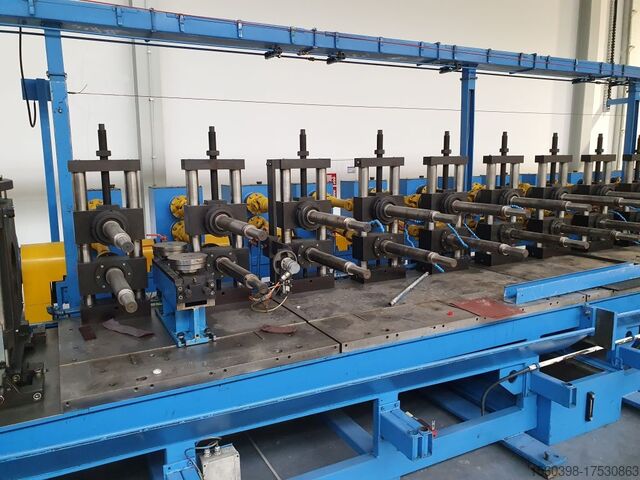

Condition: excellent (used), Year of construction: 2015, operating hours: 50 h, functionality: fully functional, machine/vehicle number: P1.2014.86242, The subject of the report is a Dreistern laser-welded profile production line. The machine has been tested but was not put into production. It has operated for 50 hours. It is designed for the forming of cold-rolled sections, either open or closed, which are laser-welded. The input material for profile production consists of coils made of black or galvanized steel. Nodpfx Aexz Tuuefcjwc Component parts (serial numbers in accordance with technical documentation): 1 - Soprem H1250/D/1700ZR decoiler, serial no.: 20140388/1, year of manufacture: 2014 2 - Soprem CH-2540 strip end welder, serial no.: 20140388/2, year of manufacture: 2014 3 - Dreistern RS616 multi-roll forming machine, serial no.: 15773, year of manufacture: 2015 - base frame, serial no.: N/A, year of manufacture: N/A - P60/80/90 gearbox unit, serial no.: N/A, year of manufacture: N/A - servo drive, serial no.: N/A, year of manufacture: N/A - Dreistern P60 forming, embossing, and perforating stands, serial no.: N/A, year of manufacture: N/A 3 x Dreistern RC1500, RC1501, RC1502 roll forming tools, serial no.: N/A, year of manufacture: N/A 4 - Trumpf TruLaser Cell 1100 laser, serial no.: S1200C0090, year of manufacture: 2014 5 - Dreistern TS214.10 cut-off machine, serial no.: 15122, year of manufacture: 2015 - Dreistern S 200.10 circular saw, serial no.: 15094, year of manufacture: 2014 6 - Electrical cabinets 7 - Laser safety system

Condition: used, DALLAN Rollforming machine | Omega profiles 60mm & 80 mm With 11 forming stations, fully equipped and currently set up for Omega 60 mm, the line includes additional tooling for Omega 80 mm profiles. This machine is complete, in excellent condition. DALLAN rollforming line with 11 forming stations: · Maximum sheet width: 300 - 350 mm Nsdpoxugf Hsfx Afcswc · Controls: Dual console · Shaft diameter: 60 mm · End unit: Integrated cutting station · Current setup: Configured for classic Omega 60 mm, includes tooling for Omega 80 mm · Idle decoiler · Tooling box (approx. 1,000 kg) for producing other profile types · Dimensions: 10,000 x 1,400 x 1,600 mm (L x W x H) · Weight: 10 tons Maximum sheet width: 300 - 350 mm Controls: Dual console Shaft diameter: 60 mm End unit: Integrated cutting station Current setup: Configured for classic Omega 60 mm, includes tooling for Omega 80 mm

Condition: ready for operation (used), Decoiling and rollforming line for manufacturing roof sandwich panels Max width of finished panel: 1000 mm PRODUCTION SPEED 7,30 meter per minute UP Floor 1 - Stam decoiler of 12 ton 2 - Memco embosser 3 - In-line profiling machine 4 - Sheet preheating DOWN Floor 1 - Stam decoiler of 12 ton 2 - Roll forming machine 3 - Sawing machine 4 - Pick and place for the insertion of sheets in the Stam production line, max panel length 18 meter 5 - Automatic machine for the overlapping of sheets 6 - Glue device 7 - Sheet preheating room 8 - PIR foaming gantry 9 - PIR dosing bench 10 - Siempelkamp 25 meter belt press 11 - Panels Cutting Machine (Flying Saw) 12 - Stacking unit for max panellength 16 meter Nwsdpfxox Imnds Afcec 13 - Horizontal packing unit Total length of the line from decoiler to stacking is 90 meters. The packing unit is located next to the stacking unit, panels are moved from the stacking unit with side conveyors.

Condition: used, Year of construction: 2004, number of stations: 19 pcs. vertical center distance: mm horizontal center distance: mm work shaft diameter: mm Material width max.: 60-300 mm Strip thicknes max. at Rm=400 MPa Steel: 1-3 mm Work shaft pairs per cassette: 6 pcs. Axial adjustment of work shaft: +/- 2,5 mm Rollforming speed: 40 m / min Extended machine accessories Nwodeya D Nbjpfx Afcoc Automation - ARKU decolier

Condition: excellent (used), Lightly used automatic TC, TU, TZ profile production lines, designed for manufacturing and roll forming TC, TU, TZ profiles up to 1.5 mm metal thickness. Technical Specification: Nwsdpex Sx R Ssfx Afcsc Manufactured in: Estonia Adjustable profile height: 100 – 250 mm Profile width: 50 mm Profile edge (folded): 15 mm Minimum rollable sheet thickness: 1 mm Maximum rollable sheet thickness: 1.5 mm Roll distance: 300 mm Machine dimensions: 900 x 4000 mm The machine is not equipped with a guillotine or perforating rolls. Operation is straightforward, controlled via two buttons. If you have further questions, we will be happy to answer them.

Condition: excellent (used), The minimum order quantity is 8 stations, with the price per station being €4,000. The stations are new. The line consists of stations for profiling shafts with a diameter of 50 mm and an 8 mm keyway. Material feed thickness ranges from 0.4–2.5 mm, with a strip width of 320 mm. There are 8 stations per table, driven by a 15 kW motor with a reduction gearbox. Four sets of stations are mounted on robust steel beams measuring 45 x 700 x 1,500 mm. This allows for quick changing of rollers fitted with various spare modules for finished profiling station segments. This configuration includes two table segments with 8 stations each, providing a total of 16 profiling stations. Nedpfx Afjwxv Nlocewc The specified price applies per set of stations on a given table. These tables can be configured and assembled according to the required profile—e.g., with 8, 16, 24, or 32 stations. The table features a strip guide and a turk's head, a straightening head, and a profile output device before the guillotine shear, a flying saw, or a fixed take-off table. We offer various configurations of such solutions for these tables. By exchanging the shafts, we can achieve a maximum input width of 550 mm.

Condition: excellent (used), A roll forming line with rollers for cold rolling office and storage cabinet fronts made of cold-rolled sheet metal. Roller center distance: 140 mm, Roller diameter: 45 mm, Keyway: 12 mm. The system features an electric mechanism for moving the roller sets apart by up to 1500 mm. The system is electrically operated. Nwedewxv H Depfx Afcoc

Condition: excellent (used), The Formid Limited is a roll forming line with an electrically extendable support system for forming sets up to 800 mm. The drive is manual via a bevel gearbox. It can be combined into a single electric system and measures the width of the spacing. Mounted on 45 mm shafts, 12 keyways, shaft distance 145 mm. Axle spacing 250 mm. Shaft spacing minimum 200 mm from each other and 800 mm apart. Powered by a 380-volt electric motor with 15 kW. The system is suitable for profiles with frequently varying center widths. It features center roller supports to maintain the lower layer of the steel strip, which in turn supports the base strip substrate in a defined profile. The system also includes 16 stations. Nedewxv Izspfx Afcjwc
