Edge banding machine

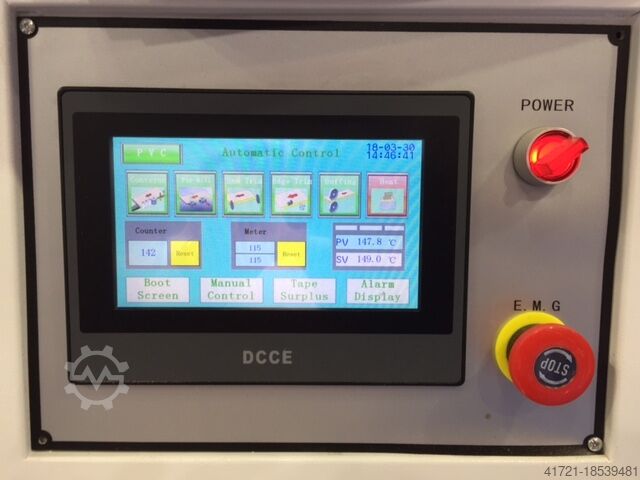

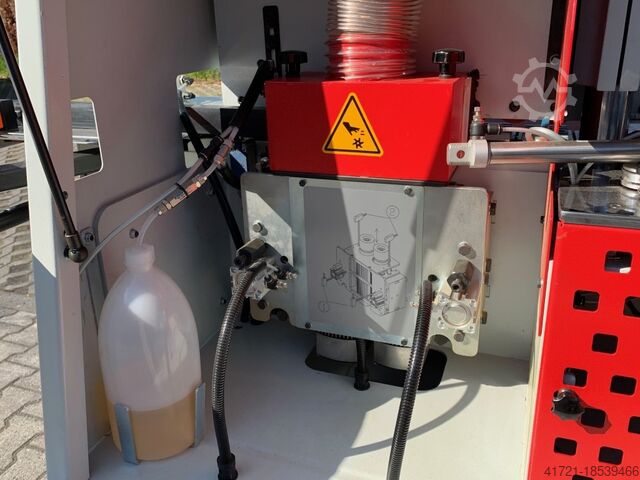

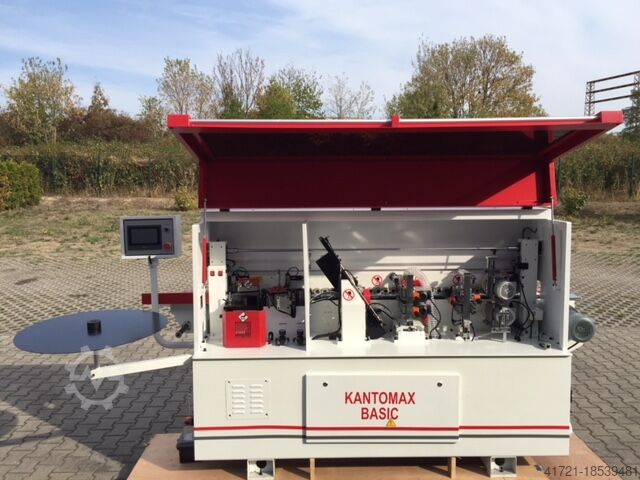

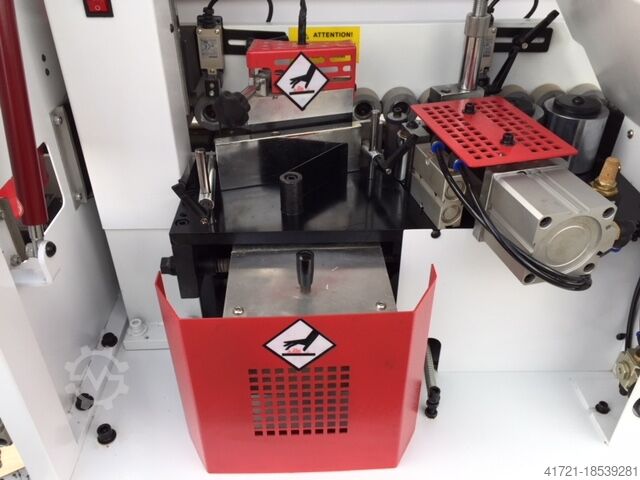

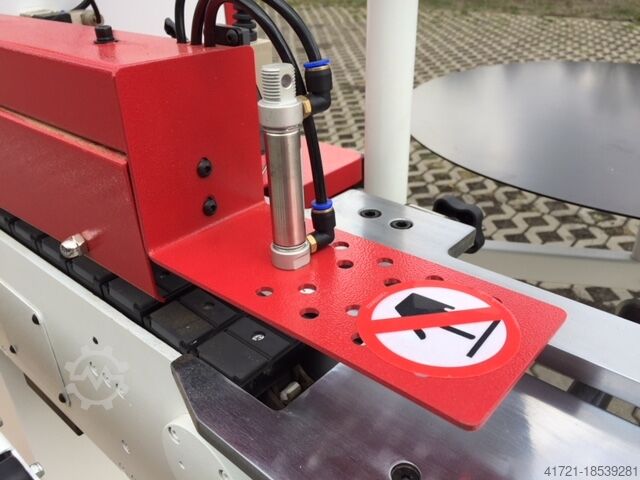

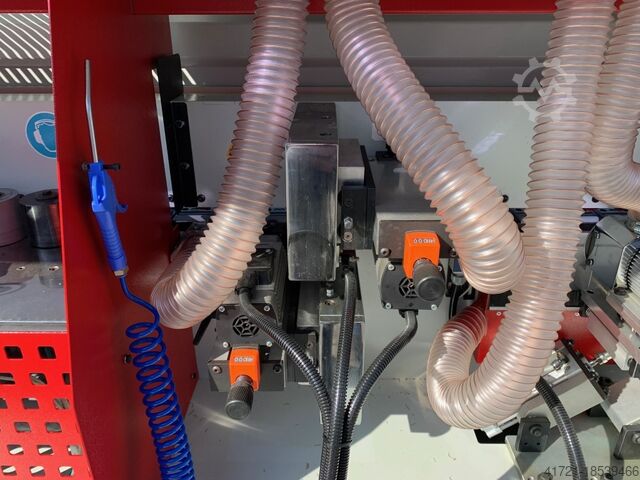

WINTER KANTOMAX BASIC

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 4200x1500x1500 mm Weight 1050 kg Total power requirement 8 kw Dkodpfjvz E Tmsx Advjh

Condition: excellent (used), SINGLE SIDE EDGE BANDER (Left) Edges (band in rolls) thickness (Min/Max) mm 0,4 / 3 Edges thickness in strips / lippings (min/max) mm 0,4 / 8 (12)* Panels thickness (min/max) mm 8 / 60 Numerical Control "StarTouch" + "Touch 7" Feeding speed m/min 12-18 Dedpfxoxlqnts Advskh Top pressure system with rubber belt (C.N.) Spraying unit (Anti-sticking liquid) AAR In-feed fence, adjustable by N.C. "EASY SIZE PLUS" Pre-milling Unit (vertical joint trimmers) 2 x Kw Lamps to heat the workpieces side Glueing Unit (P.U.R. Glue + Quick Melt system) "VC/800" - "VC/6" + "AirFusion AF15" Band Pressure zone (N.C. adjustment) Edge coils supporting unit - 1 Snipping (end-cutting) K/SEL Rough Trimming unit RS/K Fine Trimming unit RI / 800 (3 pos.) Multi Function Unit (Profile contour Trimming Unit) “4 EDGE” KIT Spraying Unit (for sliding liquid) Profile edge scraping unit RAS/1000 Glue scraper RCA / 2C Milling grooving unit K-100 (1 x Kw 1,8) 90° Hot Air Heater (to reactivate the color of plastic tape) Panels Return System "SAG" Mod. SPINNER 47 / 63

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 3810x575x1520 mm Weight 1000 kg Total power requirement 8 kw Dkedpfx Asvz E Scedveh

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 3200x780x1500 mm Weight 800 kg Dksdpfxevz E Eve Advoh Total power requirement 8 kw

Condition: used, Year of construction: 2020, functionality: fully functional, workpiece height (max.): 45 mm, edge thickness (max.): 3 mm, type of input current: three-phase, Further technical data: Ball-bearing turntable for edge banding rolls, Ø 740 mm Edge thickness: 0.4 – 3 mm Workpiece height: 8 – 45 mm Extendable workpiece support up to 450 mm Djdpfxsxdb U Uo Advjkh Manually adjustable workpiece height m-motion and x-motion PLUS control systems (highest setting repeat accuracy, programmable) Robust processing units in new design, solid machine base, precise extraction system Additional equipment: Surface scraper Spraying unit for cleaning agent LED lighting package Tempora 45.03 Spraying unit for release agent Cross-cut saw unit with 45° travel path and radius processing Pneumatic-mechanical infeed lock 75 x-motion PLUS package Tempora 45.03

Condition: as good as new (ex-display), Year of construction: 2021, functionality: fully functional, overall weight: 915 kg, type of input current: three-phase, input voltage: 400 V, input current: 24 A, input frequency: 50 Hz, Worktable dimensions 3465x710mm, height 875mm Gluing thickness roller edges 0.4 - 3mm Dsdouacqzopfx Advokh Glue-on thickness strip edges up to 5mm, min - max. workpiece thickness 8-50mm min. Workpiece length/width with roller edges 190/110mm min. Length of panel 120mm Feed speed 9 m/min Feed motor 0.55 kW Working air pressure of pneumatics 6.5 bar Suction hood glue container 80mm 2 suction hoods Flush trimming unit 60mm 2 extraction hoods Pre-milling unit 80mm Working temperature 20-190C° Equipment: Pre-milling unit (jointing) Rounding unit (corner copying) Gluing unit, applying and pressing on the edge (self-lubricating glue pot) Trimming unit, for cutting off 90° of the protruding edge at the front and rear Flush trimming unit (joining) Scraper unit Buffing unit Surface scraper Automatic application of the strip edges with edge magazine Kit for quick change of the glue container Device for heating the panel edge Non-stick agent spraying unit Spraying unit for finishing the edge

Condition: used, Year of construction: 2009, Used SCM edgebander model OLIMPIC K1000 Control panel with membrane keyboard Technical data: Min. panel height: 8 mm Max. panel height: 55 mm Min. edge thickness (roll): 0.4 mm Max. edge thickness (roll): 3 mm Max. edge thickness (solid wood): 12 mm Configuration: Strip edge magazine Glue pot capacity 1.5 kg, with independent motor No. 4 pressure rollers with pneumatic feed, first roller with independent motor Edge roll guillotine End trimming unit with 2 independent motors, tiltable 0-15° - each 0.35 KW - 12,000 rpm Overlapping trimming unit with 2 motors, each 0.65 KW - 12,000 rpm - tools with reversible knives Tiltable corner rounding unit for flat/radius finishing; 2 motors each 0.5 KW - 12,000 rpm, electro-pneumatic positioning - tools with reversible knives Djdpfx Adoxrndxovokh Electro-pneumatic exclusion of the unit Glue scraper unit Machine length: 4,310 mm Year of manufacture: 2009 CE marked

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, Brand: SCM Model: OLIMPIC K 500 T/ER-2 - CE Automatic edge banding machine with sanding unit for wooden, veneer, PVC, melamine, ABS edges – suitable for furniture manufacturing, joinery, custom fittings, panels, kitchens, bathroom furniture, and various other applications Dkedpfexnvr Asx Advjh Technical specifications: Min./max. panel height: 8–60 mm Panel height with corner rounding unit: 10–45 mm Edge thickness: 0.4–8 mm Edge thickness from coil: 0.4–3 mm Minimum panel width: 55 mm Feed speed: 11 m/min Pressure beam with motorized vertical movement Panel support rail Sound-insulated safety enclosure Fluid inlets Components: Anti-adhesive spraying unit with two nozzles – two tanks for anti-adhesion liquid Pre-milling units with two high-frequency motors – H64 mm diamond tools – diameter 100 mm, bore 30 mm, height 65 mm – copying set Gluing unit VC 560 for edge application on panels up to 60 mm – glue pot capacity: 1.5 kg – exchangeable glue pot End trimming unit with two independent motors, each 0.35 kW at 12,000 rpm – motor tilt from 0° to 15° – 2 saw blades, diameter 115 mm – front copying devices Tilting trimming/bevelling unit for removing top and bottom edge overhang – 2 motors at 0.55 kW – 12,000 rpm – tilt range from 0° to 25° – two-position pneumatic set for quick change between thin or radius edges Corner rounding unit with two motors on prismatic guides – for rounding and trimming thin or thick edges – 2 motors at 0.55 kW – 12,000 rpm Edge scraping unit for optimal finishing of ABS/PVC edges with rotary copying and extraction hood, scrap collection cassette Glue scraping unit – removes glue residues from the lower and upper panel surfaces Buffing unit for cleaning and polishing plastic edges – motor 0.25 kW – brush diameter 150 mm Compressed air: 7 bar Overall dimensions: 5500 x 1150 x 1550 (H) mm Weight: 1,780 kg Recently serviced New diamond pre-millers New copying wheels...

Condition: used, Lange B90 KFE Edge thickness: 0.4 - 3 / 5 mm Control panel: PLC touch panel Pre-milling unit for workpiece edge preparation before the gluing section Automatic edge magazine for roll materials Teflon-coated quick-change glue pot for hot-melt adhesive granulate Workpiece height: 8 - 50 mm Fine-adjustable glue roller Guillotine shears up to 3 mm for pre-cutting roll material Pressure unit End trimming unit Multi-function milling unit for flush trimming, radius milling, and bevel milling Corner copying unit for head edges up to 2 mm, activatable from the control panel Dkjdpfoxl Aw Tsx Advjh Radius scraper blade Flat scraper blade Buffing unit Spraying device at infeed and outfeed Year of manufacture: 2018 Machine is OPERATIONAL and in GOOD CONDITION Ex works price NET €15,000.00
