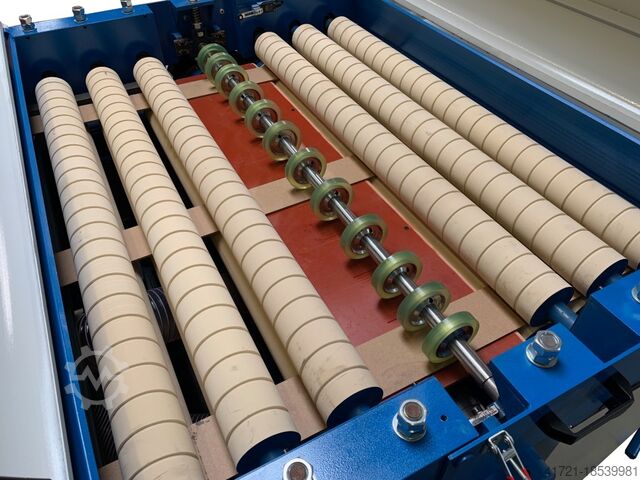

Multi rip saw

WINTER MBS-1300-45

Year of construction: 2009, operating hours: 214 h, condition: like new (used), functionality: fully functional, Thin-Cutting Frame Saw DSG Sonic – Wintersteiger Model / Type: DSG Sonic Year of Manufacture: 2009 Phjdpfxsw Dp Ufs Ac Hja Condition: EXCELLENT, only 214 operating hours Technical Specifications 🔹 Cutting and Block Parameters: - Feed speed: approx. 1.7 m/min - Saw frame stroke: 210 mm - Stroke frequency: approx. 550 strokes/min - Cutting heights depending on saw length: - Saw length 380 mm: Cutting height 30–88 mm (with Air Jet and magazine), 45–88 mm (with double planer) - Saw length 420 mm: Cutting height 30–128 mm, 45–128 mm - Saw length 500 mm: Cutting height 80–210 mm, 45–210 mm - Saw length 550 mm: Cutting height 80–254 mm, 45–254 mm - Block lengths: - Basic machine: +185 mm - With magazine: 250–1700 mm - With double planer: +250 mm - Block height variation: ±0.5 mm - Cutting width with side fence: 140 mm 🔹 Additional Technical Data: - Cutting width with center fence: 2 × up to 60 mm - Optional channel width: 2–4 × 15–60 mm - Minimum lamella thickness (depending on wood type and cutting height): >1.5 mm - Kerf thickness (material loss): from 0.9 mm Blade lifespan (depending on wood): approx. 40 hours 🔩 Machine Weight: Basic unit: 3000 kg 🔉 Noise Levels (hearing protection required): At 1 m from the machine: - Idle: 97 dB(A) - Cutting: 99 dB(A) At the operator's workstation: - Idle: 85 dB(A) - Cutting: 88 dB(A) 🌬️ Extraction and Compressed Air Requirements: Dust extraction: Two connections: Ø 120 mm and Ø 150 mm Capacity: 3200 m³/h (30 m/s) Compressed air: - Minimum pressure: 6 bar - Consumption: 200 l/min Lubrication: Centralized system with guide monitoring ⚡ Electrical Data: - Power supply: L1, L2, L3 + PE - Power cable cross-section: up to 16 mm² - Control cable: 2 × 1.5 mm²

Condition: used, Year of construction: 2017, functionality: fully functional, total width: 400 mm, power: 26 kW (35.35 HP), TECHNICAL DATA Maximum working width: 400 mm Working height: 2 - 150 mm Minimum workpiece length: 150 mm Worktable height: 900 mm Phedpfxsw Thpfj Ac Hsa Electric motors: Thin sheet planer motor power: 22.0 kW Drive motor: 3.0 kW Lifting motor: 0.50 kW Tool: Rotor speed: With adjustable drive speed: 2,100–3,000 rpm Number of knives: 48 pcs.

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 2100x1900x1980 mm Phjdpfx Aovz Hxdjc Hea Weight 3500 kg Total power requirement 39,2 kw

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 3600x800x1900 mm Weight 2400 kg Total power requirement 16 kw Psdpfxovz E Nus Ac Heha

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 1930x1580x1580 mm Phodpfx Acevz Hw Tj Hoa Weight 2250 kg Total power requirement 32,57 kw
