Vertical Turret Lathe - Double Column

WIRTHS NEU / NEW

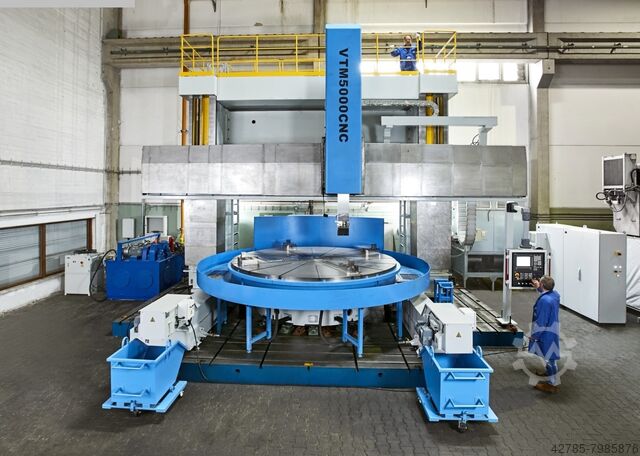

Condition: new, Year of construction: 2024, faceplate diameter 1200- 2000 mm Iajdpfx Aheix A Aveuel swing diameter 1400- 2500 mm turning height 1000- 2000 mm Control Siemens/Fanuc We offer brand new CNC vertical lathes, with and without live tooling. Swing diameter could be between 1,4 to 2,5 m. Please send your enquiry if you are interested.

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, Vertical Turret Lathe - Double Column / Brand: SCHIESS BRIGHTON Type: Vertimaster / Year of construction: 2009 The machine can be inspected by appointment. Condition: Fully functional / operational. TECHNICAL DATA: Working area and traverse: - Max. Machining- / Swing diameter: 9.000 mm - Processing height max.: 6.000 mm - Faceplate diameter: 6.000 mm Isdpfx Ahoxgv Egeujal - Passage width between racks/pillars: 8.300 mm Power and torque: - Main drive: 240 KW - Max. Torque on the face plate: 250 kN m - Max. Workpiece weight: 150 tons Boring and milling device: - Power max.: 63 kW - Speed max.: 2.500 rpm - Torque max.: 2.200 Nm Support: - Cross section: 520 x 420 mm - Injection diameter min.: 750 mm - Cutting power at 6 m Diameter max.: 75 kN EQUIPMENT: - CNC-Control: SIEMENS Sinumerik 840D - Tool holder: SK 50 - Operating platform - Chip conveyor - Documentation - Additional excellent accessories ... There is no guarantee for correctness and completeness of the technical details and accessoires. - Subject to prior sale. Detailed technical data sheet and information on equipment available on request.

Condition: new, Year of construction: 2024, turning diameter 600- 2000 mm turning length 2000- 15000 mm control Siemens We offer brand new CNC Lathe machines with flat bed, with or without live tooling and C- axe. The turning diameter could be choosen between 600 and 2000 mm and the turning length between 2 and 15 m. Please send your enquiry if you Ijdpfxeix A Arj Ahujal are interested !

Condition: good (used), Year of construction: 2015, functionality: fully functional, workpiece weight (max.): 100,000 kg, turning diameter: 6,000 mm, rotational speed (max.): 25 rpm, spindle speed (min.): 25 rpm, travel distance Z-axis: 1,500 mm, Main Technical Features • Manufacturer: SCHIESS Model: 18’ VBM Chuck Diameter: 5,500 mm Maximum Turning Diameter: 6,000 mm (distance between columns) Maximum Workpiece Height: 4,400 mm Movable Crossrail: 3,000 mm travel RAM (Z-axis): 1,500 mm travel Iajdpfsxnyh Usx Ahuel Maximum Weight on Chuck: 100 tons Rotation Speeds: Range I: 1-8 rpm; Range II: 5-25 rpm • CNC Control: FAGOR 8055 (2015) Machine Condition: In operation and dismantled SCHIESS 18’ VBM vertical lathe—a robust machine featuring the oversized capacities typical of its era. Manufactured in Germany and retrofitted in 2015, this lathe is ideal for machining large, heavy workpieces. It is suitable for a wide range of industries, including metallurgy, general machining workshops, mechanical component production, heavy structural fabrication, and energy generation. PRICE AND FURTHER INFORMATION ON REQUEST (CNC, SIEMENS, HAAS, LAGUN, FAGOR, CINCINNATI, HEIDENHAIN, MACHINING, PINACHO, MORI SEIKI, MILLING MACHINE, LATHE, GRINDER, BORING MACHINE, PRESS, LASER, SHEAR, PRESS BRAKES)

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, workpiece weight (max.): 125,000 kg, chuck outer diameter: 6,300 mm, turning diameter: 6,300 mm, total length: 14,200 mm, total height: 8,315 mm, turning height: 4,000 mm, overall weight: 223,000 kg, power: 161 kW (218.90 HP), Equipment: rotational speed infinitely variable, ECS Numerical Control Table diameter: 6,300 mm Maximum workpiece diameter: 6,300 mm Maximum workpiece height: 4,000 mm Distance from table to lower edge of crossrail: 3,690 – 690 mm Maximum permissible weight: 125,000 kg Maximum vertical travel of crossrail: 3,000 mm Maximum horizontal travel of tool holder head: 3,575 mm Maximum vertical travel of tool holder head: 2,000 mm Tool holder head inclination angles: –15° / +30° Horizontal travel of tool holder head from table center: 3,425 mm Horizontal travel of tool holder head beyond table center: 150 mm Iaodoxuqyuepfx Ahusl Rapid traverse speed (horizontal and vertical): 2,400 mm/min Crossrail traverse speed: 300 mm/min Table speed: continuously variable Installed power: 220 HP (161 kW) Machine weight: 223,000 kg Floor dimensions: 8,213 x 14,200 mm Height from floor: 8,315 mm Total height: 9,765 mm Complete with: - Copying device - Taper turning attachment - Set of gears for taper turning - Set of gears for threading USED MACHINE

Condition: used, Year of construction: 1970, functionality: fully functional, turning height: 4,000 mm, workpiece weight (max.): 100,000 kg, turning diameter: 17,000 mm, Universal 5-axis machine (turning & milling) Froriep 40KE 500/600-400 Spheromill Technical Data Year of manufacture: 1970 – modernised in 1984 and 2006 Control: Siemens 840D Milling length (X-axis): 8,500 mm Maximum working height (Z-axis): 4,000 mm Max. swing diameter: 17,000 mm Table diameter: 5,000 mm Ram adjustment: -15° to +90° Table speed: up to 40 rpm (100 kW drive) Maximum table load: 100 t Iaedpfx Ahexbbfnouel Accessories & Equipment Milling head: 800 rpm / 60 kW Universal milling head: 630 rpm Facing slide up to Ø 1,000 mm Grinding attachment 90° angle head (630 rpm) Small 90° angle head (450 rpm)

Condition: new, Year of construction: 2026, turning diameter over cross slide: 620 mm, turning diameter: 6,000 mm, spindle bore: 103 mm, turning diameter over bed slide: 860 mm, New CNC-controlled machine with flat bed and Siemens Sinumerik 828D BASIC ShopTurn . Delivery date: approx. 4 months after technical and commercial agreement. Working range: - Center height [mm]: 330, 380, 430 - Rotation diameter over bed [mm]: 660, 760, 860 - Rotation diameter over cross slide [mm]: 420, 520, 620 - Center width [mm]: 1500 to 6000 - Bed width [mm]: 560 - Spindle nose DIN 55027/11 - Spindle bore [mm]: 103 - Max. Torque (spindle) [Nm]: 2000 Iodpjufgfyefx Ahueal - Speed control: Stepless - Speed stages: mechanical 3 - Total speed range [rpm]: 9 - 1320 / 12 - 1250 - Power [kW]: TUB660C: 15 / 18.5 - Feed rates X/Z [mm/min]: 1 - 3000 - Rapid traverse X/Z [mm/min]: 8000 - Quill diameter [mm]: 105 - Inner taper of quill [MK]: 6 - Quill stroke [mm]: 225 - Workpiece weights supported with tailstock [kg]: 1500 Options: - Fixed tailstock - Three- and four-jaw chuck - Face plate - Chuck flange - Hydraulic tailstock quill - Power chuck - Turret head with turret disk - Drill rig with boring bar - And much more

Condition: used, Year of construction: 1992, functionality: fully functional, turning height: 1,500 mm, workpiece weight (max.): 130,000 kg, turning diameter: 6,500 mm, Technical Datas: Iaodpfx Ahsu R Euaoujl CNC-Control SIEMENS Sinumerik 880T Faceplate diameter 6.000 mm max. turning high 2,300 mm max. turning diameter 6,500 mm Ram 2 pieces Ram travel 1,000 mm Cross beam adjustment 800 mm Max. Table load 130 to Speed faceplate 0,56 - 63rpm Machine weight 180 to Power main motor 105 kW Dimensions L/W/H 16.500x10.600x5.500 mm Accessories: - 2 supports with live spindle 30 KW, 2160 rpm, with 2 gear stage. - Chip conveyor - cooling lubrication system
