Condition: excellent (used), Year of construction: 2019, Wittmann Battenfeld EcoPower 110/350 / All-Electric Machine / Operating hours: approx. 15,000 in automatic mode Year of manufacture: 2019 Injection Unit: Screw diameter: 35 mm Shot weight: 153.8 g Injection pressure: 2083 bar Dosage volume: 168 cc Clamping Unit: Clamping force: 110 t Tie bar spacing: 470 x 420 mm Platen size: 682 x 682 mm Ejector: electric Clamping unit: toggle lever Control system: UNILOG B8 - Touchscreen Additional features: Machine in excellent technical condition All-electric machine: energy-efficient and very quiet Operating hours: approx. 15,000 in automatic mode Total operating hours: 21,800 Euromap 67 Robot interface Air valve x 1 Gbodpfszc Nuzex Aagjn Hydraulic core pull x 1 Hot runner control system Injection unit is wear-resistant and corrosion-resistant Central lubrication Dimensions: Weight: 4,800 kg Length/Width/Height: 4.91 x 1.42 x 2.10 m All machines offered are started up by our service technicians prior to sale. It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our facility in Łódź. Price: On request

Condition: excellent (used), Year of construction: 2017, Wittmann Battenfeld EcoPower 110/350 with the Wittmann W818 robot / Electric machine / Operating hours: approx. 16,000 in automatic mode Year of manufacture: 2017 Injection unit: Screw diameter: 35 mm Injection weight: 153.8 g Injection pressure: 2083 bar Dosing volume: 169 cc Clamping unit: Clamping force: 110 t Bar spacing: 470x420 mm Size of the clamping plates: 680x660 mm Ejector: electric Clamping unit: toggle lever Control: UNILOG B8 - touchscreen Additional equipment: Perfect technical condition Gsdpjzc Nuusfx Aagsbn Electric machine: high-speed, energy-saving and very quiet Operating hours: approx. 16,000 in automatic mode Euromap 67 Robot interface Control with Air valve Hydraulic core pull x 1 Control with hot runners Injection unit is wear-resistant and resistant to corrosion Central lubrication Automatic tool height adjustment Parallel movements The machine was serviced in Germany Robot Wittmann W818 Year of manufacture: 2015 4-axis robot: 3 axes are driven by servo motors (electric); axis C - pneumatic Travel paths in axes: X-420, Y-1200, Z-2000 Touch control panel The safety package for robots Robot with adapter, conveyor belt and protective housing Purchase of the robot and the conveyor belt for an additional charge Dimensions: Weight: 4800 kg Length/width/height: 4.91x1.42x2.10 m All machines offered are started by our service technicians before sale. It is possible to receive a video of the technical tests of the selected machine or to take part in live technical tests in our company in Łódź. Price: On request

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, conveyor belt length: 3,100 mm, conveyor belt width: 400 mm, total length: 3,100 mm, total width: 550 mm, total height: 900 mm, overall weight: 80 kg, power: 0.18 kW (0.24 HP), input voltage: 380 V, input frequency: 50 Hz, input current: 3 A, Equipment: type plate available, Aluminum frame conveyor belt 310x40cm 8m/min speed sorting belt conveyor Godoydp Tgjpfx Aagsbn mobile aluminum frame horizontal conveyor belt for sale in excellent condition length: 3100mm belt width: 400mm full width: 480mm speed: 8meters/min drive: geared motor 0.18kw 50Hz belt material rubber fabric green color. frame material aluminum profile. height: 820mm adjustable/tilting legs braked wheels.

Condition: not inspected (used), Year of construction: 2014, Cooling capacity: 10.1 kW Flow rate: 5,000 L/h Weight: 180 kg The unit is ready for immediate shipment and is available immediately! Gbsdpfx Aajy Nif Iegen

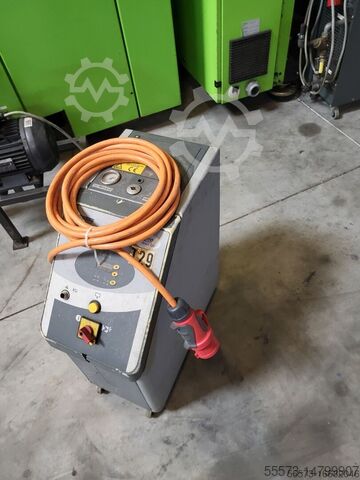

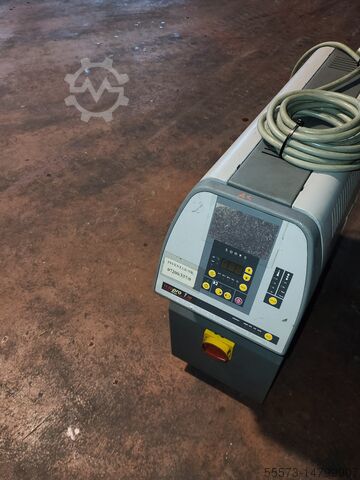

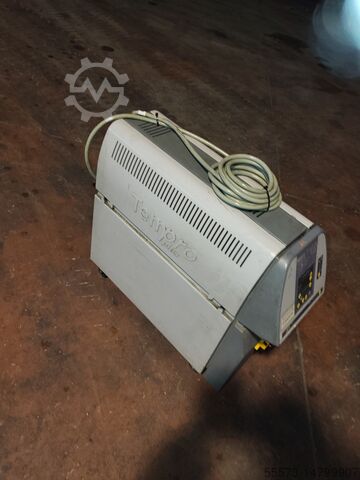

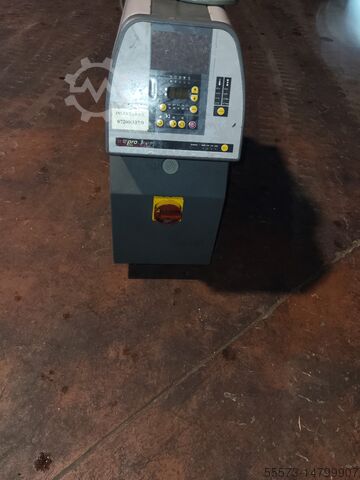

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, overall weight: 50 kg, type of input current: three-phase, power: 12 kW (16.32 HP), year of last overhaul: 2026, Type: TP-DIRECT: 120 Gsdpfx Asy Uvwbsagsbn Power: 12 kW Maximum operating temperature: 120 °C Medium: Water Temperature control unit Three units available Price: 700 EUR per unit

Condition: excellent (used), Year of construction: 2015, Number of axis: 3 X- 580 mm Y- 1000 mm Gbodpoy Ud Hdjfx Aagen Z- 1500 mm Reach: 1500 mm Payload: 3 kg Possible buy with rotary unit Gimatic OFN30-90SD or rotary unit Gimatic RBT30

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 138337-100, clamping force: 9,000 kN, screw diameter: 105 mm, injection pressure: 1,931 bar, ejector stroke: 300 mm, opening stroke: 2,100 mm, TECHNICAL DETAILS Screw diameter: 105 mm Screw stroke: 525 mm Screw L/D ratio: 22 Theoretical shot volume: 4,545 cm³ Injection pressure: 1,931 bar Maximum screw speed: 167 rpm Maximum plasticizing rate: 151 g/s Gbsdpfx Ajy T Hprjagsn Screw torque: 8,000 Nm Nozzle travel / nozzle thrust force: 950 mm / 129 kN Injection volume flow rate: 725 cm³/s Injection volume flow rate with double pump (option): 906 cm³/s Air injection volume flow rate with tank (option): 1,812 cm³/s Cylinder heating capacity: 53.9 kW Number of heating zones: 7 Clamping force: 9,000 kN Maximum opening stroke: 2,100 mm Min./Max. tool height: 500 – 1,000 mm Platen size: 1,720 x 1,550 mm Tie bar spacing: 1,200 x 1,000 mm Ejector stroke: 300 mm Ejector force: 165 kN Tool opening force: 300 kN MACHINE DETAILS Pump output: 90 kW Heating capacity: 53.9 kW Oil tank volume: 1,100 l Dimensions & Weight Machine dimensions (L x W x H): 10,100 x 3,400 x 2,700 mm Weight: 35,200 kg

Condition: excellent (used), Year of construction: 2018, 🔧 *M028 — Wittmann Battenfeld Wittmann Battenfeld MACROPOWER 700 / 2250* (2018) Gedpfoy Tn Dkjx Aagjbn 📐 *CLAMPING UNIT* • Clamping force: 700 T • Coining: YES • Max mold weight: 10000 kg • Max mold weight per plate: 6600 kg • Size between bars (WxH): 1100x950 mm • Min mold height: 450 mm • Max mold height: 950 mm • Max stroke open: 1850 mm • Centering ring FIX / MOVE: 200 / 200 mm • Fast clamping system: NO 🔌 *MOLD INTERFACE* • Heating zones: 24 (16 pin TC, 16 pin PW) • Water cooling circuits: 18+6 • Hydraulic circuits (cores): 2+2 • Hot runner sliders hydraulic (nozzles): 12 • Hot runner sliders pneumatic: 7 💉 *INJECTION UNIT* • Screw diameter: 65 mm • Nozzle face + thread: R??+M30x2 • Injection unit type: 2250 • Screw stroke: - mm • Max injection capacity: - cm³ • Max injection pressure: 2070 Bar • Max injection rate: 422 cm³/s • Accumulator SW / HW: NO / NO ⚡ *ELECTRICAL / ROBOT* • Mold ejector clamp: YES • Sockets 400V/16A: 4 • Sockets 400V/32A: 5 • Sockets 400V/63A: 0 • Robot type: Linear • Quick connector gripper: WGS-QLRD Midi • Vacuum ports: 3 • Air pressure ports: 4 • User inputs / outputs: 0 / 0 \+ Robot Wittmann W833PRO-0469 (X-900, Y-1800, Z-3000, Payload: 10,6 kg) \+ conveyor Belt with cage

Condition: ready for operation (used), Year of construction: 2010, A modular bucket filling and lidding system Wittmann Robot Systeme is available. Components: bucket stack feeding, bucket stack transfer unit, bucket singulation, rake and filling, stopper, lid feeding, lidding, lid inspection and rotation for the further conveying processes. Number of formats: 6, format distribution round/rectangular, round bucket diameter: 226mm, round bucket height: 194mm, min. rectangular bucket dimensions X/Y/Z: 195mm/299mm/170mm, max. rectangular bucket dimensions X/Y/Z: 302mm/415mm/220mm, bucket volume: 5l/6l/10l/11l/16l. Including the corresponding conveyor units and motors. Documentation available. An on-site inspection is possible. Gbjdpfxjy N Ddle Aagjn

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, conveyor belt length: 2,000 mm, conveyor belt width: 500 mm, 2000 x 500 mm Gjdpfx Aoy N A Rdeagsbn
