Welding table equipment

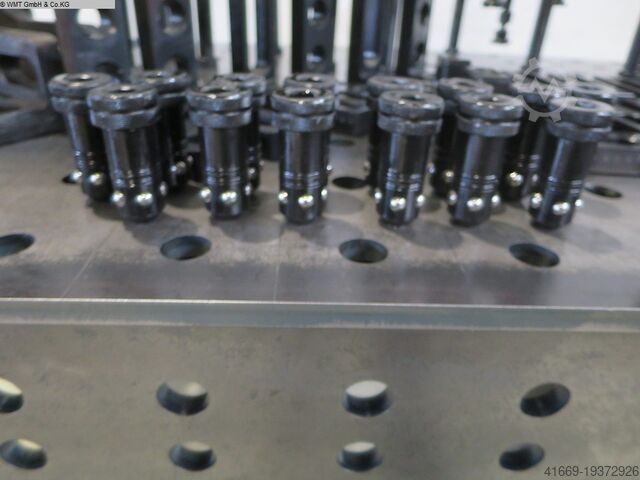

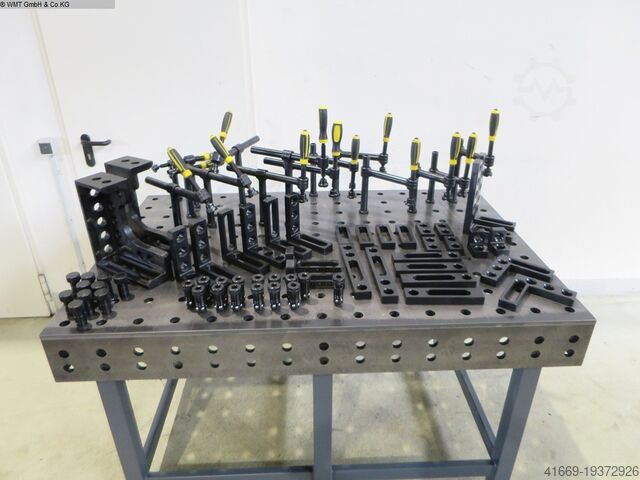

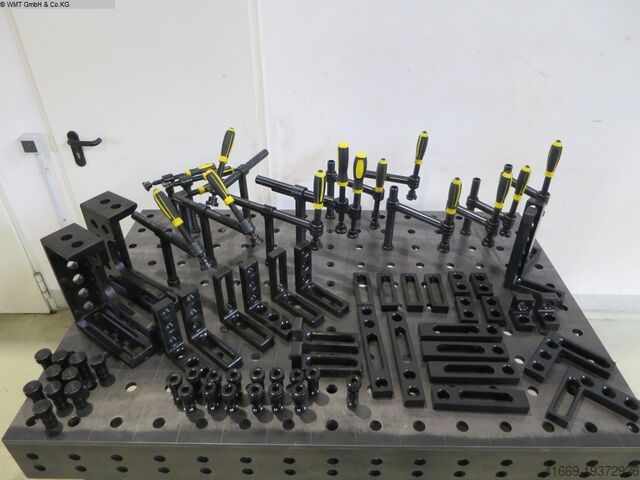

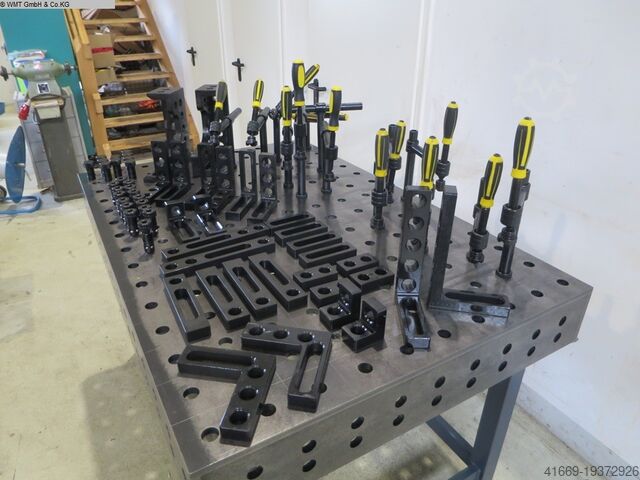

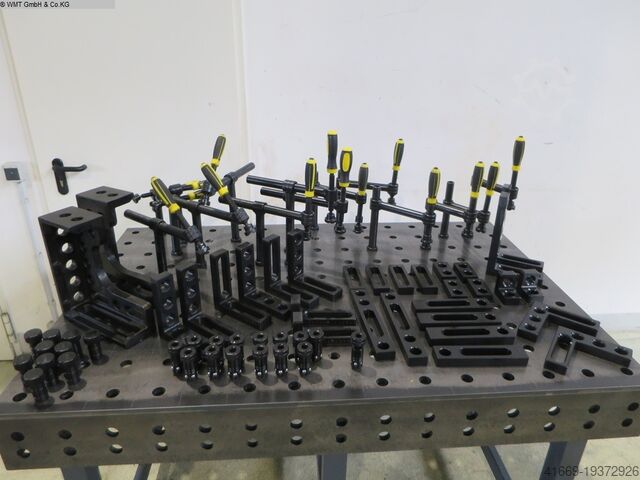

WMT Basic-Set 7 - 70-teilig

Condition: new, Year of construction: 2025, table length 1000 mm table width 2000 mm table height 200 mm weight 650 kg Manufacturer: GERD WOLFF Technical Details: • Length 2000 mm • Width 1000 mm • Height 200 mm • Weight 650 kg • Hole diameter 28 mm • Hole spacing 100 mm • Plate thickness: 25mm Advantages and Features: • 3-day gas nitriding process • Increased corrosion resistance • Weld spatter adhesion protection • Maximum load capacity • Enhanced fatigue strength • Improved vibration resistance • Fine scale engraving • Reinforcement with welded seams and ribs on the underside • Optimal working height of 820-865 mm • 4 height-adjustable support legs • Available with a matching accessory set (optional) Our welding tables are manufactured using HT 300 cast iron and are nitrided as a whole after mechanical processing. Furthermore, they feature precise fine scale engraving using laser technology. To ensure adequate stability, our welding tables are reinforced with welded seams and ribs on the underside (see illustrations). Additionally, they undergo a 3-day gas nitriding process, enhancing their corrosion resistance, fatigue strength, and vibration resistance, among other factors. Pjdpfx Aouia Naec Herf All our tables come with adjustable legs. The minimum height adjustment range is 620 mm, while the maximum is 665 mm, allowing for a variable working height of 820 to 865 mm. Additional available dimensions: • 1000 x 1000 x 200 • 2000 x 1000 x 200 • 1200 x 1200 x 200 • 1500 x 1000 x 200 • 1500 x 1500 x 200 • 1500 x 2000 x 200 • 2000 x 3000 x 200 • 3000 x 1500 x 200 • 3000 x 2000 x 200 • 4000 x 2000 x 200 • 2400 x 1200 x 200 Please note that the images are not to scale and are for illustrative purposes only. Our welding tables are produced for our distribution brand "GERD WOLFF Maschinenfabrik" by a reputable manufacturer. 3D Welding Table - 3D Clamping Fixtures - 3D Precision Welding Table

Condition: new, cutting diameter 170 mm dimensions of saw-band 2080 x 20 x 0,9 mm table height 880 mm cutting speed 40 + 80 m/min 170 mm 125 mm Psdpfx Acsg Trvrs Herf 150 x 190 mm 95 x 120 mm total power requirement 1,1 kW weight of the machine ca. 0,24 t Dimensions (LxWxH) 870 x 1.550 x 1.740 mm mm This metal band saw comes with a closed worm gear. It also has hydraulic pressure control and a base frame that can be rotated through 45 degrees. Other features include emergency stop, the complete cooling system, the factory base frame, automatic switch-off and the quick-release device.

Condition: new, AXA 360° swivel cantilever crane Max capacity : Kg 500. Max height : mm 2804. Max overhang : mm 1360. Easily maneuverable due to 360° rotation and high load capacity pivoting wheels with bumper supports and parking brakes. Due to the frontal footprint of only 995mm, it can be used in aisles and confined spaces. The lifting arm is extendable in 4 different positions. Prodogypgdepfx Ac Hef

Condition: used, Pappschere - Board Cutter Wilhelm Leo'S Nachfolger 19030Serial-No. WLNS Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Psdpfxoh Axtls Ac Herf Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test

Condition: used, Year of construction: 1988, Technical details: throat: 138 mm plate thickness: max. 1,12 mm infeed height: 1125 mm voltage: 380 V total power requirement: 0,25 kW weight of the machine ca.: 0,149 t dimensions L x W x H: 0,9 x 0,6 x 1,4 m -application: bending of beads / flanging -shaft distance max./min.: 65 / 52mm manually adjustable via handwheel -currently beading tool Ø 8mm built in -stop plate 130mm adjustable Prodpfsu Icvijx Ac Hsf operation at the control box and via foot switch The machine is mounted on a steel construction. *

Condition: good (used), for maximum sheet thickness: 0.8 mm Fold height adjustable: 35 - 60 mm Prodpfx Aefny H Njc Hof 4 opening and closing Locking lever Drive motor: AC 220 V, 0.8 kW Space requirement: 500 x 250 x 380 mm Weight: 55 kg

Condition: good (used), beading machine, hand beading machine, flanging machine, seam closing machine, manual beading machine Pjdpfx Acjcmtntj Herf -max. sheet capacity: 1.0 mm -Projection: 200 mm -Tool holder: Ø 24 mm -Stop plate: adjustable -Dimensions: 750/700/H1500 mm -Weight: 120 kg

Condition: new, sheet width 610 mm plate thickness 1,0 mm distance between columns 620 mm diameter of upper rolls 38 mm total power requirement Handbetrieben weight of the machine ca. 40 Kg dimensions of the machine ca. 950 x 270 x 360 mm Sheet bending machine with: - Capacity 1050 x 2 mm - High strength wrought iron rollers with SAE 1050 certificate. Prodpfoupxi Tsx Ac Hjf - Footswitch - conical bending - Swiveling top roller - Safety device emergency leash - Documentation - 400 volts - CE certificate

Condition: new, plate width 1500 mm plate depth 1500 mm plate height 600 mm weight 2265 kg GERD WOLFF clamping cube 1500 x 1500 x 600 mm Also available in 800 mm version (H1154). If you cannot find your desired size, simply send us an email with the completed PDF form. We can then provide you with a custom plate tailored to your requirements. T-slot size: 38 x 22 T-slot spacing: 140 Number of slots: 13 Edge distance: 120 Weight: 2265 kg Casting quality HT250 Psdpovu Hmnjfx Ac Hjrf Flatness less than 0.12 mm Surface machined according to DIN 876/II Clamping cube, Cubic clamping table, Multi-sided clamping, Angle clamping cube, Precision cube, CNC clamping cube, Clamping angle, Machine cube, 90-degree clamping device, Drilling cube, Modular clamping cube, Workpiece positioning, Mounting cube, Fixing cube, Clamping block

Condition: new, power: 90 kW (122.37 HP), fuel type: electric, overall weight: 1,450 kg, number of seats: 2, total width: 1,590 mm, total height: 1,930 mm, Year of construction: 2023, ++ RENT ++ BUY ++ RENT ++ BUY ++ RENT ++ BUY ++ Internal Number: #ECarry Chassis This ECarry chassis is the ideal foundation for municipal applications, urban logistics, refuse vehicles, tippers, flatbed bodies, box bodies, or special solutions. Featuring a fully electric drive, a payload of up to 3,500 kg (depending on configuration), peak output of 90 kW, an extremely compact turning circle, and a range of up to 250 km, this chassis maximizes flexibility for customized bodies — emission-free, powerful, and future-proof. Standard Equipment - Low-floor driver’s cab (standard) - 7.4 kW charging unit (standard) - Regenerative braking mode (standard) - Handbrake with drive-off prevention sensor (standard) - Adjustable seats with headrests (standard) - Driver presence monitoring (standard) - Heated windscreen (2-zone) - LED exterior lighting (standard) - Automatic heating system Eberspächer (standard) - Cruise control (optional) - Air conditioning (optional) Performance - Homologation: N1 - Maximum speed: 80 km/h - Unladen chassis weight (without batteries): Permissible gross weight 1,450 kg - Payload: 3,500 kg - Turning circle/radius: 12 m Dimensions - Length: 5,640 mm - Width: 1,590 mm - Height: 1,930 mm - Cab ground clearance: 380 mm - Front overhang: 1,800 mm - Max. gradient (laden): 80% - Seating: 2 Driveline - Rear-wheel drive 4x2 - Rear axle reduction with differential - Final drive ratio: 12:01 Brakes - Hydraulic braking system - Power brake booster (standard) - ABS (standard) Motor - Permanent magnet motor - Voltage: 350V DC - Peak power: 90 kW - Rated power: 60 kW - Max torque: 380 Nm Suspension - Front axle: leaf suspension - Rear axle: leaf suspension - Wheel/tyre size: 225/75 R16 C Battery Podpfx Acjxc Szps Hsrf - Lithium 35 kWh - 35 kWh battery module, chassis configurable with either 1 or 2 batteries - Range up to 250 km - Battery weight: 295 kg The ECarry chassis provides a versatile, emission-free platform for custom body solutions of all kinds. With a payload of up to 3.5 t, 90 kW peak power, optional second battery, and excellent maneuverability, it is perfectly suited for municipal services, urban operations, factory logistics, and special vehicle construction. Ideal for businesses seeking a modern, high-performance, and flexibly configurable e-commercial vehicle chassis.
