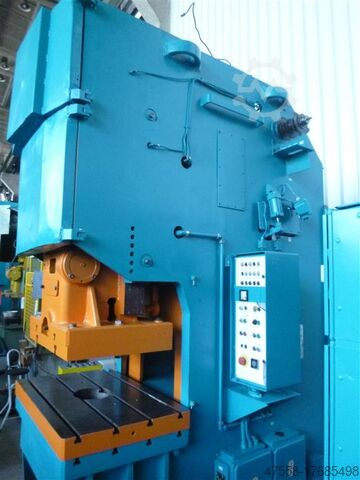

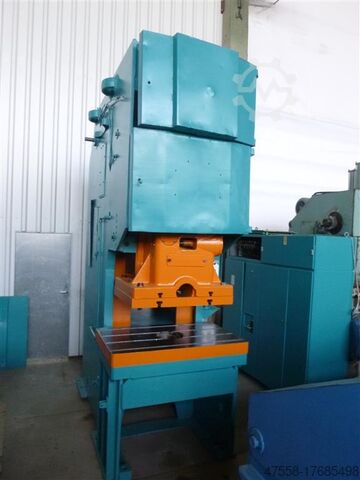

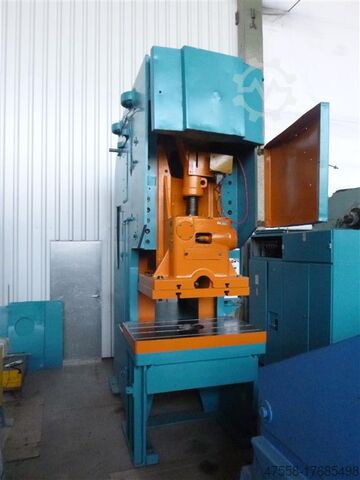

Eccentric Press - Single Column

WMW ERFURT PEE 160-III

Condition: used, rated capacity 23 kW rated current 43 A Pgedpfeucgnisx Airjt voltage 400 V For sale is an electrical control cabinet, which originally belonged to the a single-column eccentric press, make Erfurt, type PEE III/160

Condition: ready for operation (used), Pressing force: 1600kN, throat depth: 450mm, installation height: 560mm, ram stroke: 8-160mm, controls: SCHMERSAL SEPG 05.3.2.0.22/ 95, weight: 16.2t, including documentation. Pgedpfx Aiehz Ua Ssret

Condition: used, Single-column – Eccentric press WEINGARTEN Type EV 63 Machine No. 738 / 61 Year of manufacture 1962 Pressing force 63 tons Stroke 260 mm Table area 630 x 530 mm Table opening Ø 210 mm Slide area 315 x 260 mm Pgsdpfxjk S Htxo Airet Adjustable slide stroke 8-100 mm Slide adjustment 63 mm Tool holder bore Ø 40 mm, with clamping piece Installation height max 450 mm Stroke rate 115 strokes / min Compressed air requirement min. 4.5 bar Motor power 4 kW Power connection 380 Volt, 50 Hz Table height above floor approx. 750 to 900 mm - Electrical stroke release via foot switch or two-hand control - Overload protection by shear plate - Clutch-brake combination by WEINGARTEN friction-thread clutch with top dead center through-drive protection - Front crankshaft support bearing - Press table adjustable in height via 2 threaded spindles - Manual centralized lubrication - Control cabinet positioned beside the press - UVV (German trade association for accident prevention) for manual feeding operations Space requirement L x W x H 1750 x 1600 x 2430 mm Weight 4.5 tons Good condition

Condition: used, Year of construction: 1991, Pressing force 1,500 kN Adjustable stroke 20 - 132 mm Ram adjustment max. 90 mm Psdpfxjrm Nqmj Airogt Stroke rate 50 / 75 strokes/min. Further data and images available upon request Used, the press was completely disassembled Not operational and requires mechanical and electrical overhaul Press is currently mechanically reassembled

Condition: used, Year of construction: 1976, pressure 100 t throat 315 mm stroke 8 - 112 mm table surface area 725 x 570 mm ram surface 410 x 315 mm ram adjustment 80 mm no. of strokes 55 / 82 Hub/min tool shank hole (depth x diameter) 85 x 50 mm Pedpfeugnpiox Airogt dayligth 355 mm total power requirement 7,5 kW weight of the machine ca. 6 t dimensions of machine L x W x H 2,00 x 1,00 x 2,87 m

Year of construction: 1978, condition: used, pressure 80 t throat 280 mm stroke 8-112 mm no. of strokes 55 / 82 Hub/min ram - range of adjustment 80 mm table surface area 800x570 mm ram surface 560x355 mm hole in the table Ø 280 mm table height 800 mm tool hole in ram Ø 50 mm total power requirement 7,5 kW Psdpfx Aislp U Ddoregt weight of the machine ca. 6 t dimensions of the machine ca. BxTxH 1600x2200x3000 mm

Year of construction: 1966, condition: used, pressure 100 t throat 410 mm stroke 8-112 mm Pgjdpjlp U D Eofx Airet no. of strokes doubel-strokes per min. 55 / 82 ram - range of adjustment 80 mm table surface area 950 x 700 mm ram surface 700x450 mm hole in the table Ø 280 mm table height 850 mm tool hole in ram Ø 50 mm weight of the machine ca. 7,0 t dimensions of the machine ca. 1400x2200x2800 mm

Condition: new, Year of construction: 2026, functionality: fully functional, Eccentric press 160t / 1600kN Pgsdpfx Aowir U Ejirst Siemens 1200 PLC Adjustable stroke 16–160mm Ram adjustment 100mm Ram plate 740 x 420mm Ram plate thickness 100mm Table plate 1250 x 700mm Table plate thickness 180mm Motor 15kW Weight 16,000 kg For new machines, delivery time approx. 4–5 months.

Year of construction: 1977, condition: used, pressure 100 t Pgodpfjlp U Dajx Airst throat 410 mm stroke 8-112 mm no. of strokes 55/82 Hub/min ram - range of adjustment 80 mm table surface area 950x700 mm ram surface 700x450 mm hole in the table Ø 280 mm table height 800 mm total power requirement 11 kW weight of the machine ca. 7,5 t dimensions of the machine ca. BxTxH 1600x2200x3000 m

Year of construction: 1970, condition: used, pressure 100 t throat 415 mm stroke 8-140 mm no. of strokes 48 Hub/min ram - range of adjustment 80 mm Pgjdpfx Aielp U Sperot table surface area 920x670 mm ram surface 700x450 mm table height 800 mm tool hole in ram Ø 50 mm weight of the machine ca. 8 t dimensions of the machine ca. BxTxH 1500x2000x2800 mm
