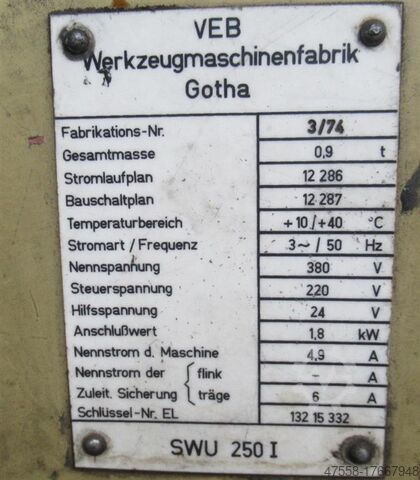

Tool and Cutter Grinder

WMW GOTHA SWU 250 I

Condition: used, machine/vehicle number: 7979, Table Ø: 400 mm Kdjdpfsb Ez R Uox Afdsk Table with 8 T-slots: 12 mm Overall height: 175 mm Space requirement: 600 x 450 x 175 mm Weight: approx. 100 kg

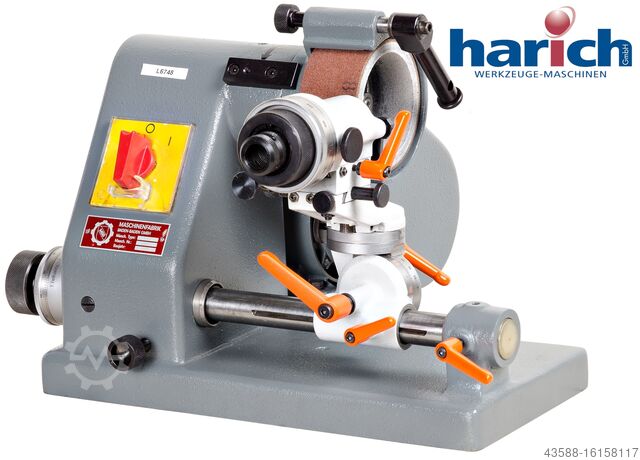

Condition: refurbished (used), Year of construction: 1988, Graver grinding machine Make: Maschinenfabrik Baden-Baden Model: FSS Year of manufacture: 1985 - overhauled, repainted RAL7012 basalt gray, RAL 7035 light gray Machine no.: 2992 Kedetqdqgjpfx Afdjdk Warranty: 12 months single layer from delivery, on the mechanics overhauled by us. The electrics and electronics are excluded, as they have only undergone a functional test. For machines located outside our northern Bavarian sales area, travel costs are to be borne by the customer. Accessories: - Grinding wheel with flange - Operating instructions incl. new electrics On/off switch in new housing with undervoltage coil to realize the restart protection z. e.g. in the event of a power failure or if the mains plug is pulled out Used as seen The machine corresponds technically the state of the year of manufacture at that time.

Condition: excellent (used), Horizontal Gear Hobbing Machine Kdjdpfxoyr S Upo Afdjk Manufacturer: WMW HECKERT Model: ZFWVG 250x2000 VEB Fritz Heckert ZFWVG 250×2000 Max. workpiece length: 2,000 mm Max. workpiece diameter: 250 mm Accessories: second milling head, hobs for various modules, steadies, clamping devices, etc.

Condition: good (used), Clamping plate with T-slots and cross table, plate field, welding table, welding table, plate boring machine, T-slot plate, pallet changer, pallet changing system -Clamping plate: with T-slots and clamping devices, comes from a CNC machining center -Width: 500 mm Kedpfxog Si I Io Afdjdk -Length: 400 mm -Groove width: 14 mm -Groove spacing: 65 mm -Dimensions: see technical drawing in the photos -Clamping devices: see photos -Dimensions total: 400/500/H310 mm -Weight: 86 kg

Condition: used, Year of construction: 1997, max. wheel diameter 215 mm gear width 40,65 mm max. module total power requirement 20 kW weight of the machine ca. 10 t Kjdpfx Afjt Hwxhsdodk Max. external Ø of workpiece 215 mm Tooth profile, height x width 16 x 40.65 mm No. of teeth 5 - 200 Max. tooth ratio 1 : 10 Grinding wheel Ø 51 - 190 mm Grinding wheel speeds 1,000 - 6,000 rpm X Axis (horizontal) 152 mm Y Axis (vertical) 178 mm Z Axis (slide base plate) 304 mm Distance from middle of machine to middle of workspindle 115 mm Axial speed 125 mm/sec Workpiece speeds 0 - 30 rpm Workspindle bore, conical 3 29/32 inch Total electrical load 20 kW - 380 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features * FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters. * Extensive coolant equipment with filter system, band filter, etc. * Driven grinding wheel dressing device with CNC dressing control for automatic compensation of form and diameter after every dressing. * Gear grinding is effected either in single component operation using a conical cup wheel (Gleason 30°), or with a cylindrical cup wheel. These grinding wheels can be made of CBN, or of traditional "dressable" aluminium oxide material (question of cost). Grinding with a conical grinding wheel is of advantage with regard to heat build-up and quality of tooth contact pattern. Therefore these pairs of bevel gears (for automotive industry) can be generated in high quality with consistent accuracy, economically, and with short set-up times. Condition : Very good - machine can be inspected here under power Delivery : Ex stock, as inspected Payment : Net, after conclusion of contract Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.

Condition: excellent (used), functionality: fully functional, WMW Germany GFL-400 x 1000 mm Thread Milling Machine Manufacturer: WMW (Germany) Model: GFL-400 Centre Height: 205 mm Maximum Workpiece Length: 1000 mm Maximum Workpiece Diameter over Cross-Slide: 200 mm Kdjdjytirnopfx Afdok Maximum Swing Diameter over Bed: 400 mm Cutter Speeds: 55 rpm to 250 rpm Maximum Cutter Diameter: 100 mm Spindle Bore: 80 mm - Suitable for thread milling, worm milling, and spline milling. - Also capable of gear hobbing and spline hobbing. - Supplied complete with change gears, index plates, arbors, and additional accessories. - The machine is in excellent working condition.

Condition: excellent (used), functionality: fully functional, Gear hobbing machine ZFWZ 800x10/1 Year of manufacture: 1983 The machine is dismantled and in good condition. Specification: Max. workpiece diameter: 800 mm Max. gear width: 410 mm Kjdpfoytimlex Afdjdk Max. module: 10 Max. hob diameter: 195 mm Table diameter: 700 mm Table speed range: 40-280 rpm Power capacity: 12.5 kW Voltage/Frequency: 220/50 V/Hz Axial feed: 0.2-8 mm/min Radial feed: 0.1-2 mm/min Tangential feed: 0.1-2 mm/min Weight: 9 tons

Condition: good (used), Four-jaw chuck, four-jaw lathe chuck, 4 jaw chuck -Manufacturer: Röhm, four-jaw chuck Ø 200 mm -Passage: Ø 55 mm -Bolt circle: Ø 133 mm -Mounting: Short taper 6 / cone 103 - 105 mm short taper flange with Camlock fastening -Accessories: incl. 2 sets of interchangeable jaws and clamping tool -Dimensions: Ø200 x 185 mm -Weight: 24 kg Kdodpfxjtxklyj Afdek

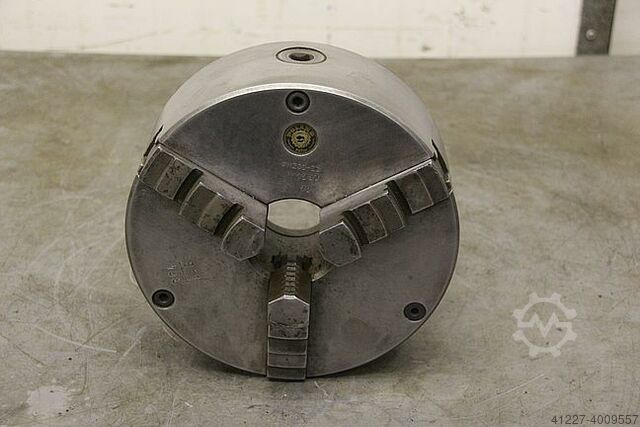

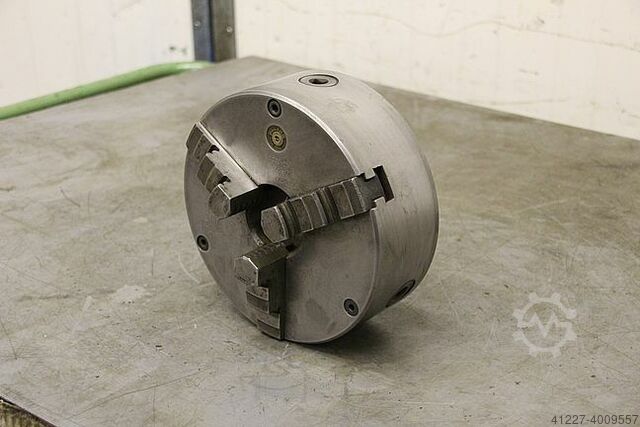

Condition: used, Three-jaw chuck, 3-jaw chuck Kdsdjd Inwzspfx Afdek -Chuck size: Ø 200 mm -Passage: Ø 54 mm -Rezess: Ø 159 mm -Hole circle: 175 mm -Weight: 13.5 kg

Condition: ready for operation (used), Year of construction: 1994, functionality: fully functional, turning diameter: 1,600 mm, turning length: 3,500 mm, center height: 800 mm, spindle bore: 100 mm, faceplate diameter: 1,250 mm, Equipment: documentation/manual, For sale: 1 used facing and center lathe Manufacturer: Werkzeugmaschinenfabrik Zerbst GmbH Model: DP1 / S3 x 3500 Year of manufacture: 1994 Technical data: Maximum turning diameter over bed: 1,600 mm Distance between centers: 3,500 mm Spindle bore: 100 mm Face plate diameter: 1,250 mm Total machine weight: approx. 24.8 t Includes documentation. Additional pictures and videos can be provided upon request. Kdsdpfxeyvt H Ae Afdsk The following work has been performed on the machine over the past four years: - Tailstock completely overhauled at the end of 2022. New bearings, new center, and lubrication. - Cross slide refurbished in 2024. - Gibs reconditioned with new slideways; scuff marks on guideways smoothed by scraping. - Spindle bearing seats eased, gibs scraped on contact and slideway surfaces. - Lubrication pump cleaned and repaired, lubrication system made fully functional, some metering valves replaced, and new guideway wipers fabricated. The machine can be inspected at our warehouse in 09599 Freiberg by arrangement.
