Indexing Device

WMW HECKERT

Condition: excellent (used), Year of construction: 2008, Control system: Siemens 840-D Travel X: 1450 mm (longitudinal) Travel Y: 1100 mm (vertical) Z travel: 1300 mm Pallet size: 800 x 1000 mm Table load: 2000 kg NC rotary table with direct drive Positioning: 0.001° Max. Max. speed of the rotary indexing table: 60 rpm Rapid traverse: 60 m/min Spindle motor: 50 KW (25%) / 28 KW (100%) Spindle torque: 1210 NM / 680 NM Spindle speed: 6000 rpm Spindle taper: HSK 100 Tool changer: 80 places Max. Tool diameter: 325 mm Kodevgxfyepfx Afdodk Max. Tool length: 800 mm Max. Tool weight: 35 kg Workpiece diameter: 1600 mm Workpiece height: 1400 mm Workpiece weight: 2000 kg Coolant through spindle Coolant shower Tool breakage detection in the tool changer Spindle motor load monitoring Spindle extension by 100 mm Electronic handwheel Machine is supplied with many tools

Year of construction: 1990, condition: ready for operation (used), Speed: 355-1800/min, nominal voltage: 380V, 50Hz, 3 AC, control voltage: 220/24V, protection class: IP54, nominal current: 100A, control: Heidenhain TNC 355, weight: 2.95t, with handwheel, coolant system, hose nozzle, hydraulic/lubrication unit, pressure accumulator/ hydraulic accumulator, solenoid valves, Bosch components and ORSTA directional control valve. An on-site inspection is possible. Kdsdpfjy D Trhjx Afdjk

Condition: used, Guideway and surface grinding machine WMW FRITZ HECKERT Aschersleben type SZ 1000 x 1250 x 3000 / 344 make no. 13.2236.2 year of construction 1989 nominal grinding area 3000 x 1250 mm table clamping area 3240 x 1000 mm grinding length max. 3300 mm Machining width 1250 mm Machining height 1250 mm grinding wheel diameter (surface grinding support) max. 600 mm grinding wheel width (flat grinding support) max. 100 mm grinding wheel diameter (swivel support) max. 450 mm Kodpfehv A A Dox Afdodk Mains connection 400 Volt, 50 Hz - grinding support swiveling, drive power 16,5 kW, infinitely variable speed - grinding support for surface grinding, drive power 15 kW, infinitely variable speed - new electrical control, based on SIEMENS S7 from year 2001 - new electric control cabinet beside, year of construction 2001 - infinitely variable grinding wheel speed at both grinding supports - swiveling wheelhead for guideway and profile grinding - swivel-mounted and height-adjustable control panel - coolant system adjacent - Hydraulic system adjacent - oil circulation lubrication adjacent - Various grinding wheels and holders space requirement complete L x W x H 11900 x 7700 x 4600 mm weight 45 ton. very good condition

Condition: good (used), Year of construction: 2011, travel distance X-axis: 650 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 680 mm, Tool holder: HSK 63 Kdedpfsy Ddmcex Afdok Turning spindle: 85 Spindle speeds: 20,000 rpm Chain magazine: 60 positions Chip conveyor Pallet changer Coolant filter unit High-pressure coolant through spindle

Condition: good (used), WMW BR 40/2 x 1250 radial drilling machine Drilling capacity in steel (diameter): 60 mm Arm reach: 1250 mm Max. workpiece height: 820 mm Spindle speed: 20-1200 rpm Spindle taper: MK 5 Spindle stroke: 400 mm Ksdpjx U Ectofx Afdedk Feed rate: 0.063-0.63 m/min Vertical arm adjustment: 950 mm Electrical connection: 380 / 50 V / Hz Clamping surface of base plate: 1400x800 mm Total power requirement: 5 kW Machine weight approx.: 3 t Floor space required approx.: 2.2 x 1.0 x 2.8 m

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Workpiece Clamping & Table: • Pallets according to DIN 55201, maximum load capacity 5,000 kg • Tilting moment: 50,000 Nm • Rotary table: 10 rpm, resolution 0.001°, tangential moment (clamped): 25,000 Nm Pallet & Tool Changer: • Automatic pallet changer for 3 pallets, changeover time 47 s Kdodjyzr Ayspfx Afdok • Automatic tool changer, chip-to-chip time: 13 s • Tool weight up to 15 kg • Drum magazine with 320 storage slots (4 drums), max. tool diameter 250 mm, max. length 450 mm, max. weight 35 kg Travel & Feed Rates: • Feed range: 1–40,000 mm/min • Rapid traverse: 40 m/min • Acceleration (x/y/z): 4 / 5 / 3 m/s² • Feed forces: max. 20 kN Main Spindle: • Spindle diameter: 100 mm • Speed range: 20–6,000 rpm (optional 10,000 rpm, 2-stage gearbox) • Tool interface: SK50 (DIN 69871), optional BT50 or HSK-A100 • Through-spindle coolant, max. 70 bar Coolant System: • Coolant unit with gravity fleece filter • Supply pressure: 10–70 bar, tank volume 3,400 l • Temperature stabilization and compensation for high precision • Optional: Sag and spindle expansion compensation, spindle warm-up program • Hinged belt chip conveyor (optional, with fleece or vacuum filter) • Connection to central coolant system possible Performance & Accuracy: • Continuous power consumption as per installation plan • Sound pressure level ≤ 80 dBA • Positioning accuracy (x/y/z): o Tp = 0.006 mm o Psmax = 0.005 mm o Umax = 0.004 mm General Data: • Net weight (complete): approx. 26,500 kg • Color scheme: Light grey RAL 7035 / Mouse grey RAL 7005 / Ruby red RAL 3003 • Operating voltage: 400 V / 50 Hz • Documentation in German language

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, For sale: this lathe. General overhaul completed in 2009. Swing diameter over bed: 1,000 mm Turning length: 5,000 mm Siemens Sinumerik 840D The machine is currently finishing a job and will be available at the end of January 2026. Kdedpfx Afsxxvqaodek

Condition: ready for operation (used), Year of construction: 2012, operating hours: 41,150 h, travel distance X-axis: 650 mm, controller manufacturer: SIEMENS, controller model: Sinumerik 840D sl, overall weight: 10,000 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 33,500 W, number of slots in tool magazine: 80, number of axes: 4, This 4-axis Starrag Heckert HEC 400 D was manufactured in 2012. It features a maximum spindle speed of 12,000 rpm and a tool magazine capacity of 80 tools, allowing for efficient machining operations. The machine includes two workpiece pallets with a size of 400 × 500 mm. If you are looking to get high-quality machining capabilities, consider the Starrag Heckert HEC 400 D horizontal machining centre we have for sale. Contact us for further details. • Temperature range: 5–35 °C • Operating hours: 41,150 hours • NCU type: NCU 710.2 • NC software version: V02.07.01.06 • MMC software: 07.06.02.02 • Standard software cycles: 07.05.11 • Working spindle speed (standard): 10000 rpm • Working spindle speed (option): 12000 rpm • Tool magazine type: Chain magazine • Workpiece pallets: 2 • Pallet size: 400 × 500 mm • Spindle torque (option): 200 Nm • Coolant pressure (option): up to 80 bar • Coolant tank capacity: 1350 l • Coolant flow (swivel shower): approx. 70 l/min • Axis measurement system: Heidenhain LC483 • Rotary axis measurement: Heidenhain RCN226 • Position frequency analysis X-axis: 29 Hz • Position frequency analysis Y-axis: 54 Hz • Position frequency analysis Z-axis: 52 Hz • Spindle + motor replaced: July 2025 Additional equipment • Vapour extractor: AFS 600 Kdsdpfx Asyzn Dgjfdok Technical Specification Taper Size SK 40

Condition: good (used), Year of construction: 2009, operating hours: 22,100 h, functionality: fully functional, HECKERT HEC 1250 ATHLETIC PINOLE For sale is a Heckert HEC 1250 Athletic Pinole horizontal machining center, year of manufacture 2009, currently in ongoing industrial operation. The machine is in exceptionally well-maintained condition and fully functional. It has undergone consistent preventive maintenance over the years. Documented maintenance was performed in 2012, 2014, 2016, 2017, 2018, and 2019. Documented inspections took place in 2021, 2022, and 2023. In 2025, the ZP-KGT was replaced. The machine has approximately 50,100 operating hours. The machine is equipped with a Siemens SINUMERIK 840D Solutionline control and is ideally suited for machining large and heavy prismatic workpieces. The combination of NC rotary table, quill support, SK50 interface, and large tool magazine makes the unit highly suitable for multi-sided machining, heavy-duty cutting, and complex machining tasks requiring minimal setups. Technical Data Manufacturer: Starrag Heckert Model: HEC 1250 Athletic Pinole Year of manufacture: 2009 Machine type: Horizontal machining center Control: Siemens SINUMERIK 840D Solutionline Potential total number of axes (according to documentation): 5 Travel X-axis: 2200 mm Travel Y-axis: 1500 mm Travel Z-axis: approx. 1850 mm Tool holder: DIN 69871 SK50 Tool magazine: 280 positions Max. tool length: 450 mm Max. tool diameter: 250 mm Kdsdpfxsx Syhrj Afdjk Max. tool weight: 35 kg Measuring probe: Renishaw MP10 Pallet system: 2-pallet system Pallet size: 1000 x 1250 mm Additional pallets (as per documentation): 4 pallets with threaded holes / T-slots Mains connection: TN-C, 3/PEN AC 400 V Rated current: 250 A Connected load: 130 kW Compressed air: 6 bar Operating hours: approx. 50,100 h Features Quill support NC rotary table 280-position tool magazine Renishaw measuring probe MP10 Oil pan Platform Coolant system Chip suction unit Documentation / operating manuals included Maintenance and history Documented maintenance: 2012, 2014, 2016, 2017, 2018, 2019 Documented inspections: 2021, 2022, 2023 2025: ZP-KGT replaced Availability Machine located in Augsburg Dismantling possible from 31.03.2026 Collection by 29.05.2026 Viewing by appointment Scope of delivery Machine as described Without tools Without additional spare parts

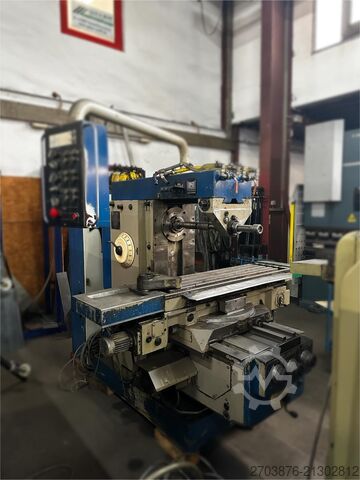

Year of construction: 1996, condition: ready for operation (used), Various CNC and conventionally controlled milling machines, make Fritz Heckert, are available. 1) Fritz Heckert FU 315/E, weight: approx. 4000kg. 2) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 3) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 4) Fritz Heckert FU 315 2/PS, weight: approx. 3900kg. 5) Fritz Heckert FU 315/E, weight: approx. 3200kg. 6) Fritz Heckert FW 400/E, weight: approx. 3700kg. 7) Fritz Heckert FU 315 x 12. 8) Fritz Heckert FU 315, weight: approx. 3100kg. An on-site inspection is possible. Kodpfx Asyyy Nrjfdodk
