Gear hobbing machine WMW

WMW

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 750 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 725 mm, controller model: SIEMENS Sinumerik 840D, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 750 mm Travel range, Y-axis: 750 mm Travel range, Z-axis: 725 mm B-axis: 360° Spindle interface: HSK 63A Spindle speed: 50-10,000 rpm Spindle drive power, 40/100% duty cycle: 37/24 kW Tool positions: 320 Feed rate: 60,000 mm/min Rapid traverse: 60 m/min MACHINE DETAILS Control system: SIEMENS Sinumerik 840D Machine weight: approx. 15,000 kg EQUIPMENT NC rotary table with B-axis Magazine for 320 tools Pallet changer, 2 pallets 500mm x 500mm Gjdpozi Edksfx Ahzeud Internal coolant supply (IKZ) (80 bar) Chip conveyor Coolant system

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 680 mm, controller model: SIEMENS Sinumerik 840D, spindle speed (max.): 24,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 650 mm Travel range, Y-axis: 650 mm Travel range, Z-axis: 680 mm B-axis: 360° Spindle speed (max.): 24,000 rpm Spindle taper: HSK 63A Tool positions: 80 MACHINE DETAILS Control system: Sinumerik 840D Machine weight: approx. 13,000 kg EQUIPMENT NC rotary table with B-axis Magazine for 80 tools Pallet changing system, 2 pallets 400 mm x 400 mm Gusdjzi Ealjpfx Ahzjd Internal coolant supply (ICS) Chip conveyor Coolant system

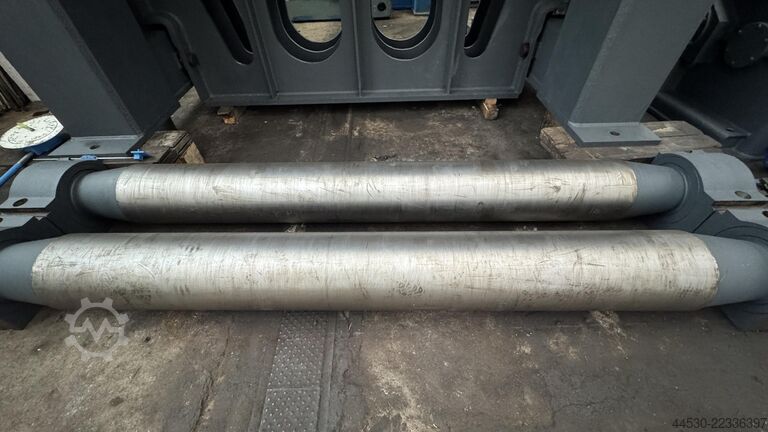

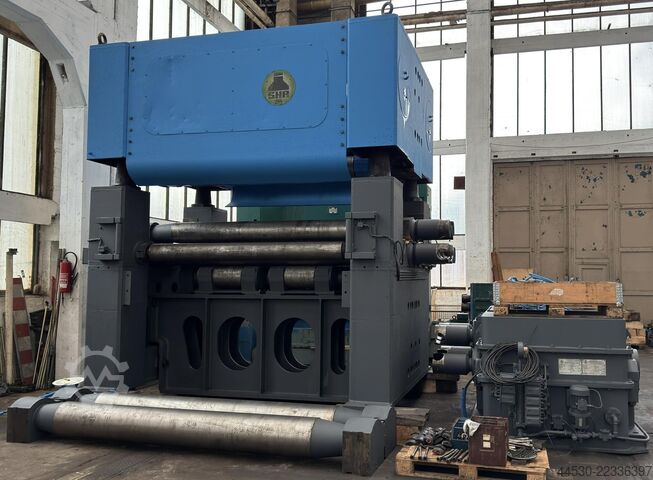

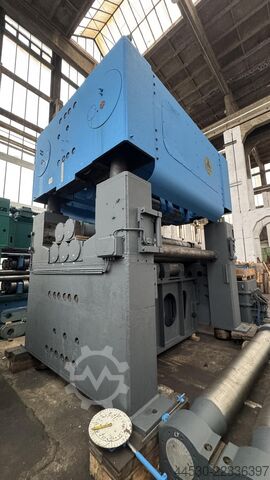

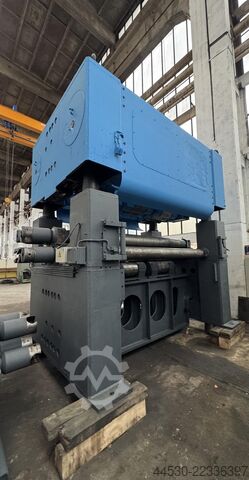

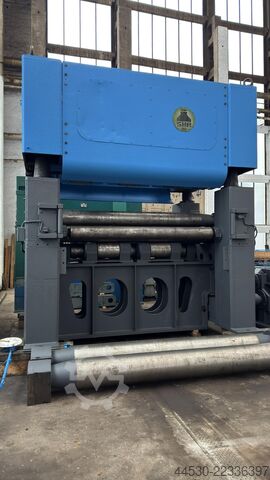

Condition: good (used), Year of construction: 1969, number of straightening rollers: 7, working width: 2,500 mm, sheet thickness (max.): 39 mm, max. sheet width: 2500 mm Convexity length of rollers: 2700 mm max. sheet thickness (St 50): 32 mm max. sheet thickness (St 34): 39 mm min. sheet thickness (St 50): 8 mm number of straightening rollers: 7 rollers number of driven straightening rollers: 5 rollers diameter of straightening rollers: 290 mm diameter of input/output straightening rollers: 345 mm number of support rollers: 13 diameter of support rollers: 288 mm stroke of upper beam: 120 mm Gjdpfx Aszly Rqehzoud Straightening speed: 16 m / min Rated power of main drive: 90 kW Total load: 138 kW

Condition: good (used), Year of construction: 1982, number of straightening rollers: 13, sheet thickness (max.): 10 mm, Year of construction / YOM: 1982/2024 Sheet width: 2000 mm Sheet thickness - max.: 10 mm Sheet thickness - min.: 3 mm Number of straightening rollers: 13 rollers Straightening roller diameter: 145 mm Straightening speed: 16 m/min Gusdszly Nmopfx Ahzsd Bundle length: 2330 mm Center distance between straightening rollers: 150 mm Support roller diameter: 290 mm Main drive motor: 30 kW Weight: 32 t Additional information: - Number of support rollers: 21/24 - Number of supports (top/bottom): 3 /3 - Traverse lift speed: 0.71 mm/sec - Traverse lift stroke: -18 mm to +42 mm - Max. tilting of lower traverse: 8 mm

Condition: used, Year of construction: 1997, pressure 0630 t stroke 300 mm no. of strokes 10- 75 Hub/min table-size 3600 x 2200 mm passage width 4000 mm ram surface 3600 x 2200 mm column travel -side 2000 mm ram adjustment 150 mm shut height (stroke down, adjustm. up) 1000 mm Gjdpfx Ahewx R Rdozeud voltage 400 V height over floor 7600 mm Depth of Press under floor 2500 mm total power requirement 160 kW weight of the machine ca. 225 t dimensions of the machine ca. 750 m² Complete feeding line comes with the machine. It works on a material width of 300- 1600 mm and a thickness of 0,5- 3 mm. Machine has two working tables which move in and out to the front. To the side machine has a stacking device with two pallets. It also has two stacking pallets to the backside. Machine has a Coil charging device of 3 Coils with 25 t, a decoiler Schnutz, a material feeder, a straightening machine and a roll feeder.

Condition: good (used), Year of construction: 1975, pressing force: 250 t, stroke length: 140 mm, table width: 750 mm, table length: 1,000 mm, Pressure: 250 t Throat: 400 mm Stroke: 30...140 mm Table size: 1000 x 750 mm Gujdpfxozlnnwj Ahzjd Passage opening in table: 360 x 400 mm Ram area: 630 x 500 mm Ram adjustment: 110 mm Total power requirement: 18 kW Machine weight approx.: 16 t

Condition: good (used), Year of construction: 1994, pressing force: 250 t, stroke length: 500 mm, table width: 630 mm, table length: 1,250 mm, Pressure: 250 t Throat depth: 360 mm Table size: 1250 x 630 mm Table diameter: 250 mm Ram clamping surface: 850 x 450 mm Guodszlnndopfx Ahzjd Installation height: 800 mm Piston stroke: up to 500 mm Piston diameter: 400/360 mm Ram speed downward: 200 mm/sec Ram speed upward: 110 mm/sec Total power requirement: 20.5 kW Machine weight approx.: 8 t

Condition: good (used), Year of construction: 1986, grinding depth: 500 mm, Grinding depth: 500 mm Internal diameter: 20...400 mm Workpiece spindle speed: 40...400 rpm Table speed: 0.1...8 m/min Rapid traverse: 10 m/min Total power consumption: 17 kW Machine weight approx.: 6.5 t Additional information: Grindable diameter with workpiece protection: internal / internal 20..400 mm; external 500 mm Max. workpiece diameter with workpiece protection: 500 mm Max. grinding depth: 315 mm Grindable taper angle: 60° Internal grinding spindle speeds: 2640...16500 rpm Drive power for surface grinding attachment: 4 kW Drive power for workpiece motor: 1.5 kW Gusdpfozlnmtex Ahzjd Workpiece spindle speeds: 40...400 rpm Table speed: 0.1...8 m/min Rapid traverse: 10 m/min Table travel: 630 mm Max. distance from the workpiece spindle flange to the grinding spindle support: 1250 mm

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 14023, travel distance X-axis: 1,140 mm, travel distance Y-axis: 910 mm, travel distance Z-axis: 875 mm, rapid traverse X-axis: 60 m/min, torque: 1,000 Nm, controller manufacturer: Siemens, controller model: 840 D, spindle speed (min.): 6,000 rpm, coolant supply: 60 bar, distance table center to spindle nose: 240 mm, Equipment: chip conveyor, documentation/manual, Siemens 840 D with network connection SK50 DIN69871 - pull stud DIN69872 Gsdpfx Aov Npm Hshzoud 6000 rpm, 2 gearbox speeds, max. torque 1000 Nm Tool changer chain with 80 positions 2 pallets 800x800, M16 hole grid High-pressure coolant through spindle, 50 bar Knoll paper band filter and chip scraper conveyor Year of manufacture Dec. 1999 (maximum single-shift operation)

Condition: like new (used), Year of construction: 1989, Sheet stamping press ERFURT PE2-H-315 ES Manufacturer: ERFURT Made in: Germany Specification: Max slide-block force over distance to bottom dead center 12.5 mm: 3150 kN Slide-block force over distance to bottom dead center 160 mm: 1100 kN Idle stroke amount: 25 mm Slide-block stroke: 500 mm Min closed die height: 680 mm Max closed die height: 1000 mm Moving table dimensions: 2800x1500 mm Die cushion: -Max stroke: 160 mm -Adjustable stroke: 160 mm -Max double-acting force: 630 kN -Max ejector force: 630 kN Main motor power: 45 kW Godpeyir Ukjfx Ahzsud Height above floor level: 7100 mm Press weight: 71.3 tons
